maserati quattroporte (2018) crankcase parts diagram

01.00.1 - crankcase

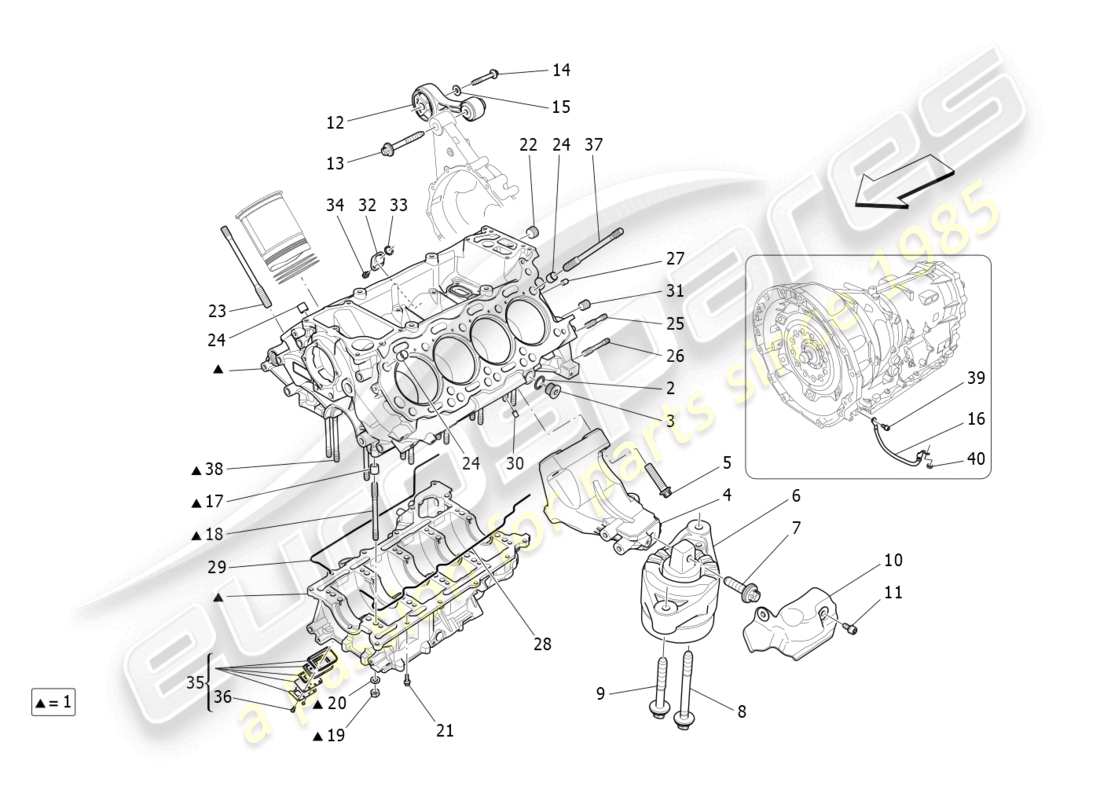

Maserati Quattroporte (2018) CRANKCASE Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 000
MPN: 670038688
ENGINE ASSEMBLY #SUBJECT TO Maserati TECHNICAL SERVICE AUTHORISATION#
Valid from assembly: 4034878 - 4041958. Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
from £24,112.18
from £24,112.18
# 001
MPN: 294784
engine block
Valid from engine: 0 - 282782. Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
from £2,840.89
from £2,840.89
# 001
MPN: 339344
engine block
Valid from engine: 282783. Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
from £2,840.89
from £2,840.89
# 002
MPN: 10263460
GASKET
Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
from £0.53
from £0.53
This part replaces part number 10261830
# 003
MPN: 282754
THREADED PLUG
Valid from assembly: 0 - 4038854. Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
from £1.81
from £1.81
# 004
MPN: 285965
RH ENGINE MOUNTING BRACKET
Valid from engine: 0 - 369830. Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
Supersession
Supersession
# 004
MPN: 285966
LH ENGINE MOUNTING BRACKET
Valid from engine: 0 - 369830. Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
Supersession
Supersession
# 004
MPN: 312959
LH ENGINE MOUNTING BRACKET
Valid from engine: 369831. Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
from £315.72
from £315.72
This part replaces part number 285966
# 004
MPN: 330935
RH ENGINE MOUNTING BRACKET
Valid from engine: 369831. Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
from £166.32
from £166.32
This part replaces part number 312958
# 005
MPN: 290126
SCREW [M12X60]
Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
from £32.53
from £32.53
# 005
MPN: 290127
SCREW [M12X50]
Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
from £12.40
from £12.40
# 006
MPN: 670038977
RH ENGINE BUSHING
Valid from assembly: 4034878 - 4041958. Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
Supersession
Supersession
# 006
MPN: 670038978
LH ENGINE BUSHING
Valid from assembly: 4034878 - 4042080. Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
Supersession
Supersession
# 006
MPN: 670175584
RH ENGINE BUSHING
Valid from assembly: 4034878. Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
from £144.34
from £144.34
This part replaces part number 670038977
# 007
MPN: 670003759
SCREW [M12X44]
Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
from £4.51
from £4.51
# 008
MPN: 670103084
SCREW
Valid from assembly: 4034878. Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
from £1.96
from £1.96
# 009
MPN: 670103084
SCREW
Valid from assembly: 4034878. Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
from £1.96
from £1.96
# 010
MPN: 670003983
LH HEAT SHIELD
Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
from £13.68
from £13.68
# 010
MPN: 670003985
RH HEAT SHIELD
Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
from £13.68
from £13.68
# 011
MPN: 675000172
SCREW
Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
from £0.64
from £0.64
# 012
MPN: 670004872
HIGH LINK ROD
Valid from assembly: 0 - 4041958. Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
from £60.22
from £60.22
# 013
MPN: 670003869
SCREW
Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
from £7.22
from £7.22
# 014
MPN: 675000146
SCREW [M12X80]
Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
from £3.43
from £3.43
# 015
MPN: 675000096
WASHER [D.12.2-28X3]
Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
from £0.90
from £0.90
# 016
MPN: 670003868
CABLE FOR ENGINE-FRAME EARTH
Valid from assembly: 0 - 4041958. Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
Supersession
Supersession
# 016
MPN: 670007404
CABLE FOR ENGINE-FRAME EARTH
Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
from £11.03
from £11.03
This part replaces part number 670003868 - and 2 more. Click to view details
# 017
MPN: 102725
CENTERING DOWEL
Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
from £0.63
from £0.63
# 018
MPN: 270465
STUD
Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
from £14.14
from £14.14
# 019
MPN: 133988
NUT [M10]
Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
from £0.47
from £0.47
This part replaces part number 186261
# 020
MPN: 178348
WASHER [D.10.2-20X2.4]
Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
from £0.47
from £0.47
# 021
MPN: 231620
SCREW [M6X25]
Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
from £0.49
from £0.49
# 022
MPN: 282753
THREADED PLUG
Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
from £3.84
from £3.84
# 023
MPN: 270464
STUD
Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
from £17.69
from £17.69
# 024
MPN: 185360
CENTERING DOWEL
Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
from £1.46
from £1.46
# 025
MPN: 278120
STUD
Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
from £14.14
from £14.14
# 026
MPN: 278119
STUD
Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
from £12.26
from £12.26
# 027
MPN: 175611
CENTERING DOWEL #IF ENGINE BLOCK WAS BE REPLACED WITH NEW 339344, PLEASE ORDER 311001#
Valid from engine: 0 - 282782. Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
from £1.01
from £1.01
# 027
MPN: 311001
CENTERING DOWEL
Valid from engine: 282783. Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
from £1.66
from £1.66
# 028
MPN: 296397
LH GASKET #PLEASE ORDER ALSO RH SIDE GASKET 296396#
Valid from engine: 0 - 282782. Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
from £35.82
from £35.82
# 028
MPN: 339289
LH GASKET #PLEASE ORDER ALSO RH SIDE GASKET 339298#
Valid from engine: 282783. Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
from £31.13
from £31.13
# 029
MPN: 296396
RH GASKET #PLEASE ORDER ALSO LH SIDE GASKET 296397#
Valid from engine: 0 - 282782. Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
Supersession
Supersession
# 029
MPN: 339298
RH GASKET #PLEASE ORDER ALSO LH SIDE GASKET 339289#
Valid from engine: 282783. Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
from £31.13
from £31.13
This part replaces part number 296396
# 030
MPN: 10839610
CENTERING DOWEL
Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
from £0.82
from £0.82
# 031
MPN: 291078
THREADED PLUG
Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
from £1.40
from £1.40
# 032
MPN: 265562
FLANGE
Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
from £15.25
from £15.25
# 033
MPN: 264447
O.R. GASKET
Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
from £0.47
from £0.47
# 034
MPN: 231617
SCREW [M6X18]
Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
from £0.53
from £0.53
# 035
MPN: 255138
BLOW BY VALVE ASSEMBLY
Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
from £53.91
from £53.91
# 036
MPN: 264889
SCREW
Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
# 037
MPN: 271564
STUD
Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
from £16.54
from £16.54
# 038
MPN: 270466
STUD
Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
from £15.71
from £15.71
# 039
MPN: 675000383
SCREW [M8X16]
Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
from £0.99
from £0.99
# 040
MPN: 675000505
NUT [M8]
Suitable for: AUTOMATIC | 3.8 BT V8 530 HP | USA
from £2.15
from £2.15
