Suitable for cars with: POWER SUNROOF.
Granted by MASERATI
Copyright MASERATI
maserati quattroporte (2018) sunroof parts diagram

09.71.1 - SUNROOF

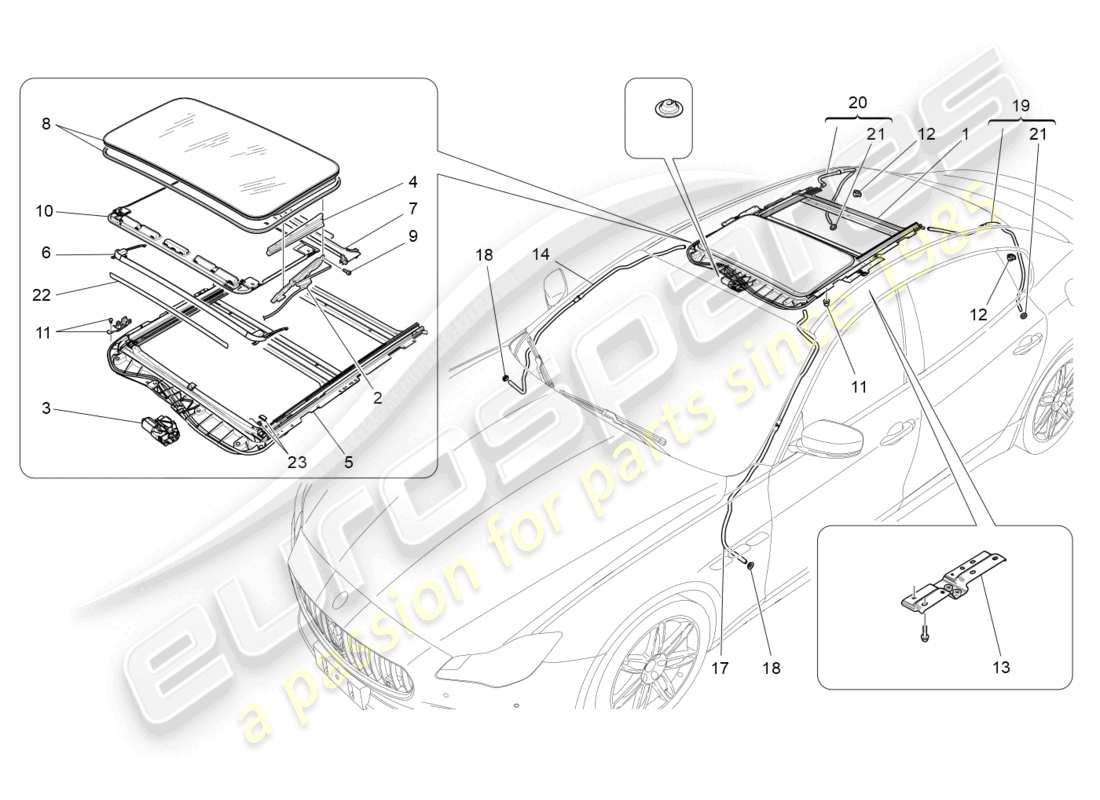

Maserati Quattroporte (2018) SUNROOF Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Key
                            Price
                            # 001
                            MPN: 670110245
                            SUNROOF ASSEMBLY
                            Valid from assembly: 4032032 - 4037250. Not for cars with: ALCANTARA ROOFLINING, ZEGNA EDITION INTERIORS. Colour: BLACK.
                            Supersession
                            Supersession
                            This part replaces part number 670044637
                            Genuine Maserati Part (no longer available to order)
                            # 001
                            MPN: 670110246
                            SUNROOF ASSEMBLY
                            Valid from assembly: 4032032 - 4037250. Not for cars with: ALCANTARA ROOFLINING, ZEGNA EDITION INTERIORS. Colour: GREY.
                            Supersession
                            Supersession
                            Genuine Maserati Part (no longer available to order)
                            # 001
                            MPN: 670110247
                            SUNROOF ASSEMBLY
                            Valid from assembly: 4032032 - 4037250. Not for cars with: ALCANTARA ROOFLINING, ZEGNA EDITION INTERIORS. Colour: SAND.
                            from £2,584.28
                            from £2,584.28
                            This part replaces part number 670044639
                            FULL SAND SUNROOF Genuine Maserati Part - New (to order)
                            # 001
                            MPN: 670110248
                            SUNROOF ASSEMBLY
                            Valid from assembly: 4031970 - 4037427. Suitable for cars with: ALCANTARA ROOFLINING. Not for cars with: ZEGNA EDITION INTERIORS. Colour: BLACK.
                            from £2,558.70
                            from £2,558.70
                            This part replaces part number 670044640
                            COMPLETE BLACK SUNROOF Genuine Maserati Part - New (to order)
                            # 001
                            MPN: 670110249
                            SUNROOF ASSEMBLY
                            Valid from assembly: 4031970 - 4037427. Suitable for cars with: ALCANTARA ROOFLINING. Not for cars with: ZEGNA EDITION INTERIORS. Colour: GREY.
                            Supersession
                            Supersession
                            Genuine Maserati Part (no longer available to order)
                            # 001
                            MPN: 670110250
                            SUNROOF ASSEMBLY
                            Valid from assembly: 4031970 - 4037427. Suitable for cars with: ALCANTARA ROOFLINING. Not for cars with: ZEGNA EDITION INTERIORS. Colour: DOVE GREY.
                            from £2,451.57
                            from £2,451.57
                            FULL TAUPE OPENING ROOF Genuine Maserati Part - New (to order)
                            # 001
                            MPN: 670110251
                            SUNROOF ASSEMBLY
                            Valid from assembly: 4031970 - 4037427. Suitable for cars with: ALCANTARA ROOFLINING. Not for cars with: ZEGNA EDITION INTERIORS. Colour: SAND.
                            from £2,584.28
                            from £2,584.28
                            FULL SAND SUNROOF Genuine Maserati Part - New (to order)
                            # 001
                            MPN: 670128032
                            SUNROOF ASSEMBLY
                            Valid from assembly: 4037251 - 4038225. Not for cars with: ALCANTARA ROOFLINING, ZEGNA EDITION INTERIORS. Colour: BLACK.
                            Supersession
                            Supersession
                            This part replaces part number 670110245
                            Genuine Maserati Part (no longer available to order)
                            # 001
                            MPN: 670128033
                            SUNROOF ASSEMBLY
                            Valid from assembly: 4037251 - 4038225. Not for cars with: ALCANTARA ROOFLINING, ZEGNA EDITION INTERIORS. Colour: GREY.
                            Supersession
                            Supersession
                            This part replaces part number 670110246
                            Genuine Maserati Part (no longer available to order)
                            # 001
                            MPN: 670128034
                            SUNROOF ASSEMBLY
                            Valid from assembly: 4037251 - 4038225. Not for cars with: ALCANTARA ROOFLINING, ZEGNA EDITION INTERIORS. Colour: SAND.
                            from £2,584.28
                            from £2,584.28
                            SUNROOF ASSEMBLY Genuine Maserati Part - New (to order)
                            # 001
                            MPN: 670128035
                            SUNROOF ASSEMBLY
                            Valid from assembly: 4037428 - 4038394. Suitable for cars with: ALCANTARA ROOFLINING. Not for cars with: ZEGNA EDITION INTERIORS. Colour: BLACK.
                            Supersession
                            Supersession
                            Genuine Maserati Part (no longer available to order)
                            # 001
                            MPN: 670128036
                            SUNROOF ASSEMBLY
                            Valid from assembly: 4037428 - 4038394. Suitable for cars with: ALCANTARA ROOFLINING. Not for cars with: ZEGNA EDITION INTERIORS. Colour: GREY.
                            Supersession
                            Supersession
                            This part replaces part number 670110249
                            Genuine Maserati Part (no longer available to order)
                            # 001
                            MPN: 670128037
                            SUNROOF ASSEMBLY
                            Valid from assembly: 4037428 - 4038394. Suitable for cars with: ALCANTARA ROOFLINING. Not for cars with: ZEGNA EDITION INTERIORS. Colour: DOVE GREY.
                            Supersession
                            Supersession
                            Genuine Maserati Part (no longer available to order)
                            # 001
                            MPN: 670128038
                            SUNROOF ASSEMBLY
                            Valid from assembly: 4037428 - 4038394. Suitable for cars with: ALCANTARA ROOFLINING. Not for cars with: ZEGNA EDITION INTERIORS. Colour: SAND.
                            from £2,584.28
                            from £2,584.28
                            SUNROOF ASSEMBLY Genuine Maserati Part - New (to order)
                            # 001
                            MPN: 670141586
                            SUNROOF ASSEMBLY
                            Valid from assembly: 4038226. Not for cars with: ALCANTARA ROOFLINING, ZEGNA EDITION INTERIORS. Colour: BLACK.
                            from £2,584.28
                            from £2,584.28
                            This part replaces part number 670128032
                            COMPLETE BLACK SUNROOF Genuine Maserati Part - New (to order)
                            # 001
                            MPN: 670141587
                            SUNROOF ASSEMBLY
                            Valid from assembly: 4038226. Not for cars with: ALCANTARA ROOFLINING, ZEGNA EDITION INTERIORS. Colour: GREY.
                            from £2,363.83
                            from £2,363.83
                            This part replaces part number 670128033
                            SUNROOF ASSEMBLY Genuine Maserati Part - New (to order)
                            # 001
                            MPN: 670141588
                            SUNROOF ASSEMBLY
                            Valid from assembly: 4038226. Not for cars with: ALCANTARA ROOFLINING, ZEGNA EDITION INTERIORS. Colour: SAND.
                            from £2,584.28
                            from £2,584.28
                            FULL SAND SUNROOF Genuine Maserati Part - New (to order)
                            # 001
                            MPN: 670141589
                            SUNROOF ASSEMBLY
                            Valid from assembly: 4038395 - 4039731. Suitable for cars with: ALCANTARA ROOFLINING. Not for cars with: ZEGNA EDITION INTERIORS. Colour: BLACK.
                            Supersession
                            Supersession
                            This part replaces part number 670128035
                            Genuine Maserati Part (no longer available to order)
                            # 001
                            MPN: 670141590
                            SUNROOF ASSEMBLY
                            Valid from assembly: 4038395 - 4039731. Suitable for cars with: ALCANTARA ROOFLINING. Not for cars with: ZEGNA EDITION INTERIORS. Colour: GREY.
                            Supersession
                            Supersession
                            This part replaces part number 670128036
                            Genuine Maserati Part (no longer available to order)
                            # 001
                            MPN: 670141591
                            SUNROOF ASSEMBLY
                            Valid from assembly: 4038395 - 4039731. Suitable for cars with: ALCANTARA ROOFLINING. Not for cars with: ZEGNA EDITION INTERIORS. Colour: DOVE GREY.
                            This part replaces part number 670128037
                            SUNROOF ASSEMBLY Genuine Maserati Part - New (to order)
                            # 001
                            MPN: 670141592
                            SUNROOF ASSEMBLY
                            Valid from assembly: 4038395 - 4039731. Suitable for cars with: ALCANTARA ROOFLINING. Not for cars with: ZEGNA EDITION INTERIORS. Colour: SAND.
                            Supersession
                            Supersession
                            Genuine Maserati Part (no longer available to order)
                            # 002
                            MPN: 980139303
                            RH DEVICE
                            from £90.31
                            from £90.31
                            RH MECHANISM 6109734A Genuine Maserati Part - New (to order)
                            # 002
                            MPN: 980139304
                            LH DEVICE
                            from £89.90
                            from £89.90
                            LH MECHANISM 6109735A Genuine Maserati Part - New (to order)
                            # 003
                            MPN: 673000063
                            GEAR MOTOR
                            from £306.14
                            from £306.14
                            GEARMOTOR 6113336A Genuine Maserati Part - New (to order)
                            # 004
                            MPN: 980139306
                            RH OPENING DEVICE GUARD
                            from £39.77
                            from £39.77
                            RH MECHANISM GUARD 6109725A Genuine Maserati Part - New (to order)
                            # 004
                            MPN: 980139307
                            LH OPENING DEVICE GUARD
                            from £39.77
                            from £39.77
                            LH MECHANISM GUARD 6109726A Genuine Maserati Part - New (to order)
                            # 005
                            MPN: 673008103
                            SUNROOF FRAME
                            Valid from assembly: 4031970.
                            from £409.01
                            from £409.01
                            This part replaces part number 673000443
                            COMPLETE SUNROOF FRAME Genuine Maserati Part - New (to order)
                            # 006
                            MPN: 673000051
                            DEFLECTOR
                            from £165.89
                            from £165.89
                            DEFLECTOR 6113337A Genuine Maserati Part - New (to order)
                            # 007
                            MPN: 980139310
                            SUNROOF GUIDE RAIL ASSEMBLY WITH BRACKETS
                            from £46.05
                            from £46.05
                            SUNROOF GUIDE RAIL ASSEMBLY Genuine Maserati Part - New (to order)
                            # 008
                            MPN: 673009009
                            COMPLETE GLASS
                            Valid from assembly: 4001247.
                            from £572.87
                            from £572.87
                            This part replaces part number 673003265
                            COMPLETE GLASS FOR SUNROOF Genuine Maserati Part - New (to order)
                            # 009
                            MPN: 980139314
                            SCREW [M3X8]
                            from £22.30
                            from £22.30
                            GLASS FASTENING SCREW 610973 Genuine Maserati Part - New (to order)
                            # 010
                            MPN: 673000055
                            SUN SCREEN #BEIGE#
                            Not for cars with: ALCANTARA ROOFLINING.
                            from £741.95
                            from £741.95
                            SUN VISOR 6113339A BEIGE Genuine Maserati Part - New (to order)
                            # 010
                            MPN: 673000056
                            SUN SCREEN #GRAY#
                            Not for cars with: ALCANTARA ROOFLINING.
                            from £741.95
                            from £741.95
                            SUN VISOR 6113340A GREY Genuine Maserati Part - New (to order)
                            # 010
                            MPN: 673000057
                            SUN SCREEN #BLACK#
                            Not for cars with: ALCANTARA ROOFLINING.
                            from £741.95
                            from £741.95
                            SUN VISOR 6113341A BLACK Genuine Maserati Part - New (to order)
                            # 010
                            MPN: 673000058
                            SUN SCREEN #GRAY#
                            Suitable for cars with: ALCANTARA ROOFLINING.
                            from £741.95
                            from £741.95
                            SUN VISOR 6113342A GREY ALCA Genuine Maserati Part - New (to order)
                            # 010
                            MPN: 673000059
                            SUN SCREEN #BEIGE#
                            Suitable for cars with: ALCANTARA ROOFLINING.
                            from £785.33
                            from £785.33
                            SUN VISOR 6113343A BEIGE ALC Genuine Maserati Part - New (to order)
                            # 010
                            MPN: 673000060
                            SUN SCREEN #BLACK#
                            Suitable for cars with: ALCANTARA ROOFLINING.
                            from £733.25
                            from £733.25
                            SUN VISOR 6113344A BLACK ALC Genuine Maserati Part - New (to order)
                            # 010
                            MPN: 673000061
                            SUN SCREEN #DOVE GREY#
                            Suitable for cars with: ALCANTARA ROOFLINING.
                            from £785.33
                            from £785.33
                            SUN VISOR 6113345A GRIGIO TO Genuine Maserati Part - New (to order)
                            # 011
                            MPN: 673000442
                            FASTENING CLIP KIT
                            from £16.73
                            from £16.73
                            FASTENING CLIPS KIT Genuine Maserati Part - New (to order)
                            # 012
                            MPN: 675000132
                            CLIP
                            from £0.73
                            from £0.73
                            CLIP Genuine Maserati Part - New (to order)
                            # 013
                            MPN: 670030311
                            RH CENTRAL BRACKET
                            Valid from assembly: 4012792.
                            from £13.29
                            from £13.29
                            This part replaces part number 670009467 which we have in stock
                            SUPPORT SUNROOF RT BRACKET Genuine Maserati Part - New (to order)
                            # 013
                            MPN: 670030312
                            LH CENTRAL BRACKET
                            Valid from assembly: 4012792.
                            from £13.29
                            from £13.29
                            This part replaces part number 670009468 which we have in stock
                            SUPPORT SUNROOF LT BRACKET Genuine Maserati Part - New (to order)
                            # 014
                            MPN: 670003339
                            RH FRONT WATER DRAIN PIPE
                            from £24.66
                            from £24.66
                            PIPE FOR WATER OUTLET Genuine Maserati Part - New (to order)
                            # 017
                            MPN: 670003340
                            LH FRONT WATER DRAIN PIPE
                            from £24.66
                            from £24.66
                            PIPE FOR WATER OUTLET Genuine Maserati Part - New (to order)
                            # 018
                            MPN: 670006239
                            PLUG
                            Valid from assembly: 0 - 4041958.
                            Supersession
                            Supersession
                            Genuine Maserati Part (no longer available to order)
                            # 018
                            MPN: 670031349
                            PLUG
                            from £3.12
                            from £3.12
                            This part replaces part number 670006239
                            PLUG Genuine Maserati Part - New (to order)
                            # 019
                            MPN: 670031321
                            LH REAR WATER DRAIN PIPE
                            Valid from assembly: 4021130.
                            from £38.01
                            from £38.01
                            This part replaces part number 670005394
                            LH REAR WATER DRAIN PIPE Genuine Maserati Part - New (to order)
                            # 020
                            MPN: 670031320
                            RH REAR WATER DRAIN PIPE
                            from £38.01
                            from £38.01
                            This part replaces part number 670005393
                            SUNROOF DRAIN REAR HOSE ASSEMBLY Genuine Maserati Part - New (to order)
                            # 021
                            MPN: 670005386
                            RUBBER
                            from £5.04
                            from £5.04
                            RUBBER Genuine Maserati Part - New (to order)
                            # 022
                            MPN: 670102014
                            ADHESIVE GASKET
                            from £9.41
                            from £9.41
                            This part replaces part number 675000336
                            ADHESIVE FLAP STICKER SUNROO Genuine Maserati Part - New (to order)
                            # 023
                            MPN: 673008033
                            COVERS AND SPRINGS KIT
                            Valid from assembly: 0 - 4038225.
                            from £41.26
                            from £41.26
                            CLAMPS WITH PLASTIC COVER Genuine Maserati Part - New (to order)
                            # 023
                            MPN: 673009181
                            COVERS AND SPRINGS KIT
                            Valid from assembly: 4038226.
                            from £41.26
                            from £41.26
                            CLAMPS WITH PLASTIC COVER Genuine Maserati Part - New (to order)
