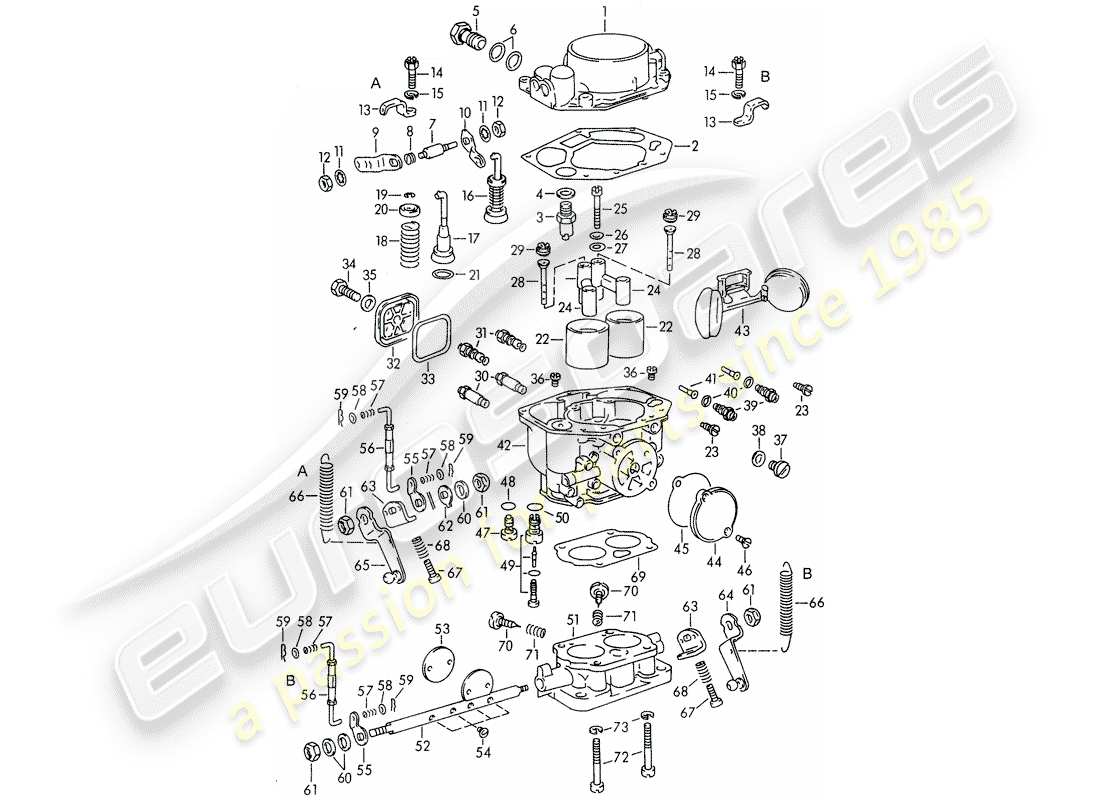

107-025 - SINGLE PARTS - FOR - CARBURETOR - PALLAS - ZENITH 32 NDIX
Porsche 1950 (356/356A) SINGLE PARTS - FOR - CARBURETOR - PALLAS - ZENITH 32 NDIX Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 61610086300
COVER
# 2
MPN: 61610086400
gasket - Discontinued part
# 2
MPN: 61610086401
GASKET
from £7.97
from £7.97
# -
-
GROOVED NAIL, - 2,6 X 5
# 3
MPN: 61610097400
VALVE - 125 - DISCONTINUED PART
# 3
MPN: 61610097401
VALVE - 125
from £22.18
from £22.18
# 4
MPN: 61610086600
SEAL RING
from £0.64
from £0.64
# 5
MPN: 61610086700
BANJO BOLT
from £15.30
from £15.30
# 6
MPN: 61610842300
SEAL RING - A 12 X 16
from £0.64
from £0.64
# 7
MPN: 61610086900
SHAFT
from £10.58
from £10.58
# 8
MPN: 61610087000
SPRING
# 9
MPN: 61610087100
LEVER
OUTER
from £9.88
from £9.88
# 10
MPN: 61610087200
LEVER
INNER
# 11
MPN: 61610087300
shake-proof washer - J 6,4
# 12
MPN: 61610087400
HEX. NUT - BM 6
from £1.66
from £1.66
# 13
MPN: 616 08139
BRACKET
# 14
MPN: 61610087700
SCREW
# 15
MPN: 61610087800
LOCK RING - B 5
from £0.98
from £0.98
# 16
MPN: 61610085000
PISTON - COMPLETE
from £52.55
from £52.55
# 17
MPN: 61610085000
PISTON
from £52.55
from £52.55
# 18
MPN: 61610085000
PISTON
from £52.55
from £52.55
# 19
MPN: 61610085000
PISTON
from £52.55
from £52.55
# 20
MPN: 61610085000
PISTON
from £52.55
from £52.55
# 21
MPN: 61610085000
PISTON
from £52.55
from £52.55
# 22
MPN: 61610082400
FUNNEL - 24
(1600)
# 22
MPN: 61610082500
FUNNEL - 28
(1600 S)
# 23
MPN: 61610082600
SCREW
# 24
MPN: 61610082700
NOZZLE HOLDER - BRACKET - WITH: - BOOSTER
from £24.87
from £24.87
# 25
MPN: 61610082800
SCREW
# 26
MPN: 61610083000
LOCK RING - A 5
from £0.60
from £0.60
# 27
MPN: 90002500302
WASHER
# 28
MPN: 61610083100
TUBE - 1 S
# 29
MPN: 61610083200
jet - 230
(1600)
# 29
MPN: 61610083300
jet - 220
(1600 S)
# 30
MPN: 61610083400
jet - 115
(1600)
# 30
MPN: 61610083500
jet - 130
(1600 S)
# 31
MPN: 61610083600
jet - 50
# 32
MPN: 61610083700
SEALING CAP
# 33
MPN: 61610083800
SEAL RING
from £7.84
from £7.84
# 34
MPN: 61610083900
SCREW, HEX. HD.
from £3.52
from £3.52
# 35
MPN: 61610084000
SEAL RING
from £0.60
from £0.60
# 36
MPN: 61610084100
jet - 120
(1600)
from £6.15
from £6.15
# 36
MPN: 61610084200
jet - 140
(1600 S)
# 37
MPN: 61610084300
THREADED PLUG
from £2.89
from £2.89
# 38
MPN: 61610084401
SEAL RING
from £2.04
from £2.04
# 39
MPN: 61610084500
jet - 50
(1600)
from £9.97
from £9.97
# 39
MPN: 61610084600
jet - 40
(1600 S)
# 40
MPN: 61610084700
SEAL RING
from £1.54
from £1.54
# 41
MPN: 61610084800
TUBE - NR. 8 - SHORT
from £5.10
from £5.10
# 42
MPN: 61610082200
HOUSING
# 43
MPN: 61610082300
FLOAT - WITH: - ARTICULATED SUPPORT - DISCONTINUED PART
# 43
MPN: 61610082301
FLOAT - WITHOUT: - ARTICULATED SUPPORT
from £48.91
from £48.91
# 44
MPN: 61610086000
COVER
# 45
MPN: 61610086200
GASKET
from £3.14
from £3.14
# -
-
shake-proof washer - V 5,3
# 46
MPN: 61610086100
FILLISTER HD. SCREW
from £1.27
from £1.27
# 47
MPN: 61610085600
VALVE
# 48
MPN: 61610085701
SEAL RING
from £0.60
from £0.60
# 49
MPN: 61610085800
VALVE - COMPLETE
# 50
MPN: 61610085901
SEAL RING
from £0.60
from £0.60
# 51
MPN: 61610080100
throttle body - without: - Throttle shaft - and - Accessories
# 52
MPN: PCG10080200
SHAFT
from £88.98
from £88.98
# 53
MPN: 61610080300
flap
from £87.64
from £87.64
# 54
MPN: 61610080400
FILLISTER HD. SCREW
# 55
MPN: 61610080800
LEVER
from £4.08
from £4.08
# 56
MPN: 61610080900
CONNECTING ROD
from £41.15
from £41.15
# 57
MPN: 61610081000
SPRING
from £1.47
from £1.47
# 58
MPN: 61610081100
WASHER
# 59
MPN: 61610081200
RETAINING SPRING
from £5.98
from £5.98
# 60
MPN: 61610081600
WASHER
# 61
MPN: 61610081700
HEX. NUT
from £2.55
from £2.55
# 62
MPN: 61610081500
WASHER
# 63
MPN: 61610080500
SUPPORT
from £7.86
from £7.86
# 64
MPN: 616 08034
LEVER
RIGHT
from £53.37
from £53.37
# 65
MPN: 616 08013
LEVER
LEFT
from £57.90
from £57.90
# 66
MPN: 616 08119
TENSION SPRING
from £17.21
from £17.21
# 67
MPN: 61610081300
ADJUSTING SCREW
from £3.75
from £3.75
# 68
MPN: 61610081400
PRESSURE SPRING
from £2.88
from £2.88
# 69
MPN: 61610082100
GASKET
from £2.98
from £2.98
# 70
MPN: 61610081800
idle adjusting screw
from £7.29
from £7.29
# 71
MPN: 61610081400
PRESSURE SPRING
from £2.88
from £2.88
# 72
MPN: 61610081900
SCREW, CHEESE HD.
# 73
MPN: 61610082000
LOCK RING
-part-diagram-107-030.webp "PORSCHE 1950 (356/356A) SINGLE PARTS - FOR - CARBURETOR - SOLEX 40 PBIC - M >> 81 200 PARTS DIAGRAM")
-part-diagram-107-035.webp "PORSCHE 1950 (356/356A) SINGLE PARTS - FOR - FUEL PUMP - 616. 08.401 PARTS DIAGRAM")
-part-diagram-107-040.webp "PORSCHE 1950 (356/356A) CARBURETOR - SOLEX 40 P II - SOLEX 40 P II-4 - AND - FUEL SUPPLY LINE - M 90 501 >> 91 000 PARTS DIAGRAM")
-part-diagram-107-042.webp "PORSCHE 1950 (356/356A) CARBURETOR - SOLEX 40 P II-4/WEBER - AND - FUEL SUPPLY LINE PARTS DIAGRAM")
-part-diagram-107-045.webp "PORSCHE 1950 (356/356A) FUEL PUMP - -AUTOPULSE 500- - ELECTRIC - WITH: - FUEL LINE PARTS DIAGRAM")
-part-diagram-107-055.webp "PORSCHE 1950 (356/356A) SINGLE PARTS - FOR - FUEL PUMP - AUTOPULSE 500 - ELECTRIC PARTS DIAGRAM")
-part-diagram-198-000.webp "PORSCHE 1950 (356/356A) GASKET SET PARTS DIAGRAM")
-part-diagram-198-015.webp "PORSCHE 1950 (356/356A) ENGINE OIL - PORSCHE CLASSIC 20W50 PARTS DIAGRAM")
-part-diagram-201-000.webp "PORSCHE 1950 (356/356A) FUEL TANK PARTS DIAGRAM")
-part-diagram-202-000.webp "PORSCHE 1950 (356/356A) EXHAUST SYSTEM - F >> 101 692 - F >> 150 000 - F >> 83 791 PARTS DIAGRAM")
-part-diagram-202-005.webp "PORSCHE 1950 (356/356A) EXHAUST SYSTEM - F 101 693 >> - F 150 001 >> - F 83 792 >> PARTS DIAGRAM")
-part-diagram-202-010.webp "PORSCHE 1950 (356/356A) EXHAUST SYSTEM - M 90 501 >> 91 000 PARTS DIAGRAM")
-part-diagram-202-012.webp "PORSCHE 1950 (356/356A) SILENCER - AND - ACCESSORIES PARTS DIAGRAM")
-part-diagram-202-013.webp "PORSCHE 1950 (356/356A) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-202-015.webp "PORSCHE 1950 (356/356A) HEATING AIR SUPPLY PARTS DIAGRAM")
-part-diagram-298-005.webp "PORSCHE 1950 (356/356A) PORSCHE CLASSIC - ADDITIVE - FOR FUEL PARTS DIAGRAM")
-part-diagram-301-000.webp "PORSCHE 1950 (356/356A) CLUTCH PARTS DIAGRAM")
-part-diagram-301-005.webp "PORSCHE 1950 (356/356A) CLUTCH PARTS DIAGRAM")
-part-diagram-301-007.webp "PORSCHE 1950 (356/356A) CLUTCH PARTS DIAGRAM")
-part-diagram-301-010.webp "PORSCHE 1950 (356/356A) CLUTCH RELEASE - FOR - TUNNEL - TRANSMISSION - G 11 001 >> 25 000 - - M 90 501 >> 91 000 PARTS DIAGRAM")
-part-diagram-301-012.webp "PORSCHE 1950 (356/356A) CLUTCH RELEASE - G >> 25 000 PARTS DIAGRAM")
-part-diagram-301-015.webp "PORSCHE 1950 (356/356A) CLUTCH RELEASE - FOR - TRANSMISSION CASE - DIVIDED PARTS DIAGRAM")
-part-diagram-301-020.webp "PORSCHE 1950 (356/356A) CLUTCH - G 25 001 >> PARTS DIAGRAM")
-part-diagram-301-022.webp "PORSCHE 1950 (356/356A) CLUTCH PARTS DIAGRAM")
-part-diagram-301-025.webp "PORSCHE 1950 (356/356A) CLUTCH RELEASE - G 25 001 >> PARTS DIAGRAM")
-part-diagram-301-027.webp "PORSCHE 1950 (356/356A) CLUTCH RELEASE - G 25 001 >> PARTS DIAGRAM")
-part-diagram-302-000.webp "PORSCHE 1950 (356/356A) TRANSMISSION CASE - WITH: - TRANSMISSION SUSPENSION PARTS DIAGRAM")
-part-diagram-302-005.webp "PORSCHE 1950 (356/356A) TRANSMISSION CASE - WITH: - TRANSMISSION SUSPENSION PARTS DIAGRAM")
-part-diagram-302-010.webp "PORSCHE 1950 (356/356A) TRANSMISSION CASE - WITH: - TRANSMISSION SUSPENSION - FOR - TUNNEL TRANSMISSION PARTS DIAGRAM")
-part-diagram-303-000.webp "PORSCHE 1950 (356/356A) GEARS AND SHAFTS - FOR - TRANSMISSION PARTS DIAGRAM")
-part-diagram-303-005.webp "PORSCHE 1950 (356/356A) GEARS AND SHAFTS - FOR - TRANSMISSION PARTS DIAGRAM")
-part-diagram-305-000.webp "PORSCHE 1950 (356/356A) DIFFERENTIAL PARTS DIAGRAM")
-part-diagram-401-000.webp "PORSCHE 1950 (356/356A) FRONT AXLE - LUBRICANTS PARTS DIAGRAM")
-part-diagram-403-000.webp "PORSCHE 1950 (356/356A) STEERING WHEEL - INTERMEDIATE STEERING SHAFT - STEERING TRACK ROD - AND - SWING LEVER PARTS DIAGRAM")
-part-diagram-403-005.webp "PORSCHE 1950 (356/356A) STEERING WHEEL - INTERMEDIATE STEERING SHAFT - STEERING TRACK ROD - AND - SWING LEVER PARTS DIAGRAM")
-part-diagram-403-010.webp "PORSCHE 1950 (356/356A) STEERING GEAR - AND - STEERING COUPLING - F >> 101 692 - F >> 61 892 - F >> 83 791 PARTS DIAGRAM")
-part-diagram-403-015.webp "PORSCHE 1950 (356/356A) STEERING GEAR - F 101 693 >> - F 61 893 >> - F 83 792 >> PARTS DIAGRAM")
-part-diagram-501-000.webp "PORSCHE 1950 (356/356A) REAR AXLE PARTS DIAGRAM")
-part-diagram-501-005.webp "PORSCHE 1950 (356/356A) REAR AXLE PARTS DIAGRAM")
-part-diagram-601-000.webp "PORSCHE 1950 (356/356A) WHEELS PARTS DIAGRAM")
-part-diagram-601-005.webp "PORSCHE 1950 (356/356A) PERFORATED DISC WHEEL - CENTRAL LOCKING PARTS DIAGRAM")
-part-diagram-602-000.webp "PORSCHE 1950 (356/356A) BRAKE PARTS DIAGRAM")
-part-diagram-604-000.webp "PORSCHE 1950 (356/356A) BRAKE MASTER CYLINDER - AND - BRAKE LINES PARTS DIAGRAM")
-part-diagram-698-005.webp "PORSCHE 1950 (356/356A) BRAKE FLUID - PORSCHE CLASSIC PARTS DIAGRAM")
-part-diagram-701-000.webp "PORSCHE 1950 (356/356A) TRANSMISSION CONTROL PARTS DIAGRAM")
-part-diagram-701-005.webp "PORSCHE 1950 (356/356A) HANDBRAKE PARTS DIAGRAM")
-part-diagram-701-010.webp "PORSCHE 1950 (356/356A) HANDBRAKE PARTS DIAGRAM")
-part-diagram-702-000.webp "PORSCHE 1950 (356/356A) PEDALS PARTS DIAGRAM")
-part-diagram-702-005.webp "PORSCHE 1950 (356/356A) PEDALS PARTS DIAGRAM")
-part-diagram-801-005.webp "PORSCHE 1950 (356/356A) FRAME PARTS DIAGRAM")
-part-diagram-801-010.webp "PORSCHE 1950 (356/356A) FRAME PARTS DIAGRAM")
-part-diagram-801-015.webp "PORSCHE 1950 (356/356A) FRAME - SINGLE PARTS PARTS DIAGRAM")
-part-diagram-801-020.webp "PORSCHE 1950 (356/356A) FRAME - SINGLE PARTS PARTS DIAGRAM")
-part-diagram-801-025.webp "PORSCHE 1950 (356/356A) BODY SHELL - INTERIOR PANELLING PARTS DIAGRAM")
-part-diagram-801-030.webp "PORSCHE 1950 (356/356A) BODY SHELL - INTERIOR PANELLING PARTS DIAGRAM")
-part-diagram-802-000.webp "PORSCHE 1950 (356/356A) EXTERIOR PANELLING PARTS DIAGRAM")
-part-diagram-802-005.webp "PORSCHE 1950 (356/356A) EXTERIOR PANELLING - FENDER PARTS DIAGRAM")
-part-diagram-802-010.webp "PORSCHE 1950 (356/356A) EXTERIOR PANELLING - FENDER PARTS DIAGRAM")
-part-diagram-802-015.webp "PORSCHE 1950 (356/356A) BUMPER PARTS DIAGRAM")
-part-diagram-803-000.webp "PORSCHE 1950 (356/356A) COVER - - AND - WITH INSTALLATION PARTS - TO FIT USE WORKSHOP MATERIAL PARTS DIAGRAM")
-part-diagram-804-000.webp "PORSCHE 1950 (356/356A) DOOR - WITH: PARTS DIAGRAM")
-part-diagram-804-001.webp "PORSCHE 1950 (356/356A) DOOR HANDLE, OUTER - AND - SINGLE PARTS PARTS DIAGRAM")
-part-diagram-804-005.webp "PORSCHE 1950 (356/356A) DOOR - WITH: - ACCESSORIES PARTS DIAGRAM")
-part-diagram-805-000.webp "PORSCHE 1950 (356/356A) WINDOW GLAZING PARTS DIAGRAM")
-part-diagram-805-005.webp "PORSCHE 1950 (356/356A) WINDSHIELD GLASS PARTS DIAGRAM")
-part-diagram-805-010.webp "PORSCHE 1950 (356/356A) SIDE WINDOW - DOOR WINDOW PARTS DIAGRAM")
-part-diagram-805-015.webp "PORSCHE 1950 (356/356A) DOOR WINDOW PARTS DIAGRAM")
-part-diagram-805-020.webp "PORSCHE 1950 (356/356A) DOOR WINDOW - F 150 001 >> PARTS DIAGRAM")
-part-diagram-805-025.webp "PORSCHE 1950 (356/356A) WASHER - SPECIAL MODEL PARTS DIAGRAM")
-part-diagram-807-000.webp "PORSCHE 1950 (356/356A) TRIMS - FOOTWELL PARTS DIAGRAM")
-part-diagram-807-005.webp "PORSCHE 1950 (356/356A) TRIMS - INTERIOR EQUIPMENT PARTS DIAGRAM")
-part-diagram-807-010.webp "PORSCHE 1950 (356/356A) BODY SHELL - SOUND ABSORBER PARTS DIAGRAM")
-part-diagram-808-000.webp "PORSCHE 1950 (356/356A) FRONT SEAT - AND - EMERGENCY SEAT PARTS DIAGRAM")
-part-diagram-808-005.webp "PORSCHE 1950 (356/356A) FRONT SEAT PARTS DIAGRAM")
-part-diagram-809-000.webp "PORSCHE 1950 (356/356A) DASHBOARD PARTS DIAGRAM")
-part-diagram-809-005.webp "PORSCHE 1950 (356/356A) DASHBOARD PARTS DIAGRAM")
-part-diagram-809-010.webp "PORSCHE 1950 (356/356A) DASHBOARD PARTS DIAGRAM")
-part-diagram-810-000.webp "PORSCHE 1950 (356/356A) DECORATIVE FITTINGS PARTS DIAGRAM")
-part-diagram-811-000.webp "PORSCHE 1950 (356/356A) TOP FRAME PARTS DIAGRAM")
-part-diagram-811-005.webp "PORSCHE 1950 (356/356A) TOP FRAME PARTS DIAGRAM")
-part-diagram-811-010.webp "PORSCHE 1950 (356/356A) CONVERTIBLE TOP COVERING PARTS DIAGRAM")
-part-diagram-811-015.webp "PORSCHE 1950 (356/356A) CONVERTIBLE TOP - CONVERTIBLE TOP COVERING PARTS DIAGRAM")
-part-diagram-811-020.webp "PORSCHE 1950 (356/356A) TOP FRAME - TONNEAU COVER PARTS DIAGRAM")
-part-diagram-813-000.webp "PORSCHE 1950 (356/356A) VALVE PARTS DIAGRAM")
-part-diagram-813-005.webp "PORSCHE 1950 (356/356A) VALVE PARTS DIAGRAM")
-part-diagram-901-000.webp "PORSCHE 1950 (356/356A) ELECTRICAL EQUIPMENT - ENGINE PARTS DIAGRAM")
-part-diagram-901-005.webp "PORSCHE 1950 (356/356A) ELECTRICAL EQUIPMENT - ENGINE - M 90 501 >> 91 000 PARTS DIAGRAM")
-part-diagram-901-010.webp "PORSCHE 1950 (356/356A) ELECTRICAL EQUIPMENT - ENGINE PARTS DIAGRAM")
-part-diagram-901-015.webp "PORSCHE 1950 (356/356A) DISTRIBUTOR - DRIVING MECHANISM PARTS DIAGRAM")
-part-diagram-904-000.webp "PORSCHE 1950 (356/356A) WINDSHIELD WASHER UNIT PARTS DIAGRAM")
-part-diagram-904-005.webp "PORSCHE 1950 (356/356A) WINDSCREEN WIPER SYSTEM PARTS DIAGRAM")
-part-diagram-904-010.webp "PORSCHE 1950 (356/356A) WINDSCREEN WIPER SYSTEM PARTS DIAGRAM")
-part-diagram-904-015.webp "PORSCHE 1950 (356/356A) WINDSHIELD WASHER UNIT - WINDSCREEN WIPER SYSTEM PARTS DIAGRAM")
-part-diagram-905-000.webp "PORSCHE 1950 (356/356A) HEADLAMP - AND - SWITCH PARTS DIAGRAM")
-part-diagram-905-005.webp "PORSCHE 1950 (356/356A) HEADLAMP - LIGHTS - AND - SWITCH - BATTERY PARTS DIAGRAM")
-part-diagram-906-000.webp "PORSCHE 1950 (356/356A) INSTRUMENTS PARTS DIAGRAM")
-part-diagram-906-005.webp "PORSCHE 1950 (356/356A) INSTRUMENTS PARTS DIAGRAM")
-part-diagram-906-006.webp "PORSCHE 1950 (356/356A) BUTTON - SET - SWITCH PARTS DIAGRAM")
-part-diagram-906-010.webp "PORSCHE 1950 (356/356A) DRIVING MECHANISM - TACHOMETER PARTS DIAGRAM")
-part-diagram-001-000.webp "PORSCHE 1950 (356/356A) TOOL - AND - ACCESSORIES - FIRST AID KIT PARTS DIAGRAM")
-part-diagram-001-003.webp "PORSCHE 1950 (356/356A) CLEANING AGENT - PORSCHE CLASSIC PARTS DIAGRAM")
-part-diagram-001-005.webp "PORSCHE 1950 (356/356A) ACCESSORIES PARTS DIAGRAM")
-part-diagram-001-010.webp "PORSCHE 1950 (356/356A) SCHLUESSEL-ETUI - LEATHER PARTS DIAGRAM")
-part-diagram-001-015.webp "PORSCHE 1950 (356/356A) ACCESSORIES - PORSCHE CLASSIC PARTS DIAGRAM")
-part-diagram-002-000.webp "PORSCHE 1950 (356/356A) EMBLEM - STICKER PARTS DIAGRAM")
-part-diagram-002-003.webp "PORSCHE 1950 (356/356A) IDENTIFICATION PLATE PARTS DIAGRAM")
-part-diagram-002-005.webp "PORSCHE 1950 (356/356A) INSTRUCTION MANUAL - CUSTOMER SERVICE BOOKLET PARTS DIAGRAM")
-part-diagram-101-005.webp "PORSCHE 1950 (356/356A) CRANKCASE - M >> 10 199 - M >> 21 780 - M >> 50 099 - M >> 21 999 - M >> 33 899 - M >> 40 999 PARTS DIAGRAM")
-part-diagram-101-010.webp "PORSCHE 1950 (356/356A) CRANKCASE - M 22 001 >> - M 50 101 >> - M 33 901 >> - M 41 001 >> - M 60 001 >> - M 80 001 >> PARTS DIAGRAM")
-part-diagram-101-015.webp "PORSCHE 1950 (356/356A) CRANKCASE - M 90 501 >> 91 000 PARTS DIAGRAM")
-part-diagram-101-017.webp "PORSCHE 1950 (356/356A) CRANKCASE PARTS DIAGRAM")
-part-diagram-102-000.webp "PORSCHE 1950 (356/356A) CRANKSHAFT - M >> 10 199 - M >> 21 780 - M >> 50 099 - M >> 21 999 - M >> 33 899 - M >> 40 999 PARTS DIAGRAM")
-part-diagram-102-005.webp "PORSCHE 1950 (356/356A) CRANKSHAFT - M 22 001 >> - M 50 101 >> - M 33 901 >> - M 41 001 >> - M 60 001 >> - M 80 001 >> PARTS DIAGRAM")
-part-diagram-102-010.webp "PORSCHE 1950 (356/356A) CRANKSHAFT - M 90 501 >> 91 000 PARTS DIAGRAM")
-part-diagram-102-012.webp "PORSCHE 1950 (356/356A) CRANKSHAFT PARTS DIAGRAM")
-part-diagram-103-000.webp "PORSCHE 1950 (356/356A) CYLINDER HEAD - CYLINDER WITH PISTONS - M >> 10 199 - M >> 21 780 - M >> 50 099 - M >> 21 999 - M >> 33 899 - M >> 40 999 PARTS DIAGRAM")
-part-diagram-103-005.webp "PORSCHE 1950 (356/356A) CYLINDER HEAD - CYLINDER WITH PISTONS - M 22 001 >> - M 50 101 >> - M 33 901 >> - M 41 001 >> - M 60 001 >> - M 80 001 >> PARTS DIAGRAM")
-part-diagram-103-010.webp "PORSCHE 1950 (356/356A) CYLINDER HEAD - CYLINDER WITH PISTONS - M 90 501 >> 91 000 PARTS DIAGRAM")
-part-diagram-103-012.webp "PORSCHE 1950 (356/356A) CYLINDER HEAD - CYLINDER WITH PISTONS PARTS DIAGRAM")
-part-diagram-103-015.webp "PORSCHE 1950 (356/356A) CAMSHAFT - M >> 10 199 - M >> 21 780 - M >> 50 099 - M >> 21 999 - M >> 33 899 - M >> 40 999 PARTS DIAGRAM")
-part-diagram-103-020.webp "PORSCHE 1950 (356/356A) CAMSHAFT - M 22 001 >> - M 50 101 >> - M 33 901 >> - M 41 001 >> - M 60 001 >> - M 80 001 >> PARTS DIAGRAM")
-part-diagram-103-025.webp "PORSCHE 1950 (356/356A) DRIVING MECHANISM - FOR - VALVE CONTROL - M 90 501 >> 91 000 PARTS DIAGRAM")
-part-diagram-103-027.webp "PORSCHE 1950 (356/356A) DRIVING MECHANISM - FOR - VALVE CONTROL PARTS DIAGRAM")
-part-diagram-103-030.webp "PORSCHE 1950 (356/356A) VALVE CONTROL - M 90 501 >> 91 000 PARTS DIAGRAM")
-part-diagram-103-032.webp "PORSCHE 1950 (356/356A) VALVE CONTROL PARTS DIAGRAM")
-part-diagram-104-000.webp "PORSCHE 1950 (356/356A) ENGINE LUBRICATION - M >> 67 000 - M >> 81 200 PARTS DIAGRAM")
-part-diagram-104-005.webp "PORSCHE 1950 (356/356A) ENGINE LUBRICATION - M 67 001 >> - M 81 201 >> PARTS DIAGRAM")
-part-diagram-104-007.webp "PORSCHE 1950 (356/356A) ENGINE LUBRICATION - OIL COOLER PARTS DIAGRAM")
-part-diagram-104-010.webp "PORSCHE 1950 (356/356A) OIL CONTAINER - M 90 501 >> 91 000 PARTS DIAGRAM")
-part-diagram-104-012.webp "PORSCHE 1950 (356/356A) OIL CONTAINER - OIL FILTER PARTS DIAGRAM")
-part-diagram-104-015.webp "PORSCHE 1950 (356/356A) OIL PUMP PARTS DIAGRAM")
-part-diagram-105-000.webp "PORSCHE 1950 (356/356A) AIR COOLING PARTS DIAGRAM")
-part-diagram-105-005.webp "PORSCHE 1950 (356/356A) AIR COOLING PARTS DIAGRAM")
-part-diagram-105-007.webp "PORSCHE 1950 (356/356A) AIR COOLING PARTS DIAGRAM")
-part-diagram-107-000.webp "PORSCHE 1950 (356/356A) CARBURETOR - SOLEX 32PBJ - SOLEX 40PJCB - AND - FUEL SUPPLY LINE - FUEL PUMP PARTS DIAGRAM")
-part-diagram-107-005.webp "PORSCHE 1950 (356/356A) CARBURETOR - SOLEX 32PBJ - SOLEX 40PJCB - AND - FUEL SUPPLY LINE PARTS DIAGRAM")
-part-diagram-107-010.webp "PORSCHE 1950 (356/356A) CARBURETOR - PALLAS-ZENIT 32NDIX - AND - FUEL SUPPLY LINE - M 67 001 >> - M 81 201 >> PARTS DIAGRAM")
-part-diagram-107-015.webp "PORSCHE 1950 (356/356A) SINGLE PARTS - FOR - CARBURETOR - SOLEX 32 PBI PARTS DIAGRAM")
-part-diagram-107-020.webp "PORSCHE 1950 (356/356A) SINGLE PARTS - FOR - CARBURETOR - SOLEX 32 PBIC PARTS DIAGRAM")
