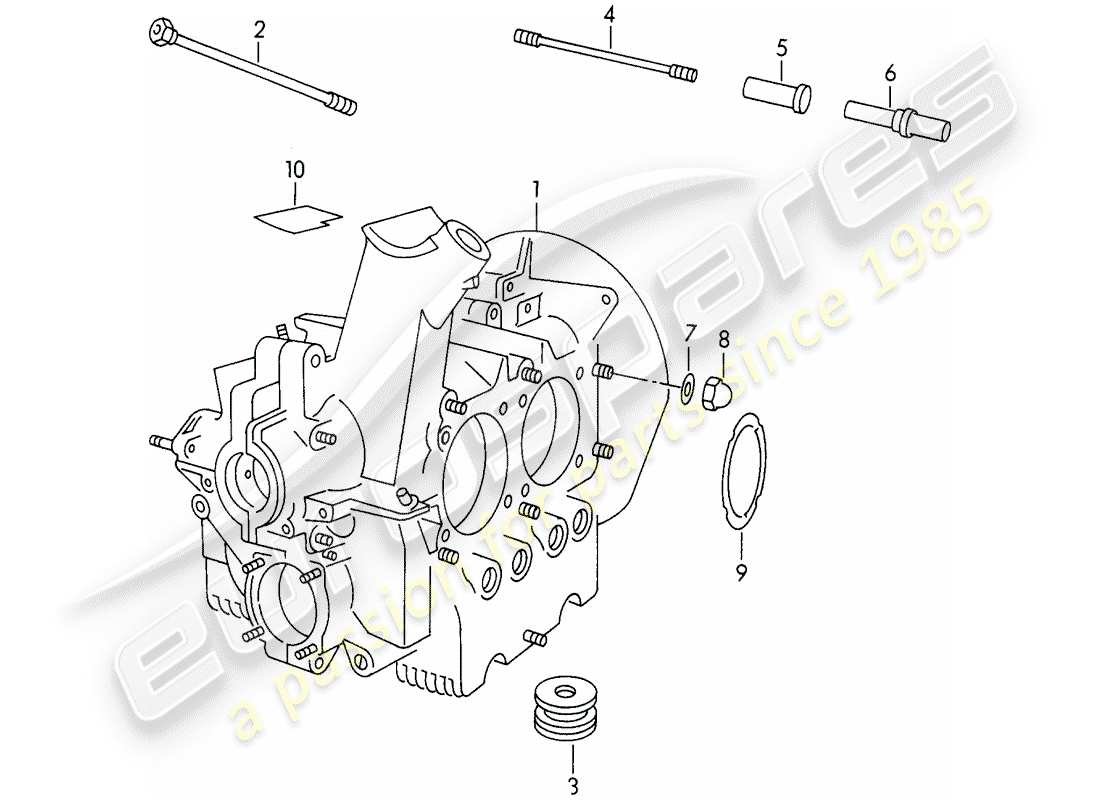

101-005 - CRANKCASE - M >> 10 199 - M >> 21 780 - M >> 50 099 - M >> 21 999 - M >> 33 899 - M >> 40 999
Porsche 1956 (356/356A) CRANKCASE - M >> 10 199 - M >> 21 780 - M >> 50 099 - M >> 21 999 - M >> 33 899 - M >> 40 999 Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 506 01101
CRANKCASE - VW 101 021 - FOR - CYLINDER - 80 MM
(1300)
# -
-
CRANKCASE - FOR - CYLINDER - 74,5 MM
(1100)
# -
-
crankcase
(1500)
# -
-
crankcase
(1500 S)
# 2
MPN: 528 01107
SCREW, HEX. HD. - TENSIONING DEVICE
(1300 1500 /S)
# 3
MPN: 369 01101
MAGNET
# 4
MPN: 369 01110
STUD
# 5
MPN: 369 04211
CYLINDER HEAD NUT
# 6
MPN: 369 04210
CYLINDER HEAD NUT
# 7
MPN: 369 01111
WASHER - COPPER
from £2.54
from £2.54
# 8
MPN: 369 011121
CAP NUT
# 9
MPN: 369 04 075
GASKET - CYLINDER - $ 73,5 MM - ABIL
(1100)
# 9
MPN: 500 04103
GASKET - - CYLINDER - $ 80 MM - COPPER
(1300 1500 /S)
from £13.54
from £13.54
# 10
MPN: 369 01105
GASKET
