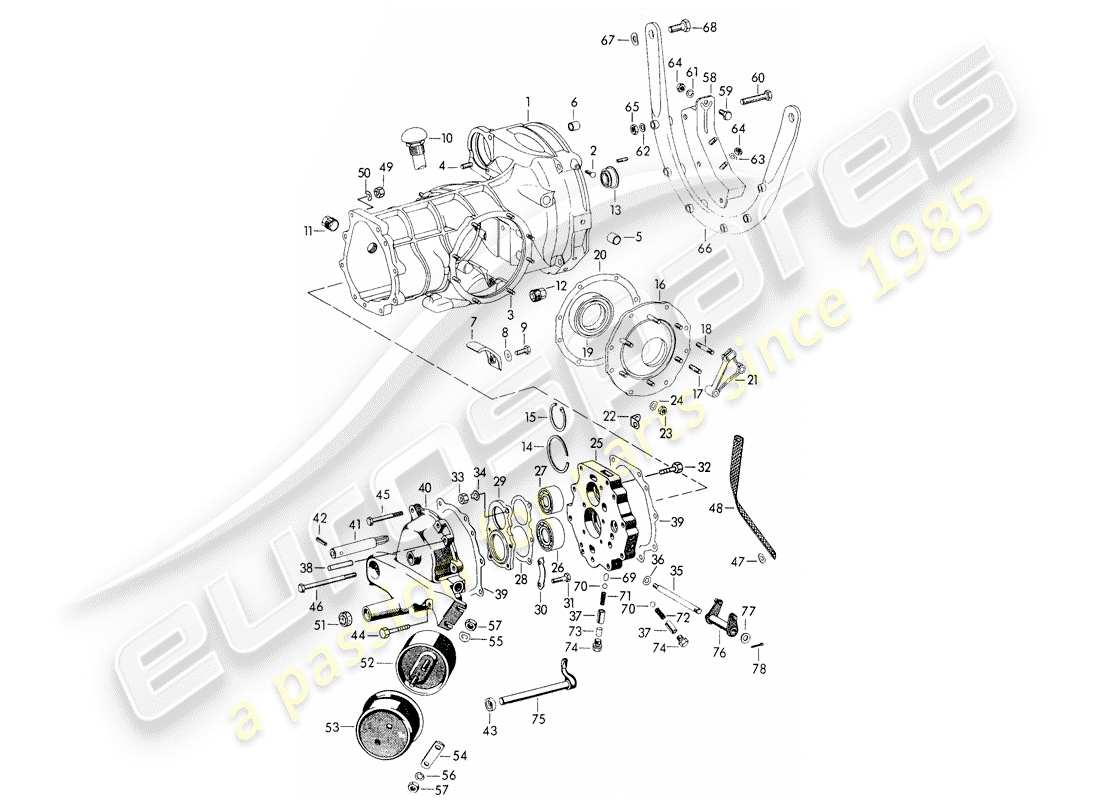

302-010 - TRANSMISSION CASE - WITH: - TRANSMISSION SUSPENSION - FOR - TUNNEL TRANSMISSION
Porsche 1956 (356/356A) TRANSMISSION CASE - WITH: - TRANSMISSION SUSPENSION - FOR - TUNNEL TRANSMISSION Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 74130090110
transmission case - complete - G 11 001 >> 25 000
# 1
MPN: 71630101000
transmission case - complete - G 25 001 >>
# 2
MPN: 90009300402
grooved nail, - 6 X 18 - G 25 001 >>
# 3
MPN: 000 95138
STUD
# 4
MPN: 90006101402
stud - BM 10 X 22 - G 11 001 >> 25 000
# 4
MPN: 90006100700
stud - BM 10 X 22 - G 25 001 >>
# 5
MPN: 644 20117
BUSHING
from £18.30
from £18.30
# 6
MPN: 644 09401
BUSHING - STARTER - SHAFT
from £11.34
from £11.34
# 7
MPN: 519 20133
BAFFLE PLATE
from £6.85
from £6.85
# 8
MPN: 519 20135
LOCK WASHER - COPPER
from £5.08
from £5.08
# 9
MPN: 90007502800
screw, hex. hd. - M 8 X 22 - G 11 001 >> 25 000
# 9
MPN: 90007502802
screw, hex. hd. - M 8 X 22 - G 25 001 >>
# 10
MPN: 519 20012
BREATHER ASSY.
from £39.82
from £39.82
# 11
MPN: 519 20115
THREADED PLUG - WITHOUT: - MAGNET - WHITE - ANODISED
from £12.30
from £12.30
# 12
MPN: 519 20116
THREADED PLUG - WITH MAGNET - WHITE - ANODISED
from £12.30
from £12.30
# 13
MPN: 99911304850
Sealing frame - drive shaft - G 25 001 >> - Discontinued part
# 13
MPN: 113311113A
seal - drive shaft - G 25 001 >> - Discontinued part
# 13
MPN: 113311113B
seal ring - drive shaft - G 25 001 >>
from £13.98
from £13.98
# 14
MPN: 644 20105
CIRCLIP
# 15
MPN: N 0122902
LOCK RING - 52 X 2
from £2.84
from £2.84
# 16
MPN: 644 200111
HOUSING COVER
LEFT
from £272.09
from £272.09
# 16
MPN: 644 20011
TRANSMISSION COVER
RIGHT
from £272.09
from £272.09
# 17
MPN: 000 95135
STUD
from £5.19
from £5.19
# 18
MPN: 90006101000
stud - BM 8 X 35 - G 11 001 >> 25 000
from £5.19
from £5.19
# 18
MPN: 90006103000
stud - BM 8 X 35 - G 25 001 >>
# 19
MPN: 90005300400
ball bearing - 7210 - G 25 001 >>
from £64.30
from £64.30
# -
-
ball bearing - 6210 - G 25 001 >>
# 20
MPN: 644 20116
GASKET
from £2.59
from £2.59
# 21
MPN: 644 23327
BRACKET - CLUTCH CABLE
# 22
MPN: 356 421441
retaining bracket - brake hose
# 23
MPN: 9000760130C
hex. nut - M 8
from £3.73
from £3.73
# 23
MPN: 90007602502
HEX. NUT - M 8 - DISCONTINUED PART
Supersession
Supersession
# 23
MPN: 90007606402
hex. nut - M 8
from £0.59
from £0.59
# 24
MPN: 90002801001
spring washer - B 8 - G 11 001 >> 25 000
# 24
MPN: N 0122418
SPRING WASHER - B 8 - G 25 001 >>
from £0.70
from £0.70
# 25
MPN: 644 20119
INTERMEDIATE PLATE
# 26
MPN: 90005300300
ball bearing - 3305 - G 25 001 >> - Discontinued part
# 26
MPN: 90005300301
ball bearing - 3305 - G 25 001 >>
from £54.17
from £54.17
# 27
MPN: 90005300200
ball bearing - 3304 - G 25 001 >> - Discontinued part
# 27
MPN: 90005300201
ball bearing - 3304 - G 25 001 >>
from £74.70
from £74.70
# 28
MPN: 644 20122
PACKING
from £2.34
from £2.34
# 29
MPN: 644 20118
TENSIONING PLATE
from £60.40
from £60.40
# 30
MPN: 74130129100
RETAINER PLATE
LEFT
from £9.74
from £9.74
# 30
MPN: 74130129200
RETAINER PLATE
RIGHT
from £9.74
from £9.74
# 31
MPN: 90007403400
screw, hex. hd. - M 8 X 30 - G 11 001 >> 25 000
# 31
MPN: 90007403400
screw, hex. hd. - M 8 X 30 - G 25 001 >>
(716/0/1/2/3)
# 31
MPN: 99907400301
screw, hex. hd. - G 25 001 >>
(716/4/5)
# 32
MPN: 90007403500
screw, hex. hd. - M 8 X 32 - G 11 001 >> 25 000
# 32
MPN: 90007403502
screw, hex. hd. - M 8 X 32 - G 25 001 >>
# 33
MPN: 9000760130C
hex. nut - M 8
from £3.73
from £3.73
# 33
MPN: 90007602502
HEX. NUT - M 8 - DISCONTINUED PART
Supersession
Supersession
# 33
MPN: 90007606402
hex. nut - M 8
from £0.59
from £0.59
# 34
MPN: 99903900100
RETAINER PLATE
from £4.15
from £4.15
# 35
MPN: 644 23146
PIN - FOR - RELAY LEVER
# 36
MPN: 90002801001
SPRING WASHER - B 8
# -
-
WASHER - 20 X 8,4 X 2 - G 11 001 >> 25 000
# 37
MPN: 644 20108
BUSH - GEAR LOCK DETENT
# 38
MPN: 90001202000
PIN - 8 M 6 X 45
# 39
MPN: 644 20109
PACKING - 0,10 MM
from £2.29
from £2.29
# 39
MPN: 644 20110
PACKING - 0,15 MM
from £2.30
from £2.30
# 39
MPN: 644 20111
PACKING - 0,20 MM
from £2.30
from £2.30
# 40
MPN: 644 20114
TRANSMISSION COVER
FRONT
# 41
MPN: 644 20022
ECCENTRIC BOLT - REVERSE GEAR
# 42
MPN: 90009501800
PIN - 5 X 28
# 43
MPN: 90011200150
RADIAL SHAFT SEAL - A 15 X 24 - G 22 996 >> - DISCONTINUED PART
# 43
MPN: 99911318540
seal - A 15 X 24
from £10.12
from £10.12
# 44
MPN: 90007405100
SCREW, HEX. HD. - M 8 X 125
# 45
MPN: 9000740440C
SCREW, HEX. HD. - M 8 X 70
from £3.73
from £3.73
# 46
MPN: N 010375E
SCREW, HEX. HD. - M 8 X 75
from £4.67
from £4.67
# 47
MPN: 99915102202
WASHER - 20 X 8,4 X 2
from £2.79
from £2.79
# 48
MPN: 99961191820
GROUND STRAP
from £13.57
from £13.57
# 49
MPN: 9000760130C
HEX. NUT - M 8 - DISCONTINUED PART
from £3.73
from £3.73
# 49
MPN: 90007602502
HEX. NUT - M 8 - DISCONTINUED PART
Supersession
Supersession
# 49
MPN: 90007606402
hex. nut - M 8
from £0.59
from £0.59
# 50
MPN: 90002801001
SPRING WASHER - B 8
# 51
MPN: 519 20555
GASKET
# 52
MPN: 519 20016
MOUNTING - 49 SHORE - G 11 001 >> 25 000
from £195.35
from £195.35
# 52
MPN: 519 20016
MOUNTING - 49 SHORE - G 25 001 >>
(716/0/2/3)
from £195.35
from £195.35
# 52
MPN: 519 20016
MOUNTING - 80 SHORE - G 11 001 >> 25 000
(CARRERA)
from £195.35
from £195.35
# 52
MPN: 519 20016
MOUNTING - 80 SHORE - G 25 001 >>
(716/1/4/5)
from £195.35
from £195.35
# 53
MPN: 644 20505
RETAINER
# 54
MPN: 519 20539
STOP PLATE - DISCONTINUED PART
# 54
MPN: PCG 20539
REINFORCEMENT PLATE
from £12.84
from £12.84
# 55
MPN: N 0122301
SPRING WASHER - B 10
from £0.69
from £0.69
# 56
MPN: 90002701602
LOCK RING - B 10 - DISCONTINUED PART
# 56
MPN: 90002701603
LOCK RING - B 10
from £0.65
from £0.65
# 57
MPN: N 0110106
HEX. NUT - M 10 - DISCONTINUED PART
# 57
MPN: N 10155210
hex. nut - M 10
from £1.26
from £1.26
# 58
MPN: 519 20095
RUBBER ISOLATOR
LEFT
from £170.35
from £170.35
# 58
MPN: 519 20096
RUBBER ISOLATOR
RIGHT
from £170.35
from £170.35
# 59
MPN: 99909301002
SCREW, HEX. HD. - M 8 X 20
Supersession
Supersession
# 60
MPN: 90007406302
screw, hex. hd. - M 10 X 55 - G 11 001 >> 25 000
# 60
MPN: 90007438001
screw, hex. hd. - M 10 X 55 - G 11 001 >> 25 000
from £2.20
from £2.20
# 60
MPN: 90007504602
screw, hex. hd. - M 10 X 55 - G 25 001 >>
# 61
MPN: 90002701502
LOCK RING - B 8
# 61
MPN: 90002701503
LOCK RING - B 8
from £0.86
from £0.86
# 62
MPN: 90002701602
LOCK RING - B 10 - DISCONTINUED PART
# 62
MPN: 90002701603
LOCK RING - B 10
from £0.65
from £0.65
# 63
MPN: 90002801001
SPRING WASHER - B 8
# 64
MPN: 9000760130C
hex. nut - M 8
from £3.73
from £3.73
# 64
MPN: 90007602502
HEX. NUT - M 8 - DISCONTINUED PART
Supersession
Supersession
# 64
MPN: 90007606402
hex. nut - M 8
from £0.59
from £0.59
# 65
MPN: N 0110106
HEX. NUT - M 10 - DISCONTINUED PART
# 65
MPN: N 10155210
hex. nut - M 10
from £1.26
from £1.26
# 66
MPN: 519 20545
TRANSMISSION CARRIER
# 67
MPN: 90002801401
LOCK RING - B 12
# 68
MPN: 90008200602
SCREW, HEX. HD. - M 12 X 1,5 X 30 - DISCONTINUED PART
# 68
MPN: 90008302301
SCREW, HEX. HD. - M 12 X 1,5 X 30
from £2.22
from £2.22
# 69
MPN: 519 20331
CATCH - GEAR LOCK DETENT
# 70
MPN: 519 20329
BALL - 9 MM - GEAR LOCK DETENT - G 11 001 >> 25 000
# 70
MPN: N 0256672
BALL - 9 MM - GEAR LOCK DETENT - G 25 001 >>
from £1.36
from £1.36
# 71
MPN: 519 20265
SPRING - GEAR LOCK DETENT
# 72
MPN: 519 20330
spring - Gear lock detent - Reverse gear
from £6.04
from £6.04
# 73
MPN: 90001203800
DOWEL PIN - 10 H 11 X 14
# 74
MPN: 99906500102
THREADED PLUG
# 75
MPN: 519 20342
SHIFT LEVER
# 76
MPN: 644 23014
RELAY LEVER
# -
-
nipple - A 6 - relay lever
# 77
MPN: 90002500802
WASHER - 10,5 - DISCONTINUED PART
from £0.47
from £0.47
# 77
MPN: N 0115274
WASHER - 10,5 - DISCONTINUED PART
# 77
MPN: 90002500809
WASHER - 10,5 - DISCONTINUED PART
# 77
MPN: 90002500804
WASHER - 10,5
from £0.80
from £0.80
# 77
MPN: 9000250080E
WASHER - 10,5
Yellow
from £0.62
from £0.62
# 78
MPN: N 0125301
COTTER PIN - 3 X 15
from £0.60
from £0.60
-part-diagram-303-000.webp "PORSCHE 1956 (356/356A) GEARS AND SHAFTS - FOR - TRANSMISSION PARTS DIAGRAM")
-part-diagram-303-005.webp "PORSCHE 1956 (356/356A) GEARS AND SHAFTS - FOR - TRANSMISSION PARTS DIAGRAM")
-part-diagram-305-000.webp "PORSCHE 1956 (356/356A) DIFFERENTIAL PARTS DIAGRAM")
-part-diagram-401-000.webp "PORSCHE 1956 (356/356A) FRONT AXLE - LUBRICANTS PARTS DIAGRAM")
-part-diagram-403-000.webp "PORSCHE 1956 (356/356A) STEERING WHEEL - INTERMEDIATE STEERING SHAFT - STEERING TRACK ROD - AND - SWING LEVER PARTS DIAGRAM")
-part-diagram-403-005.webp "PORSCHE 1956 (356/356A) STEERING WHEEL - INTERMEDIATE STEERING SHAFT - STEERING TRACK ROD - AND - SWING LEVER PARTS DIAGRAM")
-part-diagram-403-010.webp "PORSCHE 1956 (356/356A) STEERING GEAR - AND - STEERING COUPLING - F >> 101 692 - F >> 61 892 - F >> 83 791 PARTS DIAGRAM")
-part-diagram-403-015.webp "PORSCHE 1956 (356/356A) STEERING GEAR - F 101 693 >> - F 61 893 >> - F 83 792 >> PARTS DIAGRAM")
-part-diagram-501-000.webp "PORSCHE 1956 (356/356A) REAR AXLE PARTS DIAGRAM")
-part-diagram-501-005.webp "PORSCHE 1956 (356/356A) REAR AXLE PARTS DIAGRAM")
-part-diagram-601-000.webp "PORSCHE 1956 (356/356A) WHEELS PARTS DIAGRAM")
-part-diagram-601-005.webp "PORSCHE 1956 (356/356A) PERFORATED DISC WHEEL - CENTRAL LOCKING PARTS DIAGRAM")
-part-diagram-602-000.webp "PORSCHE 1956 (356/356A) BRAKE PARTS DIAGRAM")
-part-diagram-604-000.webp "PORSCHE 1956 (356/356A) BRAKE MASTER CYLINDER - AND - BRAKE LINES PARTS DIAGRAM")
-part-diagram-698-005.webp "PORSCHE 1956 (356/356A) BRAKE FLUID - PORSCHE CLASSIC PARTS DIAGRAM")
-part-diagram-701-000.webp "PORSCHE 1956 (356/356A) TRANSMISSION CONTROL PARTS DIAGRAM")
-part-diagram-701-005.webp "PORSCHE 1956 (356/356A) HANDBRAKE PARTS DIAGRAM")
-part-diagram-701-010.webp "PORSCHE 1956 (356/356A) HANDBRAKE PARTS DIAGRAM")
-part-diagram-702-000.webp "PORSCHE 1956 (356/356A) PEDALS PARTS DIAGRAM")
-part-diagram-702-005.webp "PORSCHE 1956 (356/356A) PEDALS PARTS DIAGRAM")
-part-diagram-801-005.webp "PORSCHE 1956 (356/356A) FRAME PARTS DIAGRAM")
-part-diagram-801-010.webp "PORSCHE 1956 (356/356A) FRAME PARTS DIAGRAM")
-part-diagram-801-015.webp "PORSCHE 1956 (356/356A) FRAME - SINGLE PARTS PARTS DIAGRAM")
-part-diagram-801-020.webp "PORSCHE 1956 (356/356A) FRAME - SINGLE PARTS PARTS DIAGRAM")
-part-diagram-801-025.webp "PORSCHE 1956 (356/356A) BODY SHELL - INTERIOR PANELLING PARTS DIAGRAM")
-part-diagram-801-030.webp "PORSCHE 1956 (356/356A) BODY SHELL - INTERIOR PANELLING PARTS DIAGRAM")
-part-diagram-802-000.webp "PORSCHE 1956 (356/356A) EXTERIOR PANELLING PARTS DIAGRAM")
-part-diagram-802-005.webp "PORSCHE 1956 (356/356A) EXTERIOR PANELLING - FENDER PARTS DIAGRAM")
-part-diagram-802-010.webp "PORSCHE 1956 (356/356A) EXTERIOR PANELLING - FENDER PARTS DIAGRAM")
-part-diagram-802-015.webp "PORSCHE 1956 (356/356A) BUMPER PARTS DIAGRAM")
-part-diagram-803-000.webp "PORSCHE 1956 (356/356A) COVER - - AND - WITH INSTALLATION PARTS - TO FIT USE WORKSHOP MATERIAL PARTS DIAGRAM")
-part-diagram-804-000.webp "PORSCHE 1956 (356/356A) DOOR - WITH: PARTS DIAGRAM")
-part-diagram-804-001.webp "PORSCHE 1956 (356/356A) DOOR HANDLE, OUTER - AND - SINGLE PARTS PARTS DIAGRAM")
-part-diagram-804-005.webp "PORSCHE 1956 (356/356A) DOOR - WITH: - ACCESSORIES PARTS DIAGRAM")
-part-diagram-805-000.webp "PORSCHE 1956 (356/356A) WINDOW GLAZING PARTS DIAGRAM")
-part-diagram-805-005.webp "PORSCHE 1956 (356/356A) WINDSHIELD GLASS PARTS DIAGRAM")
-part-diagram-805-010.webp "PORSCHE 1956 (356/356A) SIDE WINDOW - DOOR WINDOW PARTS DIAGRAM")
-part-diagram-805-015.webp "PORSCHE 1956 (356/356A) DOOR WINDOW PARTS DIAGRAM")
-part-diagram-805-020.webp "PORSCHE 1956 (356/356A) DOOR WINDOW - F 150 001 >> PARTS DIAGRAM")
-part-diagram-805-025.webp "PORSCHE 1956 (356/356A) WASHER - SPECIAL MODEL PARTS DIAGRAM")
-part-diagram-807-000.webp "PORSCHE 1956 (356/356A) TRIMS - FOOTWELL PARTS DIAGRAM")
-part-diagram-807-005.webp "PORSCHE 1956 (356/356A) TRIMS - INTERIOR EQUIPMENT PARTS DIAGRAM")
-part-diagram-807-010.webp "PORSCHE 1956 (356/356A) BODY SHELL - SOUND ABSORBER PARTS DIAGRAM")
-part-diagram-808-000.webp "PORSCHE 1956 (356/356A) FRONT SEAT - AND - EMERGENCY SEAT PARTS DIAGRAM")
-part-diagram-808-005.webp "PORSCHE 1956 (356/356A) FRONT SEAT PARTS DIAGRAM")
-part-diagram-809-000.webp "PORSCHE 1956 (356/356A) DASHBOARD PARTS DIAGRAM")
-part-diagram-809-005.webp "PORSCHE 1956 (356/356A) DASHBOARD PARTS DIAGRAM")
-part-diagram-809-010.webp "PORSCHE 1956 (356/356A) DASHBOARD PARTS DIAGRAM")
-part-diagram-810-000.webp "PORSCHE 1956 (356/356A) DECORATIVE FITTINGS PARTS DIAGRAM")
-part-diagram-811-000.webp "PORSCHE 1956 (356/356A) TOP FRAME PARTS DIAGRAM")
-part-diagram-811-005.webp "PORSCHE 1956 (356/356A) TOP FRAME PARTS DIAGRAM")
-part-diagram-811-010.webp "PORSCHE 1956 (356/356A) CONVERTIBLE TOP COVERING PARTS DIAGRAM")
-part-diagram-811-015.webp "PORSCHE 1956 (356/356A) CONVERTIBLE TOP - CONVERTIBLE TOP COVERING PARTS DIAGRAM")
-part-diagram-811-020.webp "PORSCHE 1956 (356/356A) TOP FRAME - TONNEAU COVER PARTS DIAGRAM")
-part-diagram-813-000.webp "PORSCHE 1956 (356/356A) VALVE PARTS DIAGRAM")
-part-diagram-813-005.webp "PORSCHE 1956 (356/356A) VALVE PARTS DIAGRAM")
-part-diagram-901-000.webp "PORSCHE 1956 (356/356A) ELECTRICAL EQUIPMENT - ENGINE PARTS DIAGRAM")
-part-diagram-901-005.webp "PORSCHE 1956 (356/356A) ELECTRICAL EQUIPMENT - ENGINE - M 90 501 >> 91 000 PARTS DIAGRAM")
-part-diagram-901-010.webp "PORSCHE 1956 (356/356A) ELECTRICAL EQUIPMENT - ENGINE PARTS DIAGRAM")
-part-diagram-901-015.webp "PORSCHE 1956 (356/356A) DISTRIBUTOR - DRIVING MECHANISM PARTS DIAGRAM")
-part-diagram-904-000.webp "PORSCHE 1956 (356/356A) WINDSHIELD WASHER UNIT PARTS DIAGRAM")
-part-diagram-904-005.webp "PORSCHE 1956 (356/356A) WINDSCREEN WIPER SYSTEM PARTS DIAGRAM")
-part-diagram-904-010.webp "PORSCHE 1956 (356/356A) WINDSCREEN WIPER SYSTEM PARTS DIAGRAM")
-part-diagram-904-015.webp "PORSCHE 1956 (356/356A) WINDSHIELD WASHER UNIT - WINDSCREEN WIPER SYSTEM PARTS DIAGRAM")
-part-diagram-905-000.webp "PORSCHE 1956 (356/356A) HEADLAMP - AND - SWITCH PARTS DIAGRAM")
-part-diagram-905-005.webp "PORSCHE 1956 (356/356A) HEADLAMP - LIGHTS - AND - SWITCH - BATTERY PARTS DIAGRAM")
-part-diagram-906-000.webp "PORSCHE 1956 (356/356A) INSTRUMENTS PARTS DIAGRAM")
-part-diagram-906-005.webp "PORSCHE 1956 (356/356A) INSTRUMENTS PARTS DIAGRAM")
-part-diagram-906-006.webp "PORSCHE 1956 (356/356A) BUTTON - SET - SWITCH PARTS DIAGRAM")
-part-diagram-906-010.webp "PORSCHE 1956 (356/356A) DRIVING MECHANISM - TACHOMETER PARTS DIAGRAM")
-part-diagram-001-000.webp "PORSCHE 1956 (356/356A) TOOL - AND - ACCESSORIES - FIRST AID KIT PARTS DIAGRAM")
-part-diagram-001-003.webp "PORSCHE 1956 (356/356A) CLEANING AGENT - PORSCHE CLASSIC PARTS DIAGRAM")
-part-diagram-001-005.webp "PORSCHE 1956 (356/356A) ACCESSORIES PARTS DIAGRAM")
-part-diagram-001-010.webp "PORSCHE 1956 (356/356A) SCHLUESSEL-ETUI - LEATHER PARTS DIAGRAM")
-part-diagram-001-015.webp "PORSCHE 1956 (356/356A) ACCESSORIES - PORSCHE CLASSIC PARTS DIAGRAM")
-part-diagram-002-000.webp "PORSCHE 1956 (356/356A) EMBLEM - STICKER PARTS DIAGRAM")
-part-diagram-002-003.webp "PORSCHE 1956 (356/356A) IDENTIFICATION PLATE PARTS DIAGRAM")
-part-diagram-002-005.webp "PORSCHE 1956 (356/356A) INSTRUCTION MANUAL - CUSTOMER SERVICE BOOKLET PARTS DIAGRAM")
-part-diagram-101-005.webp "PORSCHE 1956 (356/356A) CRANKCASE - M >> 10 199 - M >> 21 780 - M >> 50 099 - M >> 21 999 - M >> 33 899 - M >> 40 999 PARTS DIAGRAM")
-part-diagram-101-010.webp "PORSCHE 1956 (356/356A) CRANKCASE - M 22 001 >> - M 50 101 >> - M 33 901 >> - M 41 001 >> - M 60 001 >> - M 80 001 >> PARTS DIAGRAM")
-part-diagram-101-015.webp "PORSCHE 1956 (356/356A) CRANKCASE - M 90 501 >> 91 000 PARTS DIAGRAM")
-part-diagram-101-017.webp "PORSCHE 1956 (356/356A) CRANKCASE PARTS DIAGRAM")
-part-diagram-102-000.webp "PORSCHE 1956 (356/356A) CRANKSHAFT - M >> 10 199 - M >> 21 780 - M >> 50 099 - M >> 21 999 - M >> 33 899 - M >> 40 999 PARTS DIAGRAM")
-part-diagram-102-005.webp "PORSCHE 1956 (356/356A) CRANKSHAFT - M 22 001 >> - M 50 101 >> - M 33 901 >> - M 41 001 >> - M 60 001 >> - M 80 001 >> PARTS DIAGRAM")
-part-diagram-102-010.webp "PORSCHE 1956 (356/356A) CRANKSHAFT - M 90 501 >> 91 000 PARTS DIAGRAM")
-part-diagram-102-012.webp "PORSCHE 1956 (356/356A) CRANKSHAFT PARTS DIAGRAM")
-part-diagram-103-000.webp "PORSCHE 1956 (356/356A) CYLINDER HEAD - CYLINDER WITH PISTONS - M >> 10 199 - M >> 21 780 - M >> 50 099 - M >> 21 999 - M >> 33 899 - M >> 40 999 PARTS DIAGRAM")
-part-diagram-103-005.webp "PORSCHE 1956 (356/356A) CYLINDER HEAD - CYLINDER WITH PISTONS - M 22 001 >> - M 50 101 >> - M 33 901 >> - M 41 001 >> - M 60 001 >> - M 80 001 >> PARTS DIAGRAM")
-part-diagram-103-010.webp "PORSCHE 1956 (356/356A) CYLINDER HEAD - CYLINDER WITH PISTONS - M 90 501 >> 91 000 PARTS DIAGRAM")
-part-diagram-103-012.webp "PORSCHE 1956 (356/356A) CYLINDER HEAD - CYLINDER WITH PISTONS PARTS DIAGRAM")
-part-diagram-103-015.webp "PORSCHE 1956 (356/356A) CAMSHAFT - M >> 10 199 - M >> 21 780 - M >> 50 099 - M >> 21 999 - M >> 33 899 - M >> 40 999 PARTS DIAGRAM")
-part-diagram-103-020.webp "PORSCHE 1956 (356/356A) CAMSHAFT - M 22 001 >> - M 50 101 >> - M 33 901 >> - M 41 001 >> - M 60 001 >> - M 80 001 >> PARTS DIAGRAM")
-part-diagram-103-025.webp "PORSCHE 1956 (356/356A) DRIVING MECHANISM - FOR - VALVE CONTROL - M 90 501 >> 91 000 PARTS DIAGRAM")
-part-diagram-103-027.webp "PORSCHE 1956 (356/356A) DRIVING MECHANISM - FOR - VALVE CONTROL PARTS DIAGRAM")
-part-diagram-103-030.webp "PORSCHE 1956 (356/356A) VALVE CONTROL - M 90 501 >> 91 000 PARTS DIAGRAM")
-part-diagram-103-032.webp "PORSCHE 1956 (356/356A) VALVE CONTROL PARTS DIAGRAM")
-part-diagram-104-000.webp "PORSCHE 1956 (356/356A) ENGINE LUBRICATION - M >> 67 000 - M >> 81 200 PARTS DIAGRAM")
-part-diagram-104-005.webp "PORSCHE 1956 (356/356A) ENGINE LUBRICATION - M 67 001 >> - M 81 201 >> PARTS DIAGRAM")
-part-diagram-104-007.webp "PORSCHE 1956 (356/356A) ENGINE LUBRICATION - OIL COOLER PARTS DIAGRAM")
-part-diagram-104-010.webp "PORSCHE 1956 (356/356A) OIL CONTAINER - M 90 501 >> 91 000 PARTS DIAGRAM")
-part-diagram-104-012.webp "PORSCHE 1956 (356/356A) OIL CONTAINER - OIL FILTER PARTS DIAGRAM")
-part-diagram-104-015.webp "PORSCHE 1956 (356/356A) OIL PUMP PARTS DIAGRAM")
-part-diagram-105-000.webp "PORSCHE 1956 (356/356A) AIR COOLING PARTS DIAGRAM")
-part-diagram-105-005.webp "PORSCHE 1956 (356/356A) AIR COOLING PARTS DIAGRAM")
-part-diagram-105-007.webp "PORSCHE 1956 (356/356A) AIR COOLING PARTS DIAGRAM")
-part-diagram-107-000.webp "PORSCHE 1956 (356/356A) CARBURETOR - SOLEX 32PBJ - SOLEX 40PJCB - AND - FUEL SUPPLY LINE - FUEL PUMP PARTS DIAGRAM")
-part-diagram-107-005.webp "PORSCHE 1956 (356/356A) CARBURETOR - SOLEX 32PBJ - SOLEX 40PJCB - AND - FUEL SUPPLY LINE PARTS DIAGRAM")
-part-diagram-107-010.webp "PORSCHE 1956 (356/356A) CARBURETOR - PALLAS-ZENIT 32NDIX - AND - FUEL SUPPLY LINE - M 67 001 >> - M 81 201 >> PARTS DIAGRAM")
-part-diagram-107-015.webp "PORSCHE 1956 (356/356A) SINGLE PARTS - FOR - CARBURETOR - SOLEX 32 PBI PARTS DIAGRAM")
-part-diagram-107-020.webp "PORSCHE 1956 (356/356A) SINGLE PARTS - FOR - CARBURETOR - SOLEX 32 PBIC PARTS DIAGRAM")
-part-diagram-107-025.webp "PORSCHE 1956 (356/356A) SINGLE PARTS - FOR - CARBURETOR - PALLAS - ZENITH 32 NDIX PARTS DIAGRAM")
-part-diagram-107-030.webp "PORSCHE 1956 (356/356A) SINGLE PARTS - FOR - CARBURETOR - SOLEX 40 PBIC - M >> 81 200 PARTS DIAGRAM")
-part-diagram-107-035.webp "PORSCHE 1956 (356/356A) SINGLE PARTS - FOR - FUEL PUMP - 616. 08.401 PARTS DIAGRAM")
-part-diagram-107-040.webp "PORSCHE 1956 (356/356A) CARBURETOR - SOLEX 40 P II - SOLEX 40 P II-4 - AND - FUEL SUPPLY LINE - M 90 501 >> 91 000 PARTS DIAGRAM")
-part-diagram-107-042.webp "PORSCHE 1956 (356/356A) CARBURETOR - SOLEX 40 P II-4/WEBER - AND - FUEL SUPPLY LINE PARTS DIAGRAM")
-part-diagram-107-045.webp "PORSCHE 1956 (356/356A) FUEL PUMP - -AUTOPULSE 500- - ELECTRIC - WITH: - FUEL LINE PARTS DIAGRAM")
-part-diagram-107-055.webp "PORSCHE 1956 (356/356A) SINGLE PARTS - FOR - FUEL PUMP - AUTOPULSE 500 - ELECTRIC PARTS DIAGRAM")
-part-diagram-198-000.webp "PORSCHE 1956 (356/356A) GASKET SET PARTS DIAGRAM")
-part-diagram-198-015.webp "PORSCHE 1956 (356/356A) ENGINE OIL - PORSCHE CLASSIC 20W50 PARTS DIAGRAM")
-part-diagram-201-000.webp "PORSCHE 1956 (356/356A) FUEL TANK PARTS DIAGRAM")
-part-diagram-202-000.webp "PORSCHE 1956 (356/356A) EXHAUST SYSTEM - F >> 101 692 - F >> 150 000 - F >> 83 791 PARTS DIAGRAM")
-part-diagram-202-005.webp "PORSCHE 1956 (356/356A) EXHAUST SYSTEM - F 101 693 >> - F 150 001 >> - F 83 792 >> PARTS DIAGRAM")
-part-diagram-202-010.webp "PORSCHE 1956 (356/356A) EXHAUST SYSTEM - M 90 501 >> 91 000 PARTS DIAGRAM")
-part-diagram-202-012.webp "PORSCHE 1956 (356/356A) SILENCER - AND - ACCESSORIES PARTS DIAGRAM")
-part-diagram-202-013.webp "PORSCHE 1956 (356/356A) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-202-015.webp "PORSCHE 1956 (356/356A) HEATING AIR SUPPLY PARTS DIAGRAM")
-part-diagram-298-005.webp "PORSCHE 1956 (356/356A) PORSCHE CLASSIC - ADDITIVE - FOR FUEL PARTS DIAGRAM")
-part-diagram-301-000.webp "PORSCHE 1956 (356/356A) CLUTCH PARTS DIAGRAM")
-part-diagram-301-005.webp "PORSCHE 1956 (356/356A) CLUTCH PARTS DIAGRAM")
-part-diagram-301-007.webp "PORSCHE 1956 (356/356A) CLUTCH PARTS DIAGRAM")
-part-diagram-301-010.webp "PORSCHE 1956 (356/356A) CLUTCH RELEASE - FOR - TUNNEL - TRANSMISSION - G 11 001 >> 25 000 - - M 90 501 >> 91 000 PARTS DIAGRAM")
-part-diagram-301-012.webp "PORSCHE 1956 (356/356A) CLUTCH RELEASE - G >> 25 000 PARTS DIAGRAM")
-part-diagram-301-015.webp "PORSCHE 1956 (356/356A) CLUTCH RELEASE - FOR - TRANSMISSION CASE - DIVIDED PARTS DIAGRAM")
-part-diagram-301-020.webp "PORSCHE 1956 (356/356A) CLUTCH - G 25 001 >> PARTS DIAGRAM")
-part-diagram-301-022.webp "PORSCHE 1956 (356/356A) CLUTCH PARTS DIAGRAM")
-part-diagram-301-025.webp "PORSCHE 1956 (356/356A) CLUTCH RELEASE - G 25 001 >> PARTS DIAGRAM")
-part-diagram-301-027.webp "PORSCHE 1956 (356/356A) CLUTCH RELEASE - G 25 001 >> PARTS DIAGRAM")
-part-diagram-302-000.webp "PORSCHE 1956 (356/356A) TRANSMISSION CASE - WITH: - TRANSMISSION SUSPENSION PARTS DIAGRAM")
-part-diagram-302-005.webp "PORSCHE 1956 (356/356A) TRANSMISSION CASE - WITH: - TRANSMISSION SUSPENSION PARTS DIAGRAM")
