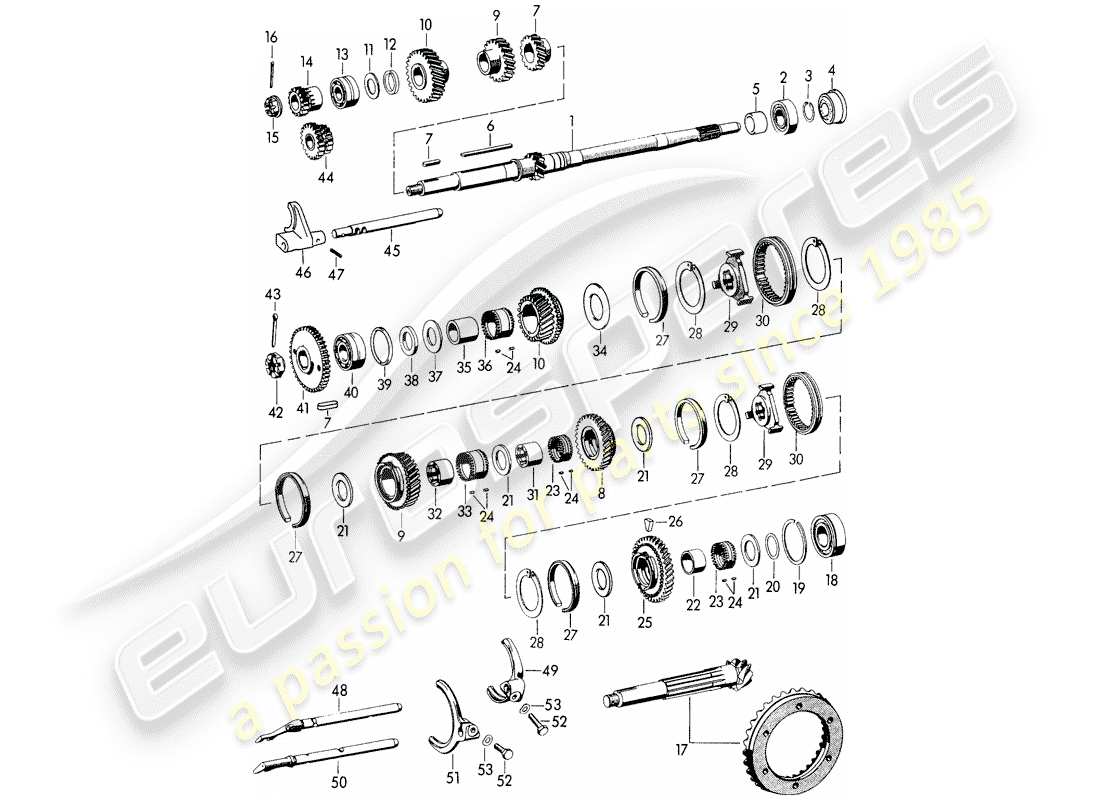

303-000 - GEARS AND SHAFTS - FOR - TRANSMISSION
Porsche 1956 (356/356A) GEARS AND SHAFTS - FOR - TRANSMISSION Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 519 20249
DRIVE SHAFT - Z = 11
# 2
MPN: 90005200300
ball bearing - - - G >> 11 000
(356 A/540.1 1300 /S 1600 /S)
from £45.42
from £45.42
# 2
MPN: 644 20207
ball bearing - G 11 001 >> 25 000
from £100.64
from £100.64
# 2
MPN: 66930310200
BALL BEARING - TRANSMISSION CASE
(356 A/540.1)
# -
-
PIN - 4 X 10,4
(356 A/540.1 CARRERA)
# 3
MPN: 90004101301
LOCK RING
from £2.14
from £2.14
# 4
-
SEAL RING - 22 21 1
(356)
# 4
MPN: 99911304850
SEALING FRAME - DISCONTINUED PART
(356 A/540.1)
# 4
MPN: 113311113A
SEAL - DISCONTINUED PART
(356 A/540.1)
# 4
MPN: 113311113B
SEAL RING
(356 A/540.1)
from £13.98
from £13.98
# 5
MPN: 519 20210
SPACER RING
(356)
# 6
MPN: 90011700900
FEATHER SPRING - A 6 X 4 X 80
from £4.05
from £4.05
# 7
MPN: 90011701900
FEATHER SPRING - A 6 X 4 X 12
# 8
MPN: 519 20954
GEAR WHEEL PAIR - 2ND GEAR - Z = 17:30
# 9
MPN: 519 20956
GEAR WHEEL PAIR - - 3RD GEAR - - Z = 22:27 - FOR - GEAR SET - 7:31
(356/356 A 1300 S 540.1 1300 /S 1600 /S 356 A/540.1 CARRERA 1500 GS)
# 9
MPN: 519 20952
GEAR WHEEL PAIR - - 3RD GEAR - Z = 23:26 - FOR - GEAR SET - 7:31
(356/356 A 1300 1600 /S)
from £581.86
from £581.86
# 10
MPN: 519 20960
GEAR WHEEL PAIR - 4TH SPEED - Z = 25:24 - FOR - GEAR SET - 7:31
(356 A/540.1 CARRERA 1500 GS)
# 10
MPN: 519 20953
GEAR WHEEL PAIR - 4TH SPEED - Z = 27:22 - FOR - GEAR SET - 7:31
(356/356 A 1300 /1600 1600 S)
# 10
MPN: 519 20957
Gear wheel pair - 4TH speed - - Z = 26:23 - for - gear set - 7:31 - G 16 146 >>
(356 A:1300 S 540.1 1300 /S 1600 /S)
# 11
MPN: 644 20202
Washer - G 11 001 >> 25 000
# 12
MPN: 519 20252
outer ring - for - ball bearing - G >> 11 000
# 13
MPN: 519 20250
ball bearing - with: - Groove 1 - G >> 11 000 - Discontinued part
# 13
MPN: 90005300202
ball bearing - with: - Groove 1 - G >> 11 000
from £105.48
from £105.48
# 13
MPN: 90005300200
ball bearing - G 11 001 >> 25 000 - Discontinued part
# 13
MPN: 90005300201
ball bearing - G 11 001 >> 25 000
from £74.70
from £74.70
# 14
MPN: 519 20281
Reverse gear wheel - 1 - G >> 11 000
# 14
MPN: 644 20203
gear - 1 - G 11 001 >> 25 000
from £252.02
from £252.02
# 15
MPN: 519 20285
nut, slotted
# 16
MPN: N 0125331
COTTER PIN - 3 X 28
from £0.78
from £0.78
# 17
MPN: 519 20266
GEAR SET - ALSO USE: - CROWN WHEEL - 519 32 202
(356)
# 17
MPN: 74130290601
GEAR SET - 7:31
(356 A/540.1)
from £3,113.61
from £3,113.61
# 17
MPN: 55030292100
gear set - 6:31 - Tunnel transmission - G 11 001 >> 25 000
# 18
MPN: 90011000200
roller bearing - G >> 11 000
Supersession
Supersession
# 18
MPN: 519 20207
roller bearing - - G >> 11 000
(CARRERA 1500 GS)
# -
-
Pin - 4 X 10,4 - G >> 11 000
(CARRERA 1500 GS)
# 18
MPN: 91530239905
roller bearing - G 11 001 >> 25 000 - Discontinued part
# 18
MPN: 91530239906
roller bearing - G 11 001 >> 25 000
from £271.61
from £271.61
# 19
MPN: 90011100100
circlip - SP 62 A - G 11 001 >> 25 000
from £7.97
from £7.97
# 20
MPN: 519 20334
adjusting washer - 0,05 MM
(356)
# 20
MPN: 519 20335
ADJUSTING WASHER - 0,10 - 25,1 X 35 X 0,1
(356)
from £5.13
from £5.13
# 20
MPN: 519 20213
ADJUSTING WASHER - 0,10 - 30,6 X 37 X 0,1
(356)
from £5.13
from £5.13
# 20
MPN: 519 20214
ADJUSTING WASHER - 0,15
(356)
from £5.13
from £5.13
# 20
MPN: 519 20215
ADJUSTING WASHER - 0,20
(356)
from £5.13
from £5.13
# 20
MPN: 74130229700
adjusting washer - 0,25 MM
(356 A/540.1)
from £6.11
from £6.11
# 20
MPN: 74130229701
ADJUSTING WASHER - 0,30MM
(356 A/540.1)
from £6.01
from £6.01
# 20
MPN: 74130229702
adjusting washer - 0,40 MM
(356 A/540.1)
from £6.01
from £6.01
# 21
MPN: 519 20216
THRUST WASHER - 1ST / 2ND GEAR
# 22
MPN: 519 20217
BUSH - 1ST GEAR
# 23
MPN: 519 20218
NEEDLE CAGE - 1ST / 2ND GEAR
from £228.82
from £228.82
# 24
MPN: 71630293000
ROLLER - 3 X 5 - UNDERSIZE - OVERSIZE - -4,-2,0,+2,+4
# 25
MPN: 519 20050
GEAR - 1ST GEAR - WHEEL - 2
# 26
MPN: 519 20288
STONE - FOR - CLUTCH HUB
# 27
MPN: 519 20313
synchronizer ring - Discontinued part
from £318.54
from £318.54
# 27
MPN: 519 20316
SYNCHRONIZER RING
from £344.19
from £344.19
# 28
MPN: 519 20296
LOCK RING
# 29
MPN: 519 20327
GUIDE SLEEVE
from £127.13
from £127.13
# -
-
GUIDE SLEEVE - NO LONGER USE THE PART HERE
(356)
# 30
MPN: 519 20328
SHIFT ROD COUPLING - DISCONTINUED PART
# 30
MPN: 519 20339
SHIFT ROD COUPLING - DISCONTINUED PART
# 30
MPN: 519 20343
Shift rod coupling
from £605.17
from £605.17
# 31
MPN: 519 20297
BUSH - NEEDLE CAGE - 2ND GEAR
# 32
MPN: 519 20298
BUSH - NEEDLE CAGE - 3RD GEAR
from £48.44
from £48.44
# 33
MPN: 519 20318
NEEDLE CAGE - WHEEL - 2 - 3RD GEAR
# 34
MPN: 519 20232
SPRING WASHER
from £7.50
from £7.50
# 35
MPN: 519 20236
BUSH - NEEDLE CAGE - 4TH SPEED
# 36
MPN: 519 20319
NEEDLE CAGE - WHEEL - 2 - 4TH SPEED
from £84.98
from £84.98
# 37
MPN: 519 20237
THRUST WASHER
from £28.83
from £28.83
# 38
MPN: 644 20206
WASHER
(356 A/540.1)
# 39
MPN: 519 20333
OUTER RING - NOT FOR: - TUNNEL TRANSMISSION
# 40
MPN: 519 20211
ball bearing - Two-row - G >> 11 000
# 40
MPN: PCG 20211
ball bearing - Two-row - G >> 11 000
from £104.76
from £104.76
# 40
MPN: 90005300300
BALL BEARING - 3305 - G 11 001 >> 25 000 - DISCONTINUED PART
# 40
MPN: 90005300301
BALL BEARING - 3305 - G 11 001 >> 25 000
from £54.17
from £54.17
# 41
MPN: 519 20282
Reverse gear wheel - 2 - G >> 11 000
from £160.58
from £160.58
# 41
MPN: 644 20204
gear - 2 - G 11 001 >> 25 000
from £370.19
from £370.19
# 42
MPN: 519 20332
nut, slotted
from £10.19
from £10.19
# 43
MPN: N 0125381
COTTER PIN - 4 X 40
from £1.04
from £1.04
# 44
MPN: 519 20048
GEAR - 3
from £530.92
from £530.92
# 45
MPN: 519 20280
selector shaft - Reverse gear - G >> 11 000
# 45
MPN: 644 20301
selector shaft - Reverse gear - G 11 001 >> 25 000
from £36.40
from £36.40
# 46
MPN: 519 20279
Shift fork - Reverse gear
# 47
MPN: 90009501300
PIN - 4 X 20
from £1.23
from £1.23
# 48
MPN: 519 20241
selector shaft - 1ST / 2ND gear - G >> 11 000
# 48
MPN: 644 20302
selector shaft - 1ST / 2ND gear - G 11 001 >> 25 000
# 49
MPN: 519 20245
SHIFT FORK - 1ST / 2ND GEAR
from £353.24
from £353.24
# 50
MPN: 519 20242
selector shaft - 3RD/4TH gear - G >> 11 000
# 50
MPN: 644 20303
selector shaft - 3RD/4TH gear - G 11 001 >> 25 000
# 51
MPN: 519 20246
SHIFT FORK - 3RD/4TH GEAR
# 52
MPN: 519 20248
screw, hex. hd. - G >> 11 000
# 52
MPN: 90007503000
screw, hex. hd. - M 8 X 28 - G 11 001 >> 25 000
# 53
MPN: 90002801001
SPRING WASHER - B 8 - G >> 11 000
# 53
MPN: 90002801101
spring washer - B 8 - G 11 001 >> 25 000
# -
-
GEAR SET - FOR - SPECIAL TRANSMISSION RATIO
(356/356 A)
# -
-
operating shaft - Z = 13 - G 11 001 >> 25 000
# -
-
gear set - 2 - 1ST gear - G 11 001 >> 25 000
# -
-
Wheel - 2 - 1ST gear - G 11 001 >> 25 000
# -
-
Gear wheel pair - Z = 16:31 - G 11 001 >> 25 000
# -
-
Gear wheel pair - Z = 18:29 - G 11 001 >> 25 000
# -
-
Gear wheel pair - Z = 24:25 - G 11 001 >> 25 000
# -
-
GEAR SET - 6:31 - G 11 001 >> 25 000
-part-diagram-303-005.webp "PORSCHE 1956 (356/356A) GEARS AND SHAFTS - FOR - TRANSMISSION PARTS DIAGRAM")
-part-diagram-305-000.webp "PORSCHE 1956 (356/356A) DIFFERENTIAL PARTS DIAGRAM")
-part-diagram-401-000.webp "PORSCHE 1956 (356/356A) FRONT AXLE - LUBRICANTS PARTS DIAGRAM")
-part-diagram-403-000.webp "PORSCHE 1956 (356/356A) STEERING WHEEL - INTERMEDIATE STEERING SHAFT - STEERING TRACK ROD - AND - SWING LEVER PARTS DIAGRAM")
-part-diagram-403-005.webp "PORSCHE 1956 (356/356A) STEERING WHEEL - INTERMEDIATE STEERING SHAFT - STEERING TRACK ROD - AND - SWING LEVER PARTS DIAGRAM")
-part-diagram-403-010.webp "PORSCHE 1956 (356/356A) STEERING GEAR - AND - STEERING COUPLING - F >> 101 692 - F >> 61 892 - F >> 83 791 PARTS DIAGRAM")
-part-diagram-403-015.webp "PORSCHE 1956 (356/356A) STEERING GEAR - F 101 693 >> - F 61 893 >> - F 83 792 >> PARTS DIAGRAM")
-part-diagram-501-000.webp "PORSCHE 1956 (356/356A) REAR AXLE PARTS DIAGRAM")
-part-diagram-501-005.webp "PORSCHE 1956 (356/356A) REAR AXLE PARTS DIAGRAM")
-part-diagram-601-000.webp "PORSCHE 1956 (356/356A) WHEELS PARTS DIAGRAM")
-part-diagram-601-005.webp "PORSCHE 1956 (356/356A) PERFORATED DISC WHEEL - CENTRAL LOCKING PARTS DIAGRAM")
-part-diagram-602-000.webp "PORSCHE 1956 (356/356A) BRAKE PARTS DIAGRAM")
-part-diagram-604-000.webp "PORSCHE 1956 (356/356A) BRAKE MASTER CYLINDER - AND - BRAKE LINES PARTS DIAGRAM")
-part-diagram-698-005.webp "PORSCHE 1956 (356/356A) BRAKE FLUID - PORSCHE CLASSIC PARTS DIAGRAM")
-part-diagram-701-000.webp "PORSCHE 1956 (356/356A) TRANSMISSION CONTROL PARTS DIAGRAM")
-part-diagram-701-005.webp "PORSCHE 1956 (356/356A) HANDBRAKE PARTS DIAGRAM")
-part-diagram-701-010.webp "PORSCHE 1956 (356/356A) HANDBRAKE PARTS DIAGRAM")
-part-diagram-702-000.webp "PORSCHE 1956 (356/356A) PEDALS PARTS DIAGRAM")
-part-diagram-702-005.webp "PORSCHE 1956 (356/356A) PEDALS PARTS DIAGRAM")
-part-diagram-801-005.webp "PORSCHE 1956 (356/356A) FRAME PARTS DIAGRAM")
-part-diagram-801-010.webp "PORSCHE 1956 (356/356A) FRAME PARTS DIAGRAM")
-part-diagram-801-015.webp "PORSCHE 1956 (356/356A) FRAME - SINGLE PARTS PARTS DIAGRAM")
-part-diagram-801-020.webp "PORSCHE 1956 (356/356A) FRAME - SINGLE PARTS PARTS DIAGRAM")
-part-diagram-801-025.webp "PORSCHE 1956 (356/356A) BODY SHELL - INTERIOR PANELLING PARTS DIAGRAM")
-part-diagram-801-030.webp "PORSCHE 1956 (356/356A) BODY SHELL - INTERIOR PANELLING PARTS DIAGRAM")
-part-diagram-802-000.webp "PORSCHE 1956 (356/356A) EXTERIOR PANELLING PARTS DIAGRAM")
-part-diagram-802-005.webp "PORSCHE 1956 (356/356A) EXTERIOR PANELLING - FENDER PARTS DIAGRAM")
-part-diagram-802-010.webp "PORSCHE 1956 (356/356A) EXTERIOR PANELLING - FENDER PARTS DIAGRAM")
-part-diagram-802-015.webp "PORSCHE 1956 (356/356A) BUMPER PARTS DIAGRAM")
-part-diagram-803-000.webp "PORSCHE 1956 (356/356A) COVER - - AND - WITH INSTALLATION PARTS - TO FIT USE WORKSHOP MATERIAL PARTS DIAGRAM")
-part-diagram-804-000.webp "PORSCHE 1956 (356/356A) DOOR - WITH: PARTS DIAGRAM")
-part-diagram-804-001.webp "PORSCHE 1956 (356/356A) DOOR HANDLE, OUTER - AND - SINGLE PARTS PARTS DIAGRAM")
-part-diagram-804-005.webp "PORSCHE 1956 (356/356A) DOOR - WITH: - ACCESSORIES PARTS DIAGRAM")
-part-diagram-805-000.webp "PORSCHE 1956 (356/356A) WINDOW GLAZING PARTS DIAGRAM")
-part-diagram-805-005.webp "PORSCHE 1956 (356/356A) WINDSHIELD GLASS PARTS DIAGRAM")
-part-diagram-805-010.webp "PORSCHE 1956 (356/356A) SIDE WINDOW - DOOR WINDOW PARTS DIAGRAM")
-part-diagram-805-015.webp "PORSCHE 1956 (356/356A) DOOR WINDOW PARTS DIAGRAM")
-part-diagram-805-020.webp "PORSCHE 1956 (356/356A) DOOR WINDOW - F 150 001 >> PARTS DIAGRAM")
-part-diagram-805-025.webp "PORSCHE 1956 (356/356A) WASHER - SPECIAL MODEL PARTS DIAGRAM")
-part-diagram-807-000.webp "PORSCHE 1956 (356/356A) TRIMS - FOOTWELL PARTS DIAGRAM")
-part-diagram-807-005.webp "PORSCHE 1956 (356/356A) TRIMS - INTERIOR EQUIPMENT PARTS DIAGRAM")
-part-diagram-807-010.webp "PORSCHE 1956 (356/356A) BODY SHELL - SOUND ABSORBER PARTS DIAGRAM")
-part-diagram-808-000.webp "PORSCHE 1956 (356/356A) FRONT SEAT - AND - EMERGENCY SEAT PARTS DIAGRAM")
-part-diagram-808-005.webp "PORSCHE 1956 (356/356A) FRONT SEAT PARTS DIAGRAM")
-part-diagram-809-000.webp "PORSCHE 1956 (356/356A) DASHBOARD PARTS DIAGRAM")
-part-diagram-809-005.webp "PORSCHE 1956 (356/356A) DASHBOARD PARTS DIAGRAM")
-part-diagram-809-010.webp "PORSCHE 1956 (356/356A) DASHBOARD PARTS DIAGRAM")
-part-diagram-810-000.webp "PORSCHE 1956 (356/356A) DECORATIVE FITTINGS PARTS DIAGRAM")
-part-diagram-811-000.webp "PORSCHE 1956 (356/356A) TOP FRAME PARTS DIAGRAM")
-part-diagram-811-005.webp "PORSCHE 1956 (356/356A) TOP FRAME PARTS DIAGRAM")
-part-diagram-811-010.webp "PORSCHE 1956 (356/356A) CONVERTIBLE TOP COVERING PARTS DIAGRAM")
-part-diagram-811-015.webp "PORSCHE 1956 (356/356A) CONVERTIBLE TOP - CONVERTIBLE TOP COVERING PARTS DIAGRAM")
-part-diagram-811-020.webp "PORSCHE 1956 (356/356A) TOP FRAME - TONNEAU COVER PARTS DIAGRAM")
-part-diagram-813-000.webp "PORSCHE 1956 (356/356A) VALVE PARTS DIAGRAM")
-part-diagram-813-005.webp "PORSCHE 1956 (356/356A) VALVE PARTS DIAGRAM")
-part-diagram-901-000.webp "PORSCHE 1956 (356/356A) ELECTRICAL EQUIPMENT - ENGINE PARTS DIAGRAM")
-part-diagram-901-005.webp "PORSCHE 1956 (356/356A) ELECTRICAL EQUIPMENT - ENGINE - M 90 501 >> 91 000 PARTS DIAGRAM")
-part-diagram-901-010.webp "PORSCHE 1956 (356/356A) ELECTRICAL EQUIPMENT - ENGINE PARTS DIAGRAM")
-part-diagram-901-015.webp "PORSCHE 1956 (356/356A) DISTRIBUTOR - DRIVING MECHANISM PARTS DIAGRAM")
-part-diagram-904-000.webp "PORSCHE 1956 (356/356A) WINDSHIELD WASHER UNIT PARTS DIAGRAM")
-part-diagram-904-005.webp "PORSCHE 1956 (356/356A) WINDSCREEN WIPER SYSTEM PARTS DIAGRAM")
-part-diagram-904-010.webp "PORSCHE 1956 (356/356A) WINDSCREEN WIPER SYSTEM PARTS DIAGRAM")
-part-diagram-904-015.webp "PORSCHE 1956 (356/356A) WINDSHIELD WASHER UNIT - WINDSCREEN WIPER SYSTEM PARTS DIAGRAM")
-part-diagram-905-000.webp "PORSCHE 1956 (356/356A) HEADLAMP - AND - SWITCH PARTS DIAGRAM")
-part-diagram-905-005.webp "PORSCHE 1956 (356/356A) HEADLAMP - LIGHTS - AND - SWITCH - BATTERY PARTS DIAGRAM")
-part-diagram-906-000.webp "PORSCHE 1956 (356/356A) INSTRUMENTS PARTS DIAGRAM")
-part-diagram-906-005.webp "PORSCHE 1956 (356/356A) INSTRUMENTS PARTS DIAGRAM")
-part-diagram-906-006.webp "PORSCHE 1956 (356/356A) BUTTON - SET - SWITCH PARTS DIAGRAM")
-part-diagram-906-010.webp "PORSCHE 1956 (356/356A) DRIVING MECHANISM - TACHOMETER PARTS DIAGRAM")
-part-diagram-001-000.webp "PORSCHE 1956 (356/356A) TOOL - AND - ACCESSORIES - FIRST AID KIT PARTS DIAGRAM")
-part-diagram-001-003.webp "PORSCHE 1956 (356/356A) CLEANING AGENT - PORSCHE CLASSIC PARTS DIAGRAM")
-part-diagram-001-005.webp "PORSCHE 1956 (356/356A) ACCESSORIES PARTS DIAGRAM")
-part-diagram-001-010.webp "PORSCHE 1956 (356/356A) SCHLUESSEL-ETUI - LEATHER PARTS DIAGRAM")
-part-diagram-001-015.webp "PORSCHE 1956 (356/356A) ACCESSORIES - PORSCHE CLASSIC PARTS DIAGRAM")
-part-diagram-002-000.webp "PORSCHE 1956 (356/356A) EMBLEM - STICKER PARTS DIAGRAM")
-part-diagram-002-003.webp "PORSCHE 1956 (356/356A) IDENTIFICATION PLATE PARTS DIAGRAM")
-part-diagram-002-005.webp "PORSCHE 1956 (356/356A) INSTRUCTION MANUAL - CUSTOMER SERVICE BOOKLET PARTS DIAGRAM")
-part-diagram-101-005.webp "PORSCHE 1956 (356/356A) CRANKCASE - M >> 10 199 - M >> 21 780 - M >> 50 099 - M >> 21 999 - M >> 33 899 - M >> 40 999 PARTS DIAGRAM")
-part-diagram-101-010.webp "PORSCHE 1956 (356/356A) CRANKCASE - M 22 001 >> - M 50 101 >> - M 33 901 >> - M 41 001 >> - M 60 001 >> - M 80 001 >> PARTS DIAGRAM")
-part-diagram-101-015.webp "PORSCHE 1956 (356/356A) CRANKCASE - M 90 501 >> 91 000 PARTS DIAGRAM")
-part-diagram-101-017.webp "PORSCHE 1956 (356/356A) CRANKCASE PARTS DIAGRAM")
-part-diagram-102-000.webp "PORSCHE 1956 (356/356A) CRANKSHAFT - M >> 10 199 - M >> 21 780 - M >> 50 099 - M >> 21 999 - M >> 33 899 - M >> 40 999 PARTS DIAGRAM")
-part-diagram-102-005.webp "PORSCHE 1956 (356/356A) CRANKSHAFT - M 22 001 >> - M 50 101 >> - M 33 901 >> - M 41 001 >> - M 60 001 >> - M 80 001 >> PARTS DIAGRAM")
-part-diagram-102-010.webp "PORSCHE 1956 (356/356A) CRANKSHAFT - M 90 501 >> 91 000 PARTS DIAGRAM")
-part-diagram-102-012.webp "PORSCHE 1956 (356/356A) CRANKSHAFT PARTS DIAGRAM")
-part-diagram-103-000.webp "PORSCHE 1956 (356/356A) CYLINDER HEAD - CYLINDER WITH PISTONS - M >> 10 199 - M >> 21 780 - M >> 50 099 - M >> 21 999 - M >> 33 899 - M >> 40 999 PARTS DIAGRAM")
-part-diagram-103-005.webp "PORSCHE 1956 (356/356A) CYLINDER HEAD - CYLINDER WITH PISTONS - M 22 001 >> - M 50 101 >> - M 33 901 >> - M 41 001 >> - M 60 001 >> - M 80 001 >> PARTS DIAGRAM")
-part-diagram-103-010.webp "PORSCHE 1956 (356/356A) CYLINDER HEAD - CYLINDER WITH PISTONS - M 90 501 >> 91 000 PARTS DIAGRAM")
-part-diagram-103-012.webp "PORSCHE 1956 (356/356A) CYLINDER HEAD - CYLINDER WITH PISTONS PARTS DIAGRAM")
-part-diagram-103-015.webp "PORSCHE 1956 (356/356A) CAMSHAFT - M >> 10 199 - M >> 21 780 - M >> 50 099 - M >> 21 999 - M >> 33 899 - M >> 40 999 PARTS DIAGRAM")
-part-diagram-103-020.webp "PORSCHE 1956 (356/356A) CAMSHAFT - M 22 001 >> - M 50 101 >> - M 33 901 >> - M 41 001 >> - M 60 001 >> - M 80 001 >> PARTS DIAGRAM")
-part-diagram-103-025.webp "PORSCHE 1956 (356/356A) DRIVING MECHANISM - FOR - VALVE CONTROL - M 90 501 >> 91 000 PARTS DIAGRAM")
-part-diagram-103-027.webp "PORSCHE 1956 (356/356A) DRIVING MECHANISM - FOR - VALVE CONTROL PARTS DIAGRAM")
-part-diagram-103-030.webp "PORSCHE 1956 (356/356A) VALVE CONTROL - M 90 501 >> 91 000 PARTS DIAGRAM")
-part-diagram-103-032.webp "PORSCHE 1956 (356/356A) VALVE CONTROL PARTS DIAGRAM")
-part-diagram-104-000.webp "PORSCHE 1956 (356/356A) ENGINE LUBRICATION - M >> 67 000 - M >> 81 200 PARTS DIAGRAM")
-part-diagram-104-005.webp "PORSCHE 1956 (356/356A) ENGINE LUBRICATION - M 67 001 >> - M 81 201 >> PARTS DIAGRAM")
-part-diagram-104-007.webp "PORSCHE 1956 (356/356A) ENGINE LUBRICATION - OIL COOLER PARTS DIAGRAM")
-part-diagram-104-010.webp "PORSCHE 1956 (356/356A) OIL CONTAINER - M 90 501 >> 91 000 PARTS DIAGRAM")
-part-diagram-104-012.webp "PORSCHE 1956 (356/356A) OIL CONTAINER - OIL FILTER PARTS DIAGRAM")
-part-diagram-104-015.webp "PORSCHE 1956 (356/356A) OIL PUMP PARTS DIAGRAM")
-part-diagram-105-000.webp "PORSCHE 1956 (356/356A) AIR COOLING PARTS DIAGRAM")
-part-diagram-105-005.webp "PORSCHE 1956 (356/356A) AIR COOLING PARTS DIAGRAM")
-part-diagram-105-007.webp "PORSCHE 1956 (356/356A) AIR COOLING PARTS DIAGRAM")
-part-diagram-107-000.webp "PORSCHE 1956 (356/356A) CARBURETOR - SOLEX 32PBJ - SOLEX 40PJCB - AND - FUEL SUPPLY LINE - FUEL PUMP PARTS DIAGRAM")
-part-diagram-107-005.webp "PORSCHE 1956 (356/356A) CARBURETOR - SOLEX 32PBJ - SOLEX 40PJCB - AND - FUEL SUPPLY LINE PARTS DIAGRAM")
-part-diagram-107-010.webp "PORSCHE 1956 (356/356A) CARBURETOR - PALLAS-ZENIT 32NDIX - AND - FUEL SUPPLY LINE - M 67 001 >> - M 81 201 >> PARTS DIAGRAM")
-part-diagram-107-015.webp "PORSCHE 1956 (356/356A) SINGLE PARTS - FOR - CARBURETOR - SOLEX 32 PBI PARTS DIAGRAM")
-part-diagram-107-020.webp "PORSCHE 1956 (356/356A) SINGLE PARTS - FOR - CARBURETOR - SOLEX 32 PBIC PARTS DIAGRAM")
-part-diagram-107-025.webp "PORSCHE 1956 (356/356A) SINGLE PARTS - FOR - CARBURETOR - PALLAS - ZENITH 32 NDIX PARTS DIAGRAM")
-part-diagram-107-030.webp "PORSCHE 1956 (356/356A) SINGLE PARTS - FOR - CARBURETOR - SOLEX 40 PBIC - M >> 81 200 PARTS DIAGRAM")
-part-diagram-107-035.webp "PORSCHE 1956 (356/356A) SINGLE PARTS - FOR - FUEL PUMP - 616. 08.401 PARTS DIAGRAM")
-part-diagram-107-040.webp "PORSCHE 1956 (356/356A) CARBURETOR - SOLEX 40 P II - SOLEX 40 P II-4 - AND - FUEL SUPPLY LINE - M 90 501 >> 91 000 PARTS DIAGRAM")
-part-diagram-107-042.webp "PORSCHE 1956 (356/356A) CARBURETOR - SOLEX 40 P II-4/WEBER - AND - FUEL SUPPLY LINE PARTS DIAGRAM")
-part-diagram-107-045.webp "PORSCHE 1956 (356/356A) FUEL PUMP - -AUTOPULSE 500- - ELECTRIC - WITH: - FUEL LINE PARTS DIAGRAM")
-part-diagram-107-055.webp "PORSCHE 1956 (356/356A) SINGLE PARTS - FOR - FUEL PUMP - AUTOPULSE 500 - ELECTRIC PARTS DIAGRAM")
-part-diagram-198-000.webp "PORSCHE 1956 (356/356A) GASKET SET PARTS DIAGRAM")
-part-diagram-198-015.webp "PORSCHE 1956 (356/356A) ENGINE OIL - PORSCHE CLASSIC 20W50 PARTS DIAGRAM")
-part-diagram-201-000.webp "PORSCHE 1956 (356/356A) FUEL TANK PARTS DIAGRAM")
-part-diagram-202-000.webp "PORSCHE 1956 (356/356A) EXHAUST SYSTEM - F >> 101 692 - F >> 150 000 - F >> 83 791 PARTS DIAGRAM")
-part-diagram-202-005.webp "PORSCHE 1956 (356/356A) EXHAUST SYSTEM - F 101 693 >> - F 150 001 >> - F 83 792 >> PARTS DIAGRAM")
-part-diagram-202-010.webp "PORSCHE 1956 (356/356A) EXHAUST SYSTEM - M 90 501 >> 91 000 PARTS DIAGRAM")
-part-diagram-202-012.webp "PORSCHE 1956 (356/356A) SILENCER - AND - ACCESSORIES PARTS DIAGRAM")
-part-diagram-202-013.webp "PORSCHE 1956 (356/356A) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-202-015.webp "PORSCHE 1956 (356/356A) HEATING AIR SUPPLY PARTS DIAGRAM")
-part-diagram-298-005.webp "PORSCHE 1956 (356/356A) PORSCHE CLASSIC - ADDITIVE - FOR FUEL PARTS DIAGRAM")
-part-diagram-301-000.webp "PORSCHE 1956 (356/356A) CLUTCH PARTS DIAGRAM")
-part-diagram-301-005.webp "PORSCHE 1956 (356/356A) CLUTCH PARTS DIAGRAM")
-part-diagram-301-007.webp "PORSCHE 1956 (356/356A) CLUTCH PARTS DIAGRAM")
-part-diagram-301-010.webp "PORSCHE 1956 (356/356A) CLUTCH RELEASE - FOR - TUNNEL - TRANSMISSION - G 11 001 >> 25 000 - - M 90 501 >> 91 000 PARTS DIAGRAM")
-part-diagram-301-012.webp "PORSCHE 1956 (356/356A) CLUTCH RELEASE - G >> 25 000 PARTS DIAGRAM")
-part-diagram-301-015.webp "PORSCHE 1956 (356/356A) CLUTCH RELEASE - FOR - TRANSMISSION CASE - DIVIDED PARTS DIAGRAM")
-part-diagram-301-020.webp "PORSCHE 1956 (356/356A) CLUTCH - G 25 001 >> PARTS DIAGRAM")
-part-diagram-301-022.webp "PORSCHE 1956 (356/356A) CLUTCH PARTS DIAGRAM")
-part-diagram-301-025.webp "PORSCHE 1956 (356/356A) CLUTCH RELEASE - G 25 001 >> PARTS DIAGRAM")
-part-diagram-301-027.webp "PORSCHE 1956 (356/356A) CLUTCH RELEASE - G 25 001 >> PARTS DIAGRAM")
-part-diagram-302-000.webp "PORSCHE 1956 (356/356A) TRANSMISSION CASE - WITH: - TRANSMISSION SUSPENSION PARTS DIAGRAM")
-part-diagram-302-005.webp "PORSCHE 1956 (356/356A) TRANSMISSION CASE - WITH: - TRANSMISSION SUSPENSION PARTS DIAGRAM")
-part-diagram-302-010.webp "PORSCHE 1956 (356/356A) TRANSMISSION CASE - WITH: - TRANSMISSION SUSPENSION - FOR - TUNNEL TRANSMISSION PARTS DIAGRAM")
