602-000 - BRAKE

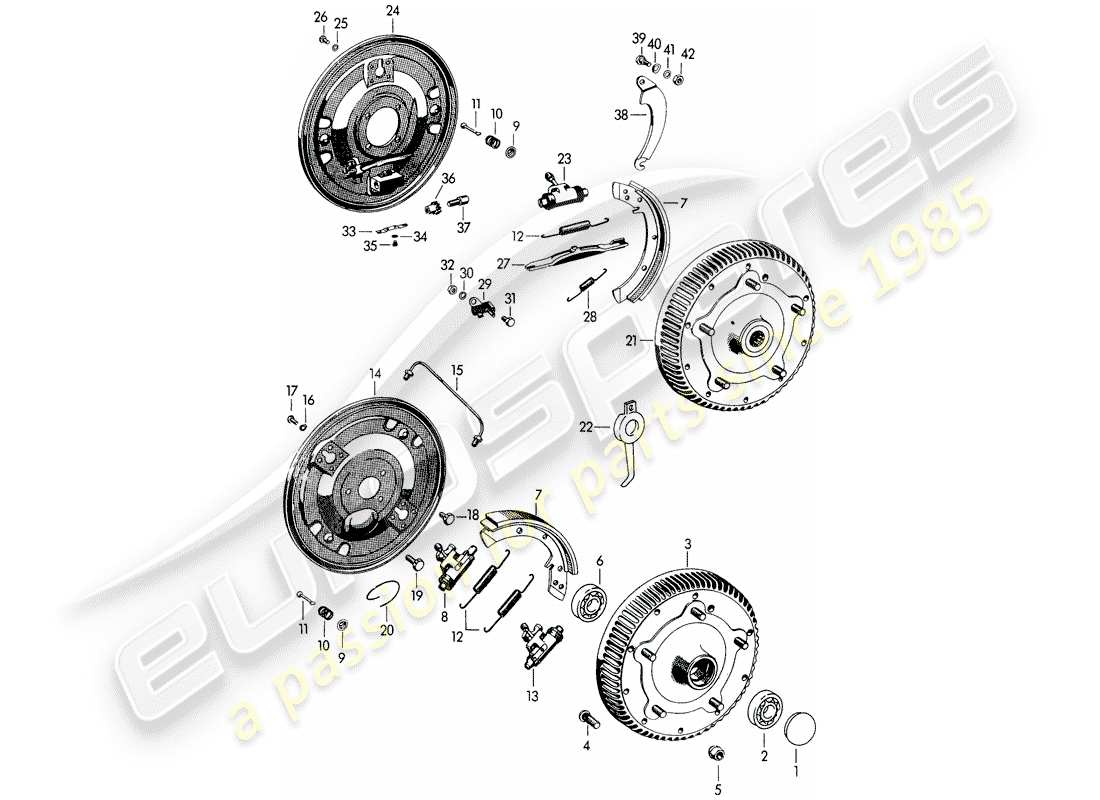

Porsche 1958 (356/356A) BRAKE Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 356 41453
CAP - FOR - STEERING KNUCKLE - WITH: - HOLE
LEFT
from £20.86
from £20.86
# 1
MPN: 356 41454
CAP - FOR - STEERING KNUCKLE
RIGHT
from £20.86
from £20.86
# 2
MPN: 90005300500
BALL BEARING - INTERN. DIAMETER:
outer-20 MM
from £90.06
from £90.06
# 3
MPN: 356 41022
BRAKE DRUM - DISCONTINUED PART
front (356 A)
# 3
MPN: 356 41023
BRAKE DRUM
front (356 A)
from £1,645.43
from £1,645.43
# 3
MPN: 644 42045
BRAKE DRUM - BRAKE - 60 MM
FRONT
# 4
MPN: 356 34132
WHEEL BOLT
FRONT AND REAR
from £15.88
from £15.88
# 4
MPN: 35633190200
WHEEL BOLT - OVERSIZE
# 5
MPN: N 0201121
SPHERICAL COLLAR NUT - A 14 X 1,5
from £5.75
from £5.75
# 6
MPN: 90005300600
BALL BEARING - INTERN. DIAMETER:
inner-25 MM
from £90.88
from £90.88
# 7
MPN: 356 42015
BRAKE SHOE
front and rear (356)
# 7
MPN: 69535103301
BRAKE SHOE - WITH PAD - 40 MM - DISCONTINUED PART
front and rear (356 A/540.1)
# 7
MPN: 69535103302
BRAKE SHOE - WITH PAD - 40 MM
front and rear (356 A/540.1)
from £121.80
from £121.80
# 7
MPN: PCG35103303
BRAKE SHOE - REPAIR KIT - WITH PAD - 40 MM
front and rear (356 A/540.1)
from £519.36
from £519.36
# 7
MPN: 69535103352
BRAKE SHOE - OVERSIZE - WITH PAD - 40 MM
FRONT AND REAR
from £121.80
from £121.80
# 7
MPN: PCG35103353
BRAKE SHOE - REPAIR KIT - OVERSIZE - WITH PAD - 40 MM
FRONT AND REAR
from £519.36
from £519.36
# 7
MPN: 695351033CX
BRAKE SHOE - EXCHANGE - WITH PAD - 40 MM
front and rear (356 A/540.1)
# 7
MPN: 695351033BX
Brake shoe - oversize - Exchange - with pad - 40 MM
front and rear (356 A/540.1)
# 7
MPN: 69535103500
BRAKE SHOE - WITH PAD - 60 MM - COMPLETE
LEFT FRONT
# 7
MPN: 69535103600
BRAKE SHOE - WITH PAD - 60 MM - COMPLETE
RIGHT FRONT
# -
-
1 SET OF SECURING PARTS - BRAKE SHOE - COMPRISING:
FRONT AND REAR
# -
-
ADJUSTMENT SCREW
# -
-
TENSION SPRING
# -
-
PIN
# -
-
TENSION SPRING
# -
-
PRESSURE SPRING
# -
-
ADJUSTMENT SCREW
# -
-
SPRING SEAT
# -
-
PIN - FOR - BRAKE SHOE - BRAKE - 60 MM
# 8
MPN: 356 42301
WHEEL BRAKE CYLINDER
(356)
# 8
MPN: 356 42125
WHEEL BRAKE CYLINDER
left-upper (356)
# 8
MPN: 356 42126
WHEEL BRAKE CYLINDER
right-upper (356)
# 8
MPN: 69535151100
wheel brake cylinder - $ 19,05 MM
left-upper (356 A/540.1)
from £248.29
from £248.29
# 8
MPN: 69535151110
WHEEL BRAKE CYLINDER - $ 19,05 MM - BRAKE - 60 MM
left front-upper
# 8
MPN: 69535151200
wheel brake cylinder - $ 19,05 MM
right-upper (356 A/540.1)
from £259.11
from £259.11
# 8
MPN: 69535151210
WHEEL BRAKE CYLINDER - $ 19,05 MM - BRAKE - 60 MM
right front-upper
# 9
MPN: 251609289
SPRING SEAT
from £1.41
from £1.41
# 10
MPN: 644 42208
PRESSURE SPRING
(356)
from £3.75
from £3.75
# 10
MPN: 644 42208
PRESSURE SPRING
(356 A/540.1)
from £3.75
from £3.75
# 11
MPN: 356 42169
PIN
from £7.41
from £7.41
# 12
MPN: 356 42168
TENSION SPRING
from £7.00
from £7.00
# 13
MPN: 356 42302
WHEEL BRAKE CYLINDER
(356)
# 13
MPN: 69535151300
wheel brake cylinder - $ 19,05 MM
left front-lower (356 A/540.1)
# 13
MPN: 69535151310
WHEEL BRAKE CYLINDER - $ 19,05 MM - BRAKE - 60 MM
left front-lower
# 13
MPN: 69535151400
wheel brake cylinder - $ 19,05 MM
right front-lower
# 13
MPN: 69535151410
WHEEL BRAKE CYLINDER - $ 19,05 MM - BRAKE - 60 MM
right front-lower
# -
-
INTERMEDIATE PLATE - FOR - WHEEL BRAKE CYLINDER - BRAKE - 60 MM
# 14
MPN: 356 42216
BACK PLATE
right front (356)
# 14
MPN: 356 42228
BACK PLATE
right front (356 A/540.1)
# 14
MPN: 356 42215
BACK PLATE
Left Front (356)
# 14
MPN: 356 42227
BACK PLATE
left front (356 A/540.1)
# 14
MPN: 644 42227
BACK PLATE - BRAKE - 60 MM
left front-non vent
# 14
MPN: 644 42228
BACK PLATE - BRAKE - 60 MM
right front-non vent
# 14
MPN: 64435101110
BACK PLATE - BRAKE - 60 MM
left front-vent
# 14
MPN: 64435101210
BACK PLATE - BRAKE - 60 MM
left front-vent
# 15
MPN: 356 42184
CONNECTING PIPE
from £20.84
from £20.84
# 16
MPN: 90002701301
LOCK RING - B 6
# 17
-
SCREW, HEX. HD. - M 6 X 15
(356)
# 17
MPN: 90007501002
HEX. NUT - M 6 X 12 - DISCONTINUED PART
(356 A/540.1)
# 17
MPN: N 01021214
SCREW, HEX. HD. - M 6 X 12 - DISCONTINUED PART
(356 A/540.1)
# 17
MPN: 99907200509
HEX. NUT - M 6 X 12 - DISCONTINUED PART
(356 A/540.1)
# 17
MPN: 99907200501
SCREW, HEX. HD. - M 6 X 12
(356 A/540.1)
from £2.58
from £2.58
# 18
MPN: 90007503502
screw, hex. hd. - M 10 X 15 SK
# 19
MPN: 90007503701
screw, hex. hd. - M 10 X 17 SK
from £18.12
from £18.12
# 20
-
LOCKING WIRE
# 21
MPN: 356 34030
BRAKE DRUM
Rear (356)
# 21
MPN: 64433106100
BRAKE DRUM
rear (356 A/540.1)
# 21
MPN: 64433106110
BRAKE DRUM - DISCONTINUED PART
rear (356 A)
# 21
MPN: 64433106112
BRAKE DRUM
rear (356 A)
from £1,645.41
from £1,645.41
# 21
MPN: 64433106300
BRAKE DRUM - REPLACING PART - 64433106112 - DISCONTINUED PART
rear (356 A)
# -
-
WHEEL BOLT - LONG - STANDARD DIMENSION - BRAKE - 40 MM
# -
-
WHEEL BOLT - LONG - OVERSIZE - BRAKE - 40 MM
# -
-
SPACER WASHER - BRAKE - 40 MM
# 22
MPN: 356 34031
CUP
# -
-
SCREW, HEX. HD. - M 8 X 15 - DISCONTINUED PART
# -
-
SCREW, HEX. HD. - M 8 X 15
# 23
MPN: 644 42310
wheel brake cylinder - $ 20,64 MM - G >> 18 604
# 23
MPN: 64435251301
wheel brake cylinder - G 18 605 >>
from £147.04
from £147.04
# 24
MPN: 356 42220
BACK PLATE
RIGHT REAR
# 24
MPN: 356 42219
BACK PLATE
LEFT REAR
# 24
MPN: 64435201110
BACK PLATE - BRAKE - 40 MM
LEFT REAR
# 24
MPN: 64435201210
BACK PLATE - BRAKE - 40 MM
RIGHT REAR
# -
-
Brake shoe - with pad - Brake - 40 MM - Discontinued part
# -
-
Brake shoe - with pad - Brake - 40 MM
# -
-
Brake shoe - repair kit - with pad - Brake - 40 MM
# 25
MPN: 90002701301
LOCK RING - B 6
# 26
MPN: 90007501002
HEX. NUT - M 6 X 12 - DISCONTINUED PART
# 26
MPN: N 01021214
SCREW, HEX. HD. - M 6 X 12 - DISCONTINUED PART
# 26
MPN: 99907200509
HEX. NUT - M 6 X 12 - DISCONTINUED PART
# 26
MPN: 99907200501
SCREW, HEX. HD. - M 6 X 12
from £2.58
from £2.58
# 27
MPN: 356 42197
PUSH ROD
LEFT
from £90.47
from £90.47
# 27
MPN: 356 42198
PUSH ROD
RIGHT
from £90.47
from £90.47
# 28
MPN: 356 42172
TENSION SPRING
from £12.97
from £12.97
# 29
MPN: 356 42181
BRACKET
LEFT REAR
from £7.40
from £7.40
# 29
MPN: 356 42182
BRACKET
RIGHT REAR
from £8.35
from £8.35
# 30
MPN: 90002701502
LOCK RING - B 8
# 30
MPN: 90002701503
LOCK RING - B 8
from £0.86
from £0.86
# 31
MPN: 90007507802
SCREW, HEX. HD. - M 8 X 15 - DISCONTINUED PART
# 31
MPN: 90007507803
SCREW, HEX. HD. - M 8 X 15
from £1.84
from £1.84
# 32
MPN: 90007601302
HEX. NUT - M 8 - DISCONTINUED PART
# 32
MPN: 90007602502
HEX. NUT - M 8 - DISCONTINUED PART
Supersession
Supersession
# 32
MPN: 90007606402
hex. nut - M 8
from £0.59
from £0.59
# 33
MPN: 356 42174
FLAT SPRING
# 34
MPN: 90002701001
LOCK RING - B 3
# 35
MPN: 90001600101
SCREW, BUTTON HD. - AM 3 X 4
from £2.77
from £2.77
# 36
MPN: 356 42173
ADJUSTING NUT
# 37
MPN: 356 42114
ADJUSTMENT SCREW
from £16.34
from £16.34
# 38
MPN: 356 42147
LEVER
LEFT REAR
# 38
MPN: 356 42148
LEVER
RIGHT REAR
from £57.11
from £57.11
# 39
MPN: 356 42207
BEARING PIN
# 40
MPN: 356 42209
SPRING WASHER - $ 10,5/18 MM
# 41
MPN: 90002701502
LOCK RING - B 8
# 41
MPN: 90002701503
LOCK RING - B 8
from £0.86
from £0.86
# 42
MPN: 90007601302
HEX. NUT - M 8 - DISCONTINUED PART
# 42
MPN: 90007602502
HEX. NUT - M 8 - DISCONTINUED PART
Supersession
Supersession
# 42
MPN: 90007606402
hex. nut - M 8
from £0.59
from £0.59
# -
-
FITTING - BRAKE - 60 MM
# -
-
SEAL RING - A 10 X 16 - BRAKE - 60 MM
# -
-
SCREW, HEX. HD. - M 6 X 22 - BRAKE - 60 MM
# -
-
LOCK RING - A 6 - BRAKE - 60 MM - DISCONTINUED PART
# -
-
LOCK RING - A 6 - BRAKE - 60 MM
-part-diagram-604-000.webp "PORSCHE 1958 (356/356A) BRAKE MASTER CYLINDER - AND - BRAKE LINES PARTS DIAGRAM")
-part-diagram-698-005.webp "PORSCHE 1958 (356/356A) BRAKE FLUID - PORSCHE CLASSIC PARTS DIAGRAM")
-part-diagram-701-000.webp "PORSCHE 1958 (356/356A) TRANSMISSION CONTROL PARTS DIAGRAM")
-part-diagram-701-005.webp "PORSCHE 1958 (356/356A) HANDBRAKE PARTS DIAGRAM")
-part-diagram-701-010.webp "PORSCHE 1958 (356/356A) HANDBRAKE PARTS DIAGRAM")
-part-diagram-702-000.webp "PORSCHE 1958 (356/356A) PEDALS PARTS DIAGRAM")
-part-diagram-702-005.webp "PORSCHE 1958 (356/356A) PEDALS PARTS DIAGRAM")
-part-diagram-801-005.webp "PORSCHE 1958 (356/356A) FRAME PARTS DIAGRAM")
-part-diagram-801-010.webp "PORSCHE 1958 (356/356A) FRAME PARTS DIAGRAM")
-part-diagram-801-015.webp "PORSCHE 1958 (356/356A) FRAME - SINGLE PARTS PARTS DIAGRAM")
-part-diagram-801-020.webp "PORSCHE 1958 (356/356A) FRAME - SINGLE PARTS PARTS DIAGRAM")
-part-diagram-801-025.webp "PORSCHE 1958 (356/356A) BODY SHELL - INTERIOR PANELLING PARTS DIAGRAM")
-part-diagram-801-030.webp "PORSCHE 1958 (356/356A) BODY SHELL - INTERIOR PANELLING PARTS DIAGRAM")
-part-diagram-802-000.webp "PORSCHE 1958 (356/356A) EXTERIOR PANELLING PARTS DIAGRAM")
-part-diagram-802-005.webp "PORSCHE 1958 (356/356A) EXTERIOR PANELLING - FENDER PARTS DIAGRAM")
-part-diagram-802-010.webp "PORSCHE 1958 (356/356A) EXTERIOR PANELLING - FENDER PARTS DIAGRAM")
-part-diagram-802-015.webp "PORSCHE 1958 (356/356A) BUMPER PARTS DIAGRAM")
-part-diagram-803-000.webp "PORSCHE 1958 (356/356A) COVER - - AND - WITH INSTALLATION PARTS - TO FIT USE WORKSHOP MATERIAL PARTS DIAGRAM")
-part-diagram-804-000.webp "PORSCHE 1958 (356/356A) DOOR - WITH: PARTS DIAGRAM")
-part-diagram-804-001.webp "PORSCHE 1958 (356/356A) DOOR HANDLE, OUTER - AND - SINGLE PARTS PARTS DIAGRAM")
-part-diagram-804-005.webp "PORSCHE 1958 (356/356A) DOOR - WITH: - ACCESSORIES PARTS DIAGRAM")
-part-diagram-805-000.webp "PORSCHE 1958 (356/356A) WINDOW GLAZING PARTS DIAGRAM")
-part-diagram-805-005.webp "PORSCHE 1958 (356/356A) WINDSHIELD GLASS PARTS DIAGRAM")
-part-diagram-805-010.webp "PORSCHE 1958 (356/356A) SIDE WINDOW - DOOR WINDOW PARTS DIAGRAM")
-part-diagram-805-015.webp "PORSCHE 1958 (356/356A) DOOR WINDOW PARTS DIAGRAM")
-part-diagram-805-020.webp "PORSCHE 1958 (356/356A) DOOR WINDOW - F 150 001 >> PARTS DIAGRAM")
-part-diagram-805-025.webp "PORSCHE 1958 (356/356A) WASHER - SPECIAL MODEL PARTS DIAGRAM")
-part-diagram-807-000.webp "PORSCHE 1958 (356/356A) TRIMS - FOOTWELL PARTS DIAGRAM")
-part-diagram-807-005.webp "PORSCHE 1958 (356/356A) TRIMS - INTERIOR EQUIPMENT PARTS DIAGRAM")
-part-diagram-807-010.webp "PORSCHE 1958 (356/356A) BODY SHELL - SOUND ABSORBER PARTS DIAGRAM")
-part-diagram-808-000.webp "PORSCHE 1958 (356/356A) FRONT SEAT - AND - EMERGENCY SEAT PARTS DIAGRAM")
-part-diagram-808-005.webp "PORSCHE 1958 (356/356A) FRONT SEAT PARTS DIAGRAM")
-part-diagram-809-000.webp "PORSCHE 1958 (356/356A) DASHBOARD PARTS DIAGRAM")
-part-diagram-809-005.webp "PORSCHE 1958 (356/356A) DASHBOARD PARTS DIAGRAM")
-part-diagram-809-010.webp "PORSCHE 1958 (356/356A) DASHBOARD PARTS DIAGRAM")
-part-diagram-810-000.webp "PORSCHE 1958 (356/356A) DECORATIVE FITTINGS PARTS DIAGRAM")
-part-diagram-811-000.webp "PORSCHE 1958 (356/356A) TOP FRAME PARTS DIAGRAM")
-part-diagram-811-005.webp "PORSCHE 1958 (356/356A) TOP FRAME PARTS DIAGRAM")
-part-diagram-811-010.webp "PORSCHE 1958 (356/356A) CONVERTIBLE TOP COVERING PARTS DIAGRAM")
-part-diagram-811-015.webp "PORSCHE 1958 (356/356A) CONVERTIBLE TOP - CONVERTIBLE TOP COVERING PARTS DIAGRAM")
-part-diagram-811-020.webp "PORSCHE 1958 (356/356A) TOP FRAME - TONNEAU COVER PARTS DIAGRAM")
-part-diagram-813-000.webp "PORSCHE 1958 (356/356A) VALVE PARTS DIAGRAM")
-part-diagram-813-005.webp "PORSCHE 1958 (356/356A) VALVE PARTS DIAGRAM")
-part-diagram-901-000.webp "PORSCHE 1958 (356/356A) ELECTRICAL EQUIPMENT - ENGINE PARTS DIAGRAM")
-part-diagram-901-005.webp "PORSCHE 1958 (356/356A) ELECTRICAL EQUIPMENT - ENGINE - M 90 501 >> 91 000 PARTS DIAGRAM")
-part-diagram-901-010.webp "PORSCHE 1958 (356/356A) ELECTRICAL EQUIPMENT - ENGINE PARTS DIAGRAM")
-part-diagram-901-015.webp "PORSCHE 1958 (356/356A) DISTRIBUTOR - DRIVING MECHANISM PARTS DIAGRAM")
-part-diagram-904-000.webp "PORSCHE 1958 (356/356A) WINDSHIELD WASHER UNIT PARTS DIAGRAM")
-part-diagram-904-005.webp "PORSCHE 1958 (356/356A) WINDSCREEN WIPER SYSTEM PARTS DIAGRAM")
-part-diagram-904-010.webp "PORSCHE 1958 (356/356A) WINDSCREEN WIPER SYSTEM PARTS DIAGRAM")
-part-diagram-904-015.webp "PORSCHE 1958 (356/356A) WINDSHIELD WASHER UNIT - WINDSCREEN WIPER SYSTEM PARTS DIAGRAM")
-part-diagram-905-000.webp "PORSCHE 1958 (356/356A) HEADLAMP - AND - SWITCH PARTS DIAGRAM")
-part-diagram-905-005.webp "PORSCHE 1958 (356/356A) HEADLAMP - LIGHTS - AND - SWITCH - BATTERY PARTS DIAGRAM")
-part-diagram-906-000.webp "PORSCHE 1958 (356/356A) INSTRUMENTS PARTS DIAGRAM")
-part-diagram-906-005.webp "PORSCHE 1958 (356/356A) INSTRUMENTS PARTS DIAGRAM")
-part-diagram-906-006.webp "PORSCHE 1958 (356/356A) BUTTON - SET - SWITCH PARTS DIAGRAM")
-part-diagram-906-010.webp "PORSCHE 1958 (356/356A) DRIVING MECHANISM - TACHOMETER PARTS DIAGRAM")
-part-diagram-001-000.webp "PORSCHE 1958 (356/356A) TOOL - AND - ACCESSORIES - FIRST AID KIT PARTS DIAGRAM")
-part-diagram-001-003.webp "PORSCHE 1958 (356/356A) CLEANING AGENT - PORSCHE CLASSIC PARTS DIAGRAM")
-part-diagram-001-005.webp "PORSCHE 1958 (356/356A) ACCESSORIES PARTS DIAGRAM")
-part-diagram-001-010.webp "PORSCHE 1958 (356/356A) SCHLUESSEL-ETUI - LEATHER PARTS DIAGRAM")
-part-diagram-001-015.webp "PORSCHE 1958 (356/356A) ACCESSORIES - PORSCHE CLASSIC PARTS DIAGRAM")
-part-diagram-002-000.webp "PORSCHE 1958 (356/356A) EMBLEM - STICKER PARTS DIAGRAM")
-part-diagram-002-003.webp "PORSCHE 1958 (356/356A) IDENTIFICATION PLATE PARTS DIAGRAM")
-part-diagram-002-005.webp "PORSCHE 1958 (356/356A) INSTRUCTION MANUAL - CUSTOMER SERVICE BOOKLET PARTS DIAGRAM")
-part-diagram-101-005.webp "PORSCHE 1958 (356/356A) CRANKCASE - M >> 10 199 - M >> 21 780 - M >> 50 099 - M >> 21 999 - M >> 33 899 - M >> 40 999 PARTS DIAGRAM")
-part-diagram-101-010.webp "PORSCHE 1958 (356/356A) CRANKCASE - M 22 001 >> - M 50 101 >> - M 33 901 >> - M 41 001 >> - M 60 001 >> - M 80 001 >> PARTS DIAGRAM")
-part-diagram-101-015.webp "PORSCHE 1958 (356/356A) CRANKCASE - M 90 501 >> 91 000 PARTS DIAGRAM")
-part-diagram-101-017.webp "PORSCHE 1958 (356/356A) CRANKCASE PARTS DIAGRAM")
-part-diagram-102-000.webp "PORSCHE 1958 (356/356A) CRANKSHAFT - M >> 10 199 - M >> 21 780 - M >> 50 099 - M >> 21 999 - M >> 33 899 - M >> 40 999 PARTS DIAGRAM")
-part-diagram-102-005.webp "PORSCHE 1958 (356/356A) CRANKSHAFT - M 22 001 >> - M 50 101 >> - M 33 901 >> - M 41 001 >> - M 60 001 >> - M 80 001 >> PARTS DIAGRAM")
-part-diagram-102-010.webp "PORSCHE 1958 (356/356A) CRANKSHAFT - M 90 501 >> 91 000 PARTS DIAGRAM")
-part-diagram-102-012.webp "PORSCHE 1958 (356/356A) CRANKSHAFT PARTS DIAGRAM")
-part-diagram-103-000.webp "PORSCHE 1958 (356/356A) CYLINDER HEAD - CYLINDER WITH PISTONS - M >> 10 199 - M >> 21 780 - M >> 50 099 - M >> 21 999 - M >> 33 899 - M >> 40 999 PARTS DIAGRAM")
-part-diagram-103-005.webp "PORSCHE 1958 (356/356A) CYLINDER HEAD - CYLINDER WITH PISTONS - M 22 001 >> - M 50 101 >> - M 33 901 >> - M 41 001 >> - M 60 001 >> - M 80 001 >> PARTS DIAGRAM")
-part-diagram-103-010.webp "PORSCHE 1958 (356/356A) CYLINDER HEAD - CYLINDER WITH PISTONS - M 90 501 >> 91 000 PARTS DIAGRAM")
-part-diagram-103-012.webp "PORSCHE 1958 (356/356A) CYLINDER HEAD - CYLINDER WITH PISTONS PARTS DIAGRAM")
-part-diagram-103-015.webp "PORSCHE 1958 (356/356A) CAMSHAFT - M >> 10 199 - M >> 21 780 - M >> 50 099 - M >> 21 999 - M >> 33 899 - M >> 40 999 PARTS DIAGRAM")
-part-diagram-103-020.webp "PORSCHE 1958 (356/356A) CAMSHAFT - M 22 001 >> - M 50 101 >> - M 33 901 >> - M 41 001 >> - M 60 001 >> - M 80 001 >> PARTS DIAGRAM")
-part-diagram-103-025.webp "PORSCHE 1958 (356/356A) DRIVING MECHANISM - FOR - VALVE CONTROL - M 90 501 >> 91 000 PARTS DIAGRAM")
-part-diagram-103-027.webp "PORSCHE 1958 (356/356A) DRIVING MECHANISM - FOR - VALVE CONTROL PARTS DIAGRAM")
-part-diagram-103-030.webp "PORSCHE 1958 (356/356A) VALVE CONTROL - M 90 501 >> 91 000 PARTS DIAGRAM")
-part-diagram-103-032.webp "PORSCHE 1958 (356/356A) VALVE CONTROL PARTS DIAGRAM")
-part-diagram-104-000.webp "PORSCHE 1958 (356/356A) ENGINE LUBRICATION - M >> 67 000 - M >> 81 200 PARTS DIAGRAM")
-part-diagram-104-005.webp "PORSCHE 1958 (356/356A) ENGINE LUBRICATION - M 67 001 >> - M 81 201 >> PARTS DIAGRAM")
-part-diagram-104-007.webp "PORSCHE 1958 (356/356A) ENGINE LUBRICATION - OIL COOLER PARTS DIAGRAM")
-part-diagram-104-010.webp "PORSCHE 1958 (356/356A) OIL CONTAINER - M 90 501 >> 91 000 PARTS DIAGRAM")
-part-diagram-104-012.webp "PORSCHE 1958 (356/356A) OIL CONTAINER - OIL FILTER PARTS DIAGRAM")
-part-diagram-104-015.webp "PORSCHE 1958 (356/356A) OIL PUMP PARTS DIAGRAM")
-part-diagram-105-000.webp "PORSCHE 1958 (356/356A) AIR COOLING PARTS DIAGRAM")
-part-diagram-105-005.webp "PORSCHE 1958 (356/356A) AIR COOLING PARTS DIAGRAM")
-part-diagram-105-007.webp "PORSCHE 1958 (356/356A) AIR COOLING PARTS DIAGRAM")
-part-diagram-107-000.webp "PORSCHE 1958 (356/356A) CARBURETOR - SOLEX 32PBJ - SOLEX 40PJCB - AND - FUEL SUPPLY LINE - FUEL PUMP PARTS DIAGRAM")
-part-diagram-107-005.webp "PORSCHE 1958 (356/356A) CARBURETOR - SOLEX 32PBJ - SOLEX 40PJCB - AND - FUEL SUPPLY LINE PARTS DIAGRAM")
-part-diagram-107-010.webp "PORSCHE 1958 (356/356A) CARBURETOR - PALLAS-ZENIT 32NDIX - AND - FUEL SUPPLY LINE - M 67 001 >> - M 81 201 >> PARTS DIAGRAM")
-part-diagram-107-015.webp "PORSCHE 1958 (356/356A) SINGLE PARTS - FOR - CARBURETOR - SOLEX 32 PBI PARTS DIAGRAM")
-part-diagram-107-020.webp "PORSCHE 1958 (356/356A) SINGLE PARTS - FOR - CARBURETOR - SOLEX 32 PBIC PARTS DIAGRAM")
-part-diagram-107-025.webp "PORSCHE 1958 (356/356A) SINGLE PARTS - FOR - CARBURETOR - PALLAS - ZENITH 32 NDIX PARTS DIAGRAM")
-part-diagram-107-030.webp "PORSCHE 1958 (356/356A) SINGLE PARTS - FOR - CARBURETOR - SOLEX 40 PBIC - M >> 81 200 PARTS DIAGRAM")
-part-diagram-107-035.webp "PORSCHE 1958 (356/356A) SINGLE PARTS - FOR - FUEL PUMP - 616. 08.401 PARTS DIAGRAM")
-part-diagram-107-040.webp "PORSCHE 1958 (356/356A) CARBURETOR - SOLEX 40 P II - SOLEX 40 P II-4 - AND - FUEL SUPPLY LINE - M 90 501 >> 91 000 PARTS DIAGRAM")
-part-diagram-107-042.webp "PORSCHE 1958 (356/356A) CARBURETOR - SOLEX 40 P II-4/WEBER - AND - FUEL SUPPLY LINE PARTS DIAGRAM")
-part-diagram-107-045.webp "PORSCHE 1958 (356/356A) FUEL PUMP - -AUTOPULSE 500- - ELECTRIC - WITH: - FUEL LINE PARTS DIAGRAM")
-part-diagram-107-055.webp "PORSCHE 1958 (356/356A) SINGLE PARTS - FOR - FUEL PUMP - AUTOPULSE 500 - ELECTRIC PARTS DIAGRAM")
-part-diagram-198-000.webp "PORSCHE 1958 (356/356A) GASKET SET PARTS DIAGRAM")
-part-diagram-198-015.webp "PORSCHE 1958 (356/356A) ENGINE OIL - PORSCHE CLASSIC 20W50 PARTS DIAGRAM")
-part-diagram-201-000.webp "PORSCHE 1958 (356/356A) FUEL TANK PARTS DIAGRAM")
-part-diagram-202-000.webp "PORSCHE 1958 (356/356A) EXHAUST SYSTEM - F >> 101 692 - F >> 150 000 - F >> 83 791 PARTS DIAGRAM")
-part-diagram-202-005.webp "PORSCHE 1958 (356/356A) EXHAUST SYSTEM - F 101 693 >> - F 150 001 >> - F 83 792 >> PARTS DIAGRAM")
-part-diagram-202-010.webp "PORSCHE 1958 (356/356A) EXHAUST SYSTEM - M 90 501 >> 91 000 PARTS DIAGRAM")
-part-diagram-202-012.webp "PORSCHE 1958 (356/356A) SILENCER - AND - ACCESSORIES PARTS DIAGRAM")
-part-diagram-202-013.webp "PORSCHE 1958 (356/356A) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-202-015.webp "PORSCHE 1958 (356/356A) HEATING AIR SUPPLY PARTS DIAGRAM")
-part-diagram-298-005.webp "PORSCHE 1958 (356/356A) PORSCHE CLASSIC - ADDITIVE - FOR FUEL PARTS DIAGRAM")
-part-diagram-301-000.webp "PORSCHE 1958 (356/356A) CLUTCH PARTS DIAGRAM")
-part-diagram-301-005.webp "PORSCHE 1958 (356/356A) CLUTCH PARTS DIAGRAM")
-part-diagram-301-007.webp "PORSCHE 1958 (356/356A) CLUTCH PARTS DIAGRAM")
-part-diagram-301-010.webp "PORSCHE 1958 (356/356A) CLUTCH RELEASE - FOR - TUNNEL - TRANSMISSION - G 11 001 >> 25 000 - - M 90 501 >> 91 000 PARTS DIAGRAM")
-part-diagram-301-012.webp "PORSCHE 1958 (356/356A) CLUTCH RELEASE - G >> 25 000 PARTS DIAGRAM")
-part-diagram-301-015.webp "PORSCHE 1958 (356/356A) CLUTCH RELEASE - FOR - TRANSMISSION CASE - DIVIDED PARTS DIAGRAM")
-part-diagram-301-020.webp "PORSCHE 1958 (356/356A) CLUTCH - G 25 001 >> PARTS DIAGRAM")
-part-diagram-301-022.webp "PORSCHE 1958 (356/356A) CLUTCH PARTS DIAGRAM")
-part-diagram-301-025.webp "PORSCHE 1958 (356/356A) CLUTCH RELEASE - G 25 001 >> PARTS DIAGRAM")
-part-diagram-301-027.webp "PORSCHE 1958 (356/356A) CLUTCH RELEASE - G 25 001 >> PARTS DIAGRAM")
-part-diagram-302-000.webp "PORSCHE 1958 (356/356A) TRANSMISSION CASE - WITH: - TRANSMISSION SUSPENSION PARTS DIAGRAM")
-part-diagram-302-005.webp "PORSCHE 1958 (356/356A) TRANSMISSION CASE - WITH: - TRANSMISSION SUSPENSION PARTS DIAGRAM")
-part-diagram-302-010.webp "PORSCHE 1958 (356/356A) TRANSMISSION CASE - WITH: - TRANSMISSION SUSPENSION - FOR - TUNNEL TRANSMISSION PARTS DIAGRAM")
-part-diagram-303-000.webp "PORSCHE 1958 (356/356A) GEARS AND SHAFTS - FOR - TRANSMISSION PARTS DIAGRAM")
-part-diagram-303-005.webp "PORSCHE 1958 (356/356A) GEARS AND SHAFTS - FOR - TRANSMISSION PARTS DIAGRAM")
-part-diagram-305-000.webp "PORSCHE 1958 (356/356A) DIFFERENTIAL PARTS DIAGRAM")
-part-diagram-401-000.webp "PORSCHE 1958 (356/356A) FRONT AXLE - LUBRICANTS PARTS DIAGRAM")
-part-diagram-403-000.webp "PORSCHE 1958 (356/356A) STEERING WHEEL - INTERMEDIATE STEERING SHAFT - STEERING TRACK ROD - AND - SWING LEVER PARTS DIAGRAM")
-part-diagram-403-005.webp "PORSCHE 1958 (356/356A) STEERING WHEEL - INTERMEDIATE STEERING SHAFT - STEERING TRACK ROD - AND - SWING LEVER PARTS DIAGRAM")
-part-diagram-403-010.webp "PORSCHE 1958 (356/356A) STEERING GEAR - AND - STEERING COUPLING - F >> 101 692 - F >> 61 892 - F >> 83 791 PARTS DIAGRAM")
-part-diagram-403-015.webp "PORSCHE 1958 (356/356A) STEERING GEAR - F 101 693 >> - F 61 893 >> - F 83 792 >> PARTS DIAGRAM")
-part-diagram-501-000.webp "PORSCHE 1958 (356/356A) REAR AXLE PARTS DIAGRAM")
-part-diagram-501-005.webp "PORSCHE 1958 (356/356A) REAR AXLE PARTS DIAGRAM")
-part-diagram-601-000.webp "PORSCHE 1958 (356/356A) WHEELS PARTS DIAGRAM")
-part-diagram-601-005.webp "PORSCHE 1958 (356/356A) PERFORATED DISC WHEEL - CENTRAL LOCKING PARTS DIAGRAM")
