porsche 1964 (356b/356c) air cooling - heater - new design parts diagram

105-005 - AIR COOLING - HEATER - NEW DESIGN

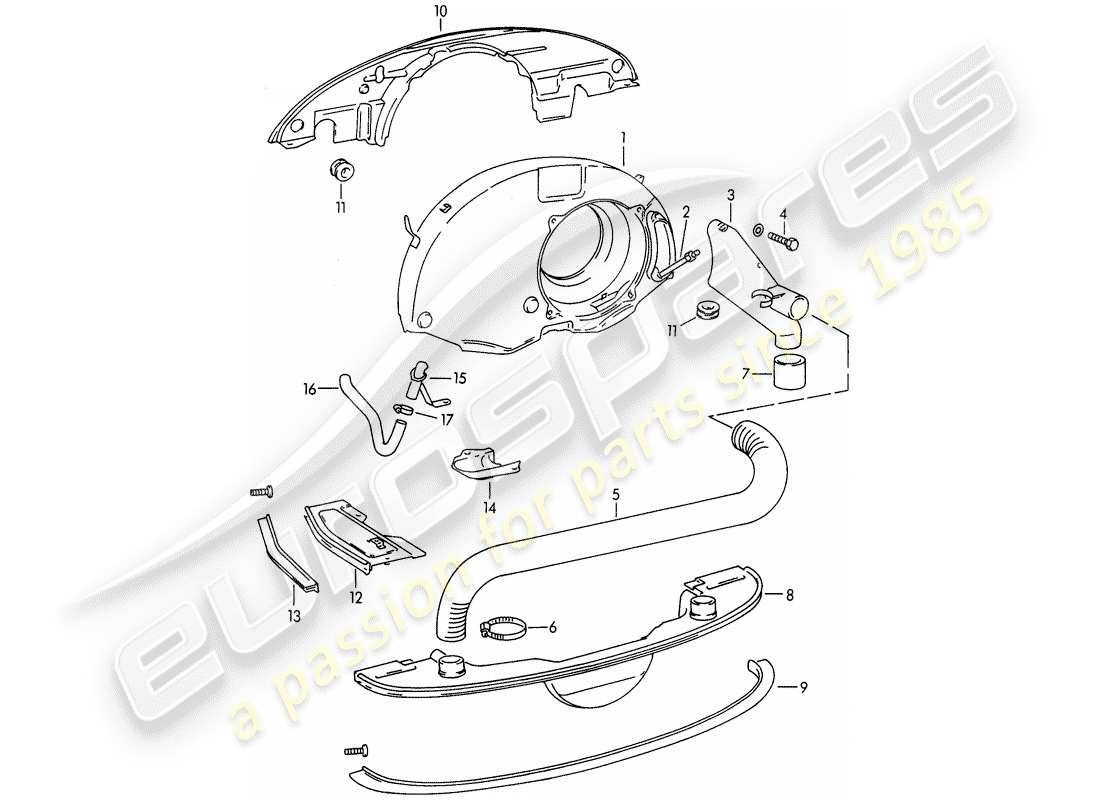

Porsche 1964 (356B/356C) AIR COOLING - HEATER - NEW DESIGN Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Key
                            Price
                            # -
                            -
                            PARTS NOT LISTED - SEE GROUP - 1/05/00
                            # 1
                            MPN: 61610601313
                            AIR GUIDE HOUSING
                            AIR GUIDE HOUSING Genuine Porsche Part - New (to order)
                            # 2
                            MPN: 61621127000
                            STUD
                            from £1.93
                            from £1.93
                            STUD Genuine Porsche Part - New (to order)
                            # 3
                            MPN: 61621102902
                            UNION
                            from £237.48
                            from £237.48
                            UNION Genuine Porsche Part - New (to order)
                            # 4
                            MPN: 90007401502
                            SCREW, HEX. HD. - M 6 X 30 - DISCONTINUED PART
                            Supersession
                            Supersession
                            Genuine Porsche Part (no longer available to order)
                            # 4
                            MPN: 90007401503
                            SCREW, HEX. HD. - M 6 X 30
                            from £1.46
                            from £1.46
                            screw, hex. hd. - M 6 X30 DIN 931-8.8 Genuine Porsche Part - New (to order)
                            # 5
                            MPN: 61621129500
                            heater hose
                            heater hose Genuine Porsche Part - New (to order)
                            # 6
                            MPN: 99951212402
                            HOSE CLIP
                            HOSE CLIP Genuine Porsche Part - New (to order)
                            # 7
                            MPN: 61621129600
                            CONNECTING HOSE
                            CONNECTING HOSE Genuine Porsche Part - New (to order)
                            # 8
                            MPN: 61610608501
                            COVER PLATE - ENGINE
                            rear
                            COVER PLATE - ENGINE Genuine Porsche Part - New (to order)
                            # 9
                            MPN: 61610689600
                            RUBBER
                            from £37.58
                            from £37.58
                            RUBBER Genuine Porsche Part - New (to order)
                            # 10
                            MPN: 61610608200
                            COVER PLATE - ENGINE
                            FRONT
                            COVER PLATE - ENGINE Genuine Porsche Part - New (to order)
                            # 11
                            MPN: 99970204250
                            GROMMET
                            GROMMET Genuine Porsche Part - New (to order)
                            # 12
                            MPN: 369 06140
                            COVER PLATE
                            left-side
                            COVER PLATE Genuine Porsche Part - New (to order)
                            # 12
                            MPN: 369 06141
                            COVER PLATE
                            right-side
                            COVER PLATE Genuine Porsche Part - New (to order)
                            # 13
                            MPN: 61610689700
                            RUBBER
                            from £9.69
                            from £9.69
                            RUBBER Genuine Porsche Part - New (to order)
                            # 14
                            MPN: 61610683100
                            cover plate - for - fuel pump
                            from £46.92
                            from £46.92
                            cover plate - ZUR - fuel pump Genuine Porsche Part - New (to order)
                            # 15
                            MPN: 61610607803
                            UNION - FOR - CARBURETOR - PREHEATING
                            (1600 S90)
                            from £73.88
                            from £73.88
                            UNION - FOR - CARBURETOR - PREHEATING Genuine Porsche Part - New (to order)
                            # 15
                            MPN: 61610607803
                            UNION - FOR - CARBURETOR - PREHEATING
                            (1600 /S)
                            from £73.88
                            from £73.88
                            UNION - FOR - CARBURETOR - PREHEATING Genuine Porsche Part - New (to order)
                            # 17
                            MPN: N 0241151
                            HOSE CLAMP
                            Hose Clamp - S 23/9 Genuine Porsche Part - New (to order)
                            # -
                            -
                            STICKER 'VALVE CLEARANCE' - - BIRAL - - CYLINDER
                            (1600 SC)
