porsche 1969 (911/912) crankshaft - and - connecting rods parts diagram

102-005 - CRANKSHAFT - AND - CONNECTING RODS

Porsche 1969 (911/912) CRANKSHAFT - AND - CONNECTING RODS Parts Diagram

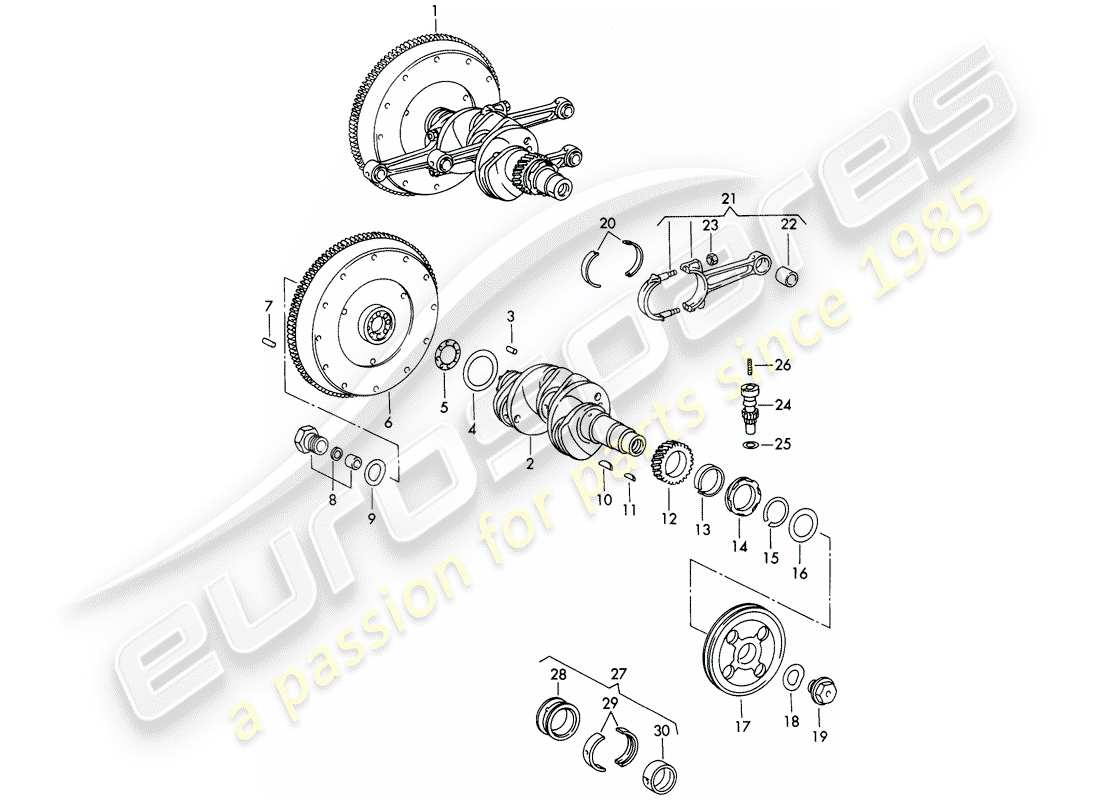

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Key
                                                        Price
                                                        # 1
                                                        MPN: 61610290300
                                                        CRANKSHAFT - WITH: - FLYWHEEL - AND - CONNECTING ROD - COMPRISING: - PICTURE - NR. 2-10,12-15,20-23,28-30
                                                        CRANKSHAFT - WITH: - FLYWHEEL - AND - CONNECTING ROD - COMPRISING: - PICTURE - NR. 2-10,12-15,20-23,28-30 Genuine Porsche Part - New (to order)
                                                        # 2
                                                        MPN: 61610201501
                                                        crankshaft
                                                        from £2,717.71
                                                        from £2,717.71
                                                        crankshaft Genuine Porsche Part - New (to order)
                                                        # 3
                                                        MPN: 90010900400
                                                        ROLLER - 6 X 12
                                                        from £2.59
                                                        from £2.59
                                                        ROLLER - 6 X 12 Genuine Porsche Part - New (to order)
                                                        # 4
                                                        MPN: 369 021071
                                                        thrust washer - 0,80 MM
                                                        from £20.91
                                                        from £20.91
                                                        thrust washer - 0,80 MM Genuine Porsche Part - New (to order)
                                                        # 4
                                                        MPN: 369 021072
                                                        thrust washer - 0,85 MM
                                                        from £20.91
                                                        from £20.91
                                                        thrust washer - 0,85 MM Genuine Porsche Part - New (to order)
                                                        # 4
                                                        MPN: 369 021073
                                                        thrust washer - 0,90 MM
                                                        from £20.91
                                                        from £20.91
                                                        thrust washer - 0,90 MM Genuine Porsche Part - New (to order)
                                                        # 4
                                                        MPN: 369 021074
                                                        thrust washer - 0,95 MM
                                                        from £20.91
                                                        from £20.91
                                                        thrust washer - 0,95 MM Genuine Porsche Part - New (to order)
                                                        # 4
                                                        MPN: 369 021075
                                                        thrust washer - 1,00 MM
                                                        from £20.91
                                                        from £20.91
                                                        thrust washer - 1,00 MM Genuine Porsche Part - New (to order)
                                                        # 4
                                                        MPN: 369 021076
                                                        thrust washer - 1,05 MM
                                                        from £19.33
                                                        from £19.33
                                                        thrust washer - 1,05 MM Genuine Porsche Part - New (to order)
                                                        # 4
                                                        MPN: 369 021077
                                                        thrust washer - 1,10 MM
                                                        thrust washer - 1,10 MM Genuine Porsche Part - New (to order)
                                                        # 4
                                                        MPN: 369 021078
                                                        thrust washer - 1,15 MM
                                                        thrust washer - 1,15 MM Genuine Porsche Part - New (to order)
                                                        # 5
                                                        MPN: 502 02301
                                                        gasket - for - flywheel
                                                        from £4.10
                                                        from £4.10
                                                        gasket - for - flywheel Genuine Porsche Part - New (to order)
                                                        # 6
                                                        MPN: 61610220401
                                                        FLYWHEEL
                                                        FLYWHEEL Genuine Porsche Part - New (to order)
                                                        # 8
                                                        MPN: 61610202501
                                                        BANJO BOLT - WITH: - NEEDLE BEARING - - AND - GASKET - COMPLETE
                                                        from £99.32
                                                        from £99.32
                                                        banjo bolt - complete Genuine Porsche Part - New (to order)
                                                        # 9
                                                        MPN: 539 02103
                                                        lock washer - for - banjo bolt
                                                        from £3.79
                                                        from £3.79
                                                        lock washer - for - banjo bolt Genuine Porsche Part - New (to order)
                                                        # 10
                                                        MPN: 90110214700
                                                        WOODRUFF KEY - FOR - TIMING GEAR - D >> - MJ 1968
                                                        from £8.77
                                                        from £8.77
                                                        woodruff key - for - Timing gear - D - MJ 1969>> Genuine Porsche Part - New (to order)
                                                        # 10
                                                        MPN: 90110214700
                                                        woodruff key - for - Timing gear - D - MJ 1969>>
                                                        from £8.77
                                                        from £8.77
                                                        woodruff key - for - Timing gear - D - MJ 1969>> Genuine Porsche Part - New (to order)
                                                        # 11
                                                        MPN: N 0127091
                                                        spring - for - pulley - 6 X 9
                                                        from £1.13
                                                        from £1.13
                                                        spring - for - pulley - 6 X 9 Genuine Porsche Part - New (to order)
                                                        # 12
                                                        MPN: 539 02105
                                                        Timing gear - for - crankshaft - Discontinued part
                                                        Timing gear - for - crankshaft - Discontinued part Genuine Porsche Part - New (to order)
                                                        # 12
                                                        MPN: PCG 02105
                                                        Timing gear - for - crankshaft
                                                        from £233.16
                                                        from £233.16
                                                        Timing gear - for - crankshaft Genuine Porsche Part - New (to order)
                                                        # 13
                                                        MPN: 53910210600
                                                        INTERMEDIATE RING
                                                        from £25.26
                                                        from £25.26
                                                        INTERMEDIATE RING Genuine Porsche Part - New (to order)
                                                        # 14
                                                        MPN: 54610211000
                                                        Drive pinion - for - distributor - D >> - MJ 1968 - Discontinued part
                                                        DRIVE PINION - FOR - DISTRIBUTOR - D >>- MJ 1968 - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                        # 14
                                                        MPN: 54610211001
                                                        Drive pinion - for - distributor
                                                        from £89.27
                                                        from £89.27
                                                        Drive pinion - for - distributor Genuine Porsche Part - New (to order)
                                                        # 14
                                                        MPN: 90110211500
                                                        drive gear - for - distributor - D - MJ 1969>> - Discontinued part
                                                        DRIVE GEAR - FOR - DISTRIBUTOR - D - MJ 1969>>- DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                        # 14
                                                        MPN: 90110211501
                                                        drive gear - for - distributor - D - MJ 1969>>
                                                        from £64.69
                                                        from £64.69
                                                        drive gear - for - distributor - D - MJ 1969>> Genuine Porsche Part - New (to order)
                                                        # 15
                                                        MPN: 90110214800
                                                        LOCK RING - FOR - DRIVE GEAR - D >> - MJ 1968
                                                        from £5.93
                                                        from £5.93
                                                        lock ring - Number 0 Genuine Porsche Part - New (to order)
                                                        # 15
                                                        MPN: 90110214800
                                                        LOCK RING - FOR - DRIVE GEAR - D - MJ 1969>>
                                                        from £5.93
                                                        from £5.93
                                                        lock ring - Number 0 Genuine Porsche Part - New (to order)
                                                        # 16
                                                        MPN: 61610216301
                                                        SEALING WASHER
                                                        from £2.78
                                                        from £2.78
                                                        SEALING WASHER Genuine Porsche Part - New (to order)
                                                        # 17
                                                        MPN: 539 02113
                                                        pulley - D >> - MJ 1968
                                                        from £335.76
                                                        from £335.76
                                                        pulley - Large - D - MJ 1969>> Genuine Porsche Part - New (to order)
                                                        # 17
                                                        MPN: 61610213101
                                                        pulley - for - Emission control system - D >> - MJ 1968
                                                        pulley - for - Emission control system - D >> - MJ 1968 Genuine Porsche Part - New (to order)
                                                        # 17
                                                        MPN: 539 02113
                                                        pulley - Large - D - MJ 1969>>
                                                        from £335.76
                                                        from £335.76
                                                        pulley - Large - D - MJ 1969>> Genuine Porsche Part - New (to order)
                                                        # 18
                                                        MPN: 539 02111
                                                        spring washer - for - Fastening screw
                                                        from £3.32
                                                        from £3.32
                                                        spring washer - for - Fastening screw Genuine Porsche Part - New (to order)
                                                        # 18
                                                        MPN: 61610216900
                                                        spring washer - for - Fastening screw - Emission control system - D >> - MJ 1968
                                                        SPRING WASHER - FOR - FASTENING SCREW - EMISSION CONTROL SYSTEM - D >>- MJ 1968 Genuine Porsche Part - New (to order)
                                                        # 19
                                                        MPN: 539 02112
                                                        screw - for - pulley
                                                        from £42.46
                                                        from £42.46
                                                        screw - for - pulley Genuine Porsche Part - New (to order)
                                                        # 19
                                                        MPN: 61610216800
                                                        screw - for - pulley - Emission control system - D >> - MJ 1968
                                                        SCREW - FOR - PULLEY - EMISSION CONTROL SYSTEM - D >>- MJ 1968 Genuine Porsche Part - New (to order)
                                                        # 20
                                                        MPN: 61610314202
                                                        BEARING SHELL - NORMAL
                                                        from £34.34
                                                        from £34.34
                                                        BEARING SHELL - STANDARD DIMENSION Genuine Porsche Part - New (to order)
                                                        # 20
                                                        MPN: 61610314252
                                                        BEARING SHELL - UNDERSIZE 0.25 MM
                                                        INNER
                                                        from £34.34
                                                        from £34.34
                                                        BEARING SHELL - UNDERSIZE 0.25 MM Genuine Porsche Part - New (to order)
                                                        # 20
                                                        MPN: 61610314262
                                                        BEARING SHELL - UNDERSIZE 0.50 MM
                                                        INNER
                                                        from £34.34
                                                        from £34.34
                                                        BEARING SHELL - UNDERSIZE 0.50 MM Genuine Porsche Part - New (to order)
                                                        # 20
                                                        MPN: 61610314272
                                                        BEARING SHELL - UNDERSIZE 0,75 MM
                                                        INNER
                                                        from £34.34
                                                        from £34.34
                                                        BEARING SHELL - UNDERSIZE 0,75 MM Genuine Porsche Part - New (to order)
                                                        # 21
                                                        MPN: 61610301202
                                                        CONNECTING ROD - COMPLETE - WITHOUT: - BEARING SHELL - DISCONTINUED PART
                                                        connecting rod - Discontinued part Genuine Porsche Part - New (to order)
                                                        # 21
                                                        MPN: 61610301203
                                                        connecting rod - complete - without: - bearing shell
                                                        from £527.17
                                                        from £527.17
                                                        connecting rod - complete - without: - bearing shell Genuine Porsche Part - New (to order)
                                                        # 23
                                                        MPN: 61610301203
                                                        CONNECTING ROD
                                                        from £527.17
                                                        from £527.17
                                                        connecting rod - complete - without: - bearing shell Genuine Porsche Part - New (to order)
                                                        # 23
                                                        MPN: 502 03114
                                                        CONNECTING ROD NUT
                                                        from £3.20
                                                        from £3.20
                                                        CONNECTING ROD NUT Genuine Porsche Part - New In stock
                                                        # 22
                                                        MPN: 90110313101
                                                        BUSHING-CONNECTING ROD
                                                        from £17.63
                                                        from £17.63
                                                        BUSHING-CONNECTING ROD Genuine Porsche Part - New (to order)
                                                        # 24
                                                        MPN: 539 09101
                                                        drive shaft - for - distributor
                                                        drive shaft - for - distributor Genuine Porsche Part - New (to order)
                                                        # 25
                                                        MPN: 539 09102
                                                        THRUST WASHER
                                                        THRUST WASHER Genuine Porsche Part - New (to order)
                                                        # 26
                                                        MPN: 539 09103
                                                        SPRING
                                                        from £2.74
                                                        from £2.74
                                                        SPRING Genuine Porsche Part - New (to order)
                                                        # 27
                                                        MPN: 61610013800
                                                        BEARING SET - NORMAL - COMPRISING:
                                                        BEARING SET - STANDARD DIMENSION - COMPRISING: Genuine Porsche Part - New (to order)
                                                        # 27
                                                        MPN: 61610013850
                                                        BEARING SET - UNDERSIZE 0.25 MM - COMPRISING:
                                                        INNER
                                                        BEARING SET, UNDERSIZE 0.25 MM Genuine Porsche Part - New (to order)
                                                        # 27
                                                        MPN: 61610013855
                                                        1 SET OF CRANKSHAFT BEARINGS - UNDERSIZE 0.50 MM - COMPRISING:
                                                        INNER
                                                        1 SET OF CRANKSHAFT BEARINGS - UNDERSIZE 0.50 MM - COMPRISING: Genuine Porsche Part - New (to order)
                                                        # 27
                                                        MPN: 61610013860
                                                        BEARING SET - OVERSIZE 0.25 MM - COMPRISING:
                                                        OUTER
                                                        BEARING SET - OVERSIZE 0.25 MM - COMPRISING: Genuine Porsche Part - New (to order)
                                                        # 27
                                                        MPN: 61610013865
                                                        1 SET OF CRANKSHAFT BEARINGS - UNDERSIZE 0,75 MM - COMPRISING:
                                                        INNER
                                                        1 SET OF CRANKSHAFT BEARINGS - UNDERSIZE 0,75 MM - COMPRISING: Genuine Porsche Part - New (to order)
                                                        # 27
                                                        MPN: 61610013870
                                                        1 SET OF CRANKSHAFT BEARINGS - OVERSIZE 0.25 MM - UNDERSIZE 0.25 MM - COMPRISING:
                                                        outer-inner
                                                        1 set of crankshaft bearings - Undersize - 0,25 MM - Oversize - 0,25 MM - comprising: Genuine Porsche Part - New (to order)
                                                        # 27
                                                        MPN: 61610013875
                                                        BEARING SET - OVERSIZE 0.25 MM - UNDERSIZE 0.50 MM - COMPRISING:
                                                        outer-inner
                                                        BEARING SET - UNDERSIZE - 0,50 MM - OVERSIZE - 0,25 MM - COMPRISING: Genuine Porsche Part - New (to order)
                                                        # 27
                                                        MPN: 61610013885
                                                        1 SET OF CRANKSHAFT BEARINGS - OVERSIZE 0.25 MM - UNDERSIZE 0,75 MM - COMPRISING:
                                                        outer-inner
                                                        1 set of crankshaft bearings - Undersize - 0,75 MM - Oversize - 0,25 MM - comprising: Genuine Porsche Part - New (to order)
                                                        # 28
                                                        MPN: 54610110100
                                                        BUSHING - I
                                                        from £183.73
                                                        from £183.73
                                                        BUSHING - I - STANDARD DIMENSION Genuine Porsche Part - New (to order)
                                                        # 28
                                                        MPN: 54610110150
                                                        BUSHING - I
                                                        from £126.08
                                                        from £126.08
                                                        BUSHING - I - UNDERSIZE - 0,25 MM Genuine Porsche Part - New (to order)
                                                        # 28
                                                        MPN: 54610110155
                                                        BUSHING - I
                                                        from £126.08
                                                        from £126.08
                                                        BUSHING - I - UNDERSIZE - 0,50 MM Genuine Porsche Part - New (to order)
                                                        # 28
                                                        MPN: 54610110160
                                                        BUSHING - I
                                                        from £126.08
                                                        from £126.08
                                                        BUSHING - I - OVERSIZE - 0,25 MM Genuine Porsche Part - New (to order)
                                                        # 28
                                                        MPN: 54610110165
                                                        BUSHING - I
                                                        from £126.08
                                                        from £126.08
                                                        BUSHING - I - UNDERSIZE - 0,75 MM Genuine Porsche Part - New (to order)
                                                        # 28
                                                        MPN: 54610110170
                                                        BUSHING - I
                                                        from £138.41
                                                        from £138.41
                                                        BUSHING - I Genuine Porsche Part - New (to order)
                                                        # 28
                                                        MPN: 54610110175
                                                        BUSHING - I
                                                        from £126.08
                                                        from £126.08
                                                        BUSHING - I Genuine Porsche Part - New (to order)
                                                        # 28
                                                        MPN: 54610110185
                                                        BUSHING - I
                                                        from £126.08
                                                        from £126.08
                                                        BUSHING - I Genuine Porsche Part - New (to order)
                                                        # 29
                                                        MPN: 61610113200
                                                        BEARING SHELL - II - III
                                                        from £54.23
                                                        from £54.23
                                                        bearing shell - II+IV - Standard dimension Genuine Porsche Part - New (to order)
                                                        # 29
                                                        MPN: 61610113250
                                                        BEARING SHELL - II - III
                                                        from £54.23
                                                        from £54.23
                                                        bearing shell - II+III - Undersize - 0,25 MM Genuine Porsche Part - New (to order)
                                                        # 29
                                                        MPN: 61610113255
                                                        BEARING SHELL - II - III
                                                        from £54.23
                                                        from £54.23
                                                        bearing shell - II+III - Undersize - 0,50 MM Genuine Porsche Part - New (to order)
                                                        # 29
                                                        MPN: 61610113260
                                                        BEARING SHELL - II - III
                                                        from £54.23
                                                        from £54.23
                                                        bearing shell - II+III - Oversize - 0,25 MM Genuine Porsche Part - New (to order)
                                                        # 29
                                                        MPN: 61610113265
                                                        BEARING SHELL - II - III
                                                        from £54.23
                                                        from £54.23
                                                        bearing shell - II+III - Undersize - 0,75 MM Genuine Porsche Part - New (to order)
                                                        # 29
                                                        MPN: 61610113270
                                                        BEARING SHELL - II - III
                                                        from £54.23
                                                        from £54.23
                                                        bearing shell - II+III Genuine Porsche Part - New (to order)
                                                        # 29
                                                        MPN: 61610113275
                                                        BEARING SHELL - II - III
                                                        from £54.23
                                                        from £54.23
                                                        bearing shell - II+III Genuine Porsche Part - New (to order)
                                                        # 29
                                                        MPN: 61610113285
                                                        BEARING SHELL - II - III
                                                        bearing shell - II+III Genuine Porsche Part - New (to order)
                                                        # 30
                                                        MPN: 53910114600
                                                        BUSHING - IV
                                                        from £105.67
                                                        from £105.67
                                                        BUSHING - IV - STANDARD DIMENSION Genuine Porsche Part - New (to order)
                                                        # 30
                                                        MPN: 53910114650
                                                        BUSHING - IV
                                                        from £127.95
                                                        from £127.95
                                                        bushing - Undersize - 0,25 MM - Standard dimension Genuine Porsche Part - New (to order)
                                                        # 30
                                                        MPN: 53910114655
                                                        BUSHING - IV
                                                        from £105.67
                                                        from £105.67
                                                        bushing - IV - Undersize - 0,50 MM - Standard dimension Genuine Porsche Part - New (to order)
                                                        # 30
                                                        MPN: 53910114600
                                                        BUSHING - IV - NORMAL
                                                        from £105.67
                                                        from £105.67
                                                        BUSHING - IV - STANDARD DIMENSION Genuine Porsche Part - New (to order)
                                                        # 30
                                                        MPN: 53910114665
                                                        BUSHING - IV
                                                        from £101.01
                                                        from £101.01
                                                        bushing - Undersize - 0,75 MM - Standard dimension Genuine Porsche Part - New (to order)
                                                        # 30
                                                        MPN: 53910114650
                                                        BUSHING - IV - NORMAL
                                                        OUTER
                                                        from £127.95
                                                        from £127.95
                                                        bushing - Undersize - 0,25 MM - Standard dimension Genuine Porsche Part - New (to order)
                                                        # 30
                                                        MPN: 53910114655
                                                        BUSHING - IV - NORMAL
                                                        OUTER
                                                        from £105.67
                                                        from £105.67
                                                        bushing - IV - Undersize - 0,50 MM - Standard dimension Genuine Porsche Part - New (to order)
                                                        # 30
                                                        MPN: 53910114665
                                                        BUSHING - IV - NORMAL
                                                        OUTER
                                                        from £101.01
                                                        from £101.01
                                                        bushing - Undersize - 0,75 MM - Standard dimension Genuine Porsche Part - New (to order)
