porsche 1970 (911) fuel system - lines - with: - fuel pump - d >> - mj 1971 parts diagram

201-000 - FUEL SYSTEM - LINES - WITH: - FUEL PUMP - D >> - MJ 1971

Porsche 1970 (911) FUEL SYSTEM - LINES - WITH: - FUEL PUMP - D >> - MJ 1971 Parts Diagram

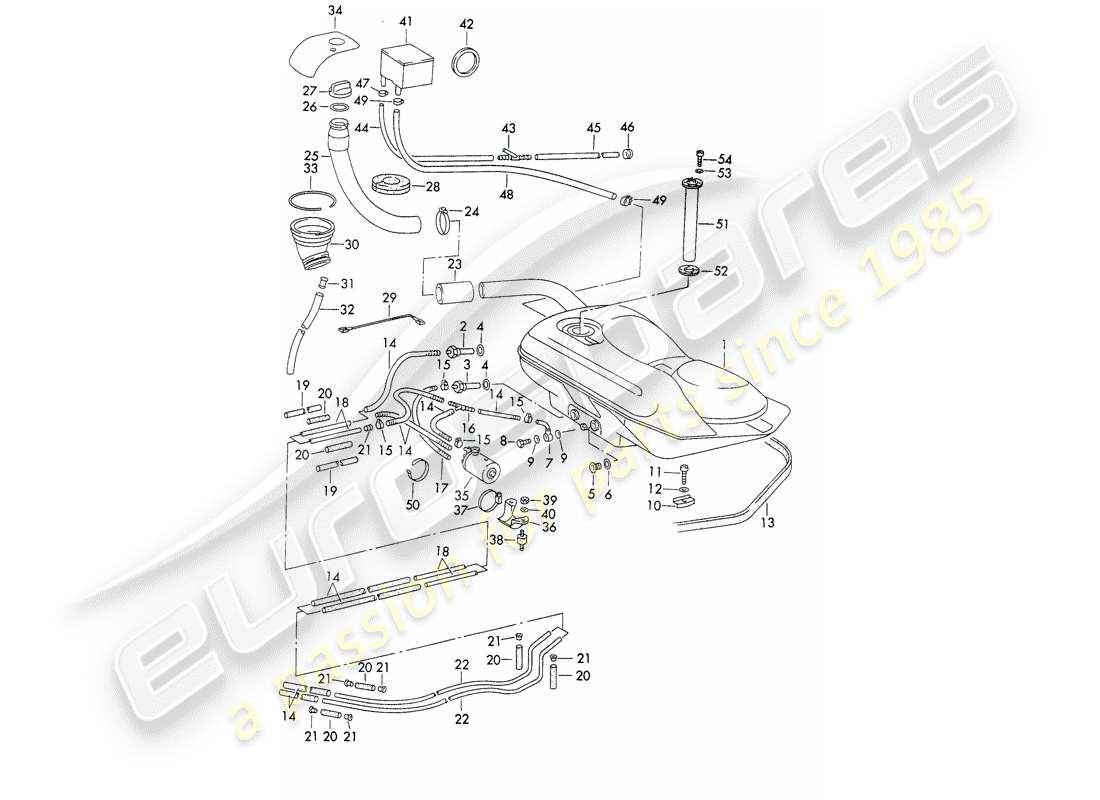

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                #
                                                                Part number
                                                                Description
                                                                Key
                                                                Price
                                                                # 1
                                                                MPN: 90120101022
                                                                fuel tank - 62 L - Discontinued part
                                                                fuel tank - 62 L - Discontinued part Genuine Porsche Part - New (to order)
                                                                # 1
                                                                MPN: 91120190400
                                                                FUEL TANK - 62 L - ALSO USE: - DISCONTINUED PART
                                                                --911 356 902 00
                                                                FUEL TANK - 62 L - ALSO USE: - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                                # 1
                                                                MPN: 91120190402
                                                                FUEL TANK - 62 L - ALSO USE:
                                                                --911 356 902 00
                                                                from £1,458.16
                                                                from £1,458.16
                                                                fuel tank - 62 L - also use: - D - MJ 1969>> Genuine Porsche Part - New (to order)
                                                                # 2
                                                                MPN: 90120102304
                                                                FUEL TANK CAP - $ 6 MM - DISCONTINUED PART
                                                                (911 T)
                                                                FUEL TANK CAP - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                                # 2
                                                                MPN: 90120102306
                                                                FUEL TANK CAP - $ 6 MM
                                                                (911 T)
                                                                from £68.02
                                                                from £68.02
                                                                Fuel tank cap - D - MJ 1969>> Genuine Porsche Part - New (to order)
                                                                # 3
                                                                MPN: 90120102305
                                                                FUEL TANK CAP - $ 8 MM
                                                                (911 E/S)
                                                                Fuel tank cap - $ 8 MM - D - MJ 1969>> Genuine Porsche Part - New (to order)
                                                                # 3
                                                                MPN: 90120102307
                                                                FUEL TANK CAP - $ 8 MM
                                                                (911 E/S)
                                                                from £66.06
                                                                from £66.06
                                                                Fuel tank cap - $ 8 MM - D - MJ 1969>> Genuine Porsche Part - New (to order)
                                                                # 4
                                                                MPN: N 0138273
                                                                SEAL RING - A 22 X 27
                                                                from £1.24
                                                                from £1.24
                                                                seal ring - A 22X27 DIN 7603-VF Genuine Porsche Part - New (to order)
                                                                # 5
                                                                MPN: 90021900130
                                                                THREADED PLUG - M 22 X 1,5
                                                                from £8.35
                                                                from £8.35
                                                                threaded plug - M 22X1,5 DIN 908 VERZ. Genuine Porsche Part - New (to order)
                                                                # 6
                                                                MPN: 90012301130
                                                                SEAL RING - A 22 X 27
                                                                from £2.68
                                                                from £2.68
                                                                seal ring - A 22X29X1,5 AL - for - oil filter Genuine Porsche Part - New In stock
                                                                # 7
                                                                MPN: 90135604900
                                                                Ring piece - D >> - MJ 1970
                                                                (911 E/S)
                                                                Ring piece - D - MJ 1971>> - MJ 1971 Genuine Porsche Part - New (to order)
                                                                # 7
                                                                MPN: 90135604900
                                                                Ring piece - D - MJ 1971>> - MJ 1971
                                                                (911 T)
                                                                Ring piece - D - MJ 1971>> - MJ 1971 Genuine Porsche Part - New (to order)
                                                                # 8
                                                                MPN: 90013400702
                                                                BANJO BOLT - A 8 - D >> - MJ 1970 - DISCONTINUED PART
                                                                (911 E/S 911 T)
                                                                BANJO BOLT - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                                # 8
                                                                MPN: 90013400701
                                                                BANJO BOLT - A 8
                                                                (911 E/S 911 T)
                                                                banjo bolt - A 8 DIN 7623-6S VERZ. - D - MJ 1969>> Genuine Porsche Part - New (to order)
                                                                # 8
                                                                MPN: PCG13400701
                                                                BANJO BOLT - A 8
                                                                (911 E/S 911 T)
                                                                from £5.62
                                                                from £5.62
                                                                banjo bolt - A 8 DIN 7623-6S VERZ. - D - MJ 1969>> Genuine Porsche Part - New (to order)
                                                                # 9
                                                                MPN: 90012300760
                                                                seal ring - A 14 X 18 - D >> - MJ 1970
                                                                (911 E/S 911 T)
                                                                from £0.82
                                                                from £0.82
                                                                seal ring - D >> - MJ 1975 Genuine Porsche Part - New (to order)
                                                                # 10
                                                                MPN: 90120131100
                                                                BRACKET
                                                                from £5.98
                                                                from £5.98
                                                                BRACKET - - - D >>- MJ 1971 Genuine Porsche Part - New (to order)
                                                                # 11
                                                                MPN: N 0147252
                                                                SCREW, CHEESE HD. - M 8 X 25 - DISCONTINUED PART
                                                                screw, cheese hd. - M 8X25 DIN 912-8G VERZ. - Discontinued part Genuine Porsche Part - New (to order)
                                                                # 11
                                                                MPN: 90006701803
                                                                SCREW, CHEESE HD. - M 8 X 25
                                                                from £1.11
                                                                from £1.11
                                                                SCREW, CHEESE HD. - M 8X25 DIN 912-8G VERZ Genuine Porsche Part - New In stock
                                                                # 13
                                                                MPN: 90150493220
                                                                SEALING STRAP
                                                                from £23.98
                                                                from £23.98
                                                                Sealing strap - see illustration: Genuine Porsche Part - New (to order)
                                                                # 14
                                                                MPN: 99918003050
                                                                fuel hose - Discontinued part
                                                                fuel hose - Discontinued part Genuine Porsche Part - New (to order)
                                                                # 14
                                                                MPN: 9991800305A
                                                                FUEL HOSE
                                                                from £30.08
                                                                from £30.08
                                                                fuel hose - C6 X 11 X 250 MM Genuine Porsche Part - New (to order)
                                                                # 15
                                                                MPN: 99951205502
                                                                HOSE CLAMP
                                                                (911 T 911 E/S)
                                                                from £3.43
                                                                from £3.43
                                                                HOSE CLAMP - S 12/9 ZY Genuine Porsche Part - New (to order)
                                                                # 16
                                                                MPN: 90135646100
                                                                HOSE CONNECTION
                                                                (911 E/S)
                                                                from £4.17
                                                                from £4.17
                                                                Hose connection - for - Optional heating - D - MJ 1972>> Genuine Porsche Part - New (to order)
                                                                # 17
                                                                MPN: N 0203591
                                                                HOSE
                                                                (911 E/S)
                                                                Supersession
                                                                Supersession
                                                                Genuine Porsche Part (no longer available to order)
                                                                # 18
                                                                MPN: 90110853100
                                                                FUEL LINE
                                                                center (911 E/S)
                                                                FUEL LINE - RETURN LINE Genuine Porsche Part - New (to order)
                                                                # 18
                                                                MPN: 90110853101
                                                                FUEL LINE
                                                                center (911 E/S)
                                                                from £61.62
                                                                from £61.62
                                                                FUEL LINE - RETURN LINE Genuine Porsche Part - New (to order)
                                                                # 18
                                                                MPN: 90110853100
                                                                FUEL LINE - NOT FOR: - SPORTOMATIC
                                                                center (911 T)
                                                                FUEL LINE - RETURN LINE Genuine Porsche Part - New (to order)
                                                                # 18
                                                                MPN: 90110853101
                                                                FUEL LINE - NOT FOR: - SPORTOMATIC
                                                                center (911 T)
                                                                from £61.62
                                                                from £61.62
                                                                FUEL LINE - RETURN LINE Genuine Porsche Part - New (to order)
                                                                # 19
                                                                MPN: 00004320520
                                                                PROTECTIVE TUBE
                                                                from £6.59
                                                                from £6.59
                                                                PROTECTIVE TUBE Genuine Porsche Part - New (to order)
                                                                # 21
                                                                MPN: 91435620100
                                                                RUBBER GROMMET
                                                                (911 E/S 911 T)
                                                                from £5.08
                                                                from £5.08
                                                                Rubber grommet - D >> - MJ 1974 Genuine Porsche Part - New In stock
                                                                # 22
                                                                MPN: 90135653200
                                                                fuel line - - Discontinued part
                                                                rear (911 E/S 911 T)
                                                                fuel line - - Discontinued part Genuine Porsche Part - New (to order)
                                                                # 22
                                                                MPN: 90135653201
                                                                FUEL LINE
                                                                rear (911 E/S 911 T)
                                                                from £38.29
                                                                from £38.29
                                                                FUEL LINE Genuine Porsche Part - New (to order)
                                                                # 23
                                                                MPN: 91120151500
                                                                HOSE - $ 50 MM
                                                                from £86.84
                                                                from £86.84
                                                                Hose - for - Windscreen heating Genuine Porsche Part - New (to order)
                                                                # 24
                                                                MPN: PCG51234802
                                                                HOSE CLAMP
                                                                40-60 X 9
                                                                from £3.50
                                                                from £3.50
                                                                Hose Clamp - D - MJ 1972>> Genuine Porsche Part - New (to order)
                                                                # 25
                                                                MPN: 90120105120
                                                                FILLER NECK
                                                                FILLER NECK Genuine Porsche Part - New (to order)
                                                                # 26
                                                                MPN: 90120127200
                                                                SEAL RING - DISCONTINUED PART
                                                                seal ring - sealing cap - Discontinued part Genuine Porsche Part - New (to order)
                                                                # 26
                                                                MPN: 93010727201
                                                                SEAL RING
                                                                from £6.33
                                                                from £6.33
                                                                seal ring - sealing cap Genuine Porsche Part - New (to order)
                                                                # 27
                                                                MPN: 90120127100
                                                                FUEL TANK CAP - WITH: - GASKET - DISCONTINUED PART
                                                                FUEL TANK CAP - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                                # 27
                                                                MPN: 90120127101
                                                                FUEL TANK CAP - WITH: - GASKET
                                                                from £54.48
                                                                from £54.48
                                                                Fuel tank cap - D - MJ 1969>> Genuine Porsche Part - New (to order)
                                                                # 28
                                                                MPN: 91120109500
                                                                GASKET
                                                                from £8.13
                                                                from £8.13
                                                                GASKET Genuine Porsche Part - New (to order)
                                                                # 29
                                                                MPN: 90161230320
                                                                GROUND STRAP - FILLER NECK - NR.27
                                                                from £8.13
                                                                from £8.13
                                                                ground strap - Tank filler neck Genuine Porsche Part - New (to order)
                                                                # 31
                                                                MPN: 91120159300
                                                                OVERFLOW SOCKET
                                                                from £10.32
                                                                from £10.32
                                                                OVERFLOW SOCKET Genuine Porsche Part - New (to order)
                                                                # 33
                                                                MPN: 99915200400
                                                                CIRCLIP
                                                                from £4.02
                                                                from £4.02
                                                                CIRCLIP Genuine Porsche Part - New (to order)
                                                                # 35
                                                                MPN: 91160810700
                                                                fuel pump
                                                                (911 T)
                                                                from £485.54
                                                                from £485.54
                                                                fuel pump - D - MJ 1971>> - Discontinued part Genuine Porsche Part - New (to order)
                                                                # 35
                                                                MPN: 91160810701
                                                                FUEL PUMP - DISCONTINUED PART
                                                                (911 T)
                                                                FUEL PUMP - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                                # 35
                                                                MPN: 91160810703
                                                                fuel pump
                                                                (911 T)
                                                                from £534.60
                                                                from £534.60
                                                                fuel pump - D - MJ 1971>> Genuine Porsche Part - New (to order)
                                                                # 35
                                                                MPN: 911608107 X
                                                                fuel pump
                                                                (911 T)
                                                                FUEL PUMP - ELECTRIC Genuine Porsche Part - New (to order)
                                                                # 35
                                                                MPN: 90160810500
                                                                fuel pump - See group - 2/01/25
                                                                (911 E/S)
                                                                fuel pump - See group - 2/01/25 Genuine Porsche Part - New (to order)
                                                                # 35
                                                                MPN: 90160810501
                                                                fuel pump - See group - 2/01/25 - Discontinued part
                                                                (911 E/S)
                                                                fuel pump - See group - 2/01/25 - Discontinued part Genuine Porsche Part - New (to order)
                                                                # 35
                                                                MPN: 90160810504
                                                                fuel pump - See group - 2/01/25
                                                                (911 E/S)
                                                                Supersession
                                                                Supersession
                                                                Genuine Porsche Part (no longer available to order)
                                                                # 36
                                                                MPN: 90135650501
                                                                bracket - Discontinued part
                                                                (911 T/E/S)
                                                                bracket - Discontinued part Genuine Porsche Part - New (to order)
                                                                # 36
                                                                MPN: 90135650503
                                                                BRACKET
                                                                (911 T/E/S)
                                                                from £53.20
                                                                from £53.20
                                                                BRACKET Genuine Porsche Part - New (to order)
                                                                # 37
                                                                MPN: 99951216402
                                                                HOSE CLAMP
                                                                (911 T/E/S)
                                                                Hose Clamp - SGT. 59/12 Genuine Porsche Part - New (to order)
                                                                # 38
                                                                MPN: 90150186400
                                                                MEGULASTIK PIVOT BEARING
                                                                (911 E/S)
                                                                from £16.12
                                                                from £16.12
                                                                Megulastik pivot bearing - D - MJ 1969>> Genuine Porsche Part - New (to order)
                                                                # 39
                                                                MPN: 90007601002
                                                                NUT - M 6 - DISCONTINUED PART
                                                                (911 E/S)
                                                                nut - M6 - Discontinued part Genuine Porsche Part - New (to order)
                                                                # 39
                                                                MPN: 9000760100B
                                                                NUT - M 6
                                                                (911 E/S)
                                                                from £0.73
                                                                from £0.73
                                                                NUT - M6 Genuine Porsche Part - New In stock
                                                                # 40
                                                                MPN: 90002701401
                                                                LOCK RING - B 6 - DISCONTINUED PART
                                                                (911 E/S)
                                                                LOCK RING - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                                # 40
                                                                MPN: 90002701402
                                                                LOCK RING - B 6 - DISCONTINUED PART
                                                                (911 E/S)
                                                                LOCK RING - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                                # 40
                                                                MPN: N 0120064
                                                                LOCK RING - B 6
                                                                (911 E/S)
                                                                from £0.70
                                                                from £0.70
                                                                lock ring - D - MJ 1980>> - Discontinued part Genuine Porsche Part - New (to order)
                                                                # 41
                                                                MPN: 90120106222
                                                                CONTAINER - FOR - BLEEDING
                                                                from £149.56
                                                                from £149.56
                                                                container - for - Bleeding - D - MJ 1969>> Genuine Porsche Part - New (to order)
                                                                # 42
                                                                MPN: 90120161822
                                                                RUBBER RING
                                                                from £3.75
                                                                from £3.75
                                                                rubber ring - D - MJ 1969>> Genuine Porsche Part - New (to order)
                                                                # 43
                                                                MPN: 90120161922
                                                                INTERMEDIATE PIECE
                                                                from £17.39
                                                                from £17.39
                                                                intermediate piece - D - MJ 1969>> Genuine Porsche Part - New (to order)
                                                                # 45
                                                                MPN: 90120160322
                                                                VENT HOSE
                                                                vent hose - D - MJ 1969>> Genuine Porsche Part - New (to order)
                                                                # -
                                                                -
                                                                CABLE FASTENER
                                                                # 47
                                                                MPN: 99951216002
                                                                HOSE CLAMP - DISCONTINUED PART
                                                                Hose Clamp - SM 13/9 - Discontinued part Genuine Porsche Part - New (to order)
                                                                # 47
                                                                MPN: PCG51216002
                                                                HOSE CLAMP
                                                                Supersession
                                                                Supersession
                                                                Genuine Porsche Part (no longer available to order)
                                                                # 48
                                                                MPN: 90120160124
                                                                vent hose - for - fuel tank - 62 L
                                                                vent hose - for - fuel tank - 62 L Genuine Porsche Part - New (to order)
                                                                # 49
                                                                MPN: N 0235653
                                                                HOSE CLAMP
                                                                from £3.12
                                                                from £3.12
                                                                Hose Clamp - S 21/9 ZY. VERZ. Genuine Porsche Part - New (to order)
                                                                # 50
                                                                MPN: 99951300240
                                                                TIE WRAP - DISCONTINUED PART
                                                                tie wrap - Mount - fuel line - Discontinued part Genuine Porsche Part - New (to order)
                                                                # 50
                                                                MPN: N 0209104
                                                                TIE WRAP - DISCONTINUED PART
                                                                tie wrap - Mount - fuel line - Discontinued part Genuine Porsche Part - New (to order)
                                                                # 50
                                                                MPN: 99951300340
                                                                TIE WRAP
                                                                from £2.24
                                                                from £2.24
                                                                tie wrap - steering gear Genuine Porsche Part - New (to order)
                                                                # 51
                                                                MPN: 90174180100
                                                                Sensor - D - MJ 1971>>
                                                                (911 T/E/S)
                                                                from £275.56
                                                                from £275.56
                                                                Sensor - Fuel-level indicator - fuel tank - 62 - 85 L - See group - 2/01/00 Genuine Porsche Part - New (to order)
                                                                # -
                                                                -
                                                                CAP FOR SENSOR - BLACK
                                                                # -
                                                                -
                                                                CAP FOR SENSOR - YELLOW
                                                                Anodized
                                                                # 52
                                                                MPN: 477919133
                                                                seal ring - D - MJ 1971>> - MJ 1971
                                                                (911 T/E/S)
                                                                from £6.53
                                                                from £6.53
                                                                seal ring - F 92-49103 158>> - F >> 92-49104 051 - F 92-49400 051>> - F >> 92-49400 055 Genuine Porsche Part - New (to order)
                                                                # 53
                                                                MPN: 90002500330
                                                                Washer - D - MJ 1971>>
                                                                (911 T/E/S)
                                                                from £1.47
                                                                from £1.47
                                                                Washer - D - MJ 1971>> Genuine Porsche Part - New (to order)
                                                                # 54
                                                                MPN: 90001405802
                                                                screw, cheese hd. - AM 5 X 12 - D - MJ 1971>>
                                                                (911 T/E/S)
                                                                from £1.33
                                                                from £1.33
                                                                SCREW, CHEESE HD. - M 5 X 12 - F 121 224 >>- - F 211 175 >>- - F 157 072 >>- - NOT FOR: - F 121 253 - - F 121 304 Genuine Porsche Part - New (to order)
                                                                Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
