(911 E/S 911 T-E/E/S CARRERA 2.7)
-part-diagram-107-020.webp)

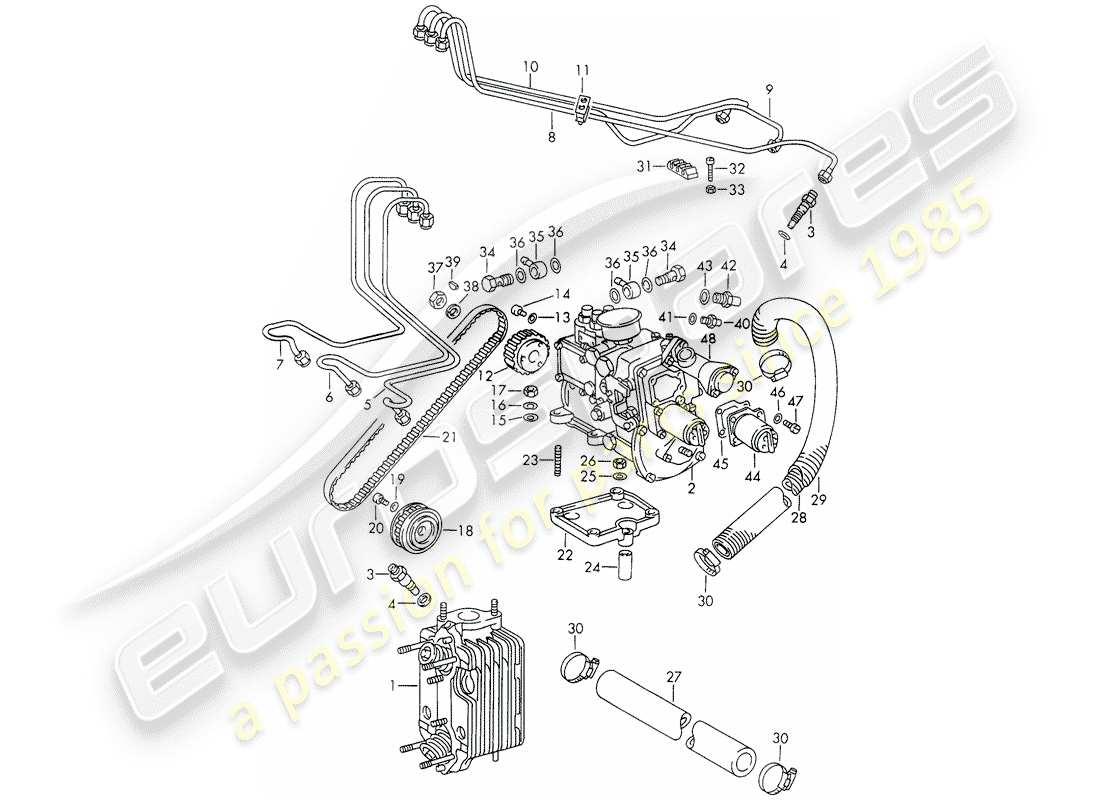

107-020 - injection system - cylinder head - and - injection pump
Porsche 1971 (911) INJECTION SYSTEM - CYLINDER HEAD - AND - INJECTION PUMP Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 91110400700
cylinder head - D >> - MJ 1972
(911 E)
# 1
MPN: 91110400800
cylinder head - D >> - MJ 1972
(911 S)
# 1
MPN: 91110400800
CYLINDER HEAD - - NACHARBEIT ERFORDERLICH - FASE ANBRINGEN - D - MJ 1973>>
(CARRERA 2.7)
# 1
MPN: 91110400400
cylinder head - D - MJ 1972>>
(911 T-E)
# 1
MPN: 911104004 X
CYLINDER HEAD - EXCHANGE - D - MJ 1972>>
(911 T-E)
# 2
MPN: 91111022100
injection pump - D >> - MJ 1971
(911 E)
# 2
MPN: 91111022200
injection pump - D >> - MJ 1971
(911 S)
# 2
MPN: 91111025100
injection pump - D - MJ 1972>>
(911 T-E)
# 2
MPN: 91111025200
injection pump - D - MJ 1972>>
(911 E)
# 2
MPN: 91111025300
injection pump - D - MJ 1972>>
(911 S)
# 2
MPN: 91111025400
injection pump - D - MJ 1972>>
(CARRERA 2.7)
# 3
MPN: 90111027100
INJECTOR
from £142.42
from £142.42
# 4
MPN: N 0138122
SEAL RING - A 12 X 15,5
from £1.02
from £1.02
# 5
MPN: 91111002100
Injection line - Cylinder 1 - complete
# 6
MPN: 91111002200
Injection line - Cylinder 2 - complete
# 7
MPN: 91111002300
Injection line - Cylinder 3 - complete
# 8
MPN: 91111002401
Injection line - Cylinlder 4 - complete
# 9
MPN: 91111002500
Injection line - Cylinder 5 - complete
# 10
MPN: 91111002600
Injection line - Cylinder 6 - complete
# 11
MPN: 91111033300
Retaining Clip
from £5.98
from £5.98
# 12
MPN: 90111002200
GEAR - INJECTION PUMP
from £163.84
from £163.84
# 13
MPN: 90002800301
LOCK RING - A 6 - D >> - MJ 1970
# 13
MPN: N 0122265
SPRING WASHER - A 6 - D - MJ 1971>>
from £0.70
from £0.70
# -
-
WASHER
# 14
MPN: 90006700902
SCREW, CHEESE HD. - M 6 X 15 - DISCONTINUED PART
# 14
MPN: 90006742901
SCREW, CHEESE HD. - M 6 X 15
from £3.54
from £3.54
# 15
MPN: 90002500702
WASHER - 8,4 - DISCONTINUED PART
# 15
MPN: 90002500703
WASHER - 8,4
from £0.84
from £0.84
# 16
MPN: N 0122411
SPRING WASHER - B 8 X 15 - D >> - MJ 1970
from £0.64
from £0.64
# 16
MPN: N 0122418
SPRING WASHER - B 8 X 15 - D - MJ 1971>>
from £0.70
from £0.70
# 17
MPN: 502 08310
HEX. NUT
from £1.49
from £1.49
# 18
MPN: 90111002300
GEAR - CAMSHAFT
from £186.32
from £186.32
# 19
MPN: 90002800301
LOCK RING - A 6 - D >> - MJ 1970
# 19
MPN: N 0122265
SPRING WASHER - A 6 - D - MJ 1971>>
from £0.70
from £0.70
# 20
MPN: 90006700902
SCREW, CHEESE HD. - M 6 X 15 - DISCONTINUED PART
# 20
MPN: 90006742901
SCREW, CHEESE HD. - M 6 X 15
from £3.54
from £3.54
# 20
MPN: 90006700802
screw, cheese hd. - M 6 X 12 - D - MJ 1972>> - Discontinued part
# 20
MPN: 90006700803
screw, cheese hd. - M 6 X 12 - D - MJ 1972>>
from £0.82
from £0.82
# 21
MPN: 99919203040
toothed belt
from £23.21
from £23.21
# 22
MPN: 90111002700
BRACKET
# 23
MPN: 90006100701
stud - BM 8 X 22 SN 1115 - D >> - MJ 1971
# 23
MPN: 99906200702
STUD - BM 8 X 22 - D - MJ 1972>> - DISCONTINUED PART
# 23
MPN: 90006010601
stud - BM 8 X 22 - D - MJ 1972>>
from £5.26
from £5.26
# 24
MPN: 90111023600
spacer tube - - D >> - MJ 1972
( 911 T-K)
# 25
MPN: N 0122411
SPRING WASHER - B 8X15 - D >> - MJ 1972
( 911 T-K)
from £0.64
from £0.64
# 26
MPN: 90007602502
HEX. NUT - M 8 - D >> - MJ 1972 - DISCONTINUED PART
( 911 T-K)
Supersession
Supersession
# 26
MPN: 90007606402
hex. nut - M 8
( 911 T-K)
from £0.59
from £0.59
# 27
MPN: 00004320521
HOSE - INTERNAL DIAMETER - 25 - 440 MM
from £33.69
from £33.69
# 28
MPN: 90111029500
HOSE
from £11.00
from £11.00
# 29
MPN: PCG11029600
HOSE
from £8.35
from £8.35
# 30
MPN: PCG51255100
HOSE CLAMP
25-40 X 9
from £3.61
from £3.61
# 30
MPN: 99951213202
HOSE CLIP
20-32 X 9
from £3.42
from £3.42
# 31
MPN: 91611033000
Bracket - for - Injection line - complete - D >> - MJ 1971
from £22.82
from £22.82
# 32
MPN: 90001409302
SCREW, CHEESE HD. - AM 3 X 22 - D >> - MJ 1971
from £0.47
from £0.47
# 33
MPN: 90007600102
hex. nut - M 3
# 34
MPN: 90111091700
BANJO BOLT - D >> - MJ 1971 - DISCONTINUED PART
# 34
MPN: 90111091701
BANJO BOLT
from £11.18
from £11.18
# 34
MPN: 91110891000
BANJO BOLT - D - MJ 1972>> - DISCONTINUED PART
# 34
MPN: 91110891001
banjo bolt - D - MJ 1972>>
from £11.18
from £11.18
# 35
MPN: 90110899500
Ring piece - D >> - MJ 1971
# 35
MPN: 91110891200
RING PIECE - D - MJ 1972>> - DISCONTINUED PART
# 35
MPN: 91110891201
Ring piece - D - MJ 1972>>
from £14.98
from £14.98
# 36
MPN: 90110899400
seal ring - D >> - MJ 1971
from £1.47
from £1.47
# 36
MPN: 91110891100
seal ring - D - MJ 1972>>
from £2.34
from £2.34
# 37
MPN: 90007800300
hex. nut - M 12 - D >> - MJ 1971
from £2.34
from £2.34
# 38
MPN: 90002801401
LOCK RING - B 12
# 39
MPN: N 0127061
WOODRUFF KEY - 3 X 6,5
from £2.79
from £2.79
# 40
MPN: 90111091800
union - Intake
# 41
MPN: 90012303320
SEAL RING - A 10 X 13,5
from £1.22
from £1.22
# 42
MPN: 90111091900
union - Return line
# 43
MPN: N 0138492
SEAL RING - A 14 X 18
from £2.25
from £2.25
# 44
MPN: 91111091100
MAGNET
# 45
MPN: 90111092200
GASKET
from £2.46
from £2.46
# 46
MPN: 90111092300
SEAL RING
# 47
MPN: 90001405802
SCREW, CHEESE HD. - AM 5 X 12
from £1.33
from £1.33
# 48
MPN: 90111092400
thermostat - for - Hot air - complete
# -
-
INSULATING PIECE
# -
-
SCREW, CHEESE HD. - M 6 X 18
# -
-
INSULATING PIECE
# -
-
SEAL RING
-part-diagram-107-025.webp "PORSCHE 1971 (911) INJECTION SYSTEM - THROTTLE BODY - D >> - MJ 1971 PARTS DIAGRAM")
-part-diagram-107-030.webp "PORSCHE 1971 (911) INJECTION SYSTEM - THROTTLE BODY - D - MJ 1972>> PARTS DIAGRAM")
-part-diagram-107-035.webp "PORSCHE 1971 (911) INJECTION SYSTEM - WITH: - AIR CLEANER - AND - MIXTURE CONTROL UNIT - D - MJ 1972>> PARTS DIAGRAM")
-part-diagram-107-040.webp "PORSCHE 1971 (911) INJECTION SYSTEM - WITH: - FUEL LINE - VALVES - FLAP-NOZZLE - AND - WARM-UP VALVE - D - MJ 1972>> PARTS DIAGRAM")
-part-diagram-107-045.webp "PORSCHE 1971 (911) VACUUM SYSTEM - FOR - CLUTCH RELEASE - D >> - MJ 1971 PARTS DIAGRAM")
-part-diagram-107-050.webp "PORSCHE 1971 (911) VACUUM SYSTEM - FOR - CLUTCH RELEASE - INJECTION SYSTEM - D >> - MJ 1971 PARTS DIAGRAM")
-part-diagram-107-055.webp "PORSCHE 1971 (911) VACUUM SYSTEM - FOR - CLUTCH RELEASE - D - MJ 1972>> PARTS DIAGRAM")
-part-diagram-107-060.webp "PORSCHE 1971 (911) VACUUM SYSTEM - FOR - CLUTCH RELEASE - INJECTION SYSTEM - FOR - SPORTOMATIC - D - MJ 1972>> PARTS DIAGRAM")
-part-diagram-107-065.webp "PORSCHE 1971 (911) VACUUM SYSTEM - FOR - CLUTCH RELEASE - D - MJ 1972>> PARTS DIAGRAM")
-part-diagram-109-000.webp "PORSCHE 1971 (911) ENGINE SUSPENSION PARTS DIAGRAM")
-part-diagram-198-005.webp "PORSCHE 1971 (911) REPAIR KIT - FOR - TENSIONER - CHAIN PARTS DIAGRAM")
-part-diagram-198-010.webp "PORSCHE 1971 (911) ENGINE OIL - PORSCHE CLASSIC 20W50 PARTS DIAGRAM")
-part-diagram-201-000.webp "PORSCHE 1971 (911) FUEL SYSTEM - LINES - WITH: - FUEL PUMP - D >> - MJ 1971 PARTS DIAGRAM")
-part-diagram-201-005.webp "PORSCHE 1971 (911) FUEL SYSTEM - LINES - WITH: - FUEL PUMP PARTS DIAGRAM")
-part-diagram-201-015.webp "PORSCHE 1971 (911) FUEL FILTER - WITH: - LINES PARTS DIAGRAM")
-part-diagram-201-020.webp "PORSCHE 1971 (911) REPAIR MATERIAL - FOR - FUEL FILTER - - BOSCH - PARTS DIAGRAM")
-part-diagram-202-000.webp "PORSCHE 1971 (911) HEATING AIR SUPPLY - - - - D - MJ 1970>> PARTS DIAGRAM")
-part-diagram-202-005.webp "PORSCHE 1971 (911) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-298-005.webp "PORSCHE 1971 (911) PORSCHE CLASSIC - ADDITIVE - FOR FUEL PARTS DIAGRAM")
-part-diagram-301-000.webp "PORSCHE 1971 (911) CLUTCH PARTS DIAGRAM")
-part-diagram-301-005.webp "PORSCHE 1971 (911) CLUTCH RELEASE - D >> - MJ 1971 PARTS DIAGRAM")
-part-diagram-301-010.webp "PORSCHE 1971 (911) CLUTCH RELEASE - D - MJ 1972>> PARTS DIAGRAM")
-part-diagram-301-015.webp "PORSCHE 1971 (911) CLUTCH RELEASE - SPORTOMATIC PARTS DIAGRAM")
-part-diagram-302-000.webp "PORSCHE 1971 (911) REPLACEMENT TRANSMISSION - TRANSMISSION CASE - CHILLED CASTING - D >> - MJ 1970 PARTS DIAGRAM")
-part-diagram-302-005.webp "PORSCHE 1971 (911) TRANSMISSION COVER - TRANSMISSION SUSPENSION - CHILLED CASTING - AND - DIE CASTING - D >> - MJ 1970 PARTS DIAGRAM")
-part-diagram-302-010.webp "PORSCHE 1971 (911) REPLACEMENT TRANSMISSION - TRANSMISSION CASE - DIE CASTING - D >> - MJ 1971 PARTS DIAGRAM")
-part-diagram-302-015.webp "PORSCHE 1971 (911) TRANSMISSION COVER - TRANSMISSION SUSPENSION - DIE CASTING - D - MJ 1971>> - MJ 1971 PARTS DIAGRAM")
-part-diagram-302-020.webp "PORSCHE 1971 (911) TRANSMISSION CASE - TYP 915 - D - MJ 1972>> PARTS DIAGRAM")
-part-diagram-302-025.webp "PORSCHE 1971 (911) GEAR HOUSING - COMPLETE - TRANSMISSION CASE - AND - TRANSMISSION SUSPENSION - D - MJ 1972>> PARTS DIAGRAM")
-part-diagram-302-030.webp "PORSCHE 1971 (911) TRANSMISSION - OIL PUMP - G >> 783 0870 - D - MJ 1972>> PARTS DIAGRAM")
-part-diagram-303-000.webp "PORSCHE 1971 (911) GEAR WHEEL SETS - 5-SPEED - TRANSMISSION - D >> - MJ 1971 PARTS DIAGRAM")
-part-diagram-303-005.webp "PORSCHE 1971 (911) GEARS AND SHAFTS - 5-SPEED - TRANSMISSION - D >> - MJ 1971 PARTS DIAGRAM")
-part-diagram-303-010.webp "PORSCHE 1971 (911) GEAR WHEEL SETS - 5-SPEED - TRANSMISSION - D - MJ 1972>> PARTS DIAGRAM")
-part-diagram-303-015.webp "PORSCHE 1971 (911) GEARS AND SHAFTS - 5-SPEED - TRANSMISSION - D - MJ 1972>> PARTS DIAGRAM")
-part-diagram-303-020.webp "PORSCHE 1971 (911) GEAR WHEEL SETS - 4-SPEED - TRANSMISSION - D >> - MJ 1971 PARTS DIAGRAM")
-part-diagram-303-025.webp "PORSCHE 1971 (911) GEARS AND SHAFTS - 4-SPEED - TRANSMISSION PARTS DIAGRAM")
-part-diagram-303-030.webp "PORSCHE 1971 (911) GEAR WHEEL SETS - 4-SPEED - TRANSMISSION - D - MJ 1972>> PARTS DIAGRAM")
-part-diagram-303-035.webp "PORSCHE 1971 (911) GEARS AND SHAFTS - 4-SPEED - TRANSMISSION - D - MJ 1972>> PARTS DIAGRAM")
-part-diagram-304-000.webp "PORSCHE 1971 (911) SHIFT RODS - SHIFT FORKS - D >> - MJ 1971 PARTS DIAGRAM")
-part-diagram-304-005.webp "PORSCHE 1971 (911) SHIFT RODS - SHIFT FORKS - D - MJ 1972>> PARTS DIAGRAM")
-part-diagram-305-000.webp "PORSCHE 1971 (911) DIFFERENTIAL - WITH: - CHILLED CASTING - OR - DIE CASTING - HOUSING - WITHOUT: - ARMATURE - D - MJ 1970>> - MJ 1970 PARTS DIAGRAM")
-part-diagram-305-005.webp "PORSCHE 1971 (911) DIFFERENTIAL - FOR - MANUAL GEARBOX - TYP 915 - AND - SPORTOMATIC - TYP 925 - WITH: - ARMATURE PARTS DIAGRAM")
-part-diagram-305-010.webp "PORSCHE 1971 (911) DIFFERENTIAL - FOR - SPORTOMATIC - TYP 905 PARTS DIAGRAM")
-part-diagram-305-015.webp "PORSCHE 1971 (911) LIMITED SLIP DIFFERENTIAL PARTS DIAGRAM")
-part-diagram-306-000.webp "PORSCHE 1971 (911) TORQUE CONVERTER - AND - CONVERTER HOUSING - TYP 905/21 - SPORTOMATIC PARTS DIAGRAM")
-part-diagram-306-005.webp "PORSCHE 1971 (911) TORQUE CONVERTER - AND - CONVERTER HOUSING - TYP 925 - SPORTOMATIC - D - MJ 1972>> PARTS DIAGRAM")
-part-diagram-307-000.webp "PORSCHE 1971 (911) TRANSMISSION CASE - SPORTOMATIC - D >> - MJ 1971 PARTS DIAGRAM")
-part-diagram-307-005.webp "PORSCHE 1971 (911) TRANSMISSION COVER - TRANSMISSION SUSPENSION - SPORTOMATIC - D >> - MJ 1971 PARTS DIAGRAM")
-part-diagram-307-010.webp "PORSCHE 1971 (911) TRANSMISSION CASE - SPORTOMATIC - TYP 905/21 - D - MJ 1972>> PARTS DIAGRAM")
-part-diagram-307-015.webp "PORSCHE 1971 (911) TRANSMISSION COVER - TRANSMISSION SUSPENSION - SPORTOMATIC - TYP 905/21 - D - MJ 1972>> PARTS DIAGRAM")
-part-diagram-307-020.webp "PORSCHE 1971 (911) TRANSMISSION CASE - SPORTOMATIC - TYP 925 - D - MJ 1972>> PARTS DIAGRAM")
-part-diagram-307-025.webp "PORSCHE 1971 (911) TRANSMISSION COVER - TRANSMISSION SUSPENSION - SPORTOMATIC - TYP 925 - D - MJ 1972>> PARTS DIAGRAM")
-part-diagram-308-000.webp "PORSCHE 1971 (911) GEAR WHEEL SETS - FOR - 4-SPEED - TRANSMISSION - SPORTOMATIC - D >> - MJ 1971 PARTS DIAGRAM")
-part-diagram-308-005.webp "PORSCHE 1971 (911) GEARS AND SHAFTS - SPORTOMATIC - - D >> - MJ 1970 PARTS DIAGRAM")
-part-diagram-308-010.webp "PORSCHE 1971 (911) GEAR WHEEL SETS - 4-SPEED - TRANSMISSION - SPORTOMATIC - D - MJ 1972>> PARTS DIAGRAM")
-part-diagram-308-015.webp "PORSCHE 1971 (911) GEARS AND SHAFTS - SPORTOMATIC - D - MJ 1972>> PARTS DIAGRAM")
-part-diagram-309-000.webp "PORSCHE 1971 (911) SHIFT RODS - SHIFT FORKS - TYP 905 - SPORTOMATIC - D >> - MJ 1971 PARTS DIAGRAM")
-part-diagram-309-005.webp "PORSCHE 1971 (911) SHIFT RODS - SHIFT FORKS - TYP 925 - SPORTOMATIC - D - MJ 1972>> PARTS DIAGRAM")
-part-diagram-398-000.webp "PORSCHE 1971 (911) REPLACEMENT TRANSMISSION - REPAIR KITS - GASKET SET PARTS DIAGRAM")
-part-diagram-401-000.webp "PORSCHE 1971 (911) FRONT AXLE - STABILIZER PARTS DIAGRAM")
-part-diagram-402-000.webp "PORSCHE 1971 (911) SPRING STRUT - SHOCK ABSORBER STRUT - LUBRICANTS PARTS DIAGRAM")
-part-diagram-403-000.webp "PORSCHE 1971 (911) STEERING GEAR - STEERING LINKAGE PARTS DIAGRAM")
-part-diagram-403-005.webp "PORSCHE 1971 (911) INTERMEDIATE STEERING SHAFT - STEERING WHEEL - STEERING COLUMN SWITCH PARTS DIAGRAM")
-part-diagram-501-000.webp "PORSCHE 1971 (911) REAR AXLE PARTS DIAGRAM")
-part-diagram-502-000.webp "PORSCHE 1971 (911) STABILIZER - REAR AXLE PARTS DIAGRAM")
-part-diagram-601-000.webp "PORSCHE 1971 (911) WHEELS PARTS DIAGRAM")
-part-diagram-602-000.webp "PORSCHE 1971 (911) DISC BRAKES PARTS DIAGRAM")
-part-diagram-603-000.webp "PORSCHE 1971 (911) DISC BRAKES PARTS DIAGRAM")
-part-diagram-604-000.webp "PORSCHE 1971 (911) RESERVOIR FOR - BRAKE FLUID - BRAKE MASTER CYLINDER PARTS DIAGRAM")
-part-diagram-604-005.webp "PORSCHE 1971 (911) BRAKE MASTER CYLINDER - $ 19,05 - WITHOUT: - WARNING FUNCTION - SINGLE PARTS PARTS DIAGRAM")
-part-diagram-604-010.webp "PORSCHE 1971 (911) BRAKE MASTER CYLINDER - $ 19,05 - WITH: - WARNING FUNCTION - SINGLE PARTS PARTS DIAGRAM")
-part-diagram-698-005.webp "PORSCHE 1971 (911) BRAKE FLUID - PORSCHE CLASSIC PARTS DIAGRAM")
-part-diagram-701-000.webp "PORSCHE 1971 (911) SHIFT LEVER - TRANSMISSION CONTROL - 4TH/5TH GEAR - MODEL YEAR - -71/72- PARTS DIAGRAM")
-part-diagram-701-005.webp "PORSCHE 1971 (911) SHIFT LEVER - TRANSMISSION CONTROL - 4TH/5TH GEAR - MODEL YEAR - -73- PARTS DIAGRAM")
-part-diagram-701-010.webp "PORSCHE 1971 (911) SHIFT LEVER - SPORTOMATIC PARTS DIAGRAM")
-part-diagram-701-015.webp "PORSCHE 1971 (911) SELECTOR SHAFT - AND - SHIFT ROD COUPLING PARTS DIAGRAM")
-part-diagram-701-020.webp "PORSCHE 1971 (911) HANDBRAKE - MANUAL THROTTLE - HEATER - ACTUATOR PARTS DIAGRAM")
-part-diagram-702-000.webp "PORSCHE 1971 (911) PEDALS - FOR VEHICLES WITH - MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-702-005.webp "PORSCHE 1971 (911) PEDALS - FOR VEHICLES WITH - MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-702-010.webp "PORSCHE 1971 (911) PEDALS PARTS DIAGRAM")
-part-diagram-702-015.webp "PORSCHE 1971 (911) PEDALS PARTS DIAGRAM")
-part-diagram-801-005.webp "PORSCHE 1971 (911) FRONT END PARTS DIAGRAM")
-part-diagram-801-010.webp "PORSCHE 1971 (911) FRAME PARTS DIAGRAM")
-part-diagram-801-015.webp "PORSCHE 1971 (911) FRAME PARTS DIAGRAM")
-part-diagram-801-020.webp "PORSCHE 1971 (911) INTERIOR PANELLING PARTS DIAGRAM")
-part-diagram-801-025.webp "PORSCHE 1971 (911) INTERIOR PANELLING PARTS DIAGRAM")
-part-diagram-801-030.webp "PORSCHE 1971 (911) EXTERIOR PANELLING PARTS DIAGRAM")
-part-diagram-801-035.webp "PORSCHE 1971 (911) EXTERIOR PANELLING PARTS DIAGRAM")
-part-diagram-801-040.webp "PORSCHE 1971 (911) OIL INLET - D >> - MJ 1972 PARTS DIAGRAM")
-part-diagram-802-000.webp "PORSCHE 1971 (911) BUMPER PARTS DIAGRAM")
-part-diagram-802-005.webp "PORSCHE 1971 (911) BUMPER PARTS DIAGRAM")
-part-diagram-803-000.webp "PORSCHE 1971 (911) COVER PARTS DIAGRAM")
-part-diagram-803-005.webp "PORSCHE 1971 (911) COVER PARTS DIAGRAM")
-part-diagram-804-000.webp "PORSCHE 1971 (911) DOORS - WITH INSTALLATION PARTS PARTS DIAGRAM")
-part-diagram-804-005.webp "PORSCHE 1971 (911) DOOR LATCH - WITH INSTALLATION PARTS PARTS DIAGRAM")
-part-diagram-804-010.webp "PORSCHE 1971 (911) WINDOW REGULATOR - MECHANICAL PARTS DIAGRAM")
-part-diagram-804-015.webp "PORSCHE 1971 (911) WINDOW REGULATOR - ELECTRIC PARTS DIAGRAM")
-part-diagram-804-020.webp "PORSCHE 1971 (911) WINDOW FRAME PARTS DIAGRAM")
-part-diagram-804-025.webp "PORSCHE 1971 (911) WINDOW FRAME PARTS DIAGRAM")
-part-diagram-805-000.webp "PORSCHE 1971 (911) WINDOW GLAZING PARTS DIAGRAM")
-part-diagram-805-005.webp "PORSCHE 1971 (911) WINDOW GLAZING PARTS DIAGRAM")
-part-diagram-807-000.webp "PORSCHE 1971 (911) INTERIOR EQUIPMENT PARTS DIAGRAM")
-part-diagram-807-001.webp "PORSCHE 1971 (911) INTERIOR EQUIPMENT PARTS DIAGRAM")
-part-diagram-807-005.webp "PORSCHE 1971 (911) INTERIOR EQUIPMENT PARTS DIAGRAM")
-part-diagram-807-006.webp "PORSCHE 1971 (911) INTERIOR EQUIPMENT - ROOF PARTS DIAGRAM")
-part-diagram-807-007.webp "PORSCHE 1971 (911) INTERIOR EQUIPMENT - ROOF PARTS DIAGRAM")
-part-diagram-807-010.webp "PORSCHE 1971 (911) INTERIOR EQUIPMENT - DOORS PARTS DIAGRAM")
-part-diagram-807-050.webp "PORSCHE 1971 (911) BODY SHELL - SOUND ABSORBER PARTS DIAGRAM")
-part-diagram-808-000.webp "PORSCHE 1971 (911) FRONT SEAT PARTS DIAGRAM")
-part-diagram-808-005.webp "PORSCHE 1971 (911) EMERGENCY SEAT PARTS DIAGRAM")
-part-diagram-808-010.webp "PORSCHE 1971 (911) SPORTS SEAT PARTS DIAGRAM")
-part-diagram-809-000.webp "PORSCHE 1971 (911) DASH PANEL TRIM - WITH: - ASHTRAY - AND - TRIM COVER PARTS DIAGRAM")
-part-diagram-809-005.webp "PORSCHE 1971 (911) GLOVE BOX - D >> - MJ 1970 PARTS DIAGRAM")
-part-diagram-809-010.webp "PORSCHE 1971 (911) GLOVE BOX - D - MJ 1971>> PARTS DIAGRAM")
-part-diagram-809-015.webp "PORSCHE 1971 (911) SUN VIZORS PARTS DIAGRAM")
-part-diagram-809-020.webp "PORSCHE 1971 (911) REAR VIEW MIRROR INNER - AND - REAR VIEW MIRROR PARTS DIAGRAM")
-part-diagram-810-000.webp "PORSCHE 1971 (911) DECORATIVE FITTINGS PARTS DIAGRAM")
-part-diagram-810-005.webp "PORSCHE 1971 (911) DECORATIVE FITTINGS PARTS DIAGRAM")
-part-diagram-811-000.webp "PORSCHE 1971 (911) SUNROOF - ELECTRIC PARTS DIAGRAM")
-part-diagram-811-005.webp "PORSCHE 1971 (911) ROOF PARTS DIAGRAM")
-part-diagram-812-000.webp "PORSCHE 1971 (911) SEAT BELT PARTS DIAGRAM")
-part-diagram-812-005.webp "PORSCHE 1971 (911) SEAT BELT - WITH: - AUTOMATIC - AND - WARNING FUNCTION - (USA) (CDN) PARTS DIAGRAM")
-part-diagram-812-010.webp "PORSCHE 1971 (911) ROLL BAR PARTS DIAGRAM")
-part-diagram-813-000.webp "PORSCHE 1971 (911) VENTILATION - AND - HEATER PARTS DIAGRAM")
-part-diagram-813-005.webp "PORSCHE 1971 (911) HEATING AND VENTILATION UNIT - WITH: - ACCESSORIES PARTS DIAGRAM")
-part-diagram-813-010.webp "PORSCHE 1971 (911) SINGLE PARTS - FOR - HEATER - - WEBASTO - PARTS DIAGRAM")
-part-diagram-813-015.webp "PORSCHE 1971 (911) REPAIR MATERIAL - FOR - HEATER - - WEBASTO - - METERING - FUEL PUMP - IGNITION SPARK SENDER - SERIES RESISTANCE PARTS DIAGRAM")
-part-diagram-813-050.webp "PORSCHE 1971 (911) AIR CONDITIONER - EVAPORATOR HOUSING - COMPLETE - WITH: - AIR DUCT - NOT FOR: - (USA) PARTS DIAGRAM")
-part-diagram-813-055.webp "PORSCHE 1971 (911) AIR CONDITIONER - COMPRESSOR - WITH: - CLUTCH - NOT FOR: - (USA) PARTS DIAGRAM")
-part-diagram-813-060.webp "PORSCHE 1971 (911) AIR CONDITIONER - MOUNT - FOR - COMPRESSOR - NOT FOR: - (USA) PARTS DIAGRAM")
-part-diagram-813-065.webp "PORSCHE 1971 (911) AIR CONDITIONER - CAPACITOR - HOSES - AND - FASTENERS - NOT FOR: - (USA) PARTS DIAGRAM")
-part-diagram-813-070.webp "PORSCHE 1971 (911) AIR CONDITIONER - ELECTRICAL COMPONENTS - ACCESSORIES - NOT FOR: - (USA) PARTS DIAGRAM")
-part-diagram-898-030.webp "PORSCHE 1971 (911) SEAT BELT - INSTALLATION KIT - WITH: - AUTOMATIC - FOR SERVICE INSTALLATION PARTS DIAGRAM")
-part-diagram-901-000.webp "PORSCHE 1971 (911) ENGINE ELECTRICS PARTS DIAGRAM")
-part-diagram-901-005.webp "PORSCHE 1971 (911) PLATE PARTS DIAGRAM")
-part-diagram-901-010.webp "PORSCHE 1971 (911) ALTERNATOR PARTS DIAGRAM")
-part-diagram-901-015.webp "PORSCHE 1971 (911) DISTRIBUTOR - - MARELLI - - D >> - MJ 1971 PARTS DIAGRAM")
-part-diagram-901-020.webp "PORSCHE 1971 (911) DISTRIBUTOR - - MARELLI - - D - MJ 1972>> PARTS DIAGRAM")
-part-diagram-901-025.webp "PORSCHE 1971 (911) DISTRIBUTOR - - BOSCH - PARTS DIAGRAM")
-part-diagram-902-000.webp "PORSCHE 1971 (911) BATTERY PARTS DIAGRAM")
-part-diagram-902-005.webp "PORSCHE 1971 (911) GROMMETS - CONNECTOR PARTS DIAGRAM")
-part-diagram-902-010.webp "PORSCHE 1971 (911) WIRING HARNESSES PARTS DIAGRAM")
-part-diagram-903-000.webp "PORSCHE 1971 (911) STEERING LOCK PARTS DIAGRAM")
-part-diagram-903-005.webp "PORSCHE 1971 (911) SWITCH - DASHBOARD TRIM PARTS DIAGRAM")
-part-diagram-903-006.webp "PORSCHE 1971 (911) BUTTON - SWITCH - D - MJ 1968>> PARTS DIAGRAM")
-part-diagram-903-008.webp "PORSCHE 1971 (911) CONNECTOR HOUSING PARTS DIAGRAM")
-part-diagram-903-010.webp "PORSCHE 1971 (911) SWITCH PARTS DIAGRAM")
-part-diagram-903-015.webp "PORSCHE 1971 (911) HORN - RELAY PARTS DIAGRAM")
-part-diagram-903-020.webp "PORSCHE 1971 (911) STEERING COLUMN SWITCH PARTS DIAGRAM")
-part-diagram-904-000.webp "PORSCHE 1971 (911) WINDSCREEN WIPER SYSTEM PARTS DIAGRAM")
-part-diagram-904-005.webp "PORSCHE 1971 (911) REAR WINDOW WIPER PARTS DIAGRAM")
-part-diagram-904-010.webp "PORSCHE 1971 (911) REAR WINDOW WIPER PARTS DIAGRAM")
-part-diagram-904-015.webp "PORSCHE 1971 (911) WINDSHIELD WASHER UNIT PARTS DIAGRAM")
-part-diagram-905-000.webp "PORSCHE 1971 (911) HEADLAMP PARTS DIAGRAM")
-part-diagram-905-005.webp "PORSCHE 1971 (911) HEADLAMP - H 4 - D - MJ 1972>> PARTS DIAGRAM")
-part-diagram-905-010.webp "PORSCHE 1971 (911) LIGHTING PARTS DIAGRAM")
-part-diagram-906-000.webp "PORSCHE 1971 (911) INSTRUMENTS PARTS DIAGRAM")
-part-diagram-001-000.webp "PORSCHE 1971 (911) TOOL - JACK - BOX WITH BULBS - FIRST AID KIT PARTS DIAGRAM")
-part-diagram-001-003.webp "PORSCHE 1971 (911) CLEANING AGENT - PORSCHE CLASSIC PARTS DIAGRAM")
-part-diagram-001-004.webp "PORSCHE 1971 (911) ACCESSORIES - PORSCHE CLASSIC PARTS DIAGRAM")
-part-diagram-001-005.webp "PORSCHE 1971 (911) SIGNS/NOTICES PARTS DIAGRAM")
-part-diagram-001-006.webp "PORSCHE 1971 (911) IDENTIFICATION PLATE PARTS DIAGRAM")
-part-diagram-001-008.webp "PORSCHE 1971 (911) INSTRUCTION MANUAL PARTS DIAGRAM")
-part-diagram-101-005.webp "PORSCHE 1971 (911) CRANKCASE - REPAIR SET FOR MAINTENANCE - SEE ILLUSTRATION: PARTS DIAGRAM")
-part-diagram-102-000.webp "PORSCHE 1971 (911) CRANKSHAFT - AND - CONNECTING RODS PARTS DIAGRAM")
-part-diagram-103-000.webp "PORSCHE 1971 (911) CYLINDER HEAD - CYLINDER WITH PISTONS - D >> - MJ 1971 PARTS DIAGRAM")
-part-diagram-103-005.webp "PORSCHE 1971 (911) CYLINDER HEAD - CYLINDER WITH PISTONS - D - MJ 1972>> PARTS DIAGRAM")
-part-diagram-103-010.webp "PORSCHE 1971 (911) CHAIN CASE - CAMSHAFT HOUSING PARTS DIAGRAM")
-part-diagram-103-015.webp "PORSCHE 1971 (911) VALVE CONTROL - REPAIR SET FOR MAINTENANCE - TENSIONER - CHAIN - SEE ILLUSTRATION: PARTS DIAGRAM")
-part-diagram-103-020.webp "PORSCHE 1971 (911) VALVE CONTROL - REPAIR SET FOR MAINTENANCE - TENSIONER - CHAIN - SEE ILLUSTRATION: PARTS DIAGRAM")
-part-diagram-104-000.webp "PORSCHE 1971 (911) ENGINE LUBRICATION - D >> - MJ 1971 PARTS DIAGRAM")
-part-diagram-104-005.webp "PORSCHE 1971 (911) ENGINE LUBRICATION - AUXILIARY UNITS - FOR - TYP 901/10 911/02 - D >> - MJ 1971 PARTS DIAGRAM")
-part-diagram-104-015.webp "PORSCHE 1971 (911) ENGINE LUBRICATION - TYP 911/51/52/57 - D - MJ 1972>> - MJ 1973 PARTS DIAGRAM")
-part-diagram-104-020.webp "PORSCHE 1971 (911) ENGINE LUBRICATION - AUXILIARY UNITS - FOR - TYP 911/53/63 - D - MJ 1972>> - MJ 1973 PARTS DIAGRAM")
-part-diagram-104-025.webp "PORSCHE 1971 (911) ENGINE LUBRICATION - D - MJ 1973>> PARTS DIAGRAM")
-part-diagram-104-030.webp "PORSCHE 1971 (911) ENGINE LUBRICATION - AUXILIARY UNITS - FOR - TYP 911/53/63/83/88 - D - MJ 1973>> PARTS DIAGRAM")
-part-diagram-104-035.webp "PORSCHE 1971 (911) OIL SUPPLY - FOR - TORQUE CONVERTER - SPORTOMATIC - D >> - MJ 1971 PARTS DIAGRAM")
-part-diagram-104-040.webp "PORSCHE 1971 (911) OIL SUPPLY - FOR - TORQUE CONVERTER - SPORTOMATIC - D - MJ 1972>> - MJ 1972 PARTS DIAGRAM")
-part-diagram-104-045.webp "PORSCHE 1971 (911) OIL SUPPLY - FOR - TORQUE CONVERTER - SPORTOMATIC - D - MJ 1973>> PARTS DIAGRAM")
-part-diagram-105-000.webp "PORSCHE 1971 (911) AIR COOLING PARTS DIAGRAM")
-part-diagram-105-005.webp "PORSCHE 1971 (911) AIR DUCT - AND - ENGINE COVER PARTS DIAGRAM")
-part-diagram-106-000.webp "PORSCHE 1971 (911) AIR CLEANER SYSTEM - FOR - - ZENITH - CARBURETOR PARTS DIAGRAM")
-part-diagram-106-005.webp "PORSCHE 1971 (911) AIR CLEANER SYSTEM - FOR - INJECTION SYSTEM - D - MJ 1972>> PARTS DIAGRAM")
-part-diagram-107-000.webp "PORSCHE 1971 (911) CARBURETOR - - ZENITH- PARTS DIAGRAM")
-part-diagram-107-005.webp "PORSCHE 1971 (911) REPAIR MATERIAL - FOR - CARBURETOR - - WEBER - - - 40 IDTP 1 3C/3C1 - D >> - MJ 1971 PARTS DIAGRAM")
-part-diagram-107-010.webp "PORSCHE 1971 (911) REPAIR MATERIAL - FOR - CARBURETOR - - ZENITH - - 40 TIN - REPAIR SET FOR MAINTENANCE - GASKET SET - SEE ILLUSTRATION: PARTS DIAGRAM")
-part-diagram-107-015.webp "PORSCHE 1971 (911) REPAIR MATERIAL - FOR - CARBURETOR - - ZENITH - - 40 TIN PARTS DIAGRAM")
