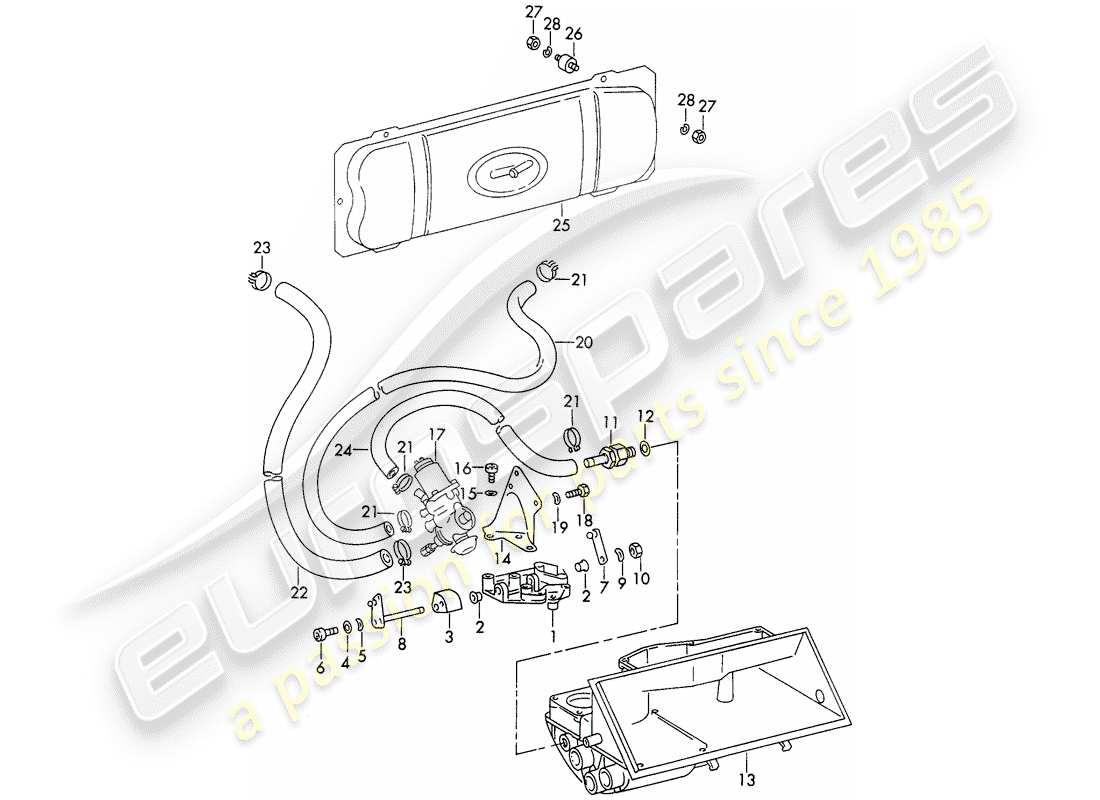

107-065 - VACUUM SYSTEM - FOR - CLUTCH RELEASE - D - MJ 1972>>
Porsche 1971 (911) VACUUM SYSTEM - FOR - CLUTCH RELEASE - D - MJ 1972>> Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 91111023400
BRACKET
from £85.44
from £85.44
# 2
MPN: 90142325300
BUSHING
from £3.92
from £3.92
# 3
MPN: 91112502701
CAM DISC
(SPM)
from £8.34
from £8.34
# 4
MPN: 90008901102
Washer - 4
(SPM)
# 5
MPN: N 0122243
SPRING WASHER - B 4 - DISCONTINUED PART
(SPM)
# 5
MPN: N 012224C
SPRING WASHER - B 4
(SPM)
from £0.85
from £0.85
# 6
MPN: 90006708002
SCREW, CHEESE HD. - M 4 X 10 - DISCONTINUED PART
(SPM)
from £0.81
from £0.81
# 6
MPN: 90006708003
SCREW, CHEESE HD. - M 4 X 10
(SPM)
# 7
MPN: 91111011000
LEVER
# 8
MPN: 91111006001
LEVER - COMPLETE
from £40.44
from £40.44
# 9
MPN: N 0122418
SPRING WASHER - B 8 X 15
from £0.70
from £0.70
# 10
MPN: 90007602502
HEX. NUT - M 8 - DISCONTINUED PART
Supersession
Supersession
# 10
MPN: 90007606402
hex. nut - M 8
from £0.59
from £0.59
# 11
MPN: 90511672500
CHECK VALVE
(SPM)
from £155.45
from £155.45
# 12
MPN: 90012300770
SEAL RING - A 14 X 18
(SPM)
from £2.02
from £2.02
# 13
MPN: 91111014000
HOUSING - AIR CLEANER
from £198.19
from £198.19
# 13
MPN: 91111014000
HOUSING - ALSO USE:
from £198.19
from £198.19
# -
-
THREADED PLUG
# -
-
SEAL RING
This part replaces part number 90012310430
# 14
MPN: 91112533101
BRACKET - FOR - CONTROL VALVE
(SPM)
from £14.04
from £14.04
# 15
MPN: N 0122418
SPRING WASHER - B 8 X 15
(SPM)
from £0.70
from £0.70
# 16
MPN: N 0147072
SCREW, CHEESE HD. - M 8 X 15 - DISCONTINUED PART
(SPM)
# 16
MPN: 90006713103
SCREW, CHEESE HD. - M 8 X 15
(SPM)
from £1.51
from £1.51
This part replaces part number 90006713102
# 17
MPN: 90510837000
VALVE
(SPM)
from £480.90
from £480.90
# 18
MPN: 90007501002
HEX. NUT - M 6 X 12 - DISCONTINUED PART
(SPM)
# 18
MPN: N 01021214
SCREW, HEX. HD. - M 6 X 12 - DISCONTINUED PART
(SPM)
# 18
MPN: 99907200509
HEX. NUT - M 6 X 12 - DISCONTINUED PART
(SPM)
# 18
MPN: 99907200501
SCREW, HEX. HD. - M 6 X 12
(SPM)
from £2.58
from £2.58
# 19
MPN: N 0122265
SPRING WASHER - B 6
(SPM)
from £0.70
from £0.70
# 20
MPN: 91112570300
VACUUM HOSE - 12 X 3,5 X 450 - CONTROL VALVE - - - VACUUM TANK
(SPM)
# 21
MPN: 99951205602
Hose Clamp - S 18/9
(SPM)
# 22
MPN: 99918128250
VACUUM HOSE - 15 X 3,5 X 350 - CONTROL VALVE - - - SERVO
(SPM)
# 23
MPN: N 0235653
Hose Clamp - S 21/9
(SPM)
from £3.12
from £3.12
# 24
MPN: 99918128250
VACUUM HOSE - 12 X 3,5 X 360
(SPM)
# 25
MPN: 91111603300
VACUUM TANK
(SPM)
from £373.94
from £373.94
# 26
MPN: 90150485320
MOUNTING
(SPM)
# 27
MPN: 90007601002
NUT - M 6 - DISCONTINUED PART
(SPM)
# 27
MPN: 9000760100B
NUT - M 6
(SPM)
from £0.73
from £0.73
# 28
MPN: 90002701401
LOCK RING - B 6 - DISCONTINUED PART
(SPM)
# 28
MPN: 90002701402
LOCK RING - B 6 - DISCONTINUED PART
(SPM)
# 28
MPN: N 0120064
LOCK RING - B 6
(SPM)
from £0.70
from £0.70
