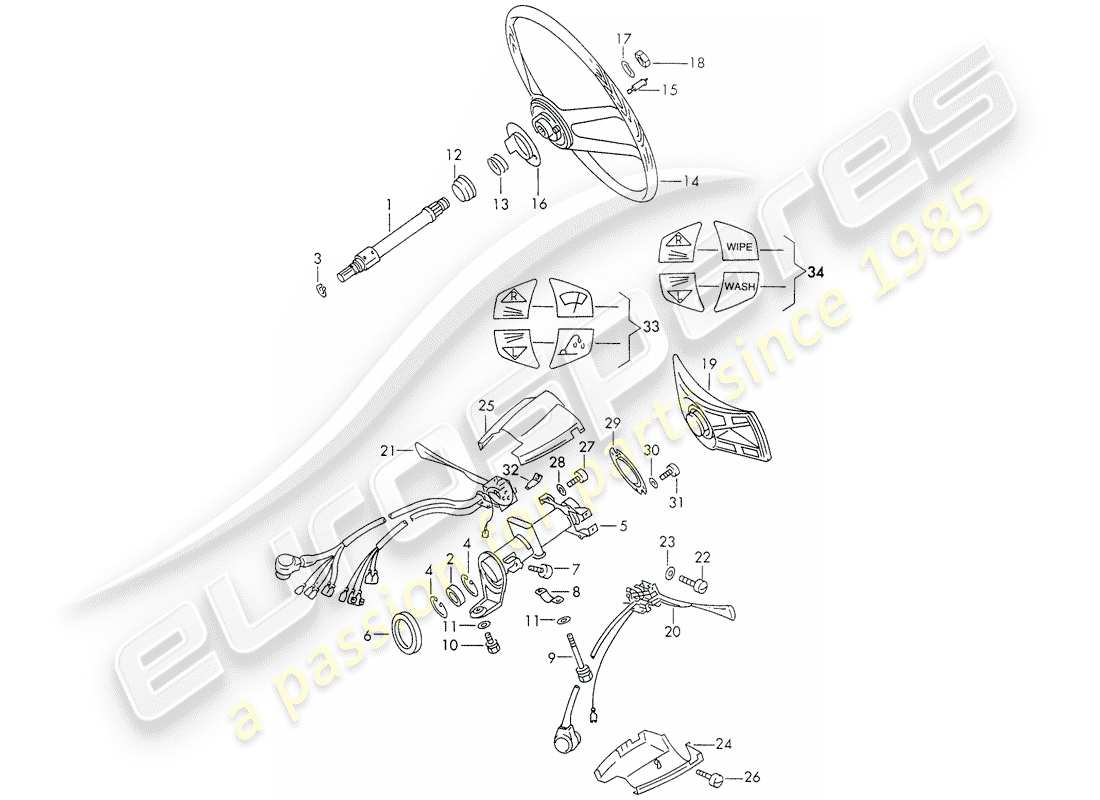

403-005 - INTERMEDIATE STEERING SHAFT - STEERING WHEEL - STEERING COLUMN SWITCH
Porsche 1971 (911) INTERMEDIATE STEERING SHAFT - STEERING WHEEL - STEERING COLUMN SWITCH Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 90134706101
INTERMEDIATE STEERING SHAFT
from £1,093.86
from £1,093.86
# 2
MPN: 90005203100
BALL BEARING
from £24.05
from £24.05
# 3
MPN: 90004100800
LOCK RING - 17 X 1
from £0.65
from £0.65
# 4
MPN: 90004200800
LOCK RING - 35 X 1,5
from £1.47
from £1.47
# 5
MPN: 91134707300
STEERING PROTECTIVE PIPE
LHD
# 5
MPN: 91134707201
Steering protective pipe - Not for:
rhd ( TARGA)
from £180.11
from £180.11
# 6
MPN: 91134771300
GASKET
from £3.25
from £3.25
# 7
MPN: 90014604402
FILLISTER HD. SCREW - AM 6 X 10 - NOT FOR:
rhd ( TARGA)
from £0.88
from £0.88
# 7
MPN: 90022800202
THREADED PIN - M 8 X 16
LHD
from £1.57
from £1.57
# -
-
HEX. NUT
LHD
# 8
MPN: 90134775500
CLAMP
# 9
MPN: 90134775400
SHEAR BOLT
from £18.91
from £18.91
# 10
MPN: 90134775300
SHEAR BOLT
from £5.78
from £5.78
# 11
MPN: 99952310202
SHAKE-PROOF WASHER - M 8 PN - DISCONTINUED PART
# 11
MPN: 9995231020B
SHAKE-PROOF WASHER - M 8 PN
from £0.79
from £0.79
# 12
MPN: 91434771100
STEERING SHAFT BEARING
from £199.62
from £199.62
# 13
MPN: 91434771300
PRESSURE SPRING
from £1.85
from £1.85
# 14
MPN: 90134708100
STEERING WHEEL - HARD RUBBER - $ 400 - D >> - MJ 1972
(911 T 911 T-V/E)
# 14
MPN: 90134708110
steering wheel - Leather - $ 400 - See Classic Ti - 4/94 - D >> - MJ 1972
(911 S 911 T/E:M)
# 14
MPN: 91134708200
steering wheel - plastic - $ 400 - See Classic Ti - 4/94 - Not for: - D - MJ 1973>>
( CARRERA 2.7)
# 14
MPN: 91134708400
steering wheel - Leather - $ 380 - D - MJ 1973>>
(CARRERA 2.7)
# 14
MPN: 90134708105
steering wheel - Hard rubber - with elevated hub - See Classic Ti - 4/94 - D >> - MJ 1971
(911 T/E/S:M 911 T/E:M)
# 14
MPN: 90134708115
steering wheel - Leather - with elevated hub - See Classic Ti - 4/94 - D >> - MJ 1972
(911 T/E/S:M)
# 14
MPN: 91134708205
steering wheel - plastic - with elevated hub - See Classic Ti - 4/94 - D - MJ 1973>>
(911 T/E/S:M CARRERA 2.7)
# 15
MPN: 91434783100
CONTACT PIN
from £18.03
from £18.03
# 15
MPN: 91434783200
CONTACT PIN - WITH ELEVATED HUB - DISCONTINUED PART
# 15
MPN: 91434783201
CONTACT PIN - WITH ELEVATED HUB
from £19.43
from £19.43
# 16
MPN: 90161332505
CANCELLING RING
from £95.95
from £95.95
# -
-
SCREW, CSK. HD.
# 17
MPN: N 0122391
SPRING WASHER - B 18
from £0.78
from £0.78
# 18
MPN: 90007800702
HEX. NUT - M 18 X 1,5
from £4.74
from £4.74
# 19
MPN: 91461380512
horn button - Not for:
( CARRERA 2.7)
# 19
MPN: 91461380512
HORN BUTTON
(CARRERA 2.7)
# 20
-
DIRECTION INDICATOR SWITCH - SEE GROUP - 9/03/20
# 21
-
WIPER SWITCH - SEE GROUP - 9/03/20
# 22
MPN: 90001406902
SCREW, CHEESE HD. - AM 3 X 8
from £1.36
from £1.36
# 23
MPN: 90011500701
SERRATED WASHER - A 3,2
from £0.78
from £0.78
# 24
MPN: 90161331201
TRIM FOR STEERING COLUMN - LOWER PART
from £74.70
from £74.70
# 25
MPN: 90161331101
TRIM FOR STEERING COLUMN - UPPER PART
from £74.70
from £74.70
# 26
MPN: 90001407902
SCREW, CHEESE HD. - AM 3 X 10
from £1.47
from £1.47
# 27
MPN: 90001404602
SCREW, CHEESE HD. - AM 4 X 10
from £0.97
from £0.97
# 28
MPN: N 0121161
SERRATED WASHER - A 4,3
# 29
MPN: 90161391500
CONTACT PLATE
from £129.78
from £129.78
# 30
MPN: 90001404602
SCREW, CHEESE HD. - M 4 X 10
from £0.97
from £0.97
# 31
MPN: N 0121161
SERRATED WASHER - A 4,3
# 32
MPN: 99965231502
MALE BLADE TERMINAL
from £0.82
from £0.82
# 33
MPN: 90155933000
SYMBOL CAP - 1 SET - FOR LIGHT - AND - WINDSHIELD WASHER UNIT
# 34
MPN: 90155933001
INSCRIPTION - CAP WITH SYMBOL - 1 SET - FOR LIGHT - AND - WINDSHIELD WASHER UNIT
(\\J..\\,\\S..\\, \\CDN\\)
from £41.90
from £41.90
# 34
MPN: 90155933001
INSCRIPTION - CAP WITH SYMBOL - 1 SET - FOR LIGHT - AND - WINDSHIELD WASHER UNIT
(\\USA\\)
from £41.90
from £41.90
