porsche 1971 (911) disc brakes parts diagram

602-000 - disc brakes

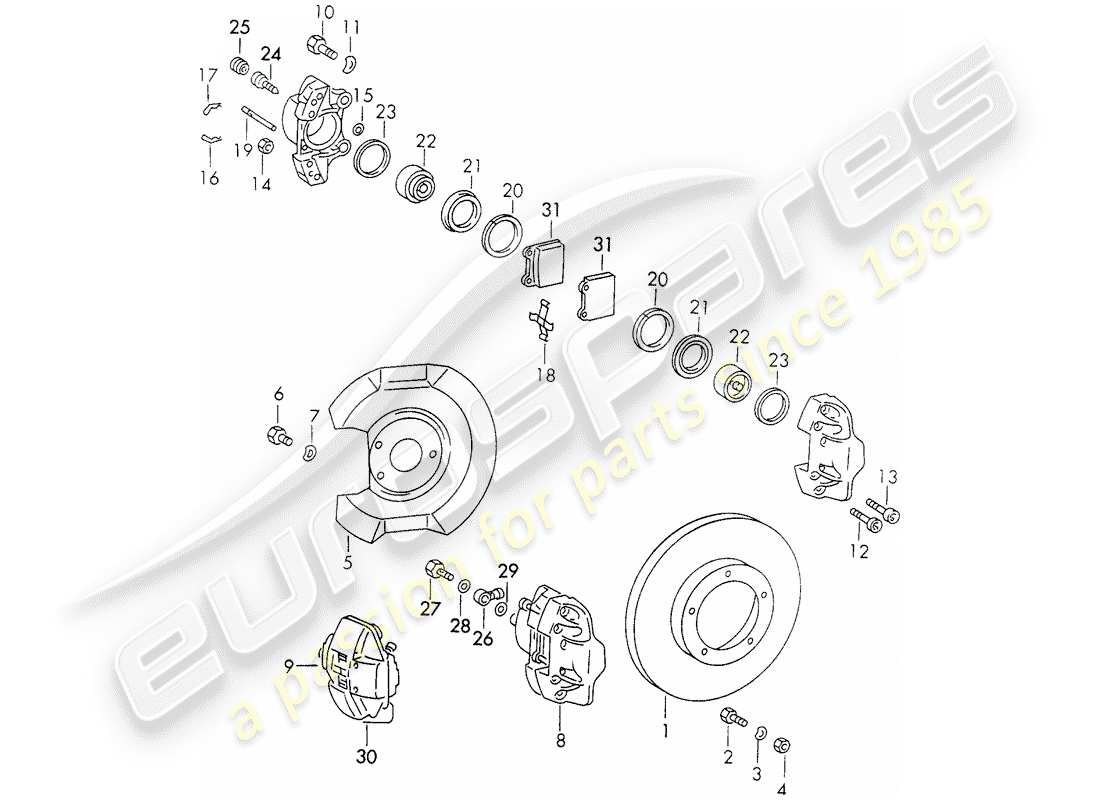

Porsche 1971 (911) DISC BRAKES Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Key
                      Price
                      # 1
                      MPN: 90135104116
                      brake disc - Vented - associated item/items to be - used as necessary :
                      ---31
                      brake disc - Vented - associated item/items to be - used as necessary : Genuine Porsche Part - New (to order)
                      # 2
                      MPN: 90007507902
                      SCREW, HEX. HD. - M 8 X 22
                      Supersession
                      Supersession
                      Genuine Porsche Part (no longer available to order)
                      # 3
                      MPN: N 0122411
                      SPRING WASHER - B 8
                      from £0.64
                      from £0.64
                      spring washer - Not for: - (S)(D) - M >> 075 3003 - M >> 083 6549 Genuine Porsche Part - New (to order)
                      # 4
                      MPN: 90007602502
                      HEX. NUT - M 8 - DISCONTINUED PART
                      Supersession
                      Supersession
                      Genuine Porsche Part (no longer available to order)
                      # 4
                      MPN: 90007606402
                      hex. nut - M 8
                      from £0.59
                      from £0.59
                      hex. nut - SW 13 M 8 Genuine Porsche Part - New (to order)
                      # 5
                      MPN: 90135180117
                      PROTECTIVE PLATE - - - D >> - MJ 1971
                      front (911 T 911 T-V/T-E 911 E)
                      from £30.29
                      from £30.29
                      protective plate - for - S-calliper - For A-brake calliper Genuine Porsche Part - New (to order)
                      # 5
                      MPN: 90135180117
                      PROTECTIVE PLATE - - - - - - D >> - MJ 1971
                      front (911 T:M 911 E/S 911 S CARRERA 2.7 911 T-V/T-E 911 E)
                      from £30.29
                      from £30.29
                      protective plate - for - S-calliper - For A-brake calliper Genuine Porsche Part - New (to order)
                      # 6
                      MPN: N 0102353
                      SCREW, HEX. HD. - M 8 X 10
                      from £0.85
                      from £0.85
                      SCREW, HEX. HD. - M 8 X 10 - D >>- MJ 1971 Genuine Porsche Part - New (to order)
                      # 7
                      MPN: N 0122411
                      SPRING WASHER - B 8 X 15
                      from £0.64
                      from £0.64
                      spring washer - Not for: - (S)(D) - M >> 075 3003 - M >> 083 6549 Genuine Porsche Part - New (to order)
                      # 8
                      MPN: 91135190700
                      FIXED CALLIPER - (M) - - WITHOUT PAD - D >> - MJ 1971
                      front-left (911 T 911 T-V/T-E 911 E)
                      from £457.40
                      from £457.40
                      FIXED CALIPER - WITHOUT PAD - F >> 91-15101 182 - F >> 91-15110 920 - F >> 91-15202 045 - F >> 91-15211 217 - F >> 91-15300 373 - F >> 91-15310 241 - F >> 91-15400 341 - F >> 91-15410 147 Genuine Porsche Part - New (to order)
                      # 8
                      MPN: 91135190800
                      FIXED CALLIPER - (M) - - WITHOUT PAD - D >> - MJ 1971
                      front-right (911 T 911 T-V/T-E 911 E)
                      from £457.40
                      from £457.40
                      FIXED CALIPER - WITHOUT PAD - F >> 91-15101 182 - F >> 91-15110 920 - F >> 91-15202 045 - F >> 91-15211 217 - F >> 91-15300 373 - F >> 91-15310 241 - F >> 91-15400 341 - F >> 91-15410 147 Genuine Porsche Part - New (to order)
                      # 9
                      MPN: 90135197510
                      FIXED CALLIPER - (S) - WITHOUT PAD - BRAKE DISC - VENTED - D >> - MJ 1971
                      front-left (911 T:M 911 E/S)
                      FIXED CALIPER - (S) - WITHOUT PAD - BRAKE DISC - VENTED - D >> - MJ 1971 Genuine Porsche Part - New (to order)
                      # 9
                      MPN: 90135197610
                      FIXED CALLIPER - (S) - WITHOUT PAD - BRAKE DISC - VENTED - D >> - MJ 1971
                      front-right (911 T:M 911 E/S)
                      FIXED CALIPER - (S) - WITHOUT PAD - BRAKE DISC - VENTED - D >> - MJ 1971 Genuine Porsche Part - New (to order)
                      # 9
                      MPN: 91135193500
                      FIXED CALLIPER - (S) - - - WITHOUT PAD - BRAKE DISC - VENTED - D - MJ 1972>>
                      front-left (911 S CARRERA 2.7 911 T-V/T-E 911 E)
                      FIXED CALIPER - WITHOUT PAD Genuine Porsche Part - New (to order)
                      # 9
                      MPN: 91135193600
                      FIXED CALLIPER - (S) - - - WITHOUT PAD - BRAKE DISC - VENTED - D - MJ 1972>>
                      front-right (911 S CARRERA 2.7 911 T-V/T-E 911 E)
                      FIXED CALIPER - WITHOUT PAD Genuine Porsche Part - New (to order)
                      # 10
                      MPN: 90008302302
                      SCREW, HEX. HD. - M 12 X 1,5 X 30 - DISCONTINUED PART
                      Supersession
                      Supersession
                      Genuine Porsche Part (no longer available to order)
                      # 10
                      MPN: 90008302303
                      SCREW, HEX. HD. - M 12 X 1,5 X 30
                      from £3.56
                      from £3.56
                      SCREW, HEX. HD. - M 12 X 1,5 X 35 Genuine Porsche Part - New (to order)
                      # 10
                      MPN: 90008302301
                      screw, hex. hd. - M 12 X 1,5 X 30 - D - MJ 1971>>
                      from £2.22
                      from £2.22
                      SCREW, HEX. HD. - M 12 X 1,5 X 30 - D - MJ 1971>>- MJ 1971 Genuine Porsche Part - New (to order)
                      # 12
                      MPN: 90135194510
                      SCREW, CHEESE HD. - - - D >> - MJ 1971
                      (911 T 911 T-V/T-E 911 E)
                      from £10.26
                      from £10.26
                      SCREW, CHEESE HD. - F >>91-15101 182 - F >>91-15110 920 - F >>91-15202 045 - F >>91-15211 217 - F >>91-15300 373 - F >>91-15310 241 - F >>91-15400 341 - F >>91-15410 147 Genuine Porsche Part - New (to order)
                      # 14
                      MPN: N 0110088
                      HEX. NUT - M 8 - - D >> - MJ 1971
                      (911 T 911 T-V/T-E 911 E)
                      from £0.52
                      from £0.52
                      HEX. NUT - M8 Genuine Porsche Part - New In stock
                      Genuine Bentley Part (no longer available to order)
                      # 16
                      MPN: 90135195510
                      safety clamp
                      from £1.93
                      from £1.93
                      safety clamp - D - MJ 1980>> Genuine Porsche Part - New (to order)
                      # 17
                      MPN: 90135195510
                      safety clamp
                      from £1.93
                      from £1.93
                      safety clamp - D - MJ 1980>> Genuine Porsche Part - New (to order)
                      # 18
                      MPN: 90135191614
                      speader spring - - - D >> - MJ 1971
                      (911 T 911 T-V/T-E 911 E)
                      from £19.45
                      from £19.45
                      speader spring - - - D >> - MJ 1971 Genuine Porsche Part - New (to order)
                      # 18
                      MPN: 90135191615
                      speader spring - - - - - - D >> - MJ 1971
                      (911 T:M 911 E/S 911 S CARRERA 2.7 911 T-V/T-E 911 E)
                      from £26.08
                      from £26.08
                      speader spring - - - - - - D >> - MJ 1971 Genuine Porsche Part - New (to order)
                      # 19
                      MPN: 90135191316
                      RETAINING PIN - - - D >> - MJ 1971
                      (911 T 911 T-V/T-E 911 E)
                      from £9.58
                      from £9.58
                      RETAINING PIN - FOR - M CALIPER - F >> 91-15101 182 - F >> 91-15110 920 - F >> 91-15202 045 - F >> 91-15211 217 - F >> 91-15300 373 - F >> 91-15310 241 - F >> 91-15400 341 - F >> 91-15410 147 Genuine Porsche Part - New (to order)
                      # 19
                      MPN: 90135198600
                      RETAINING PIN - - - - - - D >> - MJ 1971
                      (911 T:M 911 E/S 911 S CARRERA 2.7 911 T-V/T-E 911 E)
                      from £9.58
                      from £9.58
                      retaining pin - for - S-calliper Genuine Porsche Part - New (to order)
                      # 20
                      -
                      CLAMPING RING - SEE GROUP - 6/98/00 - D >> - MJ 1971
                      (911 T 911 T-V/T-E 911 E)
                      # 21
                      -
                      PROTECTIVE CAP - SEE GROUP - 6/98/00 - - - D >> - MJ 1971
                      (911 T:M 911 E/S 911 S 911 T-V/T-E 911 E)
                      # 22
                      MPN: 90135109710
                      PISTON - - - D >> - MJ 1971
                      (911 T 911 T-V/T-E 911 E)
                      PISTON - FOR - M CALIPER - F >> 91-15101 182 - F >> 91-15100 920 - F >> 91-15202 045 - F >> 91-15211 217 - F >> 91-15300 373 - F >> 91-15310 241 - F >> 91-15400 341 - F >> 91-15410 147 Genuine Porsche Part - New (to order)
                      # 22
                      MPN: 90135198800
                      PISTON - FOR - S-CALLIPER - HOUSING - WITH: - X - D >> - MJ 1970
                      (911 T:M 911 E/S)
                      PISTON - FOR - S-CALLIPER - HOUSING - WITHOUT: - X Genuine Porsche Part - New (to order)
                      # 22
                      MPN: 91135191800
                      PISTON - - - - - D - MJ 1971>> - MJ 1971
                      (911 T:M 911 E/S 911 S 911 T-V/T-E 911 E)
                      piston - for - S-calliper Genuine Porsche Part - New (to order)
                      # 23
                      -
                      GASKET - SEE GROUP - 6/98/00 - - - - D >> - MJ 1971
                      (911 T:M 911 E/S 911 S CARRERA 2.7 911 T-V/T-E 911 E)
                      # 24
                      MPN: 90135297710
                      BLEED VALVE - COMPLETE - - D >> - MJ 1971
                      (911 T 911 T-V/T-E 911 E)
                      from £12.13
                      from £12.13
                      BLEED VALVE - FOR - M CALIPER - F >> 91-15101 182 - F >> 91-15110 920 - F >> 91-15202 045 - F >> 91-15211 217 - F >> 91-15300 373 - F >> 91-15310 241 - F >> 91-15400 341 - F >> 91-15410 147 Genuine Porsche Part - New (to order)
                      # 24
                      MPN: 91135191900
                      BLEEDER VALVE - COMPLETE - - - - - D >> - MJ 1971
                      (911 T:M 911 E/S 911 S CARRERA 2.7 911 T-V/T-E 911 E)
                      from £13.21
                      from £13.21
                      bleeder valve - for - S-calliper Genuine Porsche Part - New (to order)
                      # 25
                      MPN: 90135192710
                      dust cap - - - D >> - MJ 1971
                      (911 T 911 T-V/T-E 911 E)
                      from £2.98
                      from £2.98
                      dust cap - - - D >> - MJ 1971 Genuine Porsche Part - New (to order)
                      # 25
                      MPN: 90135192710
                      DUST CAP - - - - - - D >> - MJ 1971
                      (911 T:M 911 E/S 911 S CARRERA 2.7 911 T-V/T-E 911 E)
                      from £2.98
                      from £2.98
                      dust cap - - - D >> - MJ 1971 Genuine Porsche Part - New (to order)
                      # 26
                      MPN: 91435553100
                      ADAPTER - - - D >> - MJ 1971
                      (911 T 911 T-V/T-E 911 E)
                      from £14.11
                      from £14.11
                      adapter - D - MJ 1973>> Genuine Porsche Part - New (to order)
                      # 26
                      MPN: 91435553100
                      ADAPTER - - - - - - D >> - MJ 1971
                      (911 T:M 911 E/S 911 S CARRERA 2.7 911 T-V/T-E 911 E)
                      from £14.11
                      from £14.11
                      adapter - D - MJ 1973>> Genuine Porsche Part - New (to order)
                      # 27
                      MPN: 90135553100
                      BANJO BOLT
                      from £9.48
                      from £9.48
                      banjo bolt - D >> - MJ 1971 Genuine Porsche Part - New (to order)
                      # 28
                      MPN: 90435590200
                      GASKET - - - D >> - MJ 1971
                      outer (911 T 911 T-V/T-E 911 E)
                      from £3.59
                      from £3.59
                      gasket - Metal - $ 12 MM - D - MJ 1972>> Genuine Porsche Part - New (to order)
                      # 28
                      MPN: 90012300522
                      seal ring - - - - - - D >> - MJ 1971
                      outer (911 T:M 911 E/S 911 S CARRERA 2.7 911 T-V/T-E 911 E)
                      from £0.81
                      from £0.81
                      seal ring - - - - - - D >> - MJ 1971 Genuine Porsche Part - New (to order)
                      # 29
                      MPN: 90435590400
                      GASKET - - - D >> - MJ 1971
                      inner (911 T 911 T-V/T-E 911 E)
                      gasket - Metal - $ 10 MM - D - MJ 1972>> Genuine Porsche Part - New (to order)
                      # 29
                      MPN: 90012300422
                      seal ring - - - - - - D >> - MJ 1971
                      inner (911 T:M 911 E/S 911 S CARRERA 2.7 911 T-V/T-E 911 E)
                      from £1.47
                      from £1.47
                      seal ring - - - - - - D >> - MJ 1971 Genuine Porsche Part - New (to order)
                      # 30
                      MPN: 90135199100
                      COMPENSATING LINE - - - - - - D >> - MJ 1971
                      left-front (911 T:M 911 E/S 911 S CARRERA 2.7 911 T-V/T-E 911 E)
                      from £68.62
                      from £68.62
                      Compensating line - for - S-calliper Genuine Porsche Part - New (to order)
                      # 30
                      MPN: 90135199200
                      COMPENSATING LINE - - - - - - D >> - MJ 1971
                      right-front (911 T:M 911 E/S 911 S CARRERA 2.7 911 T-V/T-E 911 E)
                      from £68.62
                      from £68.62
                      Compensating line - for - S-calliper Genuine Porsche Part - New (to order)
                      # 31
                      MPN: 91135295004
                      1 SET OF BRAKE PADS FOR DISC - BRAKES - WITHOUT: - FASTENERS - FOR M BRAKE CALLIPER - DISCONTINUED PART
                      (911 T/E)
                      1 SET OF BRAKE PADS FOR DISC - BRAKES - FOR M BRAKE CALIPER - DISCONTINUED PART Genuine Porsche Part - New (to order)
                      # 31
                      MPN: 91135295006
                      1 SET OF BRAKE PADS FOR DISC - BRAKES - WITHOUT: - FASTENERS - FOR M BRAKE CALLIPER
                      (911 T/E)
                      from £69.94
                      from £69.94
                      1 SET OF BRAKE PADS FOR DISC - BRAKES - FOR M BRAKE CALIPER - 911.351.907.00/908.00 Genuine Porsche Part - New (to order)
                      # 31
                      MPN: 91135195007
                      1 SET OF BRAKE PADS FOR DISC - BRAKES - WITHOUT FIXING PARTS - FOR S BRAKE CALLIPER - ALUMINIUM - DISCONTINUED PART
                      (911 S 911 T/E:M CARRERA 2.7)
                      1 SET OF BRAKE PADS FOR DISC - BRAKES - WITHOUT FIXING PARTS - FOR S BRAKE CALIPER - DISCONTINUED PART Genuine Porsche Part - New (to order)
                      # 31
                      MPN: 91135195009
                      1 set of brake pads for disc - brakes - Without fixing parts - For S brake calliper - aluminium
                      (911 S 911 T/E:M CARRERA 2.7)
                      from £71.27
                      from £71.27
                      1 SET OF BRAKE PADS FOR DISC - BRAKES - WITHOUT FIXING PARTS - FOR S BRAKE CALIPER - ALUMINIUM Genuine Porsche Part - New (to order)
