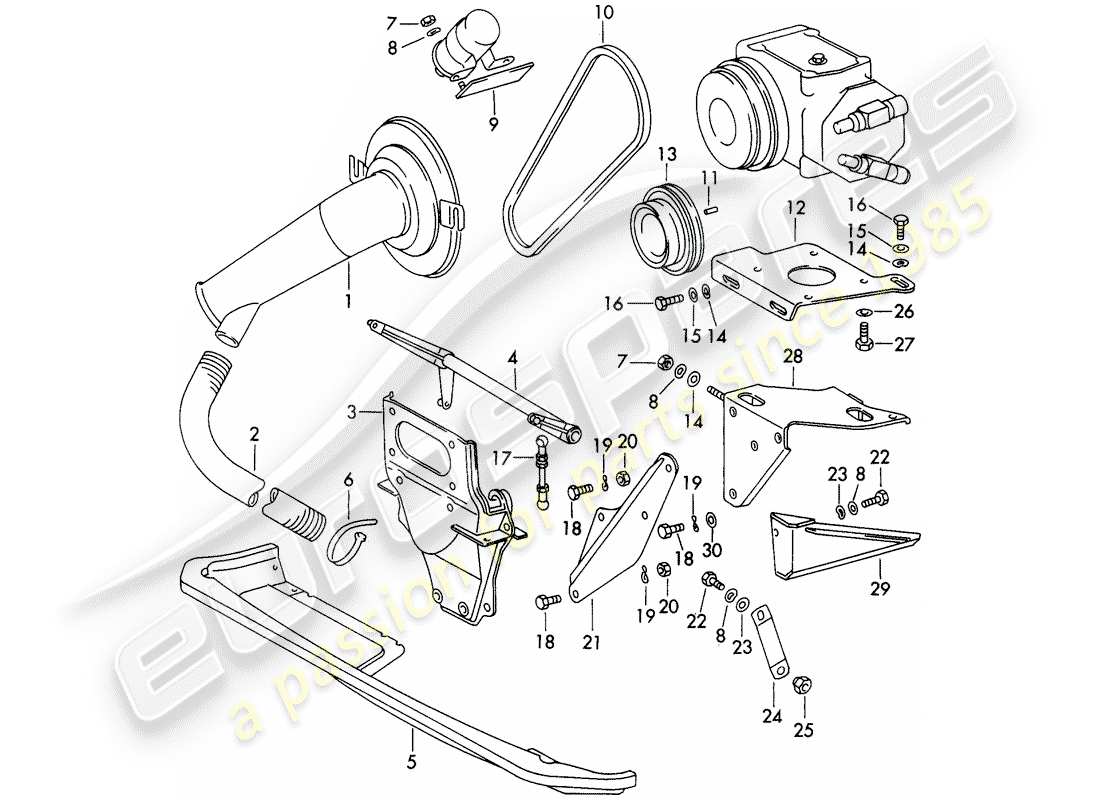

813-060 - AIR CONDITIONER - MOUNT - FOR - COMPRESSOR - NOT FOR: - (USA)
Porsche 1971 (911) AIR CONDITIONER - MOUNT - FOR - COMPRESSOR - NOT FOR: - (USA) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 90110804201
cover - complete - D >> - MJ 1971
# 2
MPN: 90110829201
Hose - D >> - MJ 1971
# 3
MPN: 91111501403
BRACKET
# 4
MPN: 91110807102
RELAY SHAFT - COMPLETE
# 5
MPN: 91110608500
ENGINE COVER - COMPLETE
# 6
MPN: N 0209021
TIE WRAP - D >> - MJ 1971 - DISCONTINUED PART
# 6
MPN: N 020902A
TIE WRAP
from £0.69
from £0.69
# 7
MPN: 90007602502
HEX. NUT - DISCONTINUED PART
Supersession
Supersession
# 7
MPN: 90007606402
HEX. NUT
from £0.59
from £0.59
# 8
MPN: N 0122411
SPRING WASHER
from £0.64
from £0.64
# 9
MPN: 90112612101
SECURING PLATE
# 10
MPN: 90019202750
NARROW V-BELT
from £12.98
from £12.98
# 11
MPN: 90001206000
DOWEL PIN
# 12
MPN: 91112611701
COMPRESSOR PLATE
# 13
MPN: 91110201550
pulley - D >> - MJ 1971
# 13
MPN: 91110201550
pulley - D - MJ 1972>>
# 14
MPN: 90002500702
Washer - Discontinued part
# 14
MPN: 90002500703
WASHER
from £0.84
from £0.84
# 15
MPN: N 0122411
SPRING WASHER
from £0.64
from £0.64
# 16
MPN: 90007508502
SCREW, HEX. HD.
Supersession
Supersession
# 17
MPN: 90110808702
PUSH ROD
# 18
MPN: 90007504002
screw, hex. hd. - Discontinued part
# 18
MPN: 90007551701
SCREW, HEX. HD.
from £2.04
from £2.04
# 19
MPN: N 0122301
spring washer - D >> - MJ 1971
from £0.69
from £0.69
# 19
MPN: 90002800501
lock ring - D - MJ 1972>>
# 20
MPN: N 0110106
HEX. NUT - DISCONTINUED PART
# 20
MPN: N 10155210
HEX. NUT
from £1.37
from £1.37
# 21
MPN: 91112611500
cross support
# 22
MPN: 90007508502
SCREW, HEX. HD.
Supersession
Supersession
# 23
MPN: 90002500702
Washer - Discontinued part
# 23
MPN: 90002500703
WASHER
from £0.84
from £0.84
# 24
MPN: 91112612401
STRUT
from £11.19
from £11.19
# 25
MPN: 96412612520
NUT
from £10.36
from £10.36
# 26
MPN: 90002800501
LOCK RING
# 27
MPN: 90007508502
SCREW, HEX. HD.
Supersession
Supersession
# 28
MPN: 91112610101
BRACKET
from £205.76
from £205.76
# 29
MPN: 93012611600
RETAINING CLAMP
from £83.89
from £83.89
# 30
MPN: 90002500802
WASHER - 10,5 - DISCONTINUED PART
Supersession
Supersession
# 30
MPN: N 0115274
WASHER - 10,5 - DISCONTINUED PART
# 30
MPN: 90002500809
WASHER - 10,5 - DISCONTINUED PART
# 30
MPN: 90002500804
WASHER - 10,5
from £0.80
from £0.80
This part replaces part number 90002500802
# 30
MPN: 9000250080E
WASHER - 10,5
Yellow
from £0.62
from £0.62
# -
-
SCREW, HEX. HD. - M 6X18 - D - MJ 1972>> - DISCONTINUED PART
# -
-
screw, hex. hd. - M 6X18 - D - MJ 1972>>
