porsche 1976 (911) cover parts diagram

803-000 - COVER

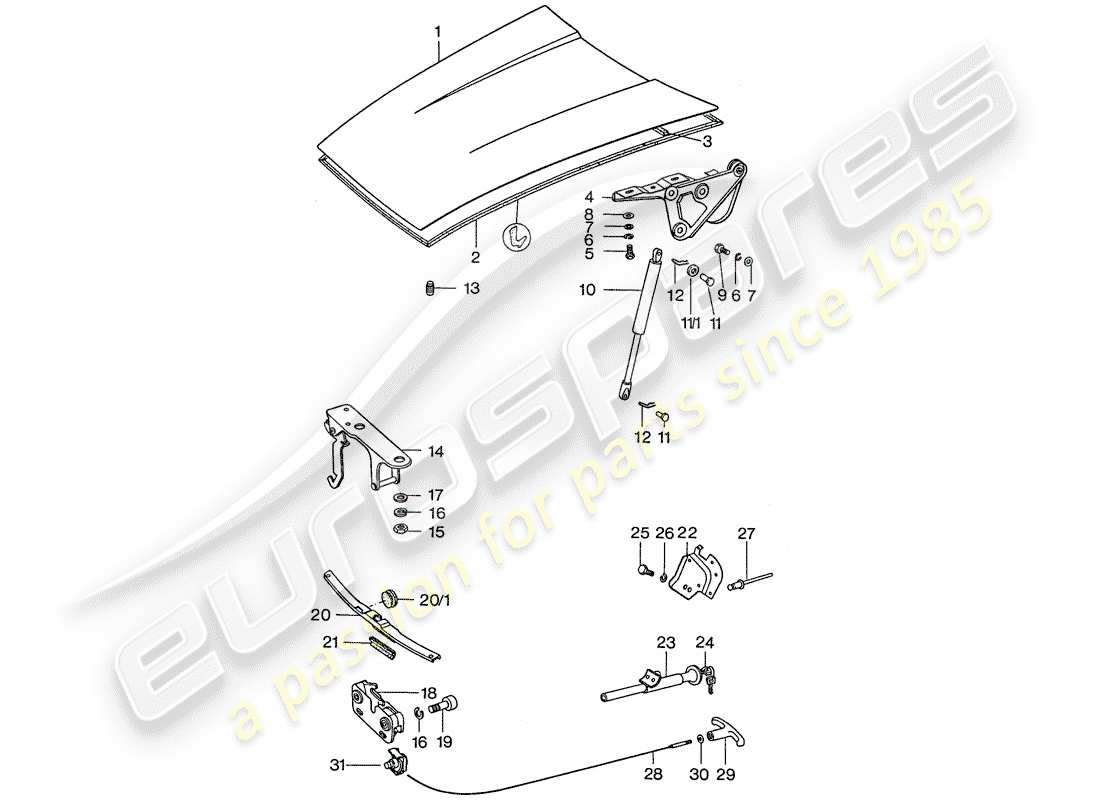

Porsche 1976 (911) COVER Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                          #
                                                          Part number
                                                          Description
                                                          Price
                                                          # 1
                                                          MPN: 91151101001
                                                          COVER - WITHOUT: - LOCK - AND - HINGE - DISCONTINUED PART
                                                          FRONT
                                                          # 1
                                                          MPN: 91151101003
                                                          COVER
                                                          # -
                                                          -
                                                          LIGHT
                                                          # 2
                                                          MPN: 91151192302
                                                          SEALING FRAME
                                                          from £84.65
                                                          from £84.65
                                                          # 3
                                                          MPN: 91151112700
                                                          Sealing frame - Targa - D >> - MJ 1975
                                                          # 5
                                                          MPN: 90006705702
                                                          SCREW, CHEESE HD. - M 8 X 20 - DISCONTINUED PART
                                                          # 5
                                                          MPN: 90006705703
                                                          SCREW, CHEESE HD. - M 8 X 20
                                                          from £1.31
                                                          from £1.31
                                                          # 6
                                                          MPN: 90002701502
                                                          LOCK RING - B 8 - DISCONTINUED PART
                                                          # 6
                                                          MPN: 90002701503
                                                          LOCK RING - B 8
                                                          from £0.86
                                                          from £0.86
                                                          # 7
                                                          MPN: 90002500702
                                                          WASHER - 8,4 - DISCONTINUED PART
                                                          # 7
                                                          MPN: 90002500703
                                                          WASHER - 8,4
                                                          from £0.84
                                                          from £0.84
                                                          # 8
                                                          MPN: 90015100802
                                                          WASHER - 8,4
                                                          from £0.84
                                                          from £0.84
                                                          # 9
                                                          MPN: 90007520902
                                                          SCREW, HEX. HD. - M 8 X 20
                                                          # 10
                                                          MPN: 91151133100
                                                          GAS-FILLED STRUT
                                                          from £26.52
                                                          from £26.52
                                                          # 11
                                                          MPN: 90008701102
                                                          pin - D - MJ 1975>> - MJ 1976
                                                          from £6.26
                                                          from £6.26
                                                          # 11
                                                          MPN: 99916604302
                                                          pin - D - MJ 1977>>
                                                          Supersession
                                                          Supersession
                                                          # 11
                                                          MPN: 91151133200
                                                          spacer washer - D - MJ 1975>>
                                                          from £1.04
                                                          from £1.04
                                                          # 12
                                                          MPN: N 0126452
                                                          LOCK WASHER
                                                          from £1.08
                                                          from £1.08
                                                          # 13
                                                          MPN: 99970303650
                                                          JOUNCE BUMPER
                                                          from £1.22
                                                          from £1.22
                                                          # 14
                                                          MPN: 91151105102
                                                          LOCK UPPER PART
                                                          from £37.70
                                                          from £37.70
                                                          # 15
                                                          MPN: 90007601002
                                                          NUT - M 6 - DISCONTINUED PART
                                                          # 15
                                                          MPN: 9000760100B
                                                          NUT - M 6
                                                          from £0.73
                                                          from £0.73
                                                          # 16
                                                          MPN: N 0120072
                                                          LOCK RING - A 6 - DISCONTINUED PART
                                                          # 16
                                                          MPN: 90002700403
                                                          LOCK RING - A 6
                                                          from £0.63
                                                          from £0.63
                                                          # 17
                                                          MPN: 90015100609
                                                          WASHER - B 6,4
                                                          Supersession
                                                          Supersession
                                                          # 18
                                                          MPN: 91151105201
                                                          LOCK LOWER PART
                                                          FRONT
                                                          from £255.83
                                                          from £255.83
                                                          # 19
                                                          MPN: N 0147432
                                                          bolt, with hex. socket - hd. - M 6 X 30 - Discontinued part
                                                          # 19
                                                          MPN: 90006701203
                                                          SCREW, CHEESE HD. - M 6 X 30
                                                          from £1.10
                                                          from £1.10
                                                          # 20
                                                          MPN: 91155508500
                                                          COVER FOR CROSS PANEL
                                                          from £140.10
                                                          from £140.10
                                                          # 20
                                                          MPN: 99970311940
                                                          PLUG
                                                          from £1.09
                                                          from £1.09
                                                          # 21
                                                          MPN: 91155537540
                                                          PROTECTIVE EDGING
                                                          # 22
                                                          MPN: 91151172543
                                                          BRACKET - FOR - LOCK
                                                          from £10.28
                                                          from £10.28
                                                          # 22
                                                          -
                                                          NOT FOR: - 912E
                                                          # 23
                                                          MPN: 91151190300
                                                          LOCK - WITH 2 SECONDARY KEYS - W/O STIPULATED LOCK NUMBER
                                                          from £100.35
                                                          from £100.35
                                                          # 23
                                                          MPN: 91151190400
                                                          LOCK - WITH 2 SECONDARY KEYS - STATE LOCK NUMBER
                                                          from £128.14
                                                          from £128.14
                                                          # 24
                                                          MPN: 91453190311
                                                          BLANK KEY - (UNCUT) - SECONDARY KEY
                                                          from £14.35
                                                          from £14.35
                                                          # 24
                                                          MPN: 91153194500
                                                          BLANK KEY - (UNCUT) - WITH: - LIGHT - WITHOUT: - BATTERY - D - MJ 1976>>
                                                          (911/911S CARRERA 3.0)
                                                          # 24
                                                          MPN: 91153194600
                                                          MAIN KEY - WITH: - LIGHT - WITHOUT: - BATTERY - STATE LOCK NUMBER - D - MJ 1976>>
                                                          (911/911S CARRERA 3.0)
                                                          # 24
                                                          MPN: 91453163710
                                                          MAIN KEY - STATE LOCK NUMBER
                                                          from £64.87
                                                          from £64.87
                                                          # 24
                                                          MPN: 91453190310
                                                          BLANK KEY - (UNCUT)
                                                          from £17.59
                                                          from £17.59
                                                          # 25
                                                          MPN: N 0102254
                                                          SCREW, HEX. HD. - M 5 X 8 - DISCONTINUED PART
                                                          # 25
                                                          MPN: 90007500103
                                                          SCREW, HEX. HD. - M 5 X 8
                                                          from £3.12
                                                          from £3.12
                                                          # 28
                                                          MPN: 90151107320
                                                          CABLE - HOOD LATCH - DISCONTINUED PART
                                                          # 28
                                                          MPN: 90151107321
                                                          CABLE - HOOD LATCH
                                                          from £69.15
                                                          from £69.15
                                                          This part replaces part number 90151107121
                                                          # 29
                                                          MPN: 90155281320
                                                          HANDLE
                                                          from £10.43
                                                          from £10.43
                                                          # 30
                                                          MPN: 90151179121
                                                          RUBBER WASHER
                                                          from £2.57
                                                          from £2.57
                                                          # 31
                                                          MPN: 91151106700
                                                          CLAMP
                                                          from £19.13
                                                          from £19.13
