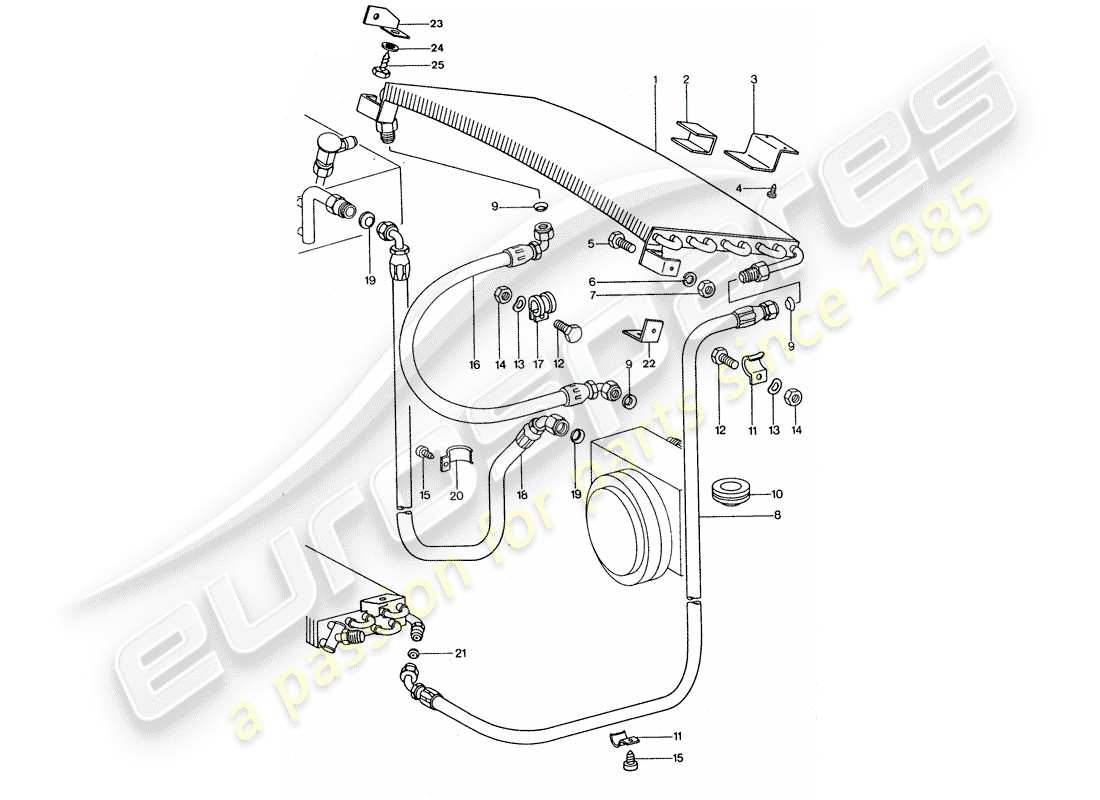

813-060 - AIR CONDITIONER - CAPACITOR - LINES
Porsche 1976 (911 Turbo) AIR CONDITIONER - CAPACITOR - LINES Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 93057305600
capacitor
# 2
MPN: 90157313800
MOLTOPRENE SHIM - 6 X 65 X 85
# 3
MPN: 91157305900
RETAINER
# 4
MPN: N 0102644
SCREW, HEX. HD. - M 5 X 20
from £1.24
from £1.24
# 5
MPN: 90007509202
SCREW, HEX. HD. - M 4 X 10
# 6
MPN: 90002701101
LOCK RING - B 4
from £0.73
from £0.73
# 7
MPN: N 0110046
HEX. NUT - M 4 - DISCONTINUED PART
Supersession
Supersession
# 7
MPN: N 011004G
NUT - M 4
from £0.79
from £0.79
# 8
MPN: 91157315301
air conditioner hose - NW 10 , 5000 MM - Discontinued part
# 8
MPN: 91157315303
air conditioner hose - NW 10 , 5000 MM
from £306.21
from £306.21
# -
-
air conditioner hose - NW 10 , 230 MM
# 9
MPN: 90157314700
GASKET - 3/4
from £2.65
from £2.65
# 10
MPN: 90157314300
RUBBER GROMMET
from £4.76
from £4.76
# 11
MPN: 99951300240
TIE WRAP - DISCONTINUED PART
# 11
MPN: N 0209104
TIE WRAP - DISCONTINUED PART
# 11
MPN: 99951300340
TIE WRAP
from £2.24
from £2.24
# -
-
air conditioner hose - NW 10 - D - MJ 1977>>
RHD
# 12
MPN: N 0102076
SCREW, HEX. HD. - M 5 X 12 - DISCONTINUED PART
# 12
MPN: N 01020717
SCREW, HEX. HD. - M 5 X 12
from £0.47
from £0.47
# 12
MPN: N 0102095
SCREW, HEX. HD. - M 5 X 25
from £2.21
from £2.21
# -
-
SPACER SLEEVE
# 13
MPN: N 0120053
LOCK RING - B 5
from £0.66
from £0.66
# 14
MPN: 90007602702
NUT - M 5
from £0.47
from £0.47
# 15
MPN: 90018702502
TAPPING SCREW,HEX.HD. - B 5,5 X 13
# 16
MPN: 92357315000
AIR CONDITIONER HOSE - NW 10
# 17
MPN: 99951106602
Clamp - D >> - MJ 1975
from £3.38
from £3.38
# 18
MPN: 91157314902
AIR CONDITIONER HOSE - NW 13 - DISCONTINUED PART
# 18
MPN: 91157314905
AIR CONDITIONER HOSE - NW 13
from £276.66
from £276.66
# -
-
air conditioner hose - NW 13 - Extension - for - POS. 18
RHD
# -
-
RUBBER GROMMET
RHD
# 19
MPN: 90157314600
GASKET - 7/8
from £0.75
from £0.75
# 20
MPN: 91157314500
CLAMP - DISCONTINUED PART
# 20
MPN: 91157314501
CLAMP
from £6.02
from £6.02
# 21
MPN: 90157314800
gasket - 5/8 - D >> - MJ 1975
from £2.33
from £2.33

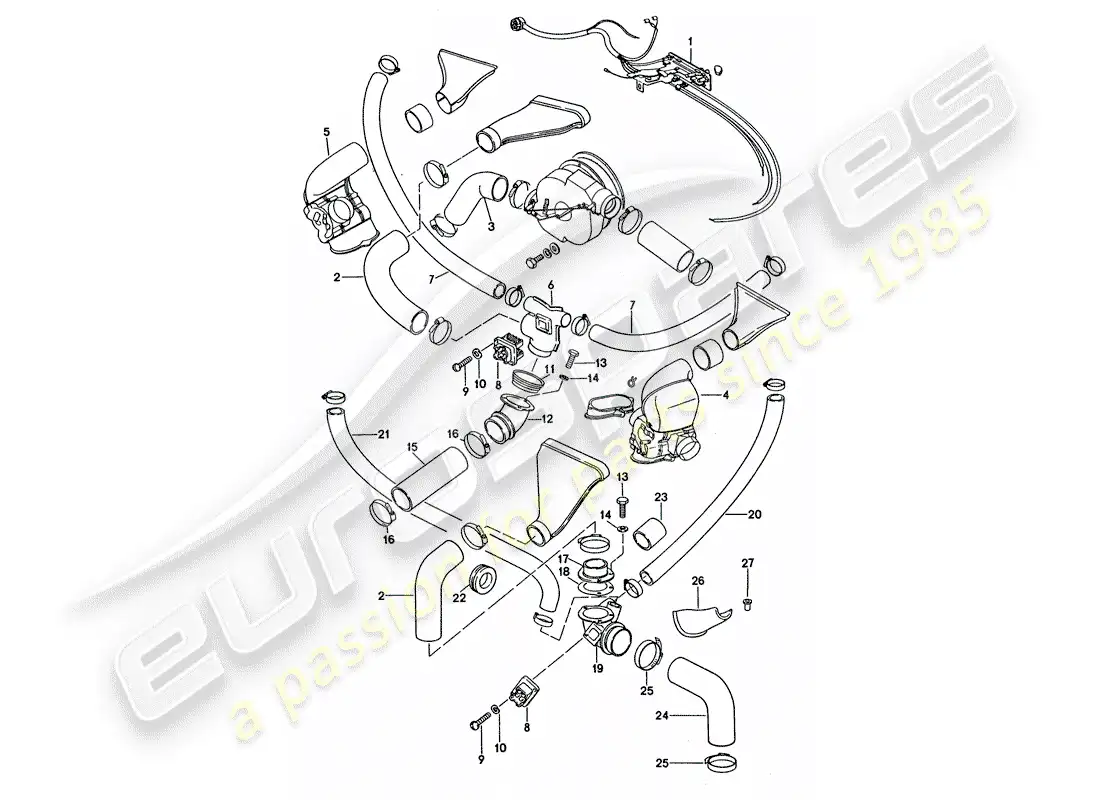

-part-diagram-813-065.webp "PORSCHE 1976 (911 TURBO) AIR CONDITIONER - COOLING AIR DUCT PARTS DIAGRAM")

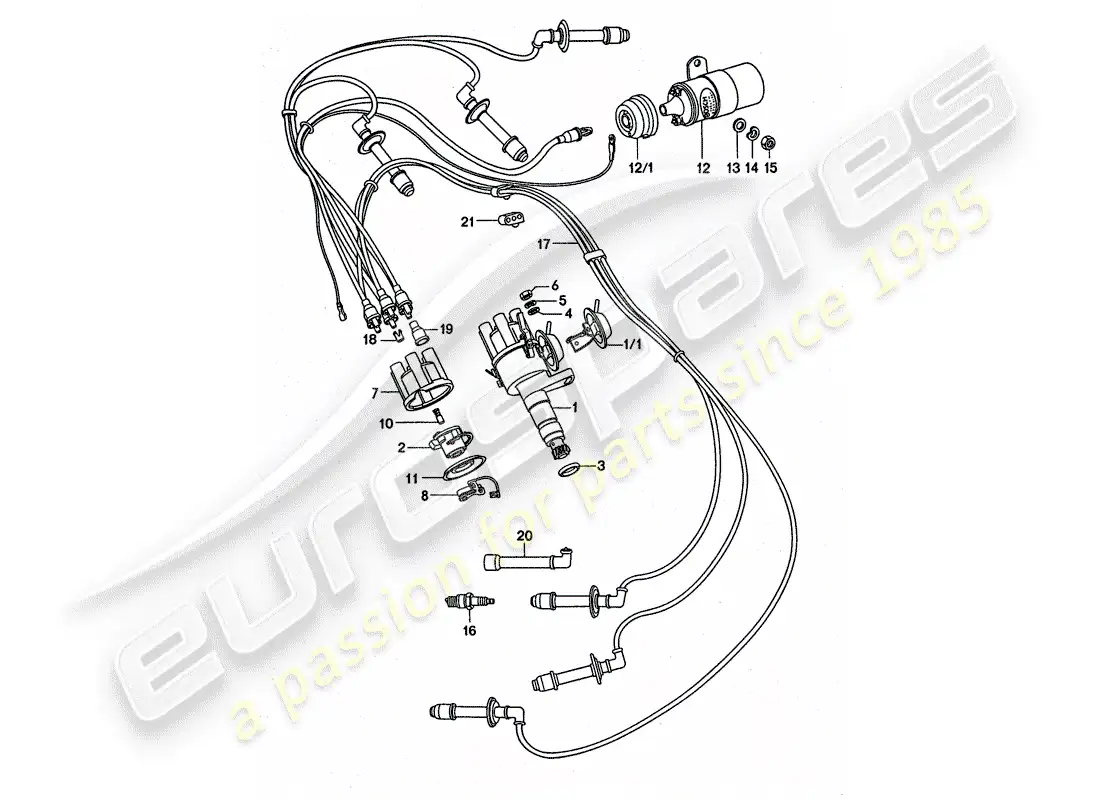

-part-diagram-901-000.webp "PORSCHE 1976 (911 TURBO) ENGINE ELECTRICS PARTS DIAGRAM")

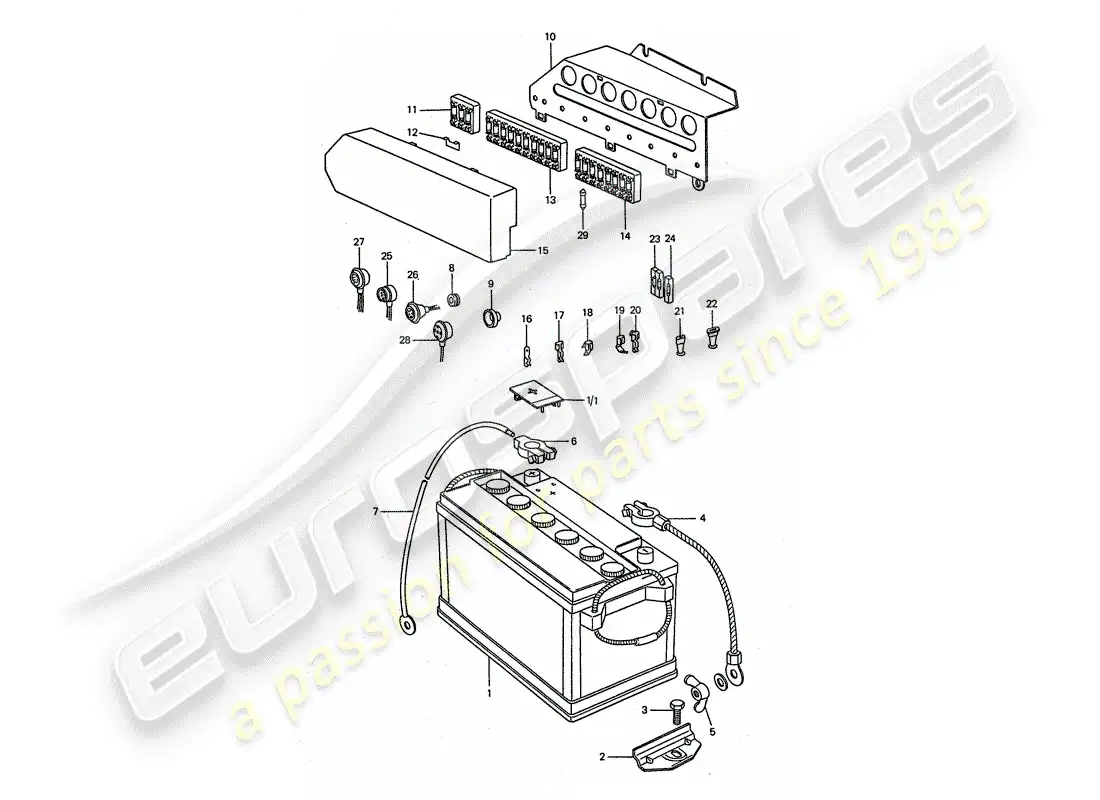

-part-diagram-902-000.webp "PORSCHE 1976 (911 TURBO) BATTERY - PLATE PARTS DIAGRAM")
-part-diagram-902-005.webp "PORSCHE 1976 (911 TURBO) PLATE - STARTER - SWITCH UNIT PARTS DIAGRAM")
-part-diagram-902-010.webp "PORSCHE 1976 (911 TURBO) ALTERNATOR PARTS DIAGRAM")
-part-diagram-902-020.webp "PORSCHE 1976 (911 TURBO) WIRING HARNESSES PARTS DIAGRAM")
-part-diagram-903-000.webp "PORSCHE 1976 (911 TURBO) SENSOR - RELAY - HORN PARTS DIAGRAM")
-part-diagram-903-005.webp "PORSCHE 1976 (911 TURBO) SWITCH PARTS DIAGRAM")
-part-diagram-903-010.webp "PORSCHE 1976 (911 TURBO) STEERING COLUMN SWITCH PARTS DIAGRAM")
-part-diagram-904-000.webp "PORSCHE 1976 (911 TURBO) WINDSCREEN WIPER SYSTEM PARTS DIAGRAM")
-part-diagram-904-005.webp "PORSCHE 1976 (911 TURBO) REAR WINDOW WIPER PARTS DIAGRAM")
-part-diagram-904-030.webp "PORSCHE 1976 (911 TURBO) WINDSHIELD WASHER UNIT PARTS DIAGRAM")
-part-diagram-904-035.webp "PORSCHE 1976 (911 TURBO) WINDSHIELD WASHER UNIT - TOGETHER WITH - HEADLIGHT WASHER SYSTEM PARTS DIAGRAM")
-part-diagram-905-000.webp "PORSCHE 1976 (911 TURBO) HEADLAMP - LIGHTING PARTS DIAGRAM")
-part-diagram-905-010.webp "PORSCHE 1976 (911 TURBO) FOG LIGHTS - REAR FOG LIGHT PARTS DIAGRAM")
-part-diagram-906-015.webp "PORSCHE 1976 (911 TURBO) EXHAUST GAS - TEMPERATURE MONITORING PARTS DIAGRAM")
-part-diagram-908-000.webp "PORSCHE 1976 (911 TURBO) CONTROL MECHANISM - FOR - HEATER PARTS DIAGRAM")
-part-diagram-909-000.webp "PORSCHE 1976 (911 TURBO) CONNECTOR HOUSING PARTS DIAGRAM")
-part-diagram-001-000.webp "PORSCHE 1976 (911 TURBO) TOOL - JACK PARTS DIAGRAM")
-part-diagram-001-002.webp "PORSCHE 1976 (911 TURBO) TOOL KIT BAG PARTS DIAGRAM")
-part-diagram-001-003.webp "PORSCHE 1976 (911 TURBO) CLEANING AGENT - PORSCHE CLASSIC PARTS DIAGRAM")
-part-diagram-001-010.webp "PORSCHE 1976 (911 TURBO) ACCESSORIES - PORSCHE CLASSIC PARTS DIAGRAM")
-part-diagram-002-010.webp "PORSCHE 1976 (911 TURBO) OWNER'S MANUAL - CARE PASS PARTS DIAGRAM")
-part-diagram-101-005.webp "PORSCHE 1976 (911 TURBO) CRANKCASE PARTS DIAGRAM")
-part-diagram-101-010.webp "PORSCHE 1976 (911 TURBO) CRANKCASE PARTS DIAGRAM")
-part-diagram-102-000.webp "PORSCHE 1976 (911 TURBO) CRANKSHAFT PARTS DIAGRAM")
-part-diagram-103-000.webp "PORSCHE 1976 (911 TURBO) CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-103-005.webp "PORSCHE 1976 (911 TURBO) CHAIN CASE - CAMSHAFT HOUSING PARTS DIAGRAM")
-part-diagram-103-010.webp "PORSCHE 1976 (911 TURBO) VALVE CONTROL PARTS DIAGRAM")
-part-diagram-103-015.webp "PORSCHE 1976 (911 TURBO) VALVE CONTROL PARTS DIAGRAM")
-part-diagram-104-000.webp "PORSCHE 1976 (911 TURBO) ENGINE LUBRICATION PARTS DIAGRAM")
-part-diagram-104-005.webp "PORSCHE 1976 (911 TURBO) ENGINE LUBRICATION - RADIATOR COIL PARTS DIAGRAM")
-part-diagram-105-000.webp "PORSCHE 1976 (911 TURBO) AIR COOLING PARTS DIAGRAM")
-part-diagram-105-005.webp "PORSCHE 1976 (911 TURBO) AIR DUCT PARTS DIAGRAM")
-part-diagram-107-000.webp "PORSCHE 1976 (911 TURBO) MIXTURE CONTROL UNIT - AIR CLEANER PARTS DIAGRAM")
-part-diagram-107-005.webp "PORSCHE 1976 (911 TURBO) FOR - K - JETRONIC PARTS DIAGRAM")
-part-diagram-108-000.webp "PORSCHE 1976 (911 TURBO) AIR INJECTION PARTS DIAGRAM")
-part-diagram-109-000.webp "PORSCHE 1976 (911 TURBO) ENGINE SUSPENSION PARTS DIAGRAM")
-part-diagram-198-000.webp "PORSCHE 1976 (911 TURBO) GASKET SET - REPAIR KITS - MAINTENANCE SET PARTS DIAGRAM")
-part-diagram-201-000.webp "PORSCHE 1976 (911 TURBO) FUEL SYSTEM - D - MJ 1975>> - MJ 1975 PARTS DIAGRAM")
-part-diagram-201-005.webp "PORSCHE 1976 (911 TURBO) FUEL SYSTEM - FOR VEHICLES WITH - ALUMINIUM AUXIL. SUPPORT PARTS DIAGRAM")
-part-diagram-201-015.webp "PORSCHE 1976 (911 TURBO) FUEL SYSTEM - D - MJ 1975>> PARTS DIAGRAM")
-part-diagram-201-030.webp "PORSCHE 1976 (911 TURBO) TANK VENTILATION - D - MJ 1975>> PARTS DIAGRAM")
-part-diagram-202-000.webp "PORSCHE 1976 (911 TURBO) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-202-010.webp "PORSCHE 1976 (911 TURBO) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-202-020.webp "PORSCHE 1976 (911 TURBO) EXHAUST GAS TURBOCHARGER - AND - BYPASS VALVE PARTS DIAGRAM")
-part-diagram-202-030.webp "PORSCHE 1976 (911 TURBO) HEATING AIR SUPPLY PARTS DIAGRAM")
-part-diagram-301-000.webp "PORSCHE 1976 (911 TURBO) CLUTCH PARTS DIAGRAM")
-part-diagram-301-005.webp "PORSCHE 1976 (911 TURBO) CLUTCH RELEASE PARTS DIAGRAM")
-part-diagram-302-000.webp "PORSCHE 1976 (911 TURBO) REPLACEMENT TRANSMISSION - TRANSMISSION CASE PARTS DIAGRAM")
-part-diagram-302-005.webp "PORSCHE 1976 (911 TURBO) GEAR HOUSING - TRANSMISSION COVER PARTS DIAGRAM")
-part-diagram-303-000.webp "PORSCHE 1976 (911 TURBO) GEAR WHEEL SETS - 4-SPEED PARTS DIAGRAM")
-part-diagram-303-005.webp "PORSCHE 1976 (911 TURBO) GEAR WHEEL SETS - SEE GROUP - 3/03/00 PARTS DIAGRAM")
-part-diagram-304-000.webp "PORSCHE 1976 (911 TURBO) SHIFT RODS - SHIFT FORKS PARTS DIAGRAM")
-part-diagram-305-000.webp "PORSCHE 1976 (911 TURBO) DIFFERENTIAL PARTS DIAGRAM")
-part-diagram-305-010.webp "PORSCHE 1976 (911 TURBO) LIMITED SLIP DIFFERENTIAL PARTS DIAGRAM")
-part-diagram-306-000.webp "PORSCHE 1976 (911 TURBO) TRANSMISSION SUSPENSION PARTS DIAGRAM")
-part-diagram-398-000.webp "PORSCHE 1976 (911 TURBO) REPAIR KITS PARTS DIAGRAM")
-part-diagram-401-000.webp "PORSCHE 1976 (911 TURBO) FRONT AXLE - STABILIZER - SUB FRAME - LIGHT ALLOY PARTS DIAGRAM")
-part-diagram-402-000.webp "PORSCHE 1976 (911 TURBO) SHOCK ABSORBER STRUT - LUBRICANTS PARTS DIAGRAM")
-part-diagram-403-000.webp "PORSCHE 1976 (911 TURBO) STEERING GEAR - STEERING LINKAGE - STEERING TRACK ROD PARTS DIAGRAM")
-part-diagram-403-005.webp "PORSCHE 1976 (911 TURBO) STEERING WHEEL - STEERING SHAFT BEARING - STEERING COLUMN SWITCH PARTS DIAGRAM")
-part-diagram-501-000.webp "PORSCHE 1976 (911 TURBO) REAR AXLE PARTS DIAGRAM")
-part-diagram-502-000.webp "PORSCHE 1976 (911 TURBO) VIBRATION DAMPER - STABILIZER PARTS DIAGRAM")
-part-diagram-601-000.webp "PORSCHE 1976 (911 TURBO) WHEELS PARTS DIAGRAM")
-part-diagram-602-000.webp "PORSCHE 1976 (911 TURBO) DISC BRAKES PARTS DIAGRAM")
-part-diagram-603-000.webp "PORSCHE 1976 (911 TURBO) DISC BRAKES - HANDBRAKE PARTS DIAGRAM")
-part-diagram-604-000.webp "PORSCHE 1976 (911 TURBO) BRAKE MASTER CYLINDER - FOR CARS WITHOUT - BRAKE BOOSTER PARTS DIAGRAM")
-part-diagram-604-010.webp "PORSCHE 1976 (911 TURBO) BRAKE MASTER CYLINDER - FOR VEHICLES WITH - BRAKE BOOSTER - D - MJ 1977>> PARTS DIAGRAM")
-part-diagram-604-015.webp "PORSCHE 1976 (911 TURBO) BRAKE LINES - FOR VEHICLES WITH - BRAKE BOOSTER PARTS DIAGRAM")
-part-diagram-701-000.webp "PORSCHE 1976 (911 TURBO) TRANSMISSION CONTROL PARTS DIAGRAM")
-part-diagram-701-005.webp "PORSCHE 1976 (911 TURBO) OPERATING LEVER - HANDBRAKE - MANUAL THROTTLE PARTS DIAGRAM")
-part-diagram-702-000.webp "PORSCHE 1976 (911 TURBO) PEDALS PARTS DIAGRAM")
-part-diagram-702-005.webp "PORSCHE 1976 (911 TURBO) PEDALS PARTS DIAGRAM")
-part-diagram-702-010.webp "PORSCHE 1976 (911 TURBO) PEDALS - FOR VEHICLES WITH - BRAKE BOOSTER PARTS DIAGRAM")
-part-diagram-801-005.webp "PORSCHE 1976 (911 TURBO) FRAME PARTS DIAGRAM")
-part-diagram-801-010.webp "PORSCHE 1976 (911 TURBO) FRAME PARTS DIAGRAM")
-part-diagram-801-015.webp "PORSCHE 1976 (911 TURBO) FRAME PARTS DIAGRAM")
-part-diagram-801-020.webp "PORSCHE 1976 (911 TURBO) INTERIOR PANELLING PARTS DIAGRAM")
-part-diagram-801-030.webp "PORSCHE 1976 (911 TURBO) EXTERIOR PANELLING PARTS DIAGRAM")
-part-diagram-801-035.webp "PORSCHE 1976 (911 TURBO) EXTERIOR PANELLING PARTS DIAGRAM")
-part-diagram-802-000.webp "PORSCHE 1976 (911 TURBO) BUMPER PARTS DIAGRAM")
-part-diagram-802-005.webp "PORSCHE 1976 (911 TURBO) BUMPER PARTS DIAGRAM")
-part-diagram-803-000.webp "PORSCHE 1976 (911 TURBO) COVER PARTS DIAGRAM")
-part-diagram-803-005.webp "PORSCHE 1976 (911 TURBO) COVER PARTS DIAGRAM")
-part-diagram-803-010.webp "PORSCHE 1976 (911 TURBO) REAR SPOILER PARTS DIAGRAM")
-part-diagram-804-000.webp "PORSCHE 1976 (911 TURBO) DOOR - WITH INSTALLATION PARTS PARTS DIAGRAM")
-part-diagram-804-005.webp "PORSCHE 1976 (911 TURBO) INSTALLATION PARTS - FOR - DOOR PARTS DIAGRAM")
-part-diagram-804-010.webp "PORSCHE 1976 (911 TURBO) WINDOW REGULATOR PARTS DIAGRAM")
-part-diagram-804-015.webp "PORSCHE 1976 (911 TURBO) WINDOW FRAME PARTS DIAGRAM")
-part-diagram-805-000.webp "PORSCHE 1976 (911 TURBO) WINDOW GLAZING PARTS DIAGRAM")
-part-diagram-805-005.webp "PORSCHE 1976 (911 TURBO) WINDOW GLAZING PARTS DIAGRAM")
-part-diagram-807-000.webp "PORSCHE 1976 (911 TURBO) LINING PARTS DIAGRAM")
-part-diagram-807-005.webp "PORSCHE 1976 (911 TURBO) LINING PARTS DIAGRAM")
-part-diagram-807-010.webp "PORSCHE 1976 (911 TURBO) DOOR PANEL PARTS DIAGRAM")
-part-diagram-807-020.webp "PORSCHE 1976 (911 TURBO) BODY SHELL - SOUND ABSORBERS PARTS DIAGRAM")
-part-diagram-808-000.webp "PORSCHE 1976 (911 TURBO) FRONT SEAT - COMPLETE PARTS DIAGRAM")
-part-diagram-808-005.webp "PORSCHE 1976 (911 TURBO) FRONT SEAT - SINGLE PARTS PARTS DIAGRAM")
-part-diagram-808-010.webp "PORSCHE 1976 (911 TURBO) SPORTS SEAT - COMPLETE PARTS DIAGRAM")
-part-diagram-808-015.webp "PORSCHE 1976 (911 TURBO) SPORTS SEAT - BACKREST - SINGLE PARTS PARTS DIAGRAM")
-part-diagram-808-020.webp "PORSCHE 1976 (911 TURBO) SPORTS SEAT - SEAT CUSHION - SINGLE PARTS PARTS DIAGRAM")
-part-diagram-808-030.webp "PORSCHE 1976 (911 TURBO) EMERGENCY SEAT PARTS DIAGRAM")
-part-diagram-809-000.webp "PORSCHE 1976 (911 TURBO) DASHBOARD PARTS DIAGRAM")
-part-diagram-809-005.webp "PORSCHE 1976 (911 TURBO) GLOVE BOX - SUN VIZOR PARTS DIAGRAM")
-part-diagram-809-010.webp "PORSCHE 1976 (911 TURBO) REAR VIEW MIRROR INNER - REAR VIEW MIRROR PARTS DIAGRAM")
-part-diagram-809-015.webp "PORSCHE 1976 (911 TURBO) CENTER CONSOLE PARTS DIAGRAM")
-part-diagram-810-000.webp "PORSCHE 1976 (911 TURBO) DECORATIVE FITTINGS PARTS DIAGRAM")
-part-diagram-811-000.webp "PORSCHE 1976 (911 TURBO) SLIDING/TILTING ROOF - ELECTRIC PARTS DIAGRAM")
-part-diagram-813-000.webp "PORSCHE 1976 (911 TURBO) VENTILATION - HEATING SYSTEM 1 - D >> - MJ 1976 PARTS DIAGRAM")
-part-diagram-813-005.webp "PORSCHE 1976 (911 TURBO) VENTILATION - HEATING SYSTEM 2 - D - MJ 1977>> PARTS DIAGRAM")
-part-diagram-813-030.webp "PORSCHE 1976 (911 TURBO) AIR CONDITIONER - EVAPORATOR - EVAPORATOR HOUSING - ACCESSORIES PARTS DIAGRAM")

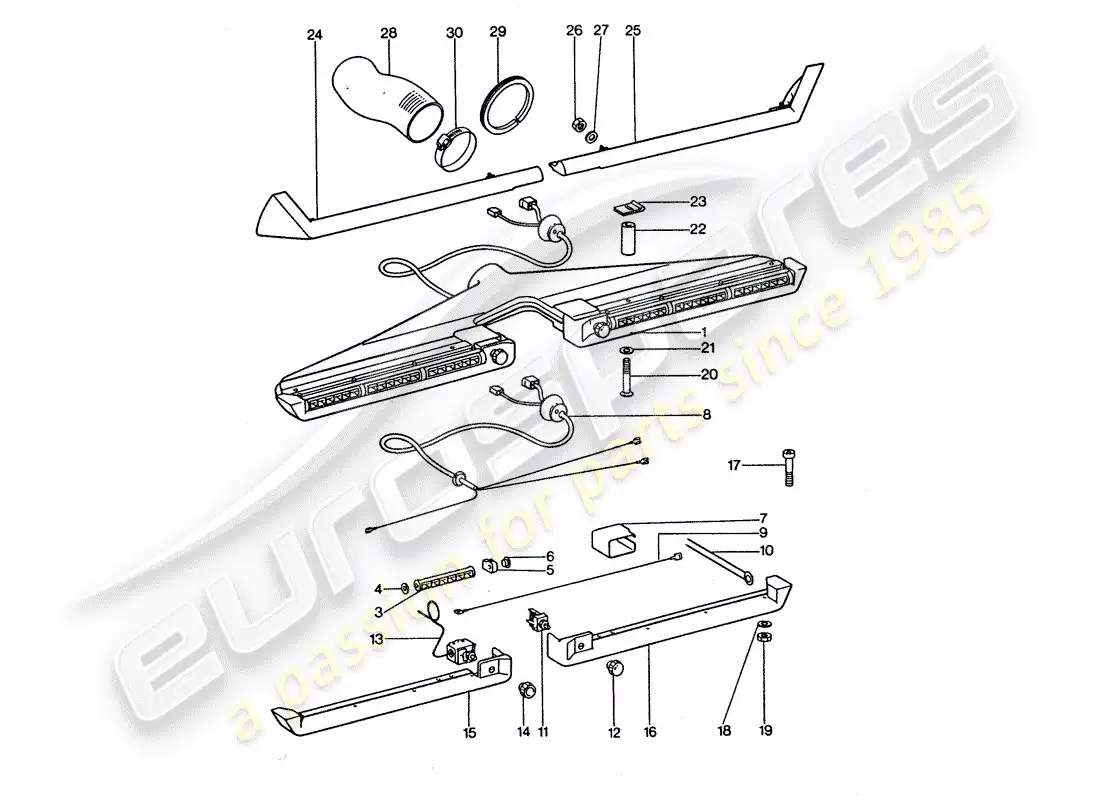

-part-diagram-813-035.webp "PORSCHE 1976 (911 TURBO) AIR CONDITIONER - JET - ACCESSORIES PARTS DIAGRAM")

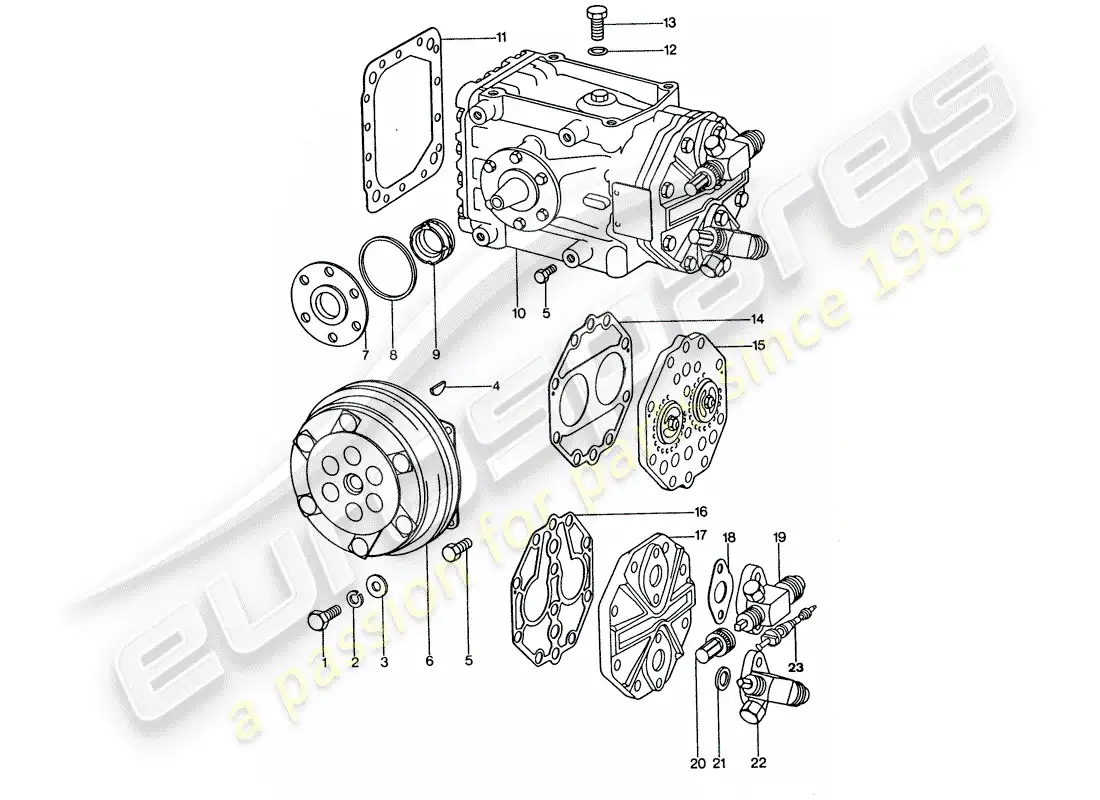

-part-diagram-813-040.webp "PORSCHE 1976 (911 TURBO) AIR CONDITIONER - COMPRESSOR PARTS DIAGRAM")

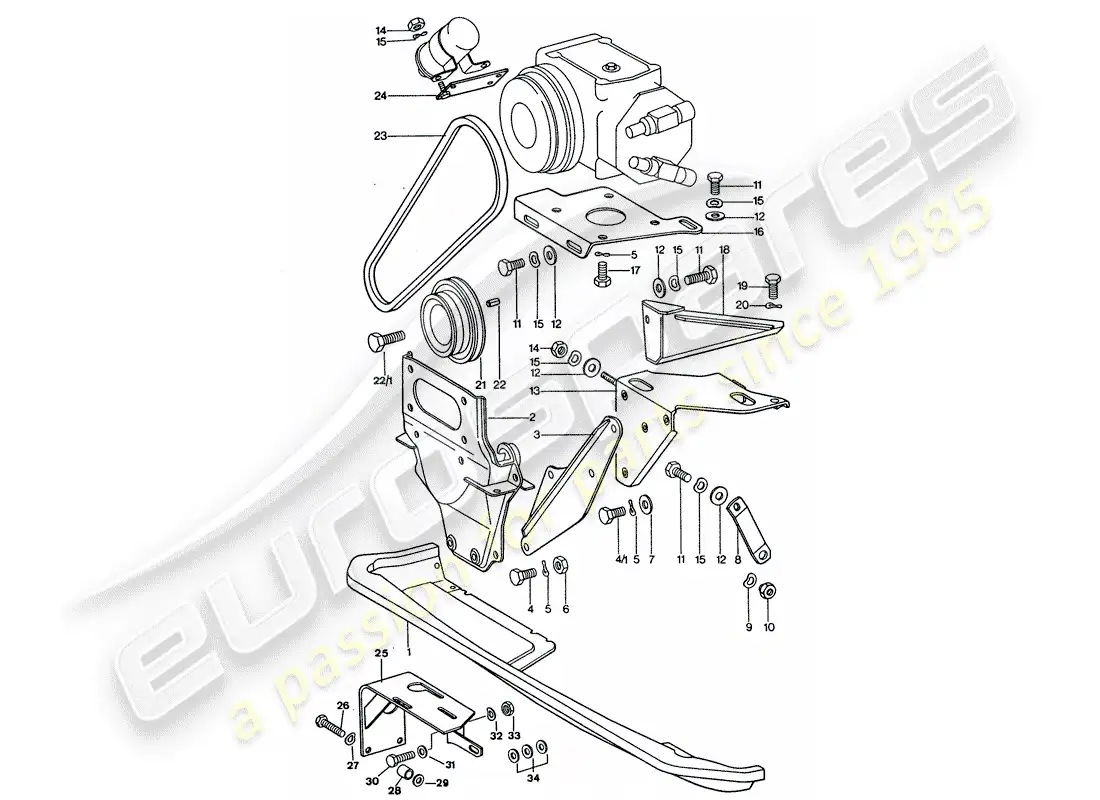

-part-diagram-813-045.webp "PORSCHE 1976 (911 TURBO) AIR CONDITIONER PARTS DIAGRAM")

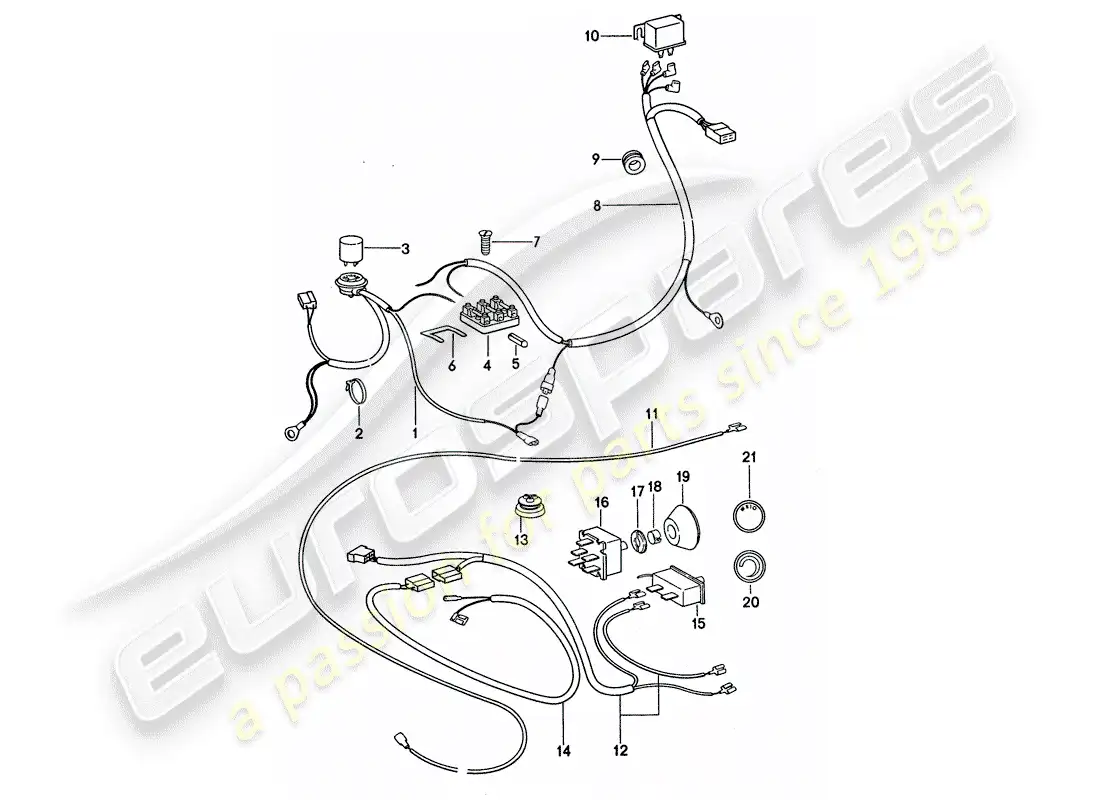

-part-diagram-813-050.webp "PORSCHE 1976 (911 TURBO) AIR CONDITIONER - ELECTRICAL COMPONENTS PARTS DIAGRAM")

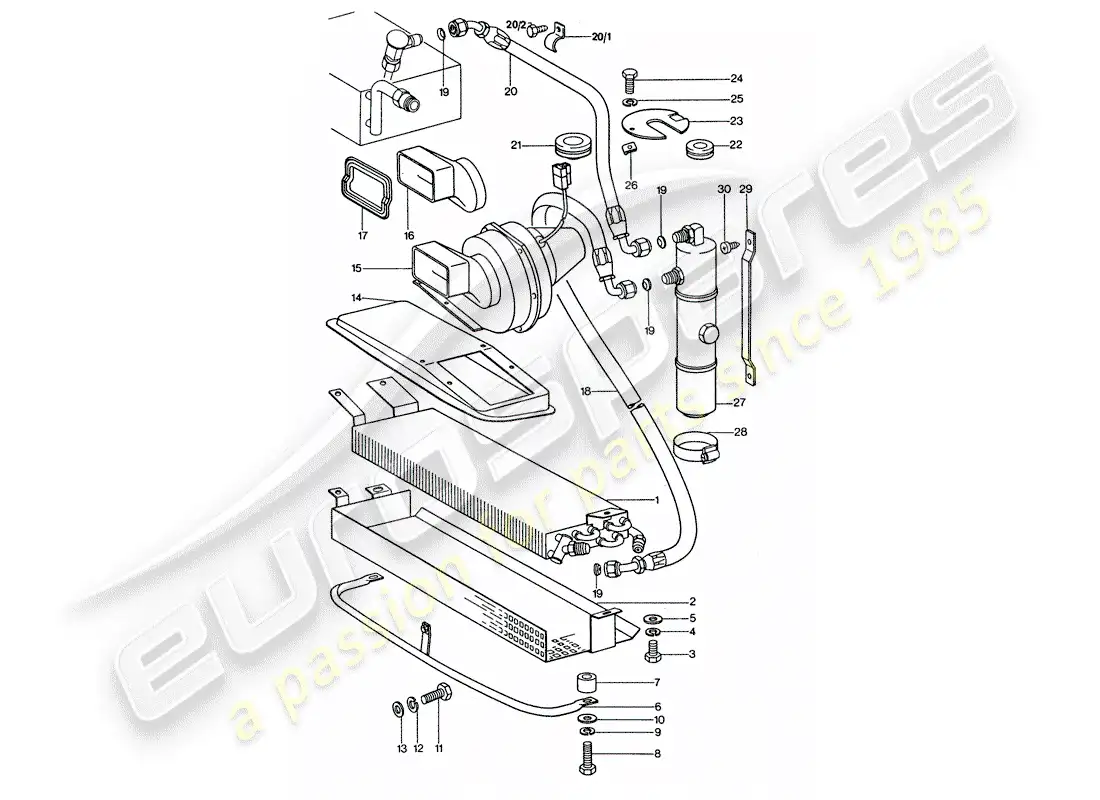

-part-diagram-813-055.webp "PORSCHE 1976 (911 TURBO) AIR CONDITIONER - CAPACITOR - LINES PARTS DIAGRAM")
