porsche 1977 (911 turbo) rear axle parts diagram

501-000 - rear axle

Porsche 1977 (911 Turbo) REAR AXLE Parts Diagram

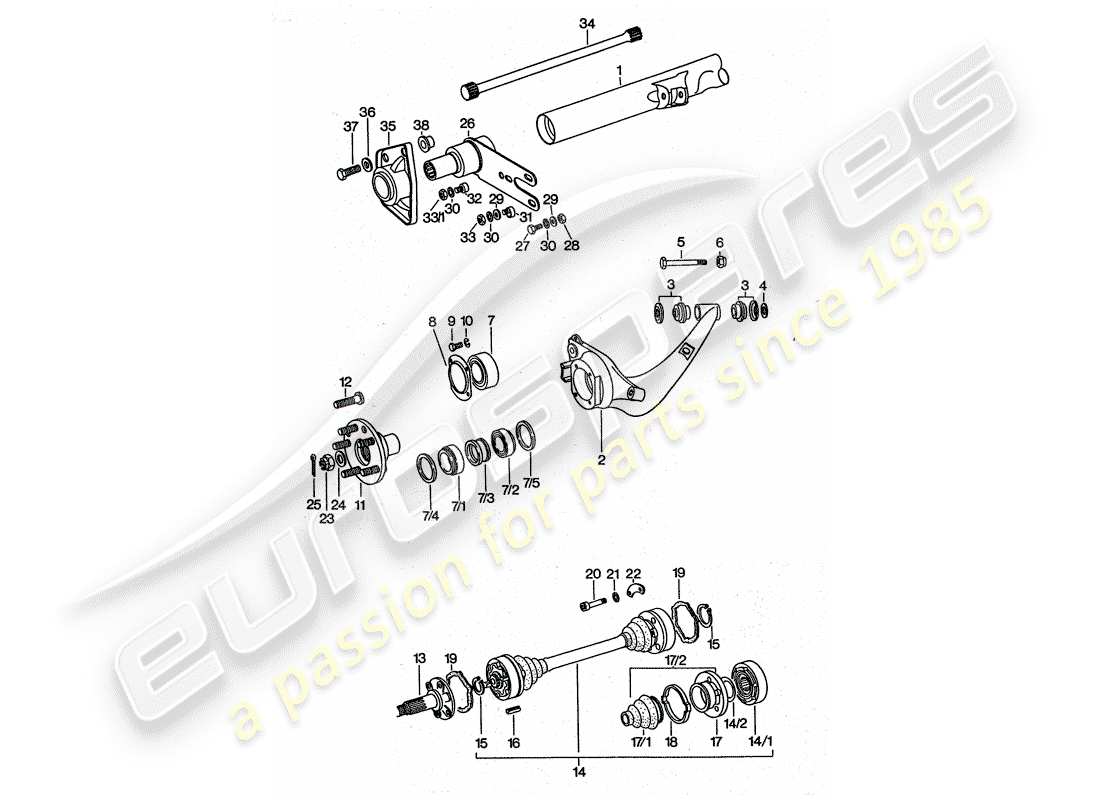

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                          #
                                                          Part number
                                                          Description
                                                          Key
                                                          Price
                                                          # 1
                                                          MPN: 93033101001
                                                          Rear axle cross tube - D - MJ 1976>>
                                                          Rear axle cross tube - D - MJ 1976>> Genuine Porsche Part - New (to order)
                                                          # 2
                                                          MPN: 93033151100
                                                          REAR AXLE STEERING
                                                          LEFT
                                                          from £1,855.50
                                                          from £1,855.50
                                                          REAR AXLE STEERING Genuine Porsche Part - New (to order)
                                                          # 2
                                                          MPN: 93033151200
                                                          REAR AXLE STEERING
                                                          RIGHT
                                                          from £854.70
                                                          from £854.70
                                                          REAR AXLE STEERING Genuine Porsche Part - New (to order)
                                                          # 3
                                                          MPN: 90133105900
                                                          Flange mounting - and - Washer
                                                          from £38.14
                                                          from £38.14
                                                          Flange mounting - and - Washer Genuine Porsche Part - New (to order)
                                                          # 4
                                                          MPN: N 0115344
                                                          WASHER - 15 - DISCONTINUED PART
                                                          from £0.81
                                                          from £0.81
                                                          Washer - Discontinued part Genuine Porsche Part - New (to order)
                                                          # 6
                                                          MPN: 99908401402
                                                          HEX. NUT - M 14 X 1,5 - DISCONTINUED PART
                                                          HEX. NUT - M 14 X 1,5 - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                          # 6
                                                          MPN: 90091009402
                                                          LOCK NUT - M 14 X 1,5
                                                          Supersession
                                                          Supersession
                                                          Genuine Porsche Part (no longer available to order)
                                                          # -
                                                          -
                                                          SET OF BEARINGS - REAR AXLE - COMPRISING: - POS. 7/1-4; 23; 25 - ALSO USE:
                                                          ----PCG04311000
                                                          # 7
                                                          MPN: 99905905600
                                                          TAPER ROLLER BEARING
                                                          from £120.41
                                                          from £120.41
                                                          TAPER ROLLER BEARING - ALSO USE: Genuine Porsche Part - New (to order)
                                                          # 7
                                                          MPN: 99905904700
                                                          TAPER ROLLER BEARING
                                                          from £120.41
                                                          from £120.41
                                                          TAPER ROLLER BEARING - ALSO USE: Genuine Porsche Part - New (to order)
                                                          # 7
                                                          MPN: 93033160900
                                                          SPACER SLEEVE
                                                          Supersession
                                                          Supersession
                                                          Genuine Porsche Part (no longer available to order)
                                                          # 7
                                                          MPN: 99911323540
                                                          SEAL - 65 X 85 X 8
                                                          from £16.98
                                                          from £16.98
                                                          SEAL - 65 X 85 X 8 Genuine Porsche Part - New (to order)
                                                          # 7
                                                          MPN: 99911321840
                                                          SEAL - 58 X 81,2 X 5
                                                          from £32.59
                                                          from £32.59
                                                          SEAL - 58 X 81,2 X 5 Genuine Porsche Part - New (to order)
                                                          # 11
                                                          MPN: 93033106503
                                                          Rear-wheel hub - with: - Wheel bolt - Discontinued part
                                                          from £313.85
                                                          from £313.85
                                                          REAR-WHEEL HUB - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                          # 11
                                                          MPN: 93033160505
                                                          REAR-WHEEL HUB - WITH: - WHEEL BOLT
                                                          REAR-WHEEL HUB - WITH: - WHEEL BOLT Genuine Porsche Part - New (to order)
                                                          # 12
                                                          MPN: 90133167101
                                                          WHEEL BOLT
                                                          from £10.46
                                                          from £10.46
                                                          Wheel bolt - Widening of track - oversize Genuine Porsche Part - New (to order)
                                                          # 13
                                                          MPN: 93033223200
                                                          DRIVE SHAFT
                                                          from £537.07
                                                          from £537.07
                                                          DRIVE SHAFT Genuine Porsche Part - New (to order)
                                                          # 14
                                                          MPN: 93033203700
                                                          DRIVE SHAFT
                                                          from £650.09
                                                          from £650.09
                                                          DRIVE SHAFT Genuine Porsche Part - New (to order)
                                                          # 14
                                                          MPN: 93033203400
                                                          JOINT
                                                          from £270.64
                                                          from £270.64
                                                          JOINT Genuine Porsche Part - New (to order)
                                                          # 14
                                                          MPN: 90133231200
                                                          CONCAVE WASHER
                                                          from £4.51
                                                          from £4.51
                                                          concave washer - - F >> 91-15100 727 - F >> 91-15110 609 - F >> 91-15201 529 - F >> 91-15210 859 - F >> 91-15300 272 - F >> 91-15310 147 - F >> 91-15400 173 - F >> 91-15410 088 - F >> 91-15600 320 - F Genuine Porsche Part - New (to order)
                                                          # 15
                                                          MPN: 99915208401
                                                          LOCK RING
                                                          from £1.12
                                                          from £1.12
                                                          lock ring - Dust bellows Genuine Porsche Part - New (to order)
                                                          # 17
                                                          MPN: 92833209700
                                                          SEALING FLANGE - DISCONTINUED PART
                                                          SEALING FLANGE - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                          # 17
                                                          MPN: 92833209703
                                                          SEALING FLANGE
                                                          from £133.99
                                                          from £133.99
                                                          SEALING FLANGE Genuine Porsche Part - New (to order)
                                                          # 17
                                                          MPN: 90133229312
                                                          BELLOWS
                                                          from £12.16
                                                          from £12.16
                                                          bellows - - F >> 91-15100 727 - F >> 91-15110 609 - F >> 91-15201 529 - F >> 91-15210 859 - F >> 91-15300 272 - F >> 91-15310 147 - F >> 91-15400 173 - F >> 91-15410 088 - F >> 91-15600 320 - F > Genuine Porsche Part - New (to order)
                                                          # 18
                                                          MPN: 99951231502
                                                          CLAMP - 77 $ X 6 - DISCONTINUED PART
                                                          CLAMP - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                          # 18
                                                          MPN: 99951248600
                                                          clip - 77 $ X 6
                                                          from £5.02
                                                          from £5.02
                                                          clip - 77 $ X 6 Genuine Porsche Part - New (to order)
                                                          # 19
                                                          MPN: 93033229700
                                                          GASKET
                                                          from £9.62
                                                          from £9.62
                                                          gasket - D - MJ 1982>> - MJ 1982 Genuine Porsche Part - New (to order)
                                                          # 20
                                                          MPN: 90006711801
                                                          SCREW, CHEESE HD. - M 10 X 60
                                                          from £2.82
                                                          from £2.82
                                                          SCREW, CHEESE HD. - M 10 X 60 Genuine Porsche Part - New (to order)
                                                          # 23
                                                          MPN: 90133280600
                                                          NUT, SLOTTED - DISCONTINUED PART
                                                          NUT, SLOTTED - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                          # 23
                                                          MPN: 90133280601
                                                          nut, slotted
                                                          from £11.10
                                                          from £11.10
                                                          nut, slotted Genuine Porsche Part - New (to order)
                                                          # 24
                                                          MPN: 99902504601
                                                          WASHER
                                                          from £8.54
                                                          from £8.54
                                                          WASHER Genuine Porsche Part - New (to order)
                                                          # 25
                                                          MPN: N 0125381
                                                          COTTER PIN - 4 X 40
                                                          from £1.04
                                                          from £1.04
                                                          cotter pin - 4 X 40 - Discontinued part Genuine Porsche Part - New (to order)
                                                          # 26
                                                          MPN: 90133300301
                                                          Rear axle strut - F >> 91-16201 872 - F >> 91-16211 898 - F >> 91-16301 741 - F >> 91-16311 425 - F >> 91-16601 021 - F >> 91-16610 439 - F >> 91-26001 838 - F >> 93-06700 641 - F >> 93-06800 493 - Dis
                                                          Rear axle strut - F >> 91-16201 872 - F >> 91-16211 898 - F >> 91-16301 741 - F >> 91-16311 425 - F >> 91-16601 021 - F >> 91-16610 439 - F >> 91-26001 838 - F >> 93-06700 641 - F >> 93-06800 493 - Dis Genuine Porsche Part - New (to order)
                                                          # 26
                                                          MPN: 90133300309
                                                          Rear axle strut - F >> 91-16201 872 - F >> 91-16211 898 - F >> 91-16301 741 - F >> 91-16311 425 - F >> 91-16601 021 - F >> 91-16610 439 - F >> 91-26001 838 - F >> 93-06700 641 - F >> 93-06800 493
                                                          from £424.83
                                                          from £424.83
                                                          Rear axle strut - F >> 91-16201 872 - F >> 91-16211 898 - F >> 91-16301 741 - F >> 91-16311 425 - F >> 91-16601 021 - F >> 91-16610 439 - F >> 91-26001 838 - F >> 93-06700 641 - F >> 93-06800 493 Genuine Porsche Part - New (to order)
                                                          # 26
                                                          MPN: 91133300900
                                                          Rear axle strut - F 91-16201 873>> - F 91-16211 899>> - F 91-16301 742>> - F 91-16311 426>> - F 91-16601 022>> - F 91-16610 440>> - F 91-26001 839>> - F 93-06700 642>> - F 93-06800 494>> - Discontinued part
                                                          Rear axle strut - F 91-16201 873>> - F 91-16211 899>> - F 91-16301 742>> - F 91-16311 426>> - F 91-16601 022>> - F 91-16610 440>> - F 91-26001 839>> - F 93-06700 642>> - F 93-06800 494>> - Discontinued part Genuine Porsche Part - New (to order)
                                                          # 26
                                                          MPN: 91133300905
                                                          Rear axle strut - F 91-16201 873>> - F 91-16211 899>> - F 91-16301 742>> - F 91-16311 426>> - F 91-16601 022>> - F 91-16610 440>> - F 91-26001 839>> - F 93-06700 642>> - F 93-06800 494>>
                                                          from £424.81
                                                          from £424.81
                                                          Rear axle strut - F 91-16201 873>> - F 91-16211 899>> - F 91-16301 742>> - F 91-16311 426>> - F 91-16601 022>> - F 91-16610 440>> - F 91-26001 839>> - F 93-06700 642>> - F 93-06800 494>> Genuine Porsche Part - New (to order)
                                                          # -
                                                          -
                                                          LOCK NUT - F 91-16201 873>> - F 91-16211 899>> - F 91-16301 742>> - F 91-16311 426>> - F 91-16601 022>> - F 91-16610 440>> - F 91-26001 839>> - F 93-06700 642>> - F 93-06800 494>> - DISCONTINUED PART
                                                          # -
                                                          -
                                                          LOCK NUT - F 91-16201 873>> - F 91-16211 899>> - F 91-16301 742>> - F 91-16311 426>> - F 91-16601 022>> - F 91-16610 440>> - F 91-26001 839>> - F 93-06700 642>> - F 93-06800 494>>
                                                          # -
                                                          -
                                                          LOCK NUT - F 91-16201 873>> - F 91-16211 899>> - F 91-16301 742>> - F 91-16311 426>> - F 91-16601 022>> - F 91-16610 440>> - F 91-26001 839>> - F 93-06700 642>> - F 93-06800 494>>
                                                          VHM16X1,5-yellow
                                                          # -
                                                          -
                                                          spacer ring - F 91-16201 873>> - F 91-16211 899>> - F 91-16301 742>> - F 91-16311 426>> - F 91-16601 022>> - F 91-16610 440>> - F 91-26001 839>> - F 93-06700 642>> - F 93-06800 494>>
                                                          # -
                                                          -
                                                          eccentric screw - F 91-16201 873>> - F 91-16211 899>> - F 91-16301 742>> - F 91-16311 426>> - F 91-16601 022>> - F 91-16610 440>> - F 91-26001 839>> - F 93-06700 642>> - F 93-06800 494>> - Discontinued part
                                                          # -
                                                          -
                                                          eccentric screw - F 91-16201 873>> - F 91-16211 899>> - F 91-16301 742>> - F 91-16311 426>> - F 91-16601 022>> - F 91-16610 440>> - F 91-26001 839>> - F 93-06700 642>> - F 93-06800 494>>
                                                          # -
                                                          -
                                                          screw, hex. hd. - F 91-16201 873>> - F 91-16211 899>> - F 91-16311 742>> - F 91-16311 426>> - F 91-16601 022>> - F 91-16610 440>> - F 91-26001 839>> - F 93-06700 642>> - F 93-06800 494>> - Discontinued part
                                                          # -
                                                          -
                                                          screw, hex. hd. - F 91-16201 873>> - F 91-16211 899>> - F 91-16311 742>> - F 91-16311 426>> - F 91-16601 022>> - F 91-16610 440>> - F 91-26001 839>> - F 93-06700 642>> - F 93-06800 494>>
                                                          # -
                                                          -
                                                          WASHER - F 91-16201 873>> - F 91-16211 899>> - F 91-16311 742>> - F 91-16311 426>> - F 91-16601 022>> - F 91-16610 440>> - F 91-26001 839>> - F 93-06700 642>> - F 93-06800 494>> - DISCONTINUED PART
                                                          # -
                                                          -
                                                          WASHER - F 91-16201 873>> - F 91-16211 899>> - F 91-16311 742>> - F 91-16311 426>> - F 91-16601 022>> - F 91-16610 440>> - F 91-26001 839>> - F 93-06700 642>> - F 93-06800 494>>
                                                          # -
                                                          -
                                                          WASHER - F 91-16201 873>> - F 91-16211 899>> - F 91-16311 742>> - F 91-16311 426>> - F 91-16601 022>> - F 91-16610 440>> - F 91-26001 839>> - F 93-06700 642>> - F 93-06800 494>>
                                                          Yellow
                                                          # -
                                                          -
                                                          screw, hex. hd. - M 10 X 35 - F 91-16201 873>> - F 91-16211 899>> - F 91-16301 742>> - F 91-16311 426>> - F 91-16601 022>> - F 91-16610 440>> - F 91-26001 839>> - F 93-06700 642>> - F 93-06800 494>>
                                                          # 27
                                                          MPN: 90008301908
                                                          SCREW, HEX. HD. - M 12 X 1,5 X 35
                                                          SCREW, HEX. HD. - M 12 X 1,5 X 35 Genuine Porsche Part - New (to order)
                                                          # 28
                                                          MPN: N 0110208
                                                          HEX. NUT - M 12 X 1,5 - DISCONTINUED PART
                                                          HEX. NUT - M 12 X 1,5 - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                          # 28
                                                          MPN: 90003403601
                                                          HEX. NUT - M 12 X 1,5
                                                          from £1.64
                                                          from £1.64
                                                          hex. nut - M 12 X 1,5 - D - MJ 1991>> Genuine Porsche Part - New (to order)
                                                          # 29
                                                          MPN: 90133314301
                                                          WASHER
                                                          from £3.30
                                                          from £3.30
                                                          Washer - D >> - MJ 1996 Genuine Porsche Part - New (to order)
                                                          # 30
                                                          MPN: 99952310902
                                                          lock washer - M 12
                                                          from £0.70
                                                          from £0.70
                                                          lock washer - M 12 - D - MJ 1969>> Genuine Porsche Part - New (to order)
                                                          # 31
                                                          MPN: 90133313304
                                                          EXCENTRIC - DISCONTINUED PART
                                                          EXCENTRIC - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                          # 31
                                                          MPN: 90133313306
                                                          EXCENTRIC
                                                          from £45.42
                                                          from £45.42
                                                          EXCENTRIC Genuine Porsche Part - New (to order)
                                                          # 32
                                                          MPN: 90133313305
                                                          EXCENTRIC
                                                          from £45.42
                                                          from £45.42
                                                          EXCENTRIC Genuine Porsche Part - New (to order)
                                                          # 33
                                                          MPN: 90007801702
                                                          HEX. NUT - M 12 X 1,5
                                                          from £1.65
                                                          from £1.65
                                                          HEX. NUT - M 12 X 1,5 Genuine Porsche Part - New (to order)
                                                          # 33
                                                          MPN: 90007601602
                                                          SCREW, HEX. HD. - M 12 X 1,5
                                                          SCREW, HEX. HD. - M 12X1,5 Genuine Porsche Part - New (to order)
                                                          # 34
                                                          MPN: 91133310103
                                                          torsion bar - 26 MM - Discontinued part
                                                          LEFT
                                                          torsion bar - 26 MM - Discontinued part Genuine Porsche Part - New (to order)
                                                          # 34
                                                          MPN: 91133310113
                                                          TORSION BAR - 26 MM - NEW DESIGN - ONLY IN COMBINATION WITH: - 91133310213 - USE
                                                          left----right
                                                          from £361.54
                                                          from £361.54
                                                          torsion bar - 26 MM - New design - Only in combination with: - 91133310213 - Use - D >> - MJ 1988 Genuine Porsche Part - New (to order)
                                                          # 34
                                                          MPN: 91133310203
                                                          torsion bar - 26 MM - Discontinued part
                                                          RIGHT
                                                          torsion bar - 26 MM - Discontinued part Genuine Porsche Part - New (to order)
                                                          # 34
                                                          MPN: 91133310213
                                                          TORSION BAR - 26 MM - NEW DESIGN - ONLY IN COMBINATION WITH: - 91133310113 - USE
                                                          right----left
                                                          from £361.54
                                                          from £361.54
                                                          torsion bar - 26 MM - New design - Only in combination with: - 91133310113 - Use - D >> - MJ 1988 Genuine Porsche Part - New (to order)
                                                          # 35
                                                          MPN: 90133315300
                                                          BEARING CAP
                                                          Yellow
                                                          from £53.25
                                                          from £53.25
                                                          BEARING CAP Genuine Porsche Part - New (to order)
                                                          # 35
                                                          MPN: 90133315301
                                                          BEARING CAP
                                                          Black
                                                          from £60.08
                                                          from £60.08
                                                          BEARING CAP Genuine Porsche Part - New (to order)
                                                          # 36
                                                          MPN: 90002500802
                                                          WASHER - 10,5 - DISCONTINUED PART
                                                          Supersession
                                                          Supersession
                                                          Genuine Porsche Part (no longer available to order)
                                                          # 36
                                                          MPN: N 0115274
                                                          WASHER - 10,5 - DISCONTINUED PART
                                                          Washer - Discontinued part Genuine Porsche Part - New (to order)
                                                          # 36
                                                          MPN: 90002500809
                                                          WASHER - 10,5 - DISCONTINUED PART
                                                          Washer - Discontinued part Genuine Porsche Part - New (to order)
                                                          # 36
                                                          MPN: 90002500804
                                                          WASHER - 10,5
                                                          from £0.80
                                                          from £0.80
                                                          This part replaces part number 90002500802
                                                          WASHER - B8,4 Genuine Porsche Part - New In stock
                                                          # 36
                                                          MPN: 9000250080E
                                                          WASHER - 10,5
                                                          Yellow
                                                          from £0.62
                                                          from £0.62
                                                          WASHER - B8,4 Genuine Porsche Part - New (to order)
                                                          # 37
                                                          MPN: 90007504202
                                                          SCREW, HEX. HD. - M 10 X 28
                                                          Supersession
                                                          Supersession
                                                          Genuine Porsche Part (no longer available to order)
                                                          # 38
                                                          MPN: 90133110700
                                                          SPACER RING
                                                          from £18.63
                                                          from £18.63
                                                          SPACER RING Genuine Porsche Part - New (to order)
