porsche 1977 (911 turbo) window regulator parts diagram

804-010 - WINDOW REGULATOR

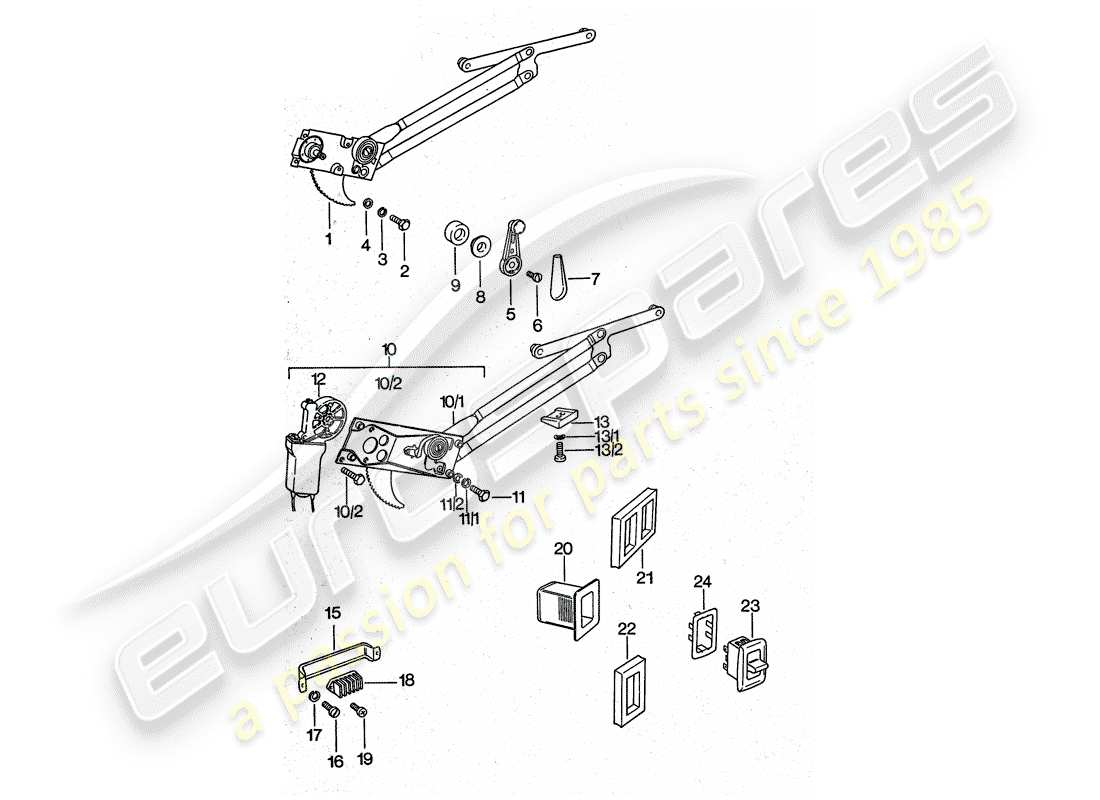

Porsche 1977 (911 Turbo) WINDOW REGULATOR Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Key
                      Price
                      # 10
                      MPN: 91154200326
                      Power window
                      LEFT
                      Power window - D - MJ 1973>> Genuine Porsche Part - New (to order)
                      # 10
                      MPN: 91154200426
                      Power window
                      RIGHT
                      Power window - D - MJ 1973>> Genuine Porsche Part - New (to order)
                      # 10
                      MPN: 91154292900
                      WINDOW REGULATOR
                      LEFT
                      window regulator - D - MJ 1973>> Genuine Porsche Part - New (to order)
                      # 10
                      MPN: 91154293000
                      WINDOW REGULATOR
                      RIGHT
                      window regulator - D - MJ 1973>> Genuine Porsche Part - New (to order)
                      # 10
                      MPN: 99909300402
                      SCREW, HEX. HD. - M 6 X 16
                      from £1.47
                      from £1.47
                      SCREW, HEX. HD. - M 6 X 16 Genuine Porsche Part - New (to order)
                      # 11
                      MPN: N 01021013
                      SCREW, HEX. HD. - M 6 X 10
                      from £1.06
                      from £1.06
                      screw, hex. hd. - M 6X10 - M 090 9001 >> Genuine Porsche Part - New (to order)
                      # 11
                      MPN: N 0120064
                      LOCK RING - B 6
                      from £0.70
                      from £0.70
                      lock ring - D - MJ 1980>> Genuine Porsche Part - New (to order)
                      # 11
                      MPN: N 0115247
                      WASHER - 6,4 - DISCONTINUED PART
                      Washer - R 6,6 - Discontinued part Genuine Porsche Part - New (to order)
                      # 11
                      MPN: N 01152427
                      WASHER - 6,4
                      from £0.47
                      from £0.47
                      Washer - R 6,6 Genuine Porsche Part - New (to order)
                      WASHER 6.4X12.5X1.6 Genuine Lamborghini - New In stock
                      # 13
                      MPN: 90154206300
                      STOP WEDGE
                      STOP WEDGE Genuine Porsche Part - New (to order)
                      # 13
                      MPN: N 0122224
                      spring washer - A 5
                      SPRING WASHER - DISCONTINUED PART Genuine Porsche Part - New (to order)
                      # 13
                      MPN: 90011901102
                      SCREW, CHEESE HD. - M 5 X 10
                      from £0.82
                      from £0.82
                      screw, cheese hd. - M5X10 Genuine Porsche Part - New (to order)
                      # 16
                      MPN: 90001401302
                      SCREW, CHEESE HD. - M 4 X 10
                      from £0.65
                      from £0.65
                      SCREW, CHEESE HD. - M4 X 10 Genuine Porsche Part - New (to order)
                      # 17
                      MPN: 90002701101
                      LOCK RING - B 4
                      from £0.73
                      from £0.73
                      LOCK RING - B5 Genuine Porsche Part - New (to order)
                      # 18
                      MPN: 90161289800
                      wire connector - 5-POLE
                      wire connector - 5-POLE Genuine Porsche Part - New (to order)
                      # 19
                      MPN: 90014300702
                      TAPPING SCREW, FILL. HD. - B 4,2 X 13 - DISCONTINUED PART
                      TAPPING SCREW, FILL. HD. - DISCONTINUED PART Genuine Porsche Part - New (to order)
                      # 19
                      MPN: 90007350701
                      TAPPING SCREW, FILL. HD. - B 4,2 X 13
                      from £0.99
                      from £0.99
                      tapping screw, fill. hd. - D - MJ 1987>> Genuine Porsche Part - New (to order)
                      # 20
                      MPN: 91161362301
                      GROMMET
                      from £8.13
                      from £8.13
                      GROMMET Genuine Porsche Part - New (to order)
                      # 21
                      MPN: 91161363700
                      SEAL STRIP
                      LEFT
                      from £6.22
                      from £6.22
                      SEAL STRIP - SWITCH Genuine Porsche Part - New (to order)
                      # 22
                      MPN: 91161363800
                      SEAL STRIP
                      RIGHT
                      from £4.56
                      from £4.56
                      SEAL STRIP - SWITCH Genuine Porsche Part - New (to order)
                      # 23
                      MPN: 91161362103
                      SWITCH FOR ELECTRIC - WINDOWS
                      Supersession
                      Supersession
                      Genuine Porsche Part (no longer available to order)
                      # 24
                      MPN: 91161363520
                      Assembly frame
                      from £7.63
                      from £7.63
                      Assembly frame - for window opener Genuine Porsche Part - New (to order)
