porsche 1977 (911 turbo) ventilation - heating system 2 - d - mj 1977>> parts diagram

813-005 - VENTILATION - HEATING SYSTEM 2 - D - MJ 1977>>

Porsche 1977 (911 Turbo) VENTILATION - HEATING SYSTEM 2 - D - MJ 1977>> Parts Diagram

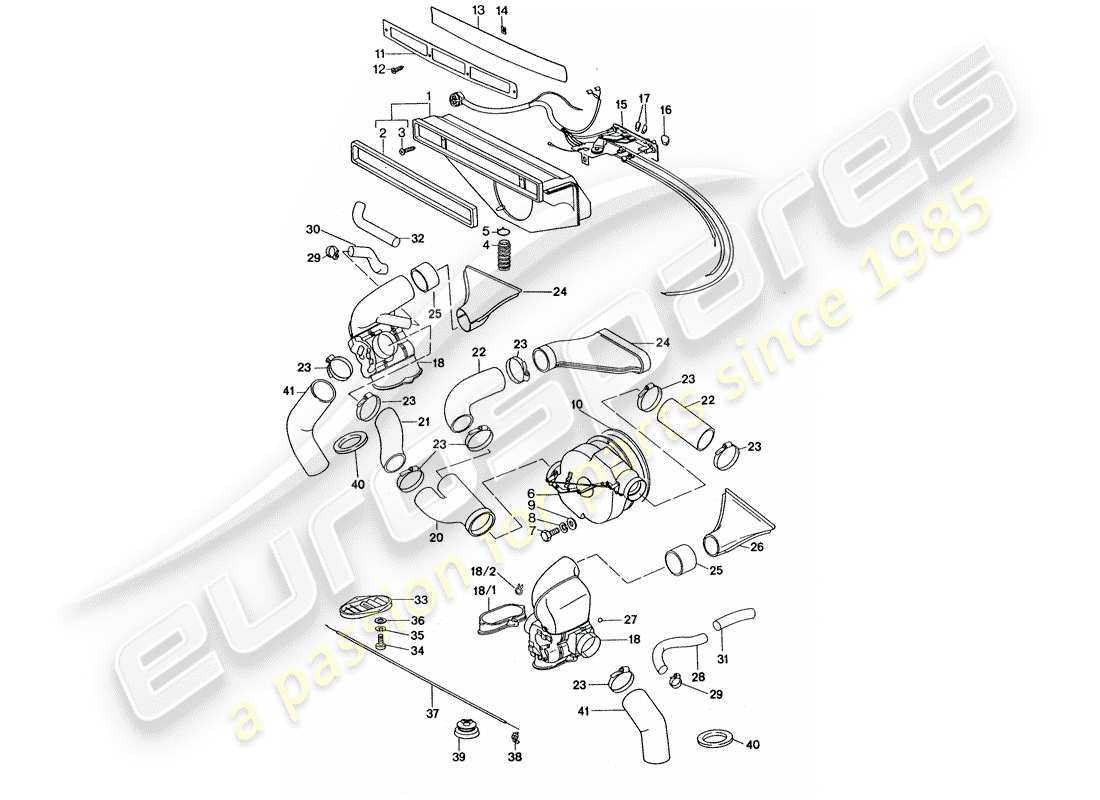

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Key
                                                        Price
                                                        # 2
                                                        MPN: 90157132532
                                                        SEALING FRAME
                                                        from £19.99
                                                        from £19.99
                                                        SEALING FRAME Genuine Porsche Part - New (to order)
                                                        # 3
                                                        MPN: N 0141531
                                                        fillister hd. screw - M 5 X 40
                                                        FILLISTER HD. SCREW - M 5X40 DIN 7985 VERZ Genuine Porsche Part - New (to order)
                                                        # 4
                                                        MPN: 91157122400
                                                        WATER DRAIN HOSE - AIR CONDITIONER - 600 MM
                                                        LHD and RHD
                                                        from £22.75
                                                        from £22.75
                                                        water drain hose - air conditioner - 600 MM - D - MJ 1976>> Genuine Porsche Part - New (to order)
                                                        # 5
                                                        MPN: 99951214502
                                                        HOSE CLIP
                                                        RHD
                                                        HOSE CLIP Genuine Porsche Part - New (to order)
                                                        # 6
                                                        MPN: 91157101800
                                                        FAN - WITH: - ENGINE
                                                        fan - D >> - MJ 1985 Genuine Porsche Part - New (to order)
                                                        # -
                                                        -
                                                        HOUSING
                                                        FRONT
                                                        # -
                                                        -
                                                        HOUSING
                                                        rear
                                                        # -
                                                        -
                                                        ELECTRIC FAN MOTOR - WITH: - FAN
                                                        # 7
                                                        MPN: N 0102056
                                                        SCREW, HEX. HD. - M 5 X 10 - DISCONTINUED PART
                                                        screw, hex. hd. - M 5X10 DIN 933-8.8 VERZ. - Discontinued part Genuine Porsche Part - New (to order)
                                                        # 7
                                                        MPN: 90007510502
                                                        SCREW - M 5 X 10
                                                        from £0.73
                                                        from £0.73
                                                        SCREW - M 5X10 DIN 933-8.8 VERZ Genuine Porsche Part - New (to order)
                                                        # 9
                                                        MPN: 90002500302
                                                        WASHER - 5,3
                                                        Washer - M 5 Genuine Porsche Part - New (to order)
                                                        # 10
                                                        MPN: 90157192200
                                                        SEAL RING - DISCONTINUED PART
                                                        SEAL RING - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                        # 10
                                                        MPN: 90157192201
                                                        SEAL RING
                                                        from £22.10
                                                        from £22.10
                                                        seal ring - blower housing - engine Genuine Porsche Part - New (to order)
                                                        # 11
                                                        MPN: 90155940120
                                                        grille frame
                                                        grille frame Genuine Porsche Part - New (to order)
                                                        # 12
                                                        MPN: 90014503600
                                                        TAPPING SCREW, CSK. - B 3,5 X 13
                                                        from £0.88
                                                        from £0.88
                                                        TAPPING SCREW, COUNTERSUNK - B 3,5X13 DIN 7983 NIROSTA Genuine Porsche Part - New (to order)
                                                        # 13
                                                        MPN: 90155941020
                                                        GRILLE
                                                        FRONT
                                                        GRILLE Genuine Porsche Part - New (to order)
                                                        # 14
                                                        MPN: 90155949120
                                                        SPACER WASHER
                                                        SPACER WASHER Genuine Porsche Part - New (to order)
                                                        # 15
                                                        MPN: 91161311110
                                                        CONTROL SWITCH
                                                        LHD
                                                        from £571.35
                                                        from £571.35
                                                        Control switch - D - MJ 1986>> Genuine Porsche Part - New (to order)
                                                        # 15
                                                        MPN: 91161311207
                                                        CONTROL SWITCH
                                                        RHD
                                                        CONTROL SWITCH Genuine Porsche Part - New (to order)
                                                        # -
                                                        -
                                                        harness
                                                        # -
                                                        -
                                                        BULB - 12 V, 2 W
                                                        # -
                                                        -
                                                        BULB SOCKET
                                                        # -
                                                        -
                                                        SEAL RING
                                                        # -
                                                        -
                                                        SCREW, HEX. HD. - M 6 X 20
                                                        # -
                                                        -
                                                        WASHER - 6,4 - DISCONTINUED PART
                                                        # -
                                                        -
                                                        WASHER - 6,4
                                                        # -
                                                        -
                                                        RUBBER GROMMET - BOWDEN CONTROL
                                                        # 16
                                                        MPN: 90157191700
                                                        BUTTON - BLACK
                                                        from £7.11
                                                        from £7.11
                                                        BUTTON - BLACK - D >>- MJ 1985 Genuine Porsche Part - New (to order)
                                                        # 16
                                                        MPN: 90157191800
                                                        BUTTON - RED
                                                        from £7.11
                                                        from £7.11
                                                        Button - red - D >> - MJ 1985 Genuine Porsche Part - New (to order)
                                                        # 17
                                                        MPN: 91161399500
                                                        BUTTON - BLACK
                                                        from £8.69
                                                        from £8.69
                                                        BUTTON - BLACK - D >>- MJ 1985 Genuine Porsche Part - New (to order)
                                                        # 18
                                                        MPN: 91157104901
                                                        CONTROL BOX
                                                        LEFT
                                                        Control box - D >> - MJ 1976 Genuine Porsche Part - New (to order)
                                                        # 18
                                                        MPN: 91157105100
                                                        CONNECTING FLANGE
                                                        from £51.17
                                                        from £51.17
                                                        CONNECTING FLANGE Genuine Porsche Part - New (to order)
                                                        # 18
                                                        MPN: 99951216202
                                                        SPRING
                                                        from £1.88
                                                        from £1.88
                                                        SPRING Genuine Porsche Part - New (to order)
                                                        # 21
                                                        MPN: 91157123900
                                                        AIR HOSE
                                                        from £50.55
                                                        from £50.55
                                                        air hose - D - MJ 1986>> Genuine Porsche Part - New (to order)
                                                        # 22
                                                        MPN: 473261233A
                                                        AIR HOSE
                                                        AIR HOSE Genuine Porsche Part - New (to order)
                                                        # 22
                                                        MPN: 91457212310
                                                        AIR HOSE
                                                        from £16.33
                                                        from £16.33
                                                        air hose - LW 60 X 165 Genuine Porsche Part - New (to order)
                                                        # 23
                                                        MPN: 99951234902
                                                        HOSE CLAMP - DISCONTINUED PART
                                                        Supersession
                                                        Supersession
                                                        Genuine Porsche Part (no longer available to order)
                                                        # 23
                                                        MPN: 99951234901
                                                        HOSE CLAMP
                                                        from £4.52
                                                        from £4.52
                                                        This part replaces part number 99951234902
                                                        Hose Clamp - SGT 50-70/9 Genuine Porsche Part - New (to order)
                                                        # 23
                                                        MPN: 9995123490B
                                                        HOSE CLAMP
                                                        from £3.38
                                                        from £3.38
                                                        Hose Clamp - SGT 50-70/9 Genuine Porsche Part - New (to order)
                                                        # 24
                                                        MPN: 91157108500
                                                        AIR DUCT
                                                        LHD
                                                        from £34.55
                                                        from £34.55
                                                        air duct - D >> - MJ 1985 Genuine Porsche Part - New (to order)
                                                        # 24
                                                        MPN: 91157108601
                                                        AIR DUCT
                                                        RHD
                                                        from £57.75
                                                        from £57.75
                                                        air duct - D - MJ 1986>> Genuine Porsche Part - New (to order)
                                                        # 25
                                                        MPN: 90157134532
                                                        HOSE PIECE
                                                        from £13.16
                                                        from £13.16
                                                        Hose piece - D - MJ 1986>> Genuine Porsche Part - New (to order)
                                                        # 27
                                                        MPN: 90157192100
                                                        RETAINING RING
                                                        from £1.24
                                                        from £1.24
                                                        RETAINING RING Genuine Porsche Part - New (to order)
                                                        # 28
                                                        MPN: 91157122800
                                                        AIR HOSE
                                                        LEFT
                                                        from £8.76
                                                        from £8.76
                                                        air hose - LW 36 X 390 - D >> - MJ 1985 Genuine Porsche Part - New (to order)
                                                        # 29
                                                        MPN: 99951255100
                                                        HOSE CLAMP
                                                        Supersession
                                                        Supersession
                                                        Genuine Porsche Part (no longer available to order)
                                                        # 30
                                                        MPN: 91157122800
                                                        AIR HOSE
                                                        RIGHT
                                                        from £8.76
                                                        from £8.76
                                                        air hose - LW 36 X 390 - D >> - MJ 1985 Genuine Porsche Part - New (to order)
                                                        # 31
                                                        MPN: 91157122700
                                                        AIR HOSE
                                                        left (COUPE)
                                                        AIR HOSE Genuine Porsche Part - New (to order)
                                                        # 31
                                                        MPN: 91157222300
                                                        AIR HOSE
                                                        right (TARGA)
                                                        from £20.42
                                                        from £20.42
                                                        air hose - LW 38 X 240 - D - MJ 1986>> Genuine Porsche Part - New (to order)
                                                        # 32
                                                        MPN: 91157122800
                                                        AIR HOSE
                                                        RIGHT
                                                        from £8.76
                                                        from £8.76
                                                        air hose - LW 36 X 390 - D >> - MJ 1985 Genuine Porsche Part - New (to order)
                                                        # 33
                                                        MPN: 91157134701
                                                        AIR DISTRIBUTOR
                                                        LEFT
                                                        from £11.28
                                                        from £11.28
                                                        AIR DISTRIBUTOR Genuine Porsche Part - New (to order)
                                                        # 33
                                                        MPN: 91157134801
                                                        AIR DISTRIBUTOR
                                                        RIGHT
                                                        AIR DISTRIBUTOR Genuine Porsche Part - New (to order)
                                                        # 34
                                                        MPN: 90006720802
                                                        SCREW, CHEESE HD. - M 5 X 15
                                                        SCREW, CHEESE HD. - M 5 X 15 Genuine Porsche Part - New (to order)
                                                        # 35
                                                        MPN: N 0120053
                                                        LOCK RING - B 5
                                                        from £0.66
                                                        from £0.66
                                                        LOCK RING Genuine Porsche Part - New (to order)
                                                        # 36
                                                        MPN: 90002500302
                                                        WASHER - 5,3
                                                        Washer - M 5 Genuine Porsche Part - New (to order)
                                                        # 37
                                                        MPN: 91157211400
                                                        BOWDEN CONTROL
                                                        Supersession
                                                        Supersession
                                                        Genuine Porsche Part (no longer available to order)
                                                        # 38
                                                        MPN: 90157191900
                                                        CLIP
                                                        from £3.20
                                                        from £3.20
                                                        clip - Control box - 911.571.050.03 Genuine Porsche Part - New (to order)
                                                        # 39
                                                        MPN: 91161286300
                                                        CABLE SUPPORT SLEEVE - DISCONTINUED PART
                                                        CABLE SUPPORT SLEEVE - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                        # 39
                                                        MPN: 91457115110
                                                        RUBBER GROMMET
                                                        from £21.96
                                                        from £21.96
                                                        RUBBER GROMMET - BOWDEN CONTROL Genuine Porsche Part - New (to order)
                                                        # 40
                                                        MPN: 90157291301
                                                        SEAL RING
                                                        from £9.60
                                                        from £9.60
                                                        SEAL RING Genuine Porsche Part - New (to order)
                                                        # 41
                                                        MPN: 90157134732
                                                        heater hose
                                                        heater hose - $ 61 Genuine Porsche Part - New (to order)
