porsche 1982 (911) windshield washer unit - headlight washer system - d >> - mj 1979 parts diagram

904-015 - WINDSHIELD WASHER UNIT - HEADLIGHT WASHER SYSTEM - D >> - MJ 1979

Porsche 1982 (911) WINDSHIELD WASHER UNIT - HEADLIGHT WASHER SYSTEM - D >> - MJ 1979 Parts Diagram

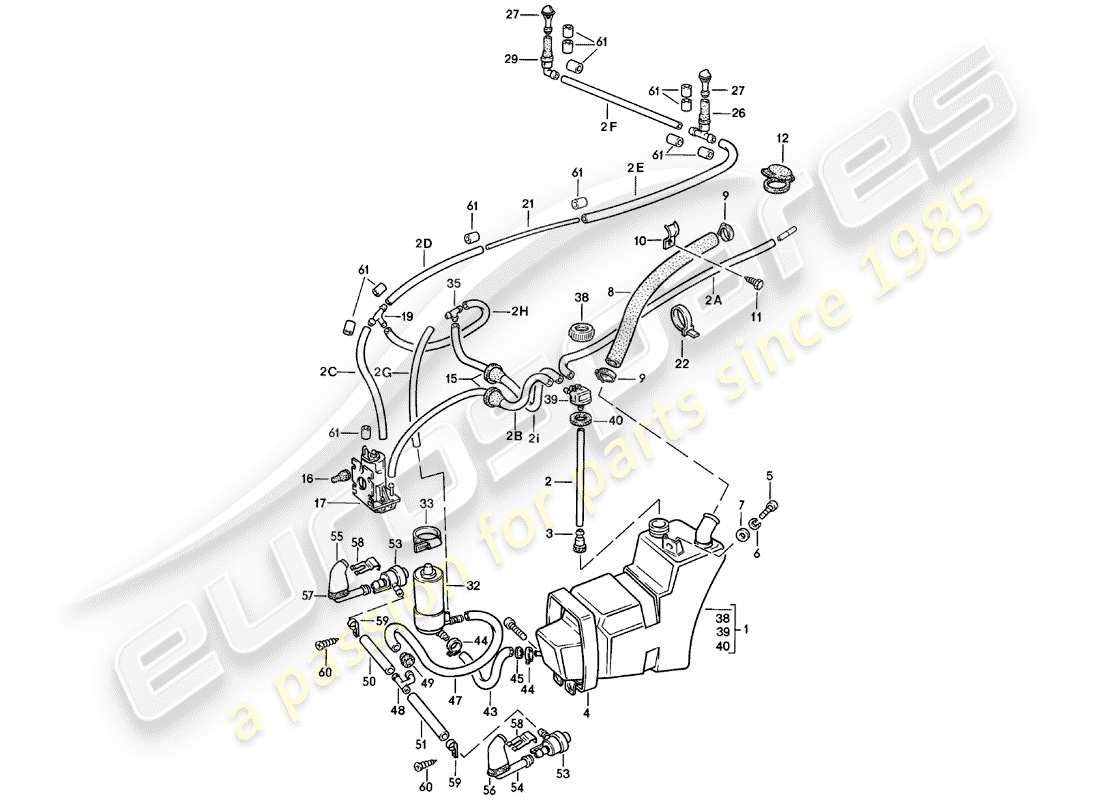

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                  #
                                                                                  Part number
                                                                                  Description
                                                                                  Key
                                                                                  Price
                                                                                  # 1
                                                                                  MPN: 91162807508
                                                                                  fluid container - also use:
                                                                                  -PCG90103240
                                                                                  from £51.20
                                                                                  from £51.20
                                                                                  FLUID CONTAINER - D >>- MJ 1979 - ALSO USE: Genuine Porsche Part - New (to order)
                                                                                  # -
                                                                                  -
                                                                                  hose in coils of 10M - 'order qty. 10' - PVC 4 X 1 - Discontinued part
                                                                                  # -
                                                                                  -
                                                                                  HOSE - PVC 4 X 1 - 3000 MM
                                                                                  # 2
                                                                                  -
                                                                                  SHORTEN TO:
                                                                                  300 MM
                                                                                  # 2
                                                                                  -
                                                                                  SHORTEN TO:
                                                                                  800 MM
                                                                                  # 2
                                                                                  -
                                                                                  SHORTEN TO:
                                                                                  650 MM
                                                                                  # 2
                                                                                  -
                                                                                  SHORTEN TO:
                                                                                  150 MM
                                                                                  # 2
                                                                                  -
                                                                                  SHORTEN TO:
                                                                                  360 MM
                                                                                  # 2
                                                                                  -
                                                                                  SHORTEN TO:
                                                                                  900 MM
                                                                                  # 2
                                                                                  -
                                                                                  SHORTEN TO:
                                                                                  510 MM
                                                                                  # 2
                                                                                  -
                                                                                  SHORTEN TO: - FOR VEHICLES WITH - AIR CONDITIONER
                                                                                  320 MM
                                                                                  # 2
                                                                                  -
                                                                                  SHORTEN TO:
                                                                                  100 MM
                                                                                  # 2
                                                                                  -
                                                                                  SHORTEN TO:
                                                                                  530 MM
                                                                                  # 3
                                                                                  MPN: 91162874900
                                                                                  valve - fluid container - Discontinued part
                                                                                  valve - fluid container - Discontinued part Genuine Porsche Part - New (to order)
                                                                                  # 3
                                                                                  MPN: 91162874901
                                                                                  valve - fluid container
                                                                                  from £7.91
                                                                                  from £7.91
                                                                                  valve - fluid container Genuine Porsche Part - New (to order)
                                                                                  # 4
                                                                                  MPN: 91162808100
                                                                                  STRAP - DISCONTINUED PART
                                                                                  STRAP - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                                                  # 4
                                                                                  MPN: 91162808102
                                                                                  STRAP
                                                                                  from £59.12
                                                                                  from £59.12
                                                                                  STRAP Genuine Porsche Part - New (to order)
                                                                                  # 5
                                                                                  MPN: N 0102179
                                                                                  SCREW, HEX. HD. - M 6 X 20
                                                                                  Supersession
                                                                                  Supersession
                                                                                  Genuine Porsche Part (no longer available to order)
                                                                                  # 6
                                                                                  MPN: N 0120072
                                                                                  LOCK RING - A 6 - DISCONTINUED PART
                                                                                  lock ring - M 6 - Discontinued part Genuine Porsche Part - New (to order)
                                                                                  # 6
                                                                                  MPN: 90002700403
                                                                                  LOCK RING - A 6
                                                                                  from £0.63
                                                                                  from £0.63
                                                                                  lock ring - M 6 Genuine Porsche Part - New In stock
                                                                                  # 7
                                                                                  MPN: 90015100302
                                                                                  WASHER - A 6,4 - DISCONTINUED PART
                                                                                  Washer - Large - Discontinued part Genuine Porsche Part - New (to order)
                                                                                  # 7
                                                                                  MPN: 90015100603
                                                                                  Washer - A 6,4
                                                                                  from £0.59
                                                                                  from £0.59
                                                                                  This part replaces part number 90015100609
                                                                                  Washer - Large Genuine Porsche Part - New (to order)
                                                                                  # 8
                                                                                  MPN: 91162823600
                                                                                  FILLING HOSE - 25 X 32 X 710 - DISCONTINUED PART
                                                                                  FILLING HOSE - 25 X 32 X 710 - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                                                  # 8
                                                                                  MPN: 91162823601
                                                                                  FILLING HOSE - 25 X 32 X 710
                                                                                  from £41.14
                                                                                  from £41.14
                                                                                  FILLING HOSE - 25 X 32 X 710 Genuine Porsche Part - New (to order)
                                                                                  # 9
                                                                                  MPN: 99951235602
                                                                                  HOSE CLAMP
                                                                                  from £2.38
                                                                                  from £2.38
                                                                                  Hose Clamp - SGT. 25-40 Genuine Porsche Part - New (to order)
                                                                                  # 10
                                                                                  MPN: 91157314500
                                                                                  CLAMP - DISCONTINUED PART
                                                                                  CLAMP - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                                                  # 10
                                                                                  MPN: 91157314501
                                                                                  CLAMP
                                                                                  from £6.02
                                                                                  from £6.02
                                                                                  CLAMP Genuine Porsche Part - New (to order)
                                                                                  # 11
                                                                                  MPN: 90018702502
                                                                                  TAPPING SCREW,HEX.HD. - B 5,5 X 13
                                                                                  TAPPING SCREW,HEX.HD. - D >>- MJ 1971 Genuine Porsche Part - New (to order)
                                                                                  # 12
                                                                                  MPN: 96420150700
                                                                                  COVER - FILLER NECK
                                                                                  from £3.27
                                                                                  from £3.27
                                                                                  COVER - FOR - FILLER NECK - FLUID CONTAINER Genuine Porsche Part - New In stock
                                                                                  # 15
                                                                                  MPN: 91161213200
                                                                                  GROMMET
                                                                                  from £1.68
                                                                                  from £1.68
                                                                                  GROMMET Genuine Porsche Part - New In stock
                                                                                  # 16
                                                                                  MPN: 91462874100
                                                                                  PLUG
                                                                                  from £4.08
                                                                                  from £4.08
                                                                                  PLUG - MOTOR PUMP Genuine Porsche Part - New (to order)
                                                                                  # 17
                                                                                  MPN: 92862807401
                                                                                  PUMP - ELECTRIC
                                                                                  from £72.70
                                                                                  from £72.70
                                                                                  pump - Electric - for - windshield washer unit - 10 V Genuine Porsche Part - New (to order)
                                                                                  # 19
                                                                                  MPN: 90162874920
                                                                                  T-PIECE
                                                                                  from £7.87
                                                                                  from £7.87
                                                                                  T-PIECE Genuine Porsche Part - New (to order)
                                                                                  # 21
                                                                                  MPN: 91162823700
                                                                                  TUBE - 4 X 5 X 1100 - DISCONTINUED PART
                                                                                  tube - 4 X 5 X 1100 MM - Discontinued part Genuine Porsche Part - New (to order)
                                                                                  # 21
                                                                                  MPN: 90162873922
                                                                                  TUBE - 4 X 5 X 1100
                                                                                  from £3.19
                                                                                  from £3.19
                                                                                  tube - 4 X 5 X 1100 MM Genuine Porsche Part - New (to order)
                                                                                  # 22
                                                                                  MPN: 99951302340
                                                                                  TIE WRAP
                                                                                  from £3.33
                                                                                  from £3.33
                                                                                  tie wrap - for - Connection cable - BHKZ Genuine Porsche Part - New (to order)
                                                                                  # 26
                                                                                  MPN: 91462843300
                                                                                  VALVE
                                                                                  from £9.26
                                                                                  from £9.26
                                                                                  valve - D - MJ 1994>> Genuine Porsche Part - New In stock
                                                                                  # 27
                                                                                  MPN: 91462820311
                                                                                  JET
                                                                                  from £18.27
                                                                                  from £18.27
                                                                                  jet - D - MJ 1984>> - MJ 1984 Genuine Porsche Part - New In stock
                                                                                  # 27
                                                                                  MPN: 94462891100
                                                                                  JET - HEATABLE
                                                                                  from £30.20
                                                                                  from £30.20
                                                                                  jet - Heatable - D >> - MJ 1984 Genuine Porsche Part - New (to order)
                                                                                  # 29
                                                                                  MPN: 91162899900
                                                                                  VALVE
                                                                                  from £16.41
                                                                                  from £16.41
                                                                                  valve - D >> - MJ 1980 Genuine Porsche Part - New (to order)
                                                                                  # 32
                                                                                  MPN: 477955679A
                                                                                  PUMP FOR HEADLIGHT- - WASHER SYSTEM - ALSO USE:
                                                                                  --PCG90103240
                                                                                  PUMP FOR HEADLIGHT- - WASHER SYSTEM - ALSO USE: Genuine Porsche Part - New (to order)
                                                                                  # 35
                                                                                  MPN: 91162874800
                                                                                  VALVE
                                                                                  from £3.20
                                                                                  from £3.20
                                                                                  VALVE Genuine Porsche Part - New (to order)
                                                                                  # 38
                                                                                  MPN: 91162873500
                                                                                  THREADED COVER - DISCONTINUED PART
                                                                                  THREADED COVER - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                                                  # 38
                                                                                  MPN: 91162873501
                                                                                  THREADED COVER
                                                                                  from £13.14
                                                                                  from £13.14
                                                                                  THREADED COVER Genuine Porsche Part - New (to order)
                                                                                  # 39
                                                                                  MPN: 91162873700
                                                                                  CONNECTION PIECE
                                                                                  from £15.04
                                                                                  from £15.04
                                                                                  CONNECTION PIECE Genuine Porsche Part - New (to order)
                                                                                  # 40
                                                                                  MPN: 91162874300
                                                                                  CLOSING GASKET
                                                                                  from £2.56
                                                                                  from £2.56
                                                                                  CLOSING GASKET Genuine Porsche Part - New (to order)
                                                                                  # -
                                                                                  -
                                                                                  Hose - PVC 10 X 14
                                                                                  # 43
                                                                                  -
                                                                                  SHORTEN TO:
                                                                                  330 MM
                                                                                  # 43
                                                                                  -
                                                                                  SHORTEN TO: - FOR VEHICLES WITH - AIR CONDITIONER
                                                                                  140 MM
                                                                                  # 44
                                                                                  MPN: 99951213402
                                                                                  HOSE CLIP
                                                                                  12-20 X 9
                                                                                  from £3.43
                                                                                  from £3.43
                                                                                  hose clip - D - MJ 1969>> Genuine Porsche Part - New (to order)
                                                                                  # 45
                                                                                  MPN: 021119569A
                                                                                  RUBBER GROMMET
                                                                                  from £6.59
                                                                                  from £6.59
                                                                                  RUBBER GROMMET Genuine Porsche Part - New (to order)
                                                                                  # 47
                                                                                  MPN: 90091803140
                                                                                  PRESSURE HOSE - 10 X 12,5 - DISCONTINUED PART
                                                                                  from £8.46
                                                                                  from £8.46
                                                                                  pressure hose - PA 11 - for vehicles with - air conditioner - Discontinued part Genuine Porsche Part - New (to order)
                                                                                  # 47
                                                                                  MPN: 9009180314B
                                                                                  PRESSURE HOSE - 10 X 12,5
                                                                                  from £28.98
                                                                                  from £28.98
                                                                                  pressure hose - PA 11 - for vehicles with - air conditioner Genuine Porsche Part - New (to order)
                                                                                  # 47
                                                                                  MPN: 90091803140
                                                                                  PRESSURE HOSE - DISCONTINUED PART
                                                                                  from £8.46
                                                                                  from £8.46
                                                                                  pressure hose - PA 11 - for vehicles with - air conditioner - Discontinued part Genuine Porsche Part - New (to order)
                                                                                  # 47
                                                                                  MPN: 9009180314B
                                                                                  PRESSURE HOSE
                                                                                  from £28.98
                                                                                  from £28.98
                                                                                  pressure hose - PA 11 - for vehicles with - air conditioner Genuine Porsche Part - New (to order)
                                                                                  # 47
                                                                                  MPN: 90091803140
                                                                                  pressure hose - PA 11 - for vehicles with - air conditioner - Discontinued part
                                                                                  from £8.46
                                                                                  from £8.46
                                                                                  pressure hose - PA 11 - for vehicles with - air conditioner - Discontinued part Genuine Porsche Part - New (to order)
                                                                                  # 47
                                                                                  MPN: 9009180314B
                                                                                  pressure hose - PA 11 - for vehicles with - air conditioner
                                                                                  from £28.98
                                                                                  from £28.98
                                                                                  pressure hose - PA 11 - for vehicles with - air conditioner Genuine Porsche Part - New (to order)
                                                                                  # 48
                                                                                  MPN: 91462841310
                                                                                  DISTRIBUTOR PIECE
                                                                                  from £14.08
                                                                                  from £14.08
                                                                                  DISTRIBUTOR PIECE Genuine Porsche Part - New (to order)
                                                                                  # -
                                                                                  -
                                                                                  HOSE CLAMP
                                                                                  This part replaces part number 90027200302
                                                                                  # 49
                                                                                  MPN: 411941189
                                                                                  GROMMET
                                                                                  GROMMET Genuine Porsche Part - New (to order)
                                                                                  # -
                                                                                  -
                                                                                  PRESSURE HOSE - 10 X 12,5 - 780 MM - 480 MM - DISCONTINUED PART
                                                                                  # 50
                                                                                  MPN: 9009180314B
                                                                                  PRESSURE HOSE - 10 X 12 - 780MM
                                                                                  from £28.98
                                                                                  from £28.98
                                                                                  pressure hose - PA 11 - for vehicles with - air conditioner Genuine Porsche Part - New (to order)
                                                                                  # 51
                                                                                  MPN: 9009180314B
                                                                                  PRESSURE HOSE - 10 X 12 - 480MM
                                                                                  from £28.98
                                                                                  from £28.98
                                                                                  pressure hose - PA 11 - for vehicles with - air conditioner Genuine Porsche Part - New (to order)
                                                                                  # 53
                                                                                  MPN: 113955187
                                                                                  VALVE
                                                                                  from £23.35
                                                                                  from £23.35
                                                                                  VALVE Genuine Porsche Part - New (to order)
                                                                                  # 54
                                                                                  MPN: 91162808500
                                                                                  JET - DISCONTINUED PART
                                                                                  JET - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                                                  # 54
                                                                                  MPN: 91162808502
                                                                                  JET
                                                                                  from £55.07
                                                                                  from £55.07
                                                                                  JET Genuine Porsche Part - New (to order)
                                                                                  # 55
                                                                                  MPN: 91162808600
                                                                                  JET - DISCONTINUED PART
                                                                                  JET - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                                                  # 55
                                                                                  MPN: 91162808601
                                                                                  JET
                                                                                  from £55.06
                                                                                  from £55.06
                                                                                  JET Genuine Porsche Part - New (to order)
                                                                                  # 56
                                                                                  MPN: 91162880700
                                                                                  packing - Nozzle holder
                                                                                  from £14.46
                                                                                  from £14.46
                                                                                  packing - Nozzle holder Genuine Porsche Part - New (to order)
                                                                                  # 57
                                                                                  MPN: 91162880800
                                                                                  packing - Nozzle holder
                                                                                  from £14.46
                                                                                  from £14.46
                                                                                  packing - Nozzle holder Genuine Porsche Part - New (to order)
                                                                                  # 58
                                                                                  MPN: 113955199
                                                                                  RETAINING SPRING
                                                                                  from £6.95
                                                                                  from £6.95
                                                                                  RETAINING SPRING Genuine Porsche Part - New (to order)
                                                                                  # 60
                                                                                  MPN: N 0139687
                                                                                  tapping screw - B 4,8 X 13 - Discontinued part
                                                                                  TAPPING SCREW - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                                                  # 60
                                                                                  MPN: 90014309701
                                                                                  TAPPING SCREW - B 4,8 X 13
                                                                                  from £1.02
                                                                                  from £1.02
                                                                                  tapping screw - BZ 4,8 X 13 Genuine Porsche Part - New (to order)
                                                                                  # 61
                                                                                  MPN: 111971521A
                                                                                  HOSE
                                                                                  from £3.89
                                                                                  from £3.89
                                                                                  HOSE Genuine Porsche Part - New (to order)
