porsche 1985 (911) pedals - throttle control parts diagram

702-010 - PEDALS - THROTTLE CONTROL

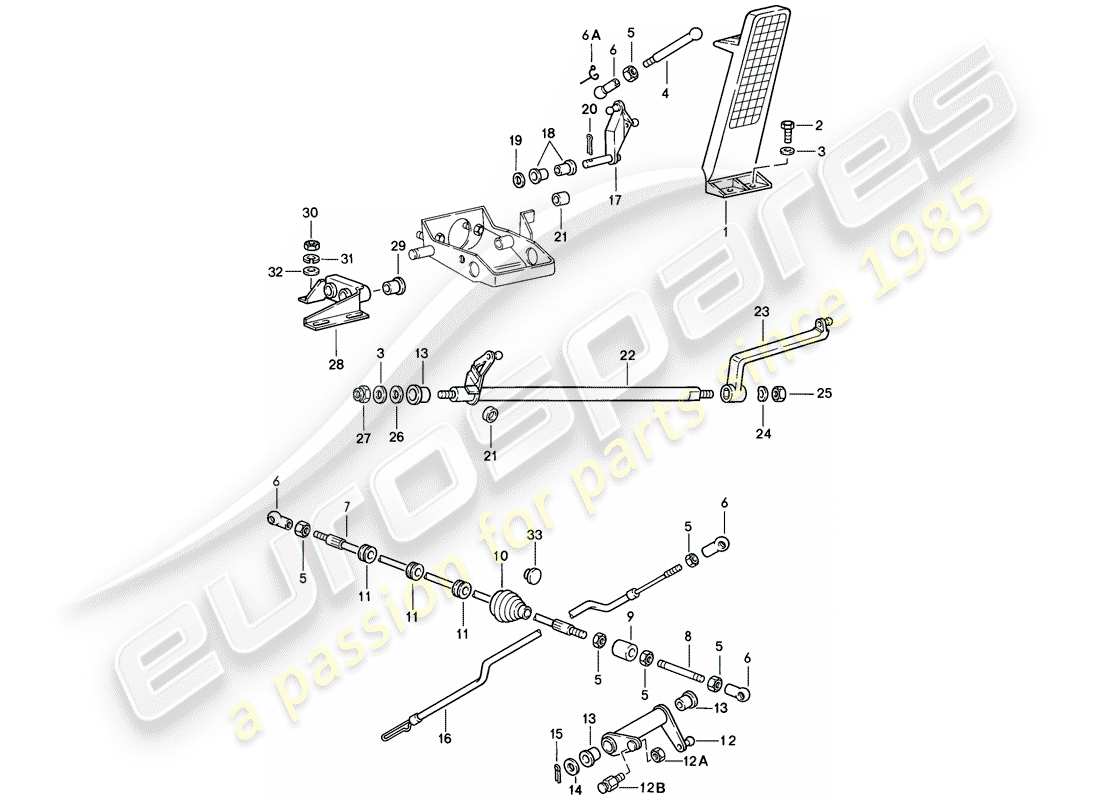

Porsche 1985 (911) PEDALS - THROTTLE CONTROL Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Key
                                      Price
                                      # 1
                                      MPN: 91142311102
                                      ACCELERATOR PEDAL - DISCONTINUED PART
                                      ACCELERATOR PEDAL - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                      # 1
                                      MPN: 91142311103
                                      Accelerator Pedal
                                      from £28.27
                                      from £28.27
                                      accelerator pedal - D - MJ 1976>> Genuine Porsche Part - New (to order)
                                      # 2
                                      MPN: 90007526002
                                      SCREW, HEX. HD. - M 6 X 16 - DISCONTINUED PART
                                      Supersession
                                      Supersession
                                      Genuine Porsche Part (no longer available to order)
                                      # 2
                                      MPN: N 01021513
                                      SCREW, HEX. HD. - M 6 X 15
                                      from £2.09
                                      from £2.09
                                      screw, hex. hd. - M6 X 15 Genuine Porsche Part - New (to order)
                                      # 4
                                      MPN: 91442322700
                                      PUSH ROD FOR - ACCELERATOR PEDAL - DISCONTINUED PART
                                      PUSH ROD FOR - ACCELERATOR PEDAL - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                      # 4
                                      MPN: 91442322701
                                      PUSH ROD FOR - ACCELERATOR PEDAL
                                      from £20.41
                                      from £20.41
                                      PUSH ROD FOR - ACCELERATOR PEDAL Genuine Porsche Part - New (to order)
                                      # 5
                                      MPN: N 01100514
                                      HEX. NUT - M 5 - DISCONTINUED PART
                                      hex. nut - M 5 - See technical information - GR. X NR. 15 - Discontinued part Genuine Porsche Part - New (to order)
                                      # 5
                                      MPN: 90007609101
                                      hex. nut - M 5
                                      from £1.00
                                      from £1.00
                                      hex. nut - M 5 - See technical information - GR. X NR. 15 Genuine Porsche Part - New In stock
                                      # 6
                                      MPN: 91142314700
                                      BALL SOCKET
                                      Supersession
                                      Supersession
                                      Genuine Porsche Part (no longer available to order)
                                      # 6
                                      MPN: 90016901402
                                      SECURING CLIP - DISCONTINUED PART
                                      securing clip - S 8 - Discontinued part Genuine Porsche Part - New (to order)
                                      # 6
                                      MPN: 90016901401
                                      SECURING CLIP
                                      from £3.69
                                      from £3.69
                                      securing clip - S 8 Genuine Porsche Part - New (to order)
                                      # 7
                                      MPN: PCG42302400
                                      THROTTLE LINKAGE
                                      from £74.16
                                      from £74.16
                                      Throttle linkage - D - MJ 1972>> Genuine Porsche Part - New (to order)
                                      # 8
                                      MPN: 90142322301
                                      EXTENSION ROD
                                      from £4.60
                                      from £4.60
                                      EXTENSION ROD Genuine Porsche Part - New (to order)
                                      # 9
                                      MPN: 91142308102
                                      HOUSING
                                      from £75.79
                                      from £75.79
                                      housing - intermediate piece Genuine Porsche Part - New (to order)
                                      # 10
                                      MPN: 91142359301
                                      Sealing sleeve - D >> - MJ 1985 - Discontinued part
                                      from £12.51
                                      from £12.51
                                      Sealing sleeve - D >> - MJ 1985 - Genuine Porsche Part - New (to order)
                                      # 10
                                      MPN: 91142359301
                                      SEALING SLEEVE
                                      from £12.51
                                      from £12.51
                                      Sealing sleeve - D >> - MJ 1985 - Genuine Porsche Part - New (to order)
                                      # 11
                                      MPN: 90142322700
                                      SLIDING BUSH
                                      from £11.93
                                      from £11.93
                                      SLIDING BUSH Genuine Porsche Part - New (to order)
                                      # 12
                                      MPN: 91142301701
                                      RELAY LEVER - ALSO USE:
                                      -911 423 227 00-900 910 096 02 (CARRERA)
                                      from £79.78
                                      from £79.78
                                      relay lever - mitverwenden - 911.423.227.00 - 900.910.096.02 Genuine Porsche Part - New (to order)
                                      # 12
                                      MPN: 93042301701
                                      RELAY LEVER
                                      (TURBO)
                                      from £79.78
                                      from £79.78
                                      relay lever - D >> - MJ 1988 Genuine Porsche Part - New (to order)
                                      # 12
                                      MPN: 90091001002
                                      LOCK NUT - DISCONTINUED PART
                                      lock nut - VF M6 Genuine Porsche Part - New (to order)
                                      # 12
                                      MPN: 90091009602
                                      LOCK NUT
                                      from £6.45
                                      from £6.45
                                      LOCK NUT - VM 6 - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                      # 12
                                      MPN: 91142322700
                                      SCREW BOLT
                                      from £9.42
                                      from £9.42
                                      SCREW BOLT Genuine Porsche Part - New (to order)
                                      # 13
                                      MPN: 91442321100
                                      BUSHING
                                      Supersession
                                      Supersession
                                      Genuine Porsche Part (no longer available to order)
                                      # 14
                                      MPN: 90002500809
                                      WASHER - 10,5 - DISCONTINUED PART
                                      Washer - Discontinued part Genuine Porsche Part - New (to order)
                                      # 14
                                      MPN: 90002500804
                                      WASHER - 10,5
                                      from £0.80
                                      from £0.80
                                      This part replaces part number 90002500802
                                      WASHER - B8,4 Genuine Porsche Part - New In stock
                                      # 14
                                      MPN: 9000250080E
                                      WASHER - 10,5
                                      Yellow
                                      from £0.62
                                      from £0.62
                                      WASHER - B8,4 Genuine Porsche Part - New (to order)
                                      # 15
                                      MPN: N 0125301
                                      cotter pin - 3,2 X 15
                                      from £0.60
                                      from £0.60
                                      cotter pin - 3,2 X 15 Genuine Porsche Part - New (to order)
                                      # 16
                                      MPN: 91142304301
                                      THROTTLE LINKAGE
                                      (CARRERA)
                                      from £50.51
                                      from £50.51
                                      THROTTLE LINKAGE Genuine Porsche Part - New (to order)
                                      # 16
                                      MPN: 93042301902
                                      THROTTLE LINKAGE
                                      (TURBO)
                                      from £84.49
                                      from £84.49
                                      THROTTLE LINKAGE Genuine Porsche Part - New (to order)
                                      # 17
                                      MPN: 90142325002
                                      RELAY LEVER
                                      from £53.03
                                      from £53.03
                                      RELAY LEVER Genuine Porsche Part - New (to order)
                                      # 18
                                      MPN: 90142325300
                                      BUSHING
                                      from £3.92
                                      from £3.92
                                      BUSHING Genuine Porsche Part - New (to order)
                                      # 20
                                      MPN: 90002100800
                                      cotter pin - Discontinued part
                                      cotter pin - Discontinued part Genuine Porsche Part - New (to order)
                                      # 20
                                      MPN: 9000210080A
                                      COTTER PIN
                                      from £0.47
                                      from £0.47
                                      cotter pin - 2 X 15 - Hinge bolt Genuine Porsche Part - New (to order)
                                      # 21
                                      MPN: 90142319300
                                      RUBBER STOP
                                      from £1.06
                                      from £1.06
                                      RUBBER STOP Genuine Porsche Part - New (to order)
                                      # 23
                                      MPN: 90142302200
                                      LEVER
                                      RHD
                                      from £166.64
                                      from £166.64
                                      lever - for - throttle control Genuine Porsche Part - New (to order)
                                      # 24
                                      MPN: N 0122265
                                      SPRING WASHER - B 6
                                      RHD
                                      from £0.70
                                      from £0.70
                                      spring washer - M6X16 Genuine Porsche Part - New In stock
                                      # 25
                                      MPN: 90007601002
                                      NUT - M 6 - DISCONTINUED PART
                                      RHD
                                      nut - M6 - Discontinued part Genuine Porsche Part - New (to order)
                                      # 25
                                      MPN: 9000760100B
                                      NUT - M 6
                                      RHD
                                      Supersession
                                      Supersession
                                      Genuine Porsche Part (no longer available to order)
                                      # 26
                                      MPN: 91142322500
                                      WASHER
                                      RHD
                                      WASHER Genuine Porsche Part - New (to order)
                                      # 27
                                      MPN: 90091001202
                                      LOCK NUT - M 6 - DISCONTINUED PART
                                      RHD
                                      lock nut - NM 6 - Discontinued part Genuine Porsche Part - New (to order)
                                      # 27
                                      MPN: 90091004709
                                      LOCK NUT - M 6
                                      RHD
                                      from £3.80
                                      from £3.80
                                      lock nut - NM 6 Genuine Porsche Part - New (to order)
                                      # 28
                                      MPN: 90142301300
                                      BRACKET
                                      RHD
                                      from £173.32
                                      from £173.32
                                      BRACKET Genuine Porsche Part - New (to order)
                                      # 29
                                      MPN: 91142334101
                                      BUSH
                                      RHD
                                      Supersession
                                      Supersession
                                      Genuine Porsche Part (no longer available to order)
                                      # 30
                                      MPN: 90007602502
                                      HEX. NUT - M 8 - DISCONTINUED PART
                                      RHD
                                      Supersession
                                      Supersession
                                      Genuine Porsche Part (no longer available to order)
                                      # 30
                                      MPN: 90007606402
                                      hex. nut - M 8
                                      RHD
                                      from £0.59
                                      from £0.59
                                      hex. nut - SW 13 M 8 Genuine Porsche Part - New (to order)
                                      # 31
                                      MPN: 90002701502
                                      LOCK RING - B 8 - DISCONTINUED PART
                                      RHD
                                      lock ring - M 10 Genuine Porsche Part - New (to order)
                                      # 31
                                      MPN: 90002701503
                                      LOCK RING - B 8
                                      RHD
                                      from £0.86
                                      from £0.86
                                      lock ring - M 10 Genuine Porsche Part - New In stock
                                      # 32
                                      MPN: 90002500702
                                      WASHER - 8,4 - DISCONTINUED PART
                                      RHD
                                      Washer - M 8,4 - Discontinued part Genuine Porsche Part - New (to order)
                                      # 32
                                      MPN: 90002500703
                                      WASHER - 8,4
                                      RHD
                                      from £0.84
                                      from £0.84
                                      Washer - M 8,4 Genuine Porsche Part - New In stock
