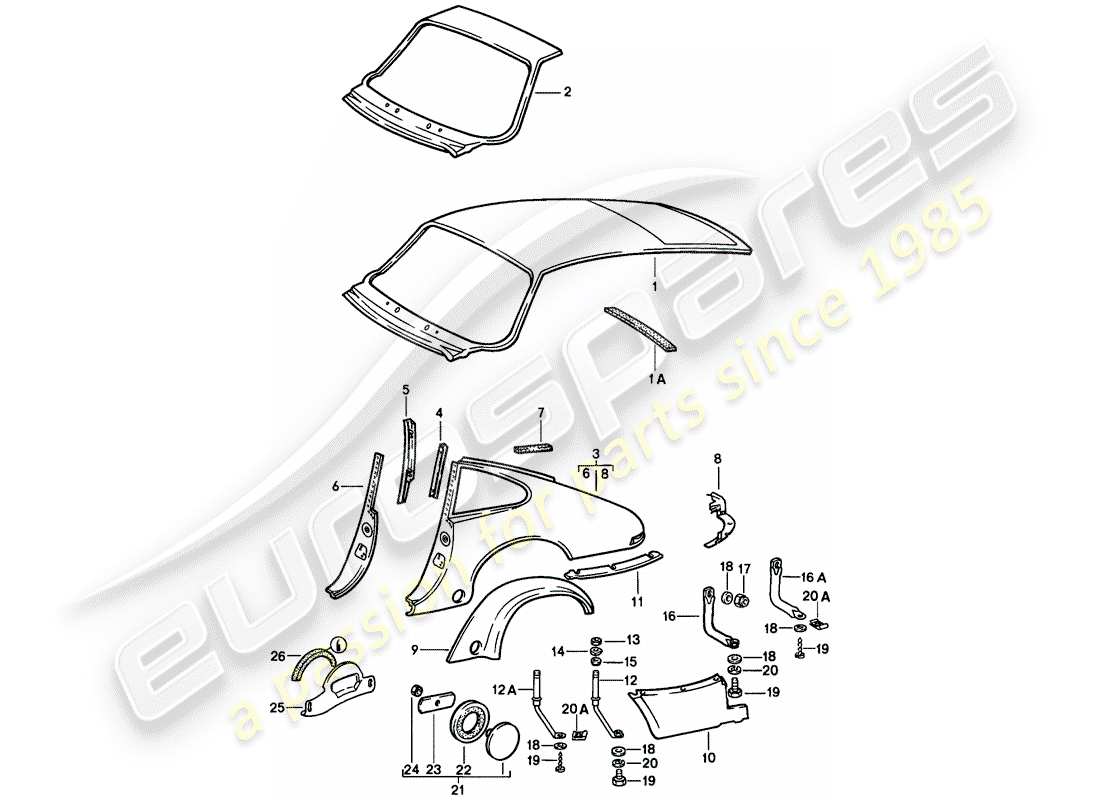

801-035 - EXTERIOR PANELLING - TO FIT USE WORKSHOP MATERIAL - ALSO USE:
Porsche 1986 (911) EXTERIOR PANELLING - TO FIT USE WORKSHOP MATERIAL - ALSO USE: Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# -
MPN: 92862807700
jet - Heatable - D - MJ 1985>> - MJ 1985
# 1
MPN: 91150308708
outer roof panel
(Coupe)
# 1
MPN: 91150308709
outer roof panel
(Coupe PR:650)
# 1
MPN: 91150350701
PLASTIC FOAM STRIP - BLEEDING
(Coupe)
# 2
MPN: 90150309021
WINDSCREEN FRAME PART - ALSO USE: - D >> - MJ 1984 - DISCONTINUED PART
(Coupe)
# -
-
jet - D - MJ 1985>> - MJ 1985
# 2
MPN: 91150398700
WINDSCREEN FRAME PART - D - MJ 1985>> - MJ 1985 - DISCONTINUED PART
(Coupe)
# 2
MPN: 91150398701
Windscreen frame part - Discontinued part
(Coupe)
# 2
MPN: 91150398701
WINDSCREEN FRAME PART
(Coupe)
# 3
MPN: 91150306110
side panel - F >> 91-GS103 135 - F >> 91-GS109 692 - Discontinued part
left (COUPE COUPE COUPE \\J..\\,\\USA\\)
# 3
MPN: 91150306110
side panel - F >> 91-GS103 135 - F >> 91-GS109 692
left (COUPE COUPE COUPE \\J..\\,\\USA\\)
# -
-
CAP - BEHIND - LOCK PILLAR
LEFT-LEFT
# 3
MPN: 91150306111
side panel - F 91-GS103 136>> - F 91-GS109 693>>
left (COUPE COUPE COUPE \\J..\\,\\USA\\)
# 3
MPN: 93050306101
side panel - F >> 91-GS101 337 - F >> 91-GS109 622 - F >> 93-GS000 371 - Discontinued part
left (TURBO COUPE COUPE TURBO PR:491 \\J..\\)
# 3
MPN: 93050306101
SIDE PANEL - F >> 91-GS101 337 - F >> 91-GS109 622 - F >> 93-GS000 371
left (TURBO COUPE COUPE TURBO PR:491 \\J..\\)
# -
-
cap - Behind - Lock pillar - with: - POS. 9
left-left ( COUPE)
# 3
MPN: 93050306102
side panel - F 91-GS101 338>> - F 91-GS109 623>> - F 93-GS000 372>> - with: - POS. (9)
left (TURBO COUPE COUPE TURBO COUPE PR:491 \\J..\\)
# 3
MPN: 91150306210
side panel - F >> 91-GS103 135 - F >> 91-GS109 692 - Discontinued part
right (COUPE COUPE COUPE \\J..\\,\\USA\\)
# 3
MPN: 91150306210
side panel - F >> 91-GS103 135 - F >> 91-GS109 692
right (COUPE COUPE COUPE \\J..\\,\\USA\\)
# 3
MPN: 91150306211
side panel - F 91-GS103 136>> - F 91-GS109 693>>
right (COUPE COUPE COUPE \\J..\\,\\USA\\)
# 3
MPN: 93050306201
side panel - F >> 91-GS101 337 - F >> 91-GS109 622 - F >> 93-GS000 371 - Discontinued part
right (TURBO COUPE COUPE TURBO PR:491 \\J..\\)
# 3
MPN: 93050306201
SIDE PANEL - F >> 91-GS101 337 - F >> 91-GS109 622 - F >> 93-GS000 371
right (TURBO COUPE COUPE TURBO PR:491 \\J..\\)
# -
-
WITH: - POS. 9
(Coupe PR:491)
# 3
MPN: 93050306202
side panel - F 91-GS101 338>> - F 91-GS109 623>> - F 93-GS000 372>>
right (TURBO COUPE COUPE TURBO PR:491 \\J..\\)
# -
-
WITH: - POS. (9)
(Coupe PR:491)
# 4
MPN: 91150319300
retaining strip - Sealing frame
# 5
MPN: 91150204302
LOCK PILLAR - INNER PANEL
LEFT
# 5
MPN: 91150204402
LOCK PILLAR - INNER PANEL
RIGHT
# 6
MPN: 91150204103
Lock pillar - D >> - MJ 1986
LEFT
# 6
MPN: 91150204104
Lock pillar - D - MJ 1987>>
LEFT
# 6
MPN: 96450204100
LOCK PILLAR - F 91-GS103 136>> - F 91-GS109 693>> - DISCONTINUED PART
left (\\J..\\,\\USA\\ COUPE COUPE)
# -
-
CAP - BEHIND - LOCK PILLAR
# 6
MPN: 91150204203
Lock pillar - D >> - MJ 1986
RIGHT
# 6
MPN: 91150204204
Lock pillar - D - MJ 1987>>
RIGHT
# 7
MPN: 91150493300
seal strip - wheel housing
LEFT
# 7
MPN: 91150493400
seal strip - wheel housing
RIGHT
# 8
MPN: 91150307300
channel - Rear light - Discontinued part
LEFT
# 8
MPN: 91150307300
CHANNEL
LEFT
# 8
MPN: 91150307400
channel - Rear light - Discontinued part
RIGHT
# 8
MPN: 91150307400
CHANNEL - REAR LIGHT
RIGHT
# 9
MPN: 93050360700
Wing joining plate - F >> 91-GS101 337 - F >> 91-GS109 622 - F >> 93-GS000 371 - Discontinued part
left (TURBO COUPE COUPE TURBO PR:491 \\J..\\)
# 9
MPN: 93050360700
WING JOINING PLATE - F >> 91-GS101 337 - F >> 91-GS109 622 - F >> 93-GS000 371
left (TURBO COUPE COUPE TURBO PR:491 \\J..\\)
# -
-
FOR - COUPE
(PR:491)
# 9
MPN: 93050360800
Wing joining plate - F >> 91-GS101 337 - F >> 91-GS109 622 - F >> 93-GS000 371 - Discontinued part
right (TURBO COUPE COUPE TURBO PR:491 \\J..\\)
# 9
MPN: 93050360800
WING JOINING PLATE - F >> 91-GS101 337 - F >> 91-GS109 622 - F >> 93-GS000 371 - - REWORK IF NECESSARY
right (TURBO COUPE COUPE TURBO PR:491 \\J..\\)
# -
-
FOR - COUPE
(Coupe PR:491)
# 9
MPN: 93050360700
WING JOINING PLATE
left (TARGA CABRIO PR:491 \\J..\\)
# 9
MPN: 93050360800
WING JOINING PLATE - - C=GUELTIG BIS: - F >> 91-GS140 695 - F >> 91-GS150 881 - F >> 91-GS149 564 - F >> 91-GS159 569 - - REWORK IF NECESSARY
right (TARGA CABRIO TARGA CABRIO TARGA CABRIO PR:491 \\J..\\)
# 9
MPN: 93050390700
WING JOINING PLATE - - F 91-GS101 338>> - F 91-GS109 623>> - F 93-GS000 372>> - DISCONTINUED PART
left (TURBO COUPE COUPE COUPE TURBO PR:491 \\J..\\)
# 9
MPN: 93050390700
Wing joining plate - - F 91-GS101 338>> - F 91-GS109 623>> - F 93-GS000 372>>
left (TURBO COUPE COUPE COUPE TURBO PR:491 \\J..\\)
# 9
MPN: 93050390800
WING JOINING PLATE - - F 91-GS101 338>> - F 91-GS109 623>> - F 93-GS000 372>> - DISCONTINUED PART
right (TURBO COUPE COUPE COUPE TURBO PR:491 \\J..\\)
# 9
MPN: 93050390800
Wing joining plate - - F 91-GS101 338>> - F 91-GS109 623>> - F 93-GS000 372>>
right (TURBO COUPE COUPE COUPE TURBO PR:491 \\J..\\)
# 9
MPN: 93050390700
WING JOINING PLATE - - DISCONTINUED PART
left (TARGA CABRIO PR:491 \\J..\\)
# 9
MPN: 93050390700
WING JOINING PLATE
left (TARGA CABRIO PR:491 \\J..\\)
# 9
MPN: 93050390800
WING JOINING PLATE - - DISCONTINUED PART
right (TARGA CABRIO PR:491 \\J..\\)
# 9
MPN: 93050390800
WING JOINING PLATE
right (TARGA CABRIO PR:491 \\J..\\)
# 10
MPN: 91150306703
lower part for side panel - Discontinued part
left (CARRERA)
# 10
MPN: 91150306703
LOWER PART FOR SIDE PANEL
left (CARRERA)
# 10
MPN: 93050306700
LOWER PART FOR SIDE PANEL
left (TURBO CARRERA PR:491)
# 10
MPN: 91150306803
lower part for side panel - Discontinued part
right (CARRERA)
# 10
MPN: 91150306803
LOWER PART FOR SIDE PANEL
right (CARRERA)
# 10
MPN: 93050306800
LOWER PART FOR SIDE PANEL - - DISCONTINUED PART
right (TURBO CARRERA PR:491)
from £118.12
from £118.12
# 10
MPN: 93050306801
LOWER PART FOR SIDE PANEL
right (TURBO)
# 11
MPN: 91150318501
INTERMEDIATE LAYER
left (CARRERA)
from £5.79
from £5.79
# 11
MPN: 91150318601
INTERMEDIATE LAYER
right (CARRERA)
from £7.40
from £7.40
# -
-
SET - BEADING - BODY SHELL - COMPRISING:
76-89-front and rear
# -
-
INTERMEDIATE LAYER
# -
-
INTERMEDIATE LAYER
# -
-
INTERMEDIATE LAYER
# -
-
INTERMEDIATE LAYER
# -
-
WING SEAL
# -
-
GASKET
# 11
MPN: 93050319700
BEADING
(Turbo PR:491)
from £9.10
from £9.10
# -
-
SET - BEADING - BODY SHELL - COMPRISING:
77-89-front and rear (TURBO)
# -
-
BEADING
# -
-
BEADING
# 11
MPN: 00004320481
INTERMEDIATE LAYER
(TURBO CARRERA PR:491)
from £23.16
from £23.16
# 12
MPN: 91150162302
SUPPORT TUBE
FRONT
from £76.86
from £76.86
# 13
MPN: 90007800902
HEX. NUT - M 20 X 1,5
from £4.20
from £4.20
# 14
MPN: 90002502102
WASHER
from £2.71
from £2.71
# 15
MPN: 90150191321
SEAL RING
from £4.70
from £4.70
# 16
MPN: 93050162801
SUPPORT TUBE - D >> - MJ 1985
LEFT REAR
from £22.01
from £22.01
# 16
MPN: 91150162801
SUPPORT TUBE - D >> - MJ 1985 - DISCONTINUED PART
RIGHT REAR
Supersession
Supersession
# 16
MPN: 93050162801
support tube - D - MJ 1986>>
LEFT REAR
from £22.01
from £22.01
# 16
MPN: 91150162801
SUPPORT TUBE
RIGHT REAR
Supersession
Supersession
# 17
MPN: 90008400302
lock nut - M 6 - Self-locking
# 18
MPN: 90015100609
WASHER - 6,4
Supersession
Supersession
# 19
MPN: 90007422102
screw, hex. hd. - M 6 X 12 - D >> - MJ 1985
# 19
MPN: 90018710802
TAPPING SCREW - BZ 6,3 X 16 - D - MJ 1986>> - DISCONTINUED PART
# 19
MPN: 90018710801
tapping screw - BZ 6,3 X 16 - D - MJ 1986>>
from £1.31
from £1.31
# 20
MPN: N 0120072
LOCK RING - A 6 - DISCONTINUED PART
# 20
MPN: 90002700403
LOCK RING - A 6
from £0.63
from £0.63
# 20
MPN: 99950704803
speed nut - B 6,3 - D - MJ 1986>>
from £1.12
from £1.12
# 21
MPN: 90150407900
SPRING COVER
M 491-M 491 (TURBO/COUPE TARGA/CABRIO PR:491 \\J..\\)
from £25.74
from £25.74
# 21
MPN: 90150407900
Spring cover - F >> 91-GS103 135 - F >> 91-GS109 692
(CARRERA COUPE COUPE \\J..\\,\\USA\\)
from £25.74
from £25.74
# 22
MPN: 90150475901
PACKING
M 491-M 491 (TURBO/COUPE TARGA/CABRIO PR:491 \\J..\\)
from £2.70
from £2.70
# 22
MPN: 90150475901
packing - F >> 91-GS103 135 - F >> 91-GS109 692
(CARRERA COUPE COUPE \\J..\\,\\USA\\)
from £2.70
from £2.70
# 23
MPN: 90150475520
Retaining Clip
M 491-M 491 (TURBO/COUPE TARGA/CABRIO PR:491 \\J..\\)
from £6.47
from £6.47
# 23
MPN: 90150475520
retaining clip - F >> 91-GS103 135 - F >> 91-GS109 692
(CARRERA COUPE COUPE \\J..\\,\\USA\\)
from £6.47
from £6.47
# 24
MPN: N 01100514
HEX. NUT - M 5 - DISCONTINUED PART
M 491-M 491 (TURBO/COUPE TARGA/CABRIO PR:491 \\J..\\)
# 24
MPN: 90007609101
hex. nut - M 5
M 491-M 491 (TURBO/COUPE TARGA/CABRIO PR:491 \\J..\\)
from £1.00
from £1.00
# 24
MPN: N 01100514
hex. nut - M 5 - F >> 91-GS103 135 - F >> 91-GS109 692 - Discontinued part
(CARRERA COUPE COUPE \\J..\\,\\USA\\)
# 24
MPN: 90007609101
HEX. NUT - M 5 - F >> 91-GS103 135 - F >> 91-GS109 692
(CARRERA COUPE COUPE \\J..\\,\\USA\\)
from £1.00
from £1.00
# 25
MPN: 93050475300
SPRING COVER - - DISCONTINUED PART
left-left (TURBO/COUPE TARGA/CABRIO PR:491 \\J..\\)
# 25
MPN: 93050475300
SPRING COVER
left (TURBO/COUPE PR:491)
# 25
MPN: 91150475301
Spring cover - F 91-GS103 136>> - F 91-GS109 693>>
left (CARRERA COUPE COUPE \\J..\\,\\USA\\)
from £32.87
from £32.87
# 25
MPN: 93050475400
SPRING COVER - - DISCONTINUED PART
right-right (TURBO/COUPE TARGA/CABRIO PR:491 \\J..\\)
# 25
MPN: 93050475400
SPRING COVER
right (TURBO/COUPE PR:491)
# 25
MPN: 91150475401
Spring cover - F 91-GS103 136>> - F 91-GS109 693>>
right (CARRERA COUPE COUPE \\J..\\,\\USA\\)
from £32.87
from £32.87
# 26
MPN: 91155951100
gasket - Spring cover - - F 91-GS103 136>> - F 91-GS109 693>>
M 491-M 491 (TURBO/COUPE TARGA/CABRIO CARRERA COUPE COUPE \\J..\\,\\USA\\)
from £4.29
from £4.29
-part-diagram-801-040.webp "PORSCHE 1986 (911) EXTERIOR PANELLING - TO FIT USE WORKSHOP MATERIAL PARTS DIAGRAM")
-part-diagram-802-000.webp "PORSCHE 1986 (911) BUMPER PARTS DIAGRAM")
-part-diagram-802-001.webp "PORSCHE 1986 (911) COVER FOR BUMPER - FRONT SPOILER - CARRERA PARTS DIAGRAM")
-part-diagram-802-005.webp "PORSCHE 1986 (911) BUMPER PARTS DIAGRAM")
-part-diagram-803-000.webp "PORSCHE 1986 (911) COVER PARTS DIAGRAM")
-part-diagram-803-005.webp "PORSCHE 1986 (911) COVER PARTS DIAGRAM")
-part-diagram-803-010.webp "PORSCHE 1986 (911) REAR SPOILER PARTS DIAGRAM")
-part-diagram-804-000.webp "PORSCHE 1986 (911) ACCESSORIES - DOORS PARTS DIAGRAM")
-part-diagram-804-006.webp "PORSCHE 1986 (911) CENTRAL LOCKING SYSTEM PARTS DIAGRAM")
-part-diagram-804-010.webp "PORSCHE 1986 (911) WINDOW REGULATOR PARTS DIAGRAM")
-part-diagram-804-015.webp "PORSCHE 1986 (911) WINDOW FRAME PARTS DIAGRAM")
-part-diagram-804-020.webp "PORSCHE 1986 (911) WINDOW FRAME PARTS DIAGRAM")
-part-diagram-805-000.webp "PORSCHE 1986 (911) WINDOW GLAZING PARTS DIAGRAM")
-part-diagram-805-005.webp "PORSCHE 1986 (911) WINDOW GLAZING - SIDE WINDOW PARTS DIAGRAM")
-part-diagram-805-010.webp "PORSCHE 1986 (911) WINDOW GLAZING PARTS DIAGRAM")
-part-diagram-807-000.webp "PORSCHE 1986 (911) INTERIOR EQUIPMENT PARTS DIAGRAM")
-part-diagram-807-005.webp "PORSCHE 1986 (911) INTERIOR EQUIPMENT PARTS DIAGRAM")
-part-diagram-807-006.webp "PORSCHE 1986 (911) INTERIOR EQUIPMENT - ROOF - ROLL BAR PARTS DIAGRAM")
-part-diagram-807-007.webp "PORSCHE 1986 (911) INTERIOR EQUIPMENT PARTS DIAGRAM")
-part-diagram-807-010.webp "PORSCHE 1986 (911) INTERIOR EQUIPMENT - DOORS PARTS DIAGRAM")
-part-diagram-807-015.webp "PORSCHE 1986 (911) BODY SHELL - SOUND ABSORBERS PARTS DIAGRAM")
-part-diagram-808-000.webp "PORSCHE 1986 (911) FRONT SEAT - COMPLETE - D >> - MJ 1984 PARTS DIAGRAM")
-part-diagram-808-005.webp "PORSCHE 1986 (911) FRONT SEAT - SINGLE PARTS - CLOTH - D >> - MJ 1984 PARTS DIAGRAM")
-part-diagram-808-010.webp "PORSCHE 1986 (911) SPORTS SEAT - COMPLETE - D >> - MJ 1984 PARTS DIAGRAM")
-part-diagram-808-015.webp "PORSCHE 1986 (911) SPORTS SEAT - BACKREST - SINGLE PARTS - D >> - MJ 1984 PARTS DIAGRAM")
-part-diagram-808-017.webp "PORSCHE 1986 (911) SPORTS SEAT - CUSHION - SINGLE PARTS - D >> - MJ 1984 PARTS DIAGRAM")
-part-diagram-808-020.webp "PORSCHE 1986 (911) FRONT SEAT - D - MJ 1985>> PARTS DIAGRAM")
-part-diagram-808-024.webp "PORSCHE 1986 (911) BACKREST FRAME PARTS DIAGRAM")
-part-diagram-808-026.webp "PORSCHE 1986 (911) FRAME FOR SEAT - MANUALLY ADJUSTABLE - D - MJ 1985>> PARTS DIAGRAM")
-part-diagram-808-028.webp "PORSCHE 1986 (911) FRAME FOR SEAT - ELECTRIC PARTS DIAGRAM")
-part-diagram-808-030.webp "PORSCHE 1986 (911) FRONT SEAT - COVER - D - MJ 1985>> PARTS DIAGRAM")
-part-diagram-808-032.webp "PORSCHE 1986 (911) SPORTS SEAT - COMPLETE - D - MJ 1985>> PARTS DIAGRAM")
-part-diagram-808-034.webp "PORSCHE 1986 (911) SPORTS SEAT - BACKREST FRAME PARTS DIAGRAM")
-part-diagram-808-036.webp "PORSCHE 1986 (911) SPORTS SEAT - BACKREST COVER - D - MJ 1985>> PARTS DIAGRAM")
-part-diagram-808-038.webp "PORSCHE 1986 (911) SPORTS SEAT - FRAME FOR SEAT PARTS DIAGRAM")
-part-diagram-808-040.webp "PORSCHE 1986 (911) SPORTS SEAT - COVER - D - MJ 1985>> PARTS DIAGRAM")
-part-diagram-808-050.webp "PORSCHE 1986 (911) EMERGENCY SEAT - BACKREST PARTS DIAGRAM")
-part-diagram-808-055.webp "PORSCHE 1986 (911) EMERGENCY SEAT - BACKREST PARTS DIAGRAM")
-part-diagram-808-056.webp "PORSCHE 1986 (911) BACK SEAT CUSHION PARTS DIAGRAM")
-part-diagram-808-060.webp "PORSCHE 1986 (911) REAR LUGGAGE DUMP PARTS DIAGRAM")
-part-diagram-809-000.webp "PORSCHE 1986 (911) DASH PANEL TRIM - WITH INSTALLATION PARTS - D >> - MJ 1985 PARTS DIAGRAM")
-part-diagram-809-001.webp "PORSCHE 1986 (911) DASH PANEL TRIM - WITH INSTALLATION PARTS - D - MJ 1986>> PARTS DIAGRAM")
-part-diagram-809-005.webp "PORSCHE 1986 (911) GLOVE BOX - SUN VIZORS PARTS DIAGRAM")
-part-diagram-809-010.webp "PORSCHE 1986 (911) REAR VIEW MIRROR INNER - REAR VIEW MIRROR PARTS DIAGRAM")
-part-diagram-809-015.webp "PORSCHE 1986 (911) CENTER CONSOLE PARTS DIAGRAM")
-part-diagram-810-000.webp "PORSCHE 1986 (911) DECORATIVE FITTINGS PARTS DIAGRAM")
-part-diagram-810-005.webp "PORSCHE 1986 (911) DECORATIVE FITTINGS PARTS DIAGRAM")
-part-diagram-811-000.webp "PORSCHE 1986 (911) SUNROOF PARTS DIAGRAM")
-part-diagram-811-005.webp "PORSCHE 1986 (911) SOFT TOP PARTS DIAGRAM")
-part-diagram-811-012.webp "PORSCHE 1986 (911) MAIN BOW - ROOF FRAME - SINGLE PARTS PARTS DIAGRAM")
-part-diagram-811-013.webp "PORSCHE 1986 (911) CONVERTIBLE TOP - BRACKET - SINGLE PARTS PARTS DIAGRAM")
-part-diagram-811-015.webp "PORSCHE 1986 (911) CONVERTIBLE TOP - SEAL STRIP - SINGLE PARTS PARTS DIAGRAM")
-part-diagram-811-016.webp "PORSCHE 1986 (911) BOOT COVER PARTS DIAGRAM")
-part-diagram-811-020.webp "PORSCHE 1986 (911) CONVERTIBLE TOP - TOP FRAME - ELECTRICALLY ADJUSTABLE - D - MJ 1986>> PARTS DIAGRAM")
-part-diagram-811-021.webp "PORSCHE 1986 (911) CONVERTIBLE TOP - DRIVING MECHANISM - D - MJ 1986>> PARTS DIAGRAM")
-part-diagram-811-022.webp "PORSCHE 1986 (911) CONVERTIBLE TOP - CATCH - ELECTRICALLY ADJUSTABLE - D - MJ 1986>> PARTS DIAGRAM")
-part-diagram-811-040.webp "PORSCHE 1986 (911) TONNEAU COVER WITH - FITTINGS - COVER CLIP PARTS DIAGRAM")
-part-diagram-812-000.webp "PORSCHE 1986 (911) SEAT BELT PARTS DIAGRAM")
-part-diagram-812-005.webp "PORSCHE 1986 (911) SEAT BELT PARTS DIAGRAM")
-part-diagram-813-000.webp "PORSCHE 1986 (911) VENTILATION - HEATING SYSTEM 1 PARTS DIAGRAM")
-part-diagram-813-001.webp "PORSCHE 1986 (911) VENTILATION - HEATING SYSTEM 2 PARTS DIAGRAM")
-part-diagram-813-002.webp "PORSCHE 1986 (911) ADDITIONAL BLOWER PARTS DIAGRAM")
-part-diagram-813-005.webp "PORSCHE 1986 (911) AIR CONDITIONER - EVAPORATOR HOUSING - SINGLE PARTS PARTS DIAGRAM")
-part-diagram-813-010.webp "PORSCHE 1986 (911) COOLING AIR DUCT PARTS DIAGRAM")
-part-diagram-813-011.webp "PORSCHE 1986 (911) COOLING AIR DUCT PARTS DIAGRAM")
-part-diagram-813-015.webp "PORSCHE 1986 (911) COMPRESSOR PARTS DIAGRAM")
-part-diagram-813-020.webp "PORSCHE 1986 (911) COMPRESSOR - MOUNTING - AND - DRIVING MECHANISM PARTS DIAGRAM")
-part-diagram-813-040.webp "PORSCHE 1986 (911) ELECTRICAL COMPONENTS - FOR - AIR CONDITIONER PARTS DIAGRAM")
-part-diagram-813-045.webp "PORSCHE 1986 (911) CAPACITOR - REFRIGERANT LINE - ACCESSORIES AND OTHERS PARTS DIAGRAM")
-part-diagram-813-050.webp "PORSCHE 1986 (911) FAN PARTS DIAGRAM")
-part-diagram-813-055.webp "PORSCHE 1986 (911) CAPACITOR - REFRIGERANT LINE - ACCESSORIES AND OTHERS PARTS DIAGRAM")
-part-diagram-901-000.webp "PORSCHE 1986 (911) ENGINE ELECTRICS 1 PARTS DIAGRAM")
-part-diagram-901-002.webp "PORSCHE 1986 (911) ENGINE ELECTRICS 2 PARTS DIAGRAM")
-part-diagram-901-003.webp "PORSCHE 1986 (911) ENGINE ELECTRICS 3 - TECHNICAL INFORMATION - 1/85 GR. 2 PARTS DIAGRAM")
-part-diagram-902-000.webp "PORSCHE 1986 (911) ELECTRONIC CONTROL MODULE - RELAY - FUSE BOX PARTS DIAGRAM")
-part-diagram-902-005.webp "PORSCHE 1986 (911) BATTERY - STARTER - ALTERNATOR PARTS DIAGRAM")
-part-diagram-902-010.webp "PORSCHE 1986 (911) WIRING HARNESSES - PASSENGER COMPARTMENT - BATTERY STARTER CABLE - LUGGAGE COMPARTMENT FLOOR PARTS DIAGRAM")
-part-diagram-902-011.webp "PORSCHE 1986 (911) WIRING HARNESSES - ENGINE PARTS DIAGRAM")
-part-diagram-902-012.webp "PORSCHE 1986 (911) WIRING HARNESSES - FRONT LUGGAGE COMPARTMENT PARTS DIAGRAM")
-part-diagram-902-013.webp "PORSCHE 1986 (911) WIRING HARNESSES - ENGINE COMPARTMENT LIGHT - REAR LIGHT PARTS DIAGRAM")
-part-diagram-902-014.webp "PORSCHE 1986 (911) WIRING HARNESSES - FRONT LUGGAGE COMPARTMENT - INTERIOR LIGHTS - SUNROOF - CONVERTIBLE TOP CONTROL - ELECTRIC PARTS DIAGRAM")
-part-diagram-902-015.webp "PORSCHE 1986 (911) WIRING HARNESSES - REAR VIEW MIRROR - ELECTRICALLY ADJUSTABLE - CENTRAL LOCKING SYSTEM PARTS DIAGRAM")
-part-diagram-902-016.webp "PORSCHE 1986 (911) WIRING HARNESSES - WINDSCREEN HEATING - REAR WINDOW HEATING PARTS DIAGRAM")
-part-diagram-902-017.webp "PORSCHE 1986 (911) WIRING HARNESSES - REAR WINDOW WIPER PARTS DIAGRAM")
-part-diagram-902-018.webp "PORSCHE 1986 (911) WIRING HARNESSES - FRONT LUGGAGE COMPARTMENT - POWER WINDOW PARTS DIAGRAM")
-part-diagram-902-019.webp "PORSCHE 1986 (911) WIRING HARNESSES - HEADLIGHT WASHER SYSTEM - WARNING LIGHTS - FUEL PUMP PARTS DIAGRAM")
-part-diagram-903-000.webp "PORSCHE 1986 (911) FANFARE HORN - SENSOR - FUEL-LEVEL INDICATOR - REVERSE LIGHT SWITCH PARTS DIAGRAM")
-part-diagram-903-005.webp "PORSCHE 1986 (911) SWITCH - RELAY - D >> - MJ 1985 PARTS DIAGRAM")
-part-diagram-903-006.webp "PORSCHE 1986 (911) SWITCH - RELAY - D - MJ 1986>> PARTS DIAGRAM")
-part-diagram-903-007.webp "PORSCHE 1986 (911) PORSCHE CLASSIC - LOUDSPEAKER KIT - SOUND SYSTEM PARTS DIAGRAM")
-part-diagram-903-010.webp "PORSCHE 1986 (911) STEERING COLUMN SWITCH PARTS DIAGRAM")
-part-diagram-903-011.webp "PORSCHE 1986 (911) PIN (MALE) TERMINAL - CONTACT PIN - CABLE SHOE PARTS DIAGRAM")
-part-diagram-903-012.webp "PORSCHE 1986 (911) MALE BLADE TERMINAL - PUSH-ON CONNECTOR PARTS DIAGRAM")
-part-diagram-903-013.webp "PORSCHE 1986 (911) BUTT CONNECTOR - CONNECTOR HOUSING PARTS DIAGRAM")
-part-diagram-903-014.webp "PORSCHE 1986 (911) CONNECTOR HOUSING PARTS DIAGRAM")
-part-diagram-903-015.webp "PORSCHE 1986 (911) CONNECTOR HOUSING PARTS DIAGRAM")
-part-diagram-903-016.webp "PORSCHE 1986 (911) CONNECTOR HOUSING PARTS DIAGRAM")
-part-diagram-903-017.webp "PORSCHE 1986 (911) CONNECTOR HOUSING PARTS DIAGRAM")
-part-diagram-903-018.webp "PORSCHE 1986 (911) CONNECTOR HOUSING PARTS DIAGRAM")
-part-diagram-903-019.webp "PORSCHE 1986 (911) CONNECTOR HOUSING PARTS DIAGRAM")
-part-diagram-904-000.webp "PORSCHE 1986 (911) WINDSCREEN WIPER SYSTEM PARTS DIAGRAM")
-part-diagram-904-005.webp "PORSCHE 1986 (911) REAR WINDOW WIPER PARTS DIAGRAM")
-part-diagram-904-010.webp "PORSCHE 1986 (911) WINDSHIELD WASHER UNIT PARTS DIAGRAM")
-part-diagram-904-015.webp "PORSCHE 1986 (911) INTENSIVE WINDSCREEN WASHER PARTS DIAGRAM")
-part-diagram-904-020.webp "PORSCHE 1986 (911) HEADLIGHT WASHER SYSTEM PARTS DIAGRAM")
-part-diagram-905-000.webp "PORSCHE 1986 (911) HEADLAMP - LIGHTING PARTS DIAGRAM")
-part-diagram-905-005.webp "PORSCHE 1986 (911) INTERIOR LIGHT - FOG LIGHTS - LIGHTS PARTS DIAGRAM")
-part-diagram-906-005.webp "PORSCHE 1986 (911) SPEEDOMETER - 260 KM/H PARTS DIAGRAM")
-part-diagram-907-000.webp "PORSCHE 1986 (911) CRUISE CONTROL SYSTEM PARTS DIAGRAM")
-part-diagram-908-000.webp "PORSCHE 1986 (911) HEATING SYSTEM 1 PARTS DIAGRAM")
-part-diagram-908-005.webp "PORSCHE 1986 (911) HEATING SYSTEM 2 PARTS DIAGRAM")
-part-diagram-909-000.webp "PORSCHE 1986 (911) EMISSION CONTROL PARTS DIAGRAM")
-part-diagram-910-000.webp "PORSCHE 1986 (911) ALARM SYSTEM PARTS DIAGRAM")
-part-diagram-001-000.webp "PORSCHE 1986 (911) TOOL - JACK - SIGNS/NOTICES PARTS DIAGRAM")
-part-diagram-001-001.webp "PORSCHE 1986 (911) CLEANING AGENT - PORSCHE CLASSIC PARTS DIAGRAM")
-part-diagram-001-002.webp "PORSCHE 1986 (911) TOOL KIT BAG PARTS DIAGRAM")
-part-diagram-001-004.webp "PORSCHE 1986 (911) ACCESSORIES - PORSCHE CLASSIC PARTS DIAGRAM")
-part-diagram-001-005.webp "PORSCHE 1986 (911) CUST. LITERATURE/MAINT. PASS - INSTRUCTION MANUAL PARTS DIAGRAM")
-part-diagram-001-010.webp "PORSCHE 1986 (911) IDENTIFICATION PLATE PARTS DIAGRAM")
-part-diagram-001-015.webp "PORSCHE 1986 (911) FLOOR MAT PARTS DIAGRAM")
-part-diagram-002-000.webp "PORSCHE 1986 (911) ACCESSORIES - SNOW CHAINS - WHEEL NUT - TOW HITCH PARTS DIAGRAM")
-part-diagram-002-001.webp "PORSCHE 1986 (911) ACCESSORIES - CHILD SEAT - VEHICLE COVER PARTS DIAGRAM")
-part-diagram-002-005.webp "PORSCHE 1986 (911) ROOF TRANSPORT SYSTEM PARTS DIAGRAM")
-part-diagram-002-006.webp "PORSCHE 1986 (911) ROOF TRANSPORT SYSTEM PARTS DIAGRAM")
-part-diagram-003-000.webp "PORSCHE 1986 (911) RADIO UNIT - INSTALLATION PARTS PARTS DIAGRAM")
-part-diagram-004-000.webp "PORSCHE 1986 (911) LACQUERS - BASIC MATERIALS PARTS DIAGRAM")
-part-diagram-101-000.webp "PORSCHE 1986 (911) REPLACEMENT ENGINE - READY FOR INSTALLATION PARTS DIAGRAM")
-part-diagram-101-005.webp "PORSCHE 1986 (911) CRANKCASE PARTS DIAGRAM")
-part-diagram-101-010.webp "PORSCHE 1986 (911) CRANKCASE PARTS DIAGRAM")
-part-diagram-102-000.webp "PORSCHE 1986 (911) CRANKSHAFT PARTS DIAGRAM")
-part-diagram-102-005.webp "PORSCHE 1986 (911) CYLINDER WITH PISTONS PARTS DIAGRAM")
-part-diagram-103-000.webp "PORSCHE 1986 (911) CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-103-005.webp "PORSCHE 1986 (911) CAMSHAFT HOUSING - CHAIN CASE PARTS DIAGRAM")
-part-diagram-103-010.webp "PORSCHE 1986 (911) VALVE CONTROL PARTS DIAGRAM")
-part-diagram-103-015.webp "PORSCHE 1986 (911) VALVE CONTROL PARTS DIAGRAM")
-part-diagram-104-000.webp "PORSCHE 1986 (911) ENGINE LUBRICATION - OIL PUMP - LINES - SEE TECHNICAL INFORMATION - GR.1 NR.1/1A-85 PARTS DIAGRAM")
-part-diagram-104-001.webp "PORSCHE 1986 (911) ENGINE LUBRICATION - OIL TANK - LINES PARTS DIAGRAM")
-part-diagram-104-002.webp "PORSCHE 1986 (911) OIL SEPARATOR PARTS DIAGRAM")
-part-diagram-104-005.webp "PORSCHE 1986 (911) ENGINE LUBRICATION - OIL COOLER PARTS DIAGRAM")
-part-diagram-105-000.webp "PORSCHE 1986 (911) AIR COOLING PARTS DIAGRAM")
-part-diagram-105-005.webp "PORSCHE 1986 (911) AIR DUCT PARTS DIAGRAM")
-part-diagram-106-000.webp "PORSCHE 1986 (911) AIR CLEANER PARTS DIAGRAM")
-part-diagram-106-005.webp "PORSCHE 1986 (911) AIR CLEANER PARTS DIAGRAM")
-part-diagram-107-000.webp "PORSCHE 1986 (911) FOR - L-JETRONIC I PARTS DIAGRAM")
-part-diagram-107-005.webp "PORSCHE 1986 (911) FOR - L-JETRONIC II PARTS DIAGRAM")
-part-diagram-107-010.webp "PORSCHE 1986 (911) FOR - L-JETRONIC III PARTS DIAGRAM")
-part-diagram-107-012.webp "PORSCHE 1986 (911) THROTTLE LINKAGE - BRACKET PARTS DIAGRAM")
-part-diagram-107-015.webp "PORSCHE 1986 (911) MIXTURE CONTROL UNIT PARTS DIAGRAM")
-part-diagram-107-020.webp "PORSCHE 1986 (911) FOR - K-JETRONIC I PARTS DIAGRAM")
-part-diagram-107-030.webp "PORSCHE 1986 (911) FOR - K-JETRONIC II PARTS DIAGRAM")
-part-diagram-107-035.webp "PORSCHE 1986 (911) FOR - K-JETRONIC III PARTS DIAGRAM")
-part-diagram-107-040.webp "PORSCHE 1986 (911) TURBOCHARGING PARTS DIAGRAM")
-part-diagram-107-045.webp "PORSCHE 1986 (911) CHARGE AIR COOLER PARTS DIAGRAM")
-part-diagram-108-000.webp "PORSCHE 1986 (911) AIR INJECTION PARTS DIAGRAM")
-part-diagram-108-005.webp "PORSCHE 1986 (911) AIR INJECTION PARTS DIAGRAM")
-part-diagram-108-007.webp "PORSCHE 1986 (911) AIR INJECTION PARTS DIAGRAM")
-part-diagram-108-010.webp "PORSCHE 1986 (911) ADDITIONAL BLOWER PARTS DIAGRAM")
-part-diagram-109-000.webp "PORSCHE 1986 (911) ENGINE SUSPENSION PARTS DIAGRAM")
-part-diagram-198-000.webp "PORSCHE 1986 (911) GASKET SET - REPAIR KIT - MAINTENANCE SET PARTS DIAGRAM")
-part-diagram-201-000.webp "PORSCHE 1986 (911) FUEL SYSTEM PARTS DIAGRAM")
-part-diagram-201-005.webp "PORSCHE 1986 (911) FUEL SYSTEM PARTS DIAGRAM")
-part-diagram-201-010.webp "PORSCHE 1986 (911) FUEL SYSTEM PARTS DIAGRAM")
-part-diagram-201-015.webp "PORSCHE 1986 (911) TANK VENTILATION PARTS DIAGRAM")
-part-diagram-201-020.webp "PORSCHE 1986 (911) EVAPORATIVE EMISSION CANISTER PARTS DIAGRAM")
-part-diagram-202-000.webp "PORSCHE 1986 (911) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-202-005.webp "PORSCHE 1986 (911) EXHAUST SYSTEM - HEATER CORE PARTS DIAGRAM")
-part-diagram-202-010.webp "PORSCHE 1986 (911) EXHAUST SYSTEM - HEATER CORE PARTS DIAGRAM")
-part-diagram-202-015.webp "PORSCHE 1986 (911) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-202-016.webp "PORSCHE 1986 (911) EXHAUST GAS TURBOCHARGER PARTS DIAGRAM")
-part-diagram-202-020.webp "PORSCHE 1986 (911) HEATING AIR SUPPLY PARTS DIAGRAM")
-part-diagram-298-000.webp "PORSCHE 1986 (911) ASSEMBLY - REPAIR KIT - MAINTENANCE SET PARTS DIAGRAM")
-part-diagram-298-005.webp "PORSCHE 1986 (911) PORSCHE CLASSIC - ADDITIVE - FOR FUEL PARTS DIAGRAM")
-part-diagram-301-000.webp "PORSCHE 1986 (911) CLUTCH PARTS DIAGRAM")
-part-diagram-301-005.webp "PORSCHE 1986 (911) CLUTCH RELEASE PARTS DIAGRAM")
-part-diagram-302-000.webp "PORSCHE 1986 (911) REPLACEMENT TRANSMISSION - TRANSMISSION CASE PARTS DIAGRAM")
-part-diagram-302-001.webp "PORSCHE 1986 (911) OIL PUMP - AND - OIL COOLING - FOR - TRANSMISSION PARTS DIAGRAM")
-part-diagram-302-005.webp "PORSCHE 1986 (911) GEAR HOUSING - TRANSMISSION COVER PARTS DIAGRAM")
-part-diagram-303-000.webp "PORSCHE 1986 (911) GEAR WHEEL SETS - 4-SPEED PARTS DIAGRAM")
-part-diagram-303-005.webp "PORSCHE 1986 (911) GEARS AND SHAFTS - 4-SPEED PARTS DIAGRAM")
-part-diagram-303-010.webp "PORSCHE 1986 (911) GEAR WHEEL SETS - 5-SPEED PARTS DIAGRAM")
-part-diagram-303-015.webp "PORSCHE 1986 (911) GEARS AND SHAFTS - 5-SPEED PARTS DIAGRAM")
-part-diagram-304-000.webp "PORSCHE 1986 (911) SHIFT RODS - SHIFT FORKS - FOR - 4-SPEED - AND - 5-SPEED PARTS DIAGRAM")
-part-diagram-305-000.webp "PORSCHE 1986 (911) DIFFERENTIAL PARTS DIAGRAM")
-part-diagram-305-005.webp "PORSCHE 1986 (911) LIMITED SLIP DIFFERENTIAL PARTS DIAGRAM")
-part-diagram-306-000.webp "PORSCHE 1986 (911) TRANSMISSION SUSPENSION PARTS DIAGRAM")
-part-diagram-398-000.webp "PORSCHE 1986 (911) GASKET SET PARTS DIAGRAM")
-part-diagram-401-000.webp "PORSCHE 1986 (911) FRONT AXLE - STABILIZER PARTS DIAGRAM")
-part-diagram-402-000.webp "PORSCHE 1986 (911) SHOCK ABSORBER STRUT - LUBRICANTS PARTS DIAGRAM")
-part-diagram-403-000.webp "PORSCHE 1986 (911) STEERING PARTS PARTS DIAGRAM")
-part-diagram-403-005.webp "PORSCHE 1986 (911) STEERING PARTS PARTS DIAGRAM")
-part-diagram-501-000.webp "PORSCHE 1986 (911) REAR AXLE PARTS DIAGRAM")
-part-diagram-501-005.webp "PORSCHE 1986 (911) DRIVE SHAFT PARTS DIAGRAM")
-part-diagram-502-000.webp "PORSCHE 1986 (911) VIBRATION DAMPER - STABILIZER PARTS DIAGRAM")
-part-diagram-601-000.webp "PORSCHE 1986 (911) WHEELS PARTS DIAGRAM")
-part-diagram-602-000.webp "PORSCHE 1986 (911) BRAKE - FRONT AXLE PARTS DIAGRAM")
-part-diagram-602-005.webp "PORSCHE 1986 (911) BRAKE - FRONT AXLE PARTS DIAGRAM")
-part-diagram-603-000.webp "PORSCHE 1986 (911) DISC BRAKES - REAR AXLE PARTS DIAGRAM")
-part-diagram-603-005.webp "PORSCHE 1986 (911) DISC BRAKES - REAR AXLE PARTS DIAGRAM")
-part-diagram-604-000.webp "PORSCHE 1986 (911) RESERVOIR FOR - BRAKE FLUID - BRAKE MASTER CYLINDER PARTS DIAGRAM")
-part-diagram-604-005.webp "PORSCHE 1986 (911) BRAKE LINE PARTS DIAGRAM")
-part-diagram-604-010.webp "PORSCHE 1986 (911) BRAKE LINE PARTS DIAGRAM")
-part-diagram-698-005.webp "PORSCHE 1986 (911) BRAKE FLUID - PORSCHE CLASSIC PARTS DIAGRAM")
-part-diagram-701-000.webp "PORSCHE 1986 (911) TRANSMISSION CONTROL PARTS DIAGRAM")
-part-diagram-701-005.webp "PORSCHE 1986 (911) HAND BRAKE LEVER - OPERATING LEVER - FOR - HEATER PARTS DIAGRAM")
-part-diagram-702-000.webp "PORSCHE 1986 (911) PEDALS PARTS DIAGRAM")
-part-diagram-702-005.webp "PORSCHE 1986 (911) PEDALS PARTS DIAGRAM")
-part-diagram-702-010.webp "PORSCHE 1986 (911) PEDALS - THROTTLE CONTROL PARTS DIAGRAM")
-part-diagram-801-000.webp "PORSCHE 1986 (911) CAR BODY PARTS DIAGRAM")
-part-diagram-801-025.webp "PORSCHE 1986 (911) INTERIOR PANELLING PARTS DIAGRAM")
-part-diagram-801-030.webp "PORSCHE 1986 (911) EXTERIOR PANELLING PARTS DIAGRAM")
