porsche 1986 (911) convertible top - driving mechanism - d - mj 1986>> parts diagram

811-021 - CONVERTIBLE TOP - DRIVING MECHANISM - D - MJ 1986>>

Porsche 1986 (911) CONVERTIBLE TOP - DRIVING MECHANISM - D - MJ 1986>> Parts Diagram

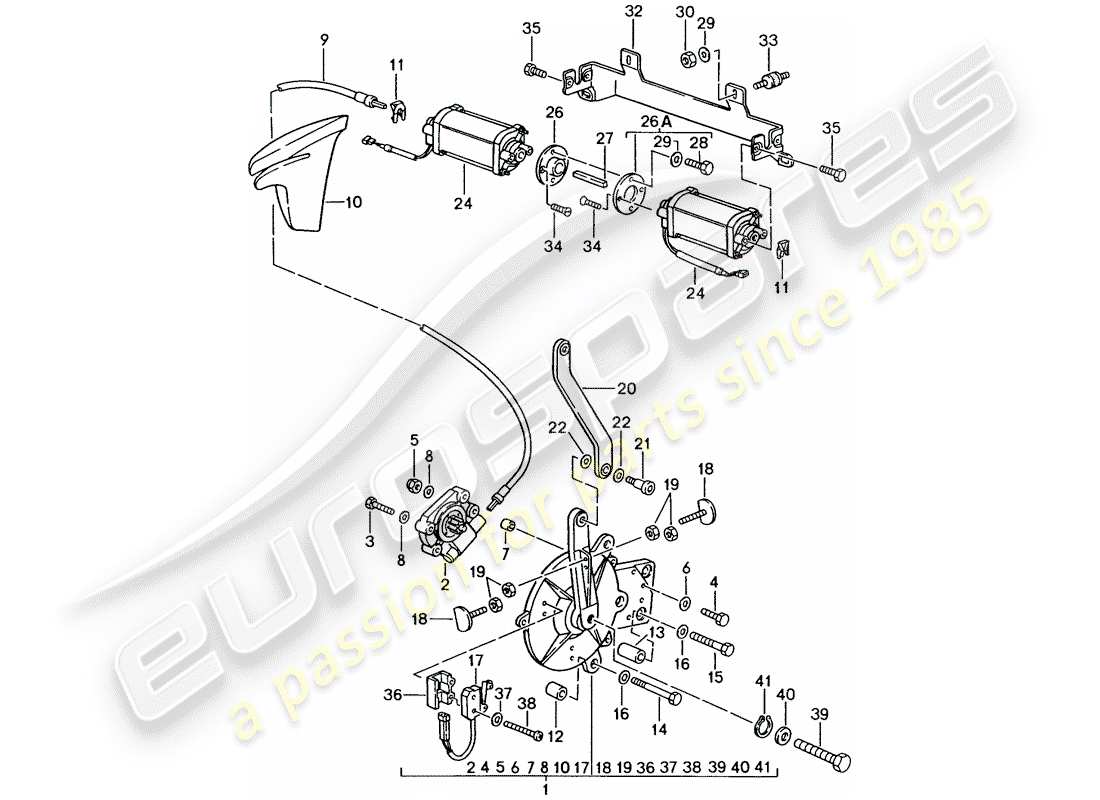

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                    #
                                                                    Part number
                                                                    Description
                                                                    Price
                                                                    # 1
                                                                    MPN: 91156104566
                                                                    TRANSMISSION
                                                                    LEFT
                                                                    # 1
                                                                    MPN: 91156104666
                                                                    TRANSMISSION
                                                                    RIGHT
                                                                    # 2
                                                                    MPN: 91156110365
                                                                    PLANETARY GEAR
                                                                    LEFT
                                                                    # 2
                                                                    MPN: 91156110465
                                                                    PLANETARY GEAR
                                                                    RIGHT
                                                                    # 3
                                                                    MPN: N 0102622
                                                                    SCREW, HEX. HD. - M 4 X 20
                                                                    from £1.04
                                                                    from £1.04
                                                                    # 4
                                                                    MPN: N 0103011
                                                                    SCREW, HEX. HD. - M 4 X 35
                                                                    from £2.59
                                                                    from £2.59
                                                                    # 5
                                                                    MPN: 90091000402
                                                                    LOCK NUT - M 4
                                                                    from £0.91
                                                                    from £0.91
                                                                    # 7
                                                                    MPN: 91156162965
                                                                    SPACER
                                                                    from £0.54
                                                                    from £0.54
                                                                    # 8
                                                                    MPN: 91156151800
                                                                    SPACER WASHER
                                                                    from £3.25
                                                                    from £3.25
                                                                    # 9
                                                                    MPN: 99356192103
                                                                    SHAFT
                                                                    LEFT
                                                                    from £188.46
                                                                    from £188.46
                                                                    # 9
                                                                    MPN: 99356192203
                                                                    SHAFT
                                                                    RIGHT
                                                                    from £188.46
                                                                    from £188.46
                                                                    # 10
                                                                    MPN: 91156165565
                                                                    INSERT
                                                                    LEFT
                                                                    from £25.88
                                                                    from £25.88
                                                                    # 10
                                                                    MPN: 91156165665
                                                                    INSERT - FOR - SHAFT
                                                                    RIGHT
                                                                    from £25.88
                                                                    from £25.88
                                                                    # 11
                                                                    MPN: 91156164365
                                                                    SPRING CLIP - DISCONTINUED PART
                                                                    # 11
                                                                    MPN: 98756164300
                                                                    SPRING CLIP
                                                                    from £1.96
                                                                    from £1.96
                                                                    # 12
                                                                    MPN: 91156174665
                                                                    SPACER BUSHING
                                                                    # 13
                                                                    MPN: 91156174565
                                                                    SPACER BUSHING
                                                                    # 14
                                                                    MPN: N 0103475
                                                                    SCREW, HEX. HD. - M 6 X 35
                                                                    from £1.86
                                                                    from £1.86
                                                                    # 15
                                                                    MPN: N 0403031
                                                                    SCREW, HEX. HD. - M 6 X 50
                                                                    from £1.36
                                                                    from £1.36
                                                                    # 16
                                                                    MPN: 90015100302
                                                                    WASHER - A 6,4 - DISCONTINUED PART
                                                                    # 16
                                                                    MPN: 90015100603
                                                                    Washer - A 6,4
                                                                    from £0.59
                                                                    from £0.59
                                                                    This part replaces part number 90015100609
                                                                    # 17
                                                                    MPN: 91161307100
                                                                    MICRO SWITCH - DISCONTINUED PART
                                                                    RIGHT
                                                                    # 17
                                                                    MPN: 91161307102
                                                                    MICRO SWITCH
                                                                    RIGHT
                                                                    from £164.78
                                                                    from £164.78
                                                                    # 18
                                                                    MPN: 91156164500
                                                                    ADJUSTING SCREW
                                                                    from £13.34
                                                                    from £13.34
                                                                    # 19
                                                                    MPN: N 0110022
                                                                    hex. nut - M 3
                                                                    from £1.09
                                                                    from £1.09
                                                                    # 20
                                                                    MPN: 91156116965
                                                                    PUSH ROD
                                                                    LEFT
                                                                    # 20
                                                                    MPN: 91156117065
                                                                    PUSH ROD
                                                                    RIGHT
                                                                    # 21
                                                                    MPN: 91156141800
                                                                    SHAFT SCREW - M 8 X 20
                                                                    Supersession
                                                                    Supersession
                                                                    # 22
                                                                    MPN: 91156142800
                                                                    WASHER - 10,5
                                                                    from £2.55
                                                                    from £2.55
                                                                    # 24
                                                                    MPN: 91162411700
                                                                    electric motor
                                                                    Supersession
                                                                    Supersession
                                                                    # 25
                                                                    MPN: N 0139942
                                                                    TAPP. SCREW,CSK.HD. - B 4,8 X 16
                                                                    # 26
                                                                    MPN: 91162426901
                                                                    WASHER - $ 50
                                                                    from £45.70
                                                                    from £45.70
                                                                    # 26
                                                                    MPN: 91162417101
                                                                    WASHER
                                                                    from £21.17
                                                                    from £21.17
                                                                    # 27
                                                                    MPN: 91162427300
                                                                    CONNECTING PIECE
                                                                    from £3.07
                                                                    from £3.07
                                                                    # 28
                                                                    MPN: N 0102056
                                                                    SCREW, HEX. HD. - M 5 X 10 - DISCONTINUED PART
                                                                    # 28
                                                                    MPN: 90007510502
                                                                    SCREW - M 5 X 10
                                                                    from £0.73
                                                                    from £0.73
                                                                    # 29
                                                                    MPN: 90002500302
                                                                    Washer - A 5,3
                                                                    # 30
                                                                    MPN: 90007609101
                                                                    hex. nut - M 5
                                                                    from £1.00
                                                                    from £1.00
                                                                    # 32
                                                                    MPN: 91156118565
                                                                    BOW
                                                                    from £11.37
                                                                    from £11.37
                                                                    # 33
                                                                    MPN: 99970330800
                                                                    bonded rubber mounting - Discontinued part
                                                                    # 33
                                                                    MPN: 9997033080A
                                                                    BONDED RUBBER MOUNTING
                                                                    from £5.89
                                                                    from £5.89
                                                                    # 34
                                                                    MPN: 99991904502
                                                                    SCREW, CSK. HD. - M 5 X 16
                                                                    from £0.82
                                                                    from £0.82
                                                                    # 35
                                                                    MPN: 99991904602
                                                                    SCREW, HEX. HD. - M 5 X 16
                                                                    from £1.12
                                                                    from £1.12
                                                                    # 36
                                                                    MPN: 91161341300
                                                                    BRACKET
                                                                    from £5.98
                                                                    from £5.98
                                                                    # 37
                                                                    MPN: 90002500102
                                                                    Washer - A 3,2
                                                                    Supersession
                                                                    Supersession
                                                                    # 38
                                                                    MPN: 90014607202
                                                                    fillister hd. screw - M 3 X 25
                                                                    from £0.60
                                                                    from £0.60
                                                                    # 39
                                                                    MPN: 91156175666
                                                                    screw - for emergency control
                                                                    from £25.30
                                                                    from £25.30
                                                                    # 40
                                                                    MPN: N 0115247
                                                                    WASHER - A 6,4 - DISCONTINUED PART
                                                                    # 40
                                                                    MPN: N 01152427
                                                                    Washer - A 6,4
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 41
                                                                    MPN: N 0124062
                                                                    LOCK WASHER - 6 X 0,7
