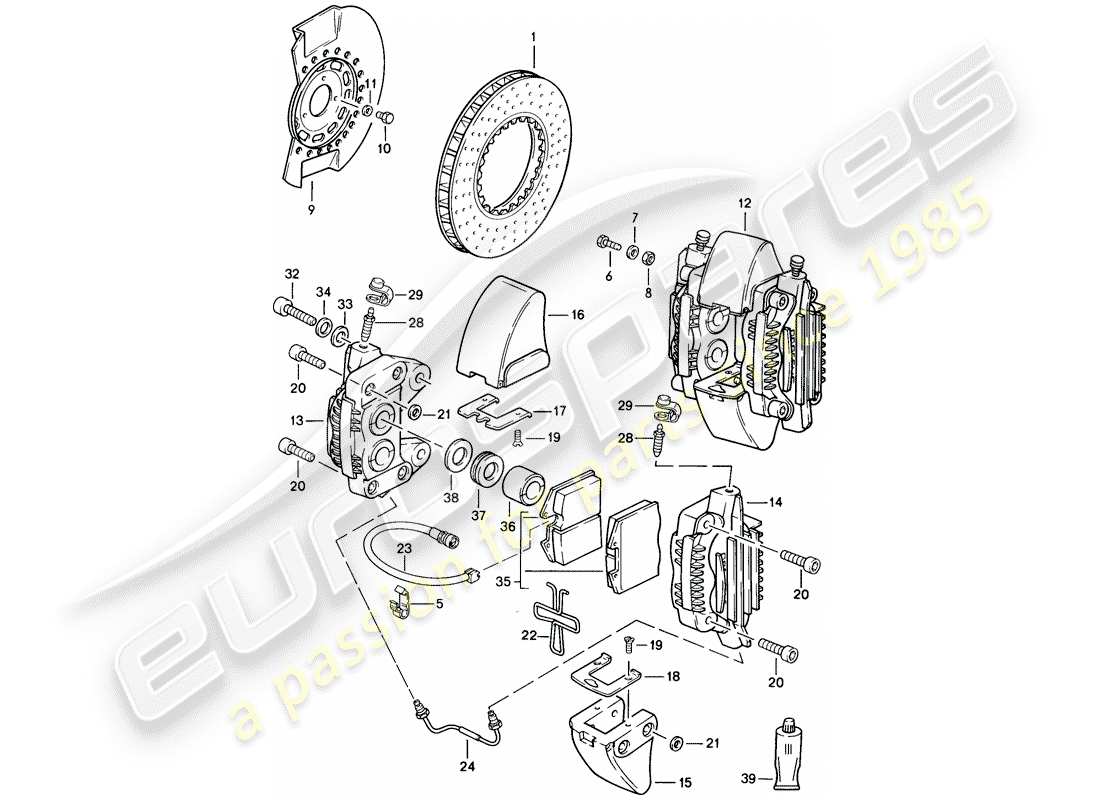

602-005 - BRAKE - FRONT AXLE
Porsche 1988 (911) BRAKE - FRONT AXLE Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 93035104702
BRAKE DISC
LEFT
# 1
MPN: 93035104703
BRAKE DISC - ALSO USE:
left-93035104803-96435193903-94461221105
from £281.65
from £281.65
# 1
MPN: 93035104802
BRAKE DISC - DISCONTINUED PART
RIGHT
from £209.82
from £209.82
# 1
MPN: 93035104803
BRAKE DISC
RIGHT
from £281.65
from £281.65
# 5
MPN: 94461262700
LINE HOLDER
Supersession
Supersession
# 6
MPN: 90007507902
SCREW, HEX. HD. - M 8 X 22
Supersession
Supersession
# 7
MPN: N 0122418
SPRING WASHER - B 8
from £0.70
from £0.70
# 8
MPN: 90007602502
HEX. NUT - M 8 - DISCONTINUED PART
Supersession
Supersession
# 8
MPN: 90007606402
hex. nut - M 8
from £0.59
from £0.59
# 9
MPN: 93035180301
PROTECTIVE PLATE
from £63.57
from £63.57
# 10
MPN: N 0102353
SCREW, HEX. HD. - M 8 X 10
from £0.85
from £0.85
# 11
MPN: N 0122418
SPRING WASHER - B 8
from £0.70
from £0.70
# 12
MPN: 93035109103
BRAKE CALLIPER - WITHOUT PAD
LEFT
from £1,166.48
from £1,166.48
# 12
MPN: 93035109203
BRAKE CALLIPER - WITHOUT PAD
RIGHT
from £1,166.48
from £1,166.48
# 13
MPN: 93035195102
FIXED CALLIPER - INNER PART - COMPRISING: - HOUSING - INNER PART - SEAL RING - $ 38 MM - SCRAPER RING - $ 38 MM - PISTON - $ 38 MM - DISCONTINUED PART
LEFT
# 13
MPN: 93035195202
BRAKE CALLIPER - INNER PART - COMPRISING: - HOUSING - INNER PART - SEAL RING - $ 38 MM - SCRAPER RING - $ 38 MM - PISTON - $ 38 MM - DISCONTINUED PART
RIGHT
# 14
MPN: 93035195301
BRAKE CALLIPER - OUTER PART - COMPRISING: - HOUSING - OUTER PART - SEAL RING - $ 38 MM - SCRAPER RING - $ 38 MM - PISTON - $ 38 MM - DISCONTINUED PART
# 15
MPN: 93035156304
BRIDGE
from £570.36
from £570.36
# 16
MPN: 93035156403
BRIDGE
from £570.36
from £570.36
# 17
MPN: 93035154103
SPRING PLATE
from £66.44
from £66.44
# 18
MPN: 93035154203
SPRING PLATE
from £20.56
from £20.56
# 19
MPN: 90026901702
SCREW, CSK. HD. - M 5 X 12
from £0.82
from £0.82
# 20
MPN: 90006717002
screw, cheese hd. - M 12 X 1,5 X 40
from £3.48
from £3.48
# 21
MPN: 93035158001
SPACER SLEEVE
from £10.32
from £10.32
# 22
MPN: 95135295000
SPEADER SPRING
from £55.94
from £55.94
# 23
MPN: 94461221100
SENDER WIRE - (PAD WEAR INDICATOR) - DISCONTINUED PART
# 23
MPN: 94461221105
SENDER WIRE - (PAD WEAR INDICATOR)
from £19.73
from £19.73
# 24
MPN: 93035506101
Connecting line - Discontinued part
LEFT
# 24
MPN: 93035506104
connecting line
LEFT
from £77.49
from £77.49
# 24
MPN: 93035506201
Connecting line - Discontinued part
RIGHT
# 24
MPN: 93035506204
connecting line
RIGHT
Supersession
Supersession
# 28
MPN: 93035191900
BLEEDER VALVE
from £13.16
from £13.16
# 29
MPN: 93035192700
dust cap - Discontinued part
# 29
MPN: 93035192701
DUST CAP
from £1.73
from £1.73
# 32
MPN: 90006717002
screw, cheese hd. - M 12 X 1,5 X 40
from £3.48
from £3.48
# 33
MPN: 93035155301
SPACER WASHER
from £3.99
from £3.99
# 34
MPN: N 0122321
SPRING WASHER - B 12
# 35
MPN: 93035193805
1 SET OF BRAKE PADS FOR DISC - BRAKES - D >> - MJ 1988
# 35
MPN: 95135193904
1 SET OF BRAKE PADS FOR DISC - BRAKES - (ASBESTOS FREE) - DISCONTINUED PART
# 35
MPN: 96435193902
1 SET OF BRAKE PADS FOR DISC - BRAKES - (ASBESTOS FREE) - DISCONTINUED PART
# 35
MPN: 96435193903
1 SET OF BRAKE PADS FOR DISC - BRAKES - (ASBESTOS FREE)
Supersession
Supersession
# 36
MPN: 93035155104
PISTON - $ 38 MM
from £43.07
from £43.07
# 37
MPN: 93035154700
SCRAPER RING
from £32.46
from £32.46
# 38
MPN: 93035155501
SEAL RING
from £3.16
from £3.16
# 39
MPN: 00004302000
ASSEMBLY PASTE - 1 100-GRAMME TUBE
Supersession
Supersession
# 39
MPN: 00004311700
BRAKE CYLINDER PASTE - 1 50-G TUBE - DISCONTINUED PART
# 39
MPN: 00004330511
BRAKE CYLINDER PASTE - 1 50-G TUBE
from £22.38
from £22.38
