porsche 1989 (911) reservoir for - brake fluid - brake master cylinder parts diagram

604-000 - RESERVOIR FOR - BRAKE FLUID - BRAKE MASTER CYLINDER

Porsche 1989 (911) RESERVOIR FOR - BRAKE FLUID - BRAKE MASTER CYLINDER Parts Diagram

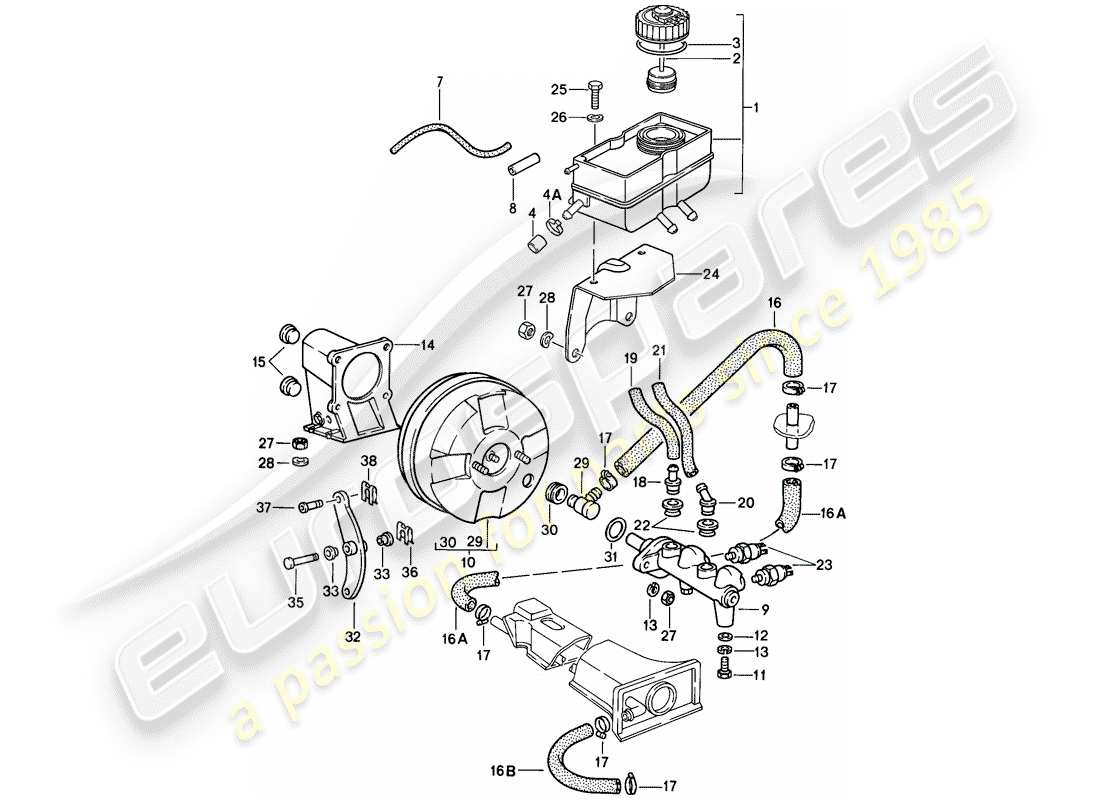

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                    #
                                                    Part number
                                                    Description
                                                    Key
                                                    Price
                                                    # -
                                                    MPN: 00004430501
                                                    BRAKE FLUID - DOT 4 - 1 LTR.
                                                    from £26.64
                                                    from £26.64
                                                    brake fluid - Porsche Classic - 1 L Genuine Porsche Part - New (to order)
                                                    # -
                                                    MPN: 00004430530
                                                    BRAKE FLUID - DOT 4 - 30 LTR.
                                                    from £458.38
                                                    from £458.38
                                                    brake fluid - Porsche Classic - 30 L Genuine Porsche Part - New (to order)
                                                    # 1
                                                    MPN: 91135501704
                                                    RESERVOIR FOR - BRAKE FLUID
                                                    from £352.27
                                                    from £352.27
                                                    RESERVOIR FOR - BRAKE FLUID Genuine Porsche Part - New (to order)
                                                    # 2
                                                    MPN: 91135535100
                                                    THREADED COVER
                                                    from £51.32
                                                    from £51.32
                                                    THREADED COVER Genuine Porsche Part - New (to order)
                                                    # 3
                                                    MPN: 91135590800
                                                    GASKET
                                                    from £3.39
                                                    from £3.39
                                                    GASKET Genuine Porsche Part - New (to order)
                                                    # 4
                                                    MPN: 91135532700
                                                    cap - D >> - MJ 1988
                                                    (TURBO)
                                                    from £4.93
                                                    from £4.93
                                                    cap - D >> - MJ 1988 Genuine Porsche Part - New (to order)
                                                    # 4
                                                    MPN: 99951205502
                                                    Hose Clamp - D >> - MJ 1988
                                                    (TURBO)
                                                    from £3.43
                                                    from £3.43
                                                    HOSE CLAMP - S 12/9 ZY Genuine Porsche Part - New (to order)
                                                    # -
                                                    -
                                                    Hose in coils of 5M - 'Order qty. 5' - 4 X 1,5
                                                    # 7
                                                    -
                                                    SHORTEN TO:
                                                    900 MM
                                                    # 7
                                                    -
                                                    SHORTEN TO:
                                                    1500 MM
                                                    # 9
                                                    MPN: 91135501112
                                                    brake master cylinder
                                                    (CARRERA)
                                                    from £498.12
                                                    from £498.12
                                                    brake master cylinder Genuine Porsche Part - New (to order)
                                                    # 9
                                                    MPN: 93035501103
                                                    brake master cylinder
                                                    (TURBO CARRERA PR:491)
                                                    from £402.39
                                                    from £402.39
                                                    brake master cylinder Genuine Porsche Part - New (to order)
                                                    # 10
                                                    MPN: 93035502700
                                                    VACUUM BOOSTER
                                                    (CARRERA)
                                                    from £1,546.01
                                                    from £1,546.01
                                                    VACUUM BOOSTER - - - D - MJ 1984>>- MJ 1984 Genuine Porsche Part - New (to order)
                                                    # 10
                                                    MPN: 93035502702
                                                    VACUUM BOOSTER
                                                    (TURBO CARRERA PR:491)
                                                    from £1,636.69
                                                    from £1,636.69
                                                    Vacuum booster - - - D - MJ 1985>> Genuine Porsche Part - New (to order)
                                                    # 11
                                                    MPN: N 0102376
                                                    SCREW, HEX. HD. - M 8 X 12 - DISCONTINUED PART
                                                    SCREW, HEX. HD. - M 8 X 12 - F >>47-22919 032 - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                    # 11
                                                    MPN: N 01023714
                                                    SCREW, HEX. HD. - M 8 X 12
                                                    from £1.24
                                                    from £1.24
                                                    SCREW, HEX. HD. - M 8 X 12 - F >>47-22919 032 Genuine Porsche Part - New (to order)
                                                    # 12
                                                    MPN: 90015100802
                                                    Washer - A 8,4
                                                    from £0.84
                                                    from £0.84
                                                    Washer - F >> 030 5100 - F >> 035 4000 - F >> 045 8100 Genuine Porsche Part - New In stock
                                                    # 13
                                                    MPN: 90002701502
                                                    LOCK RING - B 8
                                                    lock ring - M 10 Genuine Porsche Part - New (to order)
                                                    # 13
                                                    MPN: 90002701503
                                                    LOCK RING - B 8
                                                    from £0.86
                                                    from £0.86
                                                    lock ring - M 10 Genuine Porsche Part - New In stock
                                                    # 14
                                                    MPN: 91135538101
                                                    BRACKET
                                                    LHD
                                                    bracket - for - brake booster Genuine Porsche Part - New (to order)
                                                    # 14
                                                    MPN: 91135538200
                                                    BRACKET
                                                    RHD
                                                    from £207.22
                                                    from £207.22
                                                    BRACKET Genuine Porsche Part - New (to order)
                                                    # 16
                                                    MPN: 91135560900
                                                    MOLDED HOSE
                                                    LHD
                                                    from £59.36
                                                    from £59.36
                                                    Molded hose - for - Vacuum line Genuine Porsche Part - New (to order)
                                                    # -
                                                    -
                                                    HOSE - 11,8 X 4 - LENGTH (CM):
                                                    --100
                                                    # 16
                                                    -
                                                    SHORTEN TO: - BRAKE BOOSTER - LUGGAGE COMPARTMENT FLOOR
                                                    790 MM
                                                    # 16
                                                    -
                                                    SHORTEN TO: - TUNNEL - LUGGAGE COMPARTMENT FLOOR
                                                    320 MM
                                                    # -
                                                    -
                                                    HOSE - 11,8 X 4 - LENGTH (CM):
                                                    --200
                                                    # 16
                                                    -
                                                    SHORTEN TO: - ENGINE - TUNNEL
                                                    1420 MM
                                                    # 17
                                                    MPN: 90027200302
                                                    HOSE CLAMP - DISCONTINUED PART
                                                    Supersession
                                                    Supersession
                                                    Genuine Porsche Part (no longer available to order)
                                                    # 17
                                                    MPN: 99951255400
                                                    HOSE CLAMP
                                                    from £2.68
                                                    from £2.68
                                                    This part replaces part number 90027200302
                                                    Hose Clamp - SGT 12-22/9 Genuine Porsche Part - New In stock
                                                    # 18
                                                    MPN: 91135532200
                                                    INTAKE SOCKET
                                                    from £13.47
                                                    from £13.47
                                                    INTAKE SOCKET Genuine Porsche Part - New (to order)
                                                    # -
                                                    -
                                                    HOSE - 7,5 X 12,5
                                                    # 19
                                                    -
                                                    SHORTEN TO:
                                                    65 MM
                                                    # 20
                                                    MPN: 91135532300
                                                    INTAKE SOCKET
                                                    from £4.06
                                                    from £4.06
                                                    INTAKE SOCKET Genuine Porsche Part - New (to order)
                                                    # 21
                                                    -
                                                    SHORTEN TO:
                                                    120 MM
                                                    # 22
                                                    MPN: 91135592200
                                                    SEALING PLUG
                                                    from £6.15
                                                    from £6.15
                                                    SEALING PLUG Genuine Porsche Part - New In stock
                                                    # 23
                                                    MPN: 113945515H
                                                    stop lamp switch - 2-POLE
                                                    from £28.04
                                                    from £28.04
                                                    stop lamp switch - 2-POLE Genuine Porsche Part - New (to order)
                                                    # 24
                                                    MPN: 91135503300
                                                    BRACKET
                                                    from £74.37
                                                    from £74.37
                                                    BRACKET Genuine Porsche Part - New (to order)
                                                    # 25
                                                    MPN: 90007505702
                                                    SCREW, HEX. HD. - M 6 X 16
                                                    Supersession
                                                    Supersession
                                                    Genuine Porsche Part (no longer available to order)
                                                    # 25
                                                    MPN: 90007505703
                                                    SCREW, HEX. HD. - M 6 X 16 - NO LONGER USE THE PART HERE
                                                    from £3.27
                                                    from £3.27
                                                    screw, hex. hd. - No longer use the part here Genuine Porsche Part - New (to order)
                                                    # 26
                                                    MPN: N 0122265
                                                    SPRING WASHER - B 6
                                                    from £0.70
                                                    from £0.70
                                                    spring washer - M6X16 Genuine Porsche Part - New In stock
                                                    # 27
                                                    MPN: N 0221461
                                                    HEX. NUT, SELF-LOCKING - M 8
                                                    HEX. NUT, SELF-LOCKING - VM 8 Genuine Porsche Part - New (to order)
                                                    # 28
                                                    MPN: N 0122418
                                                    SPRING WASHER - B 8
                                                    from £0.70
                                                    from £0.70
                                                    spring washer - for - Ground cable Genuine Porsche Part - New In stock
                                                    # 29
                                                    MPN: 191611933F
                                                    CHECK VALVE
                                                    from £31.09
                                                    from £31.09
                                                    CHECK VALVE - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                    # 29
                                                    MPN: 477611933A
                                                    CHECK VALVE
                                                    (PR:605)
                                                    from £31.09
                                                    from £31.09
                                                    check valve - D - MJ 1982>> Genuine Porsche Part - New (to order)
                                                    # 30
                                                    MPN: 91135592100
                                                    RUBBER SEAL - DISCONTINUED PART
                                                    RUBBER SEAL - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                    # 30
                                                    MPN: 95535592100
                                                    RUBBER SEAL
                                                    from £4.43
                                                    from £4.43
                                                    RUBBER SEAL Genuine Porsche Part - New (to order)
                                                    # 31
                                                    MPN: 251611243
                                                    GASKET BETWEEN - BRAKE SERVO AND - TANDEM MASTER CYLINDER
                                                    from £3.29
                                                    from £3.29
                                                    This part replaces part number 94435581900
                                                    GASKET BETWEEN - BRAKE SERVO AND - TANDEM MASTER CYLINDER - D >>- MJ 1985 Genuine Porsche Part - New (to order)
                                                    # 32
                                                    MPN: 91135508400
                                                    RELAY LEVER
                                                    RHD
                                                    from £28.67
                                                    from £28.67
                                                    RELAY LEVER Genuine Porsche Part - New (to order)
                                                    # 32
                                                    MPN: 91135508303
                                                    RELAY LEVER
                                                    LHD
                                                    from £30.52
                                                    from £30.52
                                                    RELAY LEVER Genuine Porsche Part - New (to order)
                                                    # 33
                                                    MPN: 92842354200
                                                    BUSHING
                                                    from £3.18
                                                    from £3.18
                                                    bushing - $ 14 MM Genuine Porsche Part - New (to order)
                                                    # 35
                                                    MPN: 91135551101
                                                    BEARING PIN
                                                    from £2.75
                                                    from £2.75
                                                    BEARING PIN Genuine Porsche Part - New (to order)
                                                    # 36
                                                    MPN: N 0126541
                                                    LOCK WASHER
                                                    LOCK WASHER Genuine Porsche Part - New (to order)
                                                    # 37
                                                    MPN: 99916604902
                                                    PIN
                                                    from £1.24
                                                    from £1.24
                                                    pin - Discontinued part Genuine Porsche Part - New (to order)
                                                    # 38
                                                    MPN: 99916603402
                                                    RETAINER PLATE
                                                    from £3.54
                                                    from £3.54
                                                    retainer plate - D - MJ 1989>> - MJ 1989 Genuine Porsche Part - New (to order)
