porsche 1989 (911) exterior panelling - to fit use workshop material parts diagram

801-035 - EXTERIOR PANELLING - TO FIT USE WORKSHOP MATERIAL

Porsche 1989 (911) EXTERIOR PANELLING - TO FIT USE WORKSHOP MATERIAL Parts Diagram

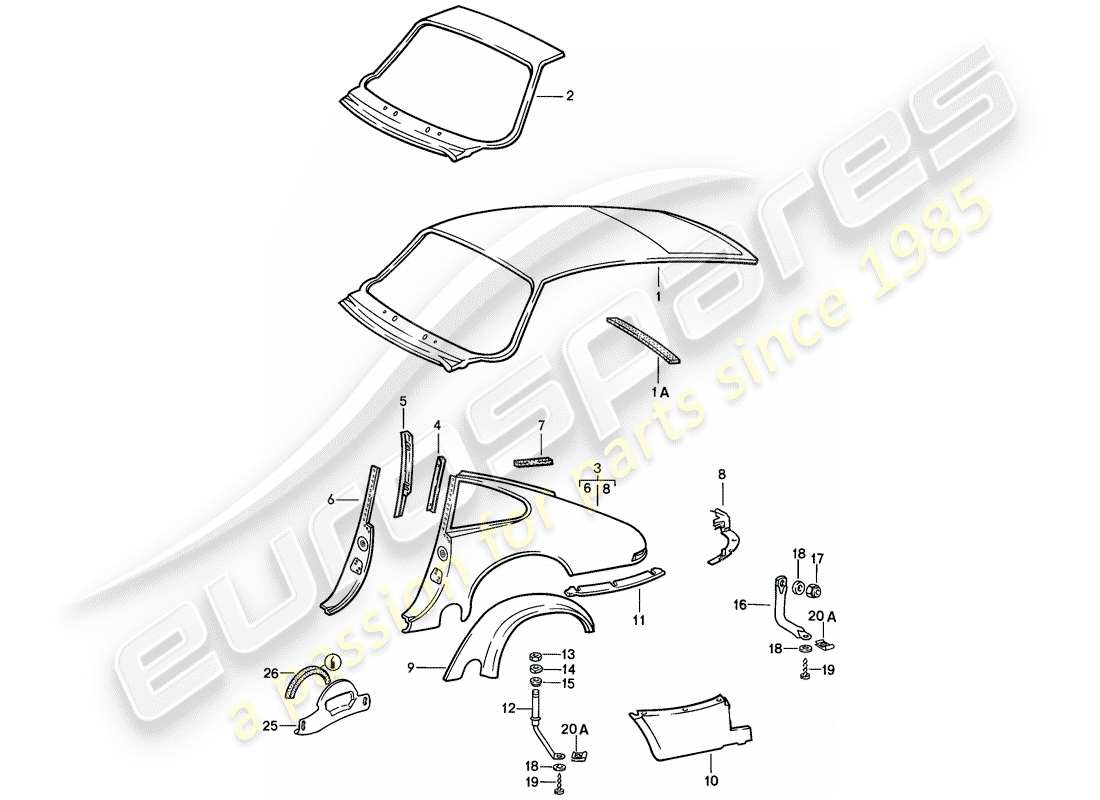

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Price
                  # 1
                  MPN: 91150308708
                  Outer roof panel - F >> 91-JS101 686 - F >> 91-JS109 839 - F >> 91-JS105 093 - F >> 93-JS000 314
                  (COUPE COUPE COUPE COUPE COUPE TURBO PR:637 \\J..\\)
                  # 1
                  MPN: 90150305100
                  Outer roof panel - for vehicles with - Width of fold - 10 MM - MOD. 89 - F >> 91-KS100 958 - F >> 93-KS000 184
                  (COUPE COUPE COUPE)
                  # 1
                  MPN: 91150308716
                  Outer roof panel - Until - for vehicles with - Width of fold - 15 MM - MOD. 89 - F 91-KS100 959>> - F 93-KS000 185>> - Discontinued part
                  (COUPE COUPE COUPE)
                  # 1
                  MPN: 91150308716
                  OUTER ROOF PANEL - UNTIL - FOR VEHICLES WITH - WIDTH OF FOLD - 15 MM - MOD. 89 - F 91-KS100 959>> - F 93-KS000 185>>
                  (COUPE COUPE COUPE)
                  # 1
                  MPN: 91150308709
                  Outer roof panel - F >> 91-JS101 686 - F >> 91-JS109 839 - F >> 91-JS105 093 - F >> 93-JS000 314
                  (COUPE COUPE COUPE COUPE COUPE TURBO PR:650,637 \\J..\\)
                  # 1
                  MPN: 90150305105
                  Outer roof panel - for vehicles with - Width of fold - 10 MM - MOD. 89 - F >> 91-KS100 958 - F >> 93-KS000 184 - Discontinued part
                  (COUPE COUPE COUPE PR:650)
                  # 1
                  MPN: 91150308713
                  Outer roof panel - for vehicles with - Width of fold - 10 MM - MOD. 89 - F >> 91-KS100 958 - F >> 93-KS000 184
                  (COUPE COUPE COUPE PR:650)
                  Supersession
                  Supersession
                  # 1
                  MPN: 91150308717
                  Outer roof panel - Until - for vehicles with - Width of fold - 15 MM - MOD. 89 - F 91-KS100 959>> - F 93-KS000 185>> - Discontinued part
                  (COUPE COUPE COUPE PR:650)
                  # 1
                  MPN: 91150308717
                  OUTER ROOF PANEL - UNTIL - FOR VEHICLES WITH - WIDTH OF FOLD - 15 MM - MOD. 89 - F 91-KS100 959>> - F 93-KS000 185>>
                  (COUPE COUPE COUPE PR:650)
                  # 1
                  MPN: 91150350701
                  PLASTIC FOAM STRIP
                  (Coupe)
                  # 2
                  MPN: 91150398701
                  Windscreen frame part - for vehicles with - Width of fold - 10 MM - MOD. 89 - F >> 91-KS100 958 - F >> 93-KS000 184 - Discontinued part
                  (COUPE COUPE COUPE)
                  # 2
                  MPN: 91150398701
                  WINDSCREEN FRAME PART - FOR VEHICLES WITH - WIDTH OF FOLD - 10 MM - MOD. 89 - F >> 91-KS100 958 - F >> 93-KS000 184
                  (COUPE COUPE COUPE)
                  # 2
                  MPN: 91150398702
                  Windscreen frame part - Until - for vehicles with - Width of fold - 15 MM - MOD. 89 - F 91-KS100 959>> - F 93-KS000 185>>
                  (COUPE COUPE COUPE)
                  from £3,095.98
                  from £3,095.98
                  # 3
                  MPN: 91150306112
                  side panel - for vehicles with - Width of fold - 10 MM - MOD. 89 - F >> 91-KS100 958 - F >> 93-KS000 184
                  left (COUPE COUPE COUPE)
                  # 3
                  MPN: 91150306113
                  side panel - Until - for vehicles with - Width of fold - 15 MM - MOD. 89 - F 91-KS100 959>> - F 93-KS000 185>> - Discontinued part
                  left (COUPE COUPE COUPE)
                  # 3
                  MPN: 93050306103
                  side panel - for vehicles with - Width of fold - 10 MM - MOD. 89 - F >> 91-KS100 958 - F >> 93-KS000 184
                  left (TURBO COUPE COUPE PR:491)
                  # 3
                  MPN: 93050306104
                  side panel - Until - for vehicles with - Width of fold - 15 MM - MOD. 89 - F 91-KS100 959>> - F 93-KS000 185>> - Discontinued part
                  left (TURBO COUPE COUPE PR:491)
                  # 3
                  MPN: 91150306212
                  side panel - for vehicles with - Width of fold - 10 MM - MOD. 89 - F >> 91-KS100 958 - F >> 93-KS000 184
                  right (COUPE COUPE COUPE)
                  # 3
                  MPN: 91150306213
                  side panel - Until - for vehicles with - Width of fold - 15 MM - MOD. 89 - F 91-KS100 959>> - F 93-KS000 185>> - Discontinued part
                  right (COUPE COUPE COUPE)
                  # 3
                  MPN: 93050306202
                  side panel - D - MJ 1987>> - MJ 1987
                  right (TURBO)
                  # 3
                  MPN: 93050306203
                  side panel - for vehicles with - Width of fold - 10 MM - MOD. 89 - F >> 91-KS100 958 - F >> 93-KS000 184
                  right (TURBO COUPE COUPE PR:491)
                  # 3
                  MPN: 93050306204
                  side panel - with: - POS.9 - Until - for vehicles with - Width of fold - 15 MM - MOD. 89 - F 91-KS100 959>> - F 93-KS000 185>> - Discontinued part
                  right (TURBO COUPE COUPE COUPE PR:491)
                  # 4
                  MPN: 91150319300
                  RETAINING STRIP - F >> 91-HS102 284 - F >> 91-HS105 062 - F >> 91-HS109 747 - F >> 93-HS000 540
                  (COUPE COUPE COUPE COUPE TURBO COUPE PR:637 \\J..\\)
                  # 4
                  MPN: 91150319301
                  retaining strip - for vehicles with - Width of fold - 10 MM - MOD. 89 - F >> 91-KS100 958 - F >> 93-KS000 184 - Discontinued part
                  (COUPE COUPE COUPE)
                  # 4
                  MPN: 91150319301
                  RETAINING STRIP - FOR VEHICLES WITH - WIDTH OF FOLD - 10 MM - MOD. 89 - F >> 91-KS100 958 - F >> 93-KS000 184
                  (COUPE COUPE COUPE)
                  # 5
                  MPN: 91150204302
                  Lock pillar - inner panel - for vehicles with - Width of fold - 10 MM - MOD. 89 - F >> 91-KS100 958 - F >> 93-KS000 184
                  left ( COUPE COUPE)
                  # 5
                  MPN: 96450207101
                  inner panel - inner panel - Until - for vehicles with - Width of fold - 15 MM - MOD. 89 - F 91-KS100 959>> - F 93-KS000 185>>
                  left ( COUPE COUPE)
                  # 5
                  MPN: 91150204402
                  Lock pillar - inner panel - for vehicles with - Width of fold - 10 MM - MOD. 89 - F >> 91-KS100 958 - F >> 93-KS000 184
                  right ( COUPE COUPE)
                  # 5
                  MPN: 96450207201
                  inner panel - inner panel - Until - for vehicles with - Width of fold - 15 MM - MOD. 89 - F 91-KS100 959>> - F 93-KS000 185>>
                  right ( COUPE COUPE)
                  # 6
                  MPN: 91150204104
                  Lock pillar - for vehicles with - Width of fold - 10 MM - MOD. 89 - F >> 91-KS100 958 - F >> 93-KS000 184
                  left ( COUPE COUPE)
                  # 6
                  MPN: 96450204100
                  Lock pillar - Until - for vehicles with - Width of fold - 15 MM - MOD. 89 - F 91-KS100 959>> - F 93-KS000 185>> - Discontinued part
                  left ( COUPE COUPE)
                  # -
                  -
                  CAP - BEHIND - LOCK PILLAR
                  # 6
                  MPN: 91150204204
                  Lock pillar - for vehicles with - Width of fold - 10 MM - MOD. 89 - F >> 91-KS100 958 - F >> 93-KS000 184
                  right ( COUPE COUPE)
                  # 6
                  MPN: 96450204200
                  Lock pillar - Until - for vehicles with - Width of fold - 15 MM - MOD. 89 - F 91-KS100 959>> - F 93-KS000 185>> - Discontinued part
                  right ( COUPE COUPE)
                  # 8
                  MPN: 91150307300
                  channel - Rear light - Discontinued part
                  LEFT
                  # 8
                  MPN: 91150307400
                  channel - Rear light - Discontinued part
                  RIGHT
                  # 9
                  MPN: 93050390700
                  WING JOINING PLATE - - - DISCONTINUED PART
                  left (TURBO CARRERA PR:491)
                  # 9
                  MPN: 93050390700
                  WING JOINING PLATE
                  left (TURBO CARRERA PR:491)
                  # 9
                  MPN: 93050390800
                  WING JOINING PLATE - - - DISCONTINUED PART
                  right (TURBO CARRERA PR:491)
                  # 9
                  MPN: 93050390800
                  WING JOINING PLATE
                  right (TURBO CARRERA PR:491)
                  # 10
                  MPN: 91150306703
                  lower part for side panel - Discontinued part
                  left (CARRERA)
                  # 10
                  MPN: 91150306703
                  LOWER PART FOR SIDE PANEL
                  left (CARRERA)
                  # 10
                  MPN: 93050306700
                  LOWER PART FOR SIDE PANEL - - - DISCONTINUED PART
                  left (TURBO CARRERA PR:491)
                  # 10
                  MPN: 93050306700
                  LOWER PART FOR SIDE PANEL
                  left (TURBO CARRERA PR:491)
                  # 10
                  MPN: 91150306803
                  lower part for side panel - Discontinued part
                  right (CARRERA)
                  # 10
                  MPN: 91150306803
                  LOWER PART FOR SIDE PANEL
                  right (CARRERA)
                  # 10
                  MPN: 93050306800
                  LOWER PART FOR SIDE PANEL - - - DISCONTINUED PART
                  right (TURBO CARRERA PR:491)
                  from £118.12
                  from £118.12
                  # 10
                  MPN: 93050306801
                  LOWER PART FOR SIDE PANEL
                  right (TURBO)
                  # 11
                  MPN: 91150318501
                  INTERMEDIATE LAYER
                  left (CARRERA)
                  from £5.79
                  from £5.79
                  # 11
                  MPN: 91150318601
                  INTERMEDIATE LAYER
                  right (CARRERA)
                  from £7.40
                  from £7.40
                  # -
                  -
                  SET - BEADING - BODY SHELL - COMPRISING:
                  76-89-front and rear
                  # -
                  -
                  INTERMEDIATE LAYER
                  # -
                  -
                  INTERMEDIATE LAYER
                  # -
                  -
                  INTERMEDIATE LAYER
                  # -
                  -
                  INTERMEDIATE LAYER
                  # -
                  -
                  WING SEAL
                  # -
                  -
                  GASKET
                  # 11
                  MPN: 93050319700
                  BEADING
                  (Turbo PR:491)
                  from £9.10
                  from £9.10
                  # -
                  -
                  SET - BEADING - BODY SHELL - COMPRISING:
                  77-89-front and rear (TURBO)
                  # -
                  -
                  BEADING
                  # -
                  -
                  BEADING
                  # 11
                  MPN: 00004320481
                  INTERMEDIATE LAYER
                  (TURBO CARRERA PR:491)
                  from £23.16
                  from £23.16
                  # 12
                  MPN: 91150162302
                  SUPPORT TUBE
                  FRONT
                  from £76.86
                  from £76.86
                  # 13
                  MPN: 90007800902
                  HEX. NUT - M 20 X 1,5
                  from £4.20
                  from £4.20
                  # 14
                  MPN: 90002502102
                  WASHER - A 21
                  from £2.71
                  from £2.71
                  # 15
                  MPN: 90150191321
                  SEAL RING
                  from £4.70
                  from £4.70
                  # 16
                  MPN: 93050162801
                  SUPPORT TUBE
                  LEFT REAR
                  from £22.01
                  from £22.01
                  # 16
                  MPN: 91150162801
                  SUPPORT TUBE
                  RIGHT REAR
                  Supersession
                  Supersession
                  # 17
                  MPN: 90091001202
                  LOCK NUT - M 6 - DISCONTINUED PART
                  # 17
                  MPN: 90091004709
                  LOCK NUT - M 6
                  from £3.80
                  from £3.80
                  # 19
                  MPN: 90018710802
                  TAPPING SCREW - BZ 6,3 X 16 - DISCONTINUED PART
                  # 19
                  MPN: 90018710801
                  tapping screw - BZ 6,3 X 16
                  from £1.31
                  from £1.31
                  # 20
                  MPN: 99950704803
                  SPEED NUT - B 6,3
                  from £1.12
                  from £1.12
                  # 25
                  MPN: 91150475301
                  SPRING COVER
                  left (CARRERA)
                  from £32.87
                  from £32.87
                  # 25
                  MPN: 93050475300
                  SPRING COVER - - - DISCONTINUED PART
                  left (TURBO CARRERA PR:491)
                  # 25
                  MPN: 93050475300
                  SPRING COVER
                  left (TURBO)
                  # 25
                  MPN: 91150475401
                  SPRING COVER
                  right (CARRERA)
                  from £32.87
                  from £32.87
                  # 25
                  MPN: 93050475400
                  SPRING COVER - - - DISCONTINUED PART
                  right (TURBO CARRERA PR:491)
                  # 25
                  MPN: 93050475400
                  SPRING COVER
                  right (TURBO)
                  # 26
                  MPN: 91155951100
                  GASKET
                  from £4.29
                  from £4.29
