(PR:505,506 TURBO)
porsche 1989 (911) special model - flatnose design - wiring harnesses - relay parts diagram

980-010 - SPECIAL MODEL - FLATNOSE DESIGN - WIRING HARNESSES - RELAY

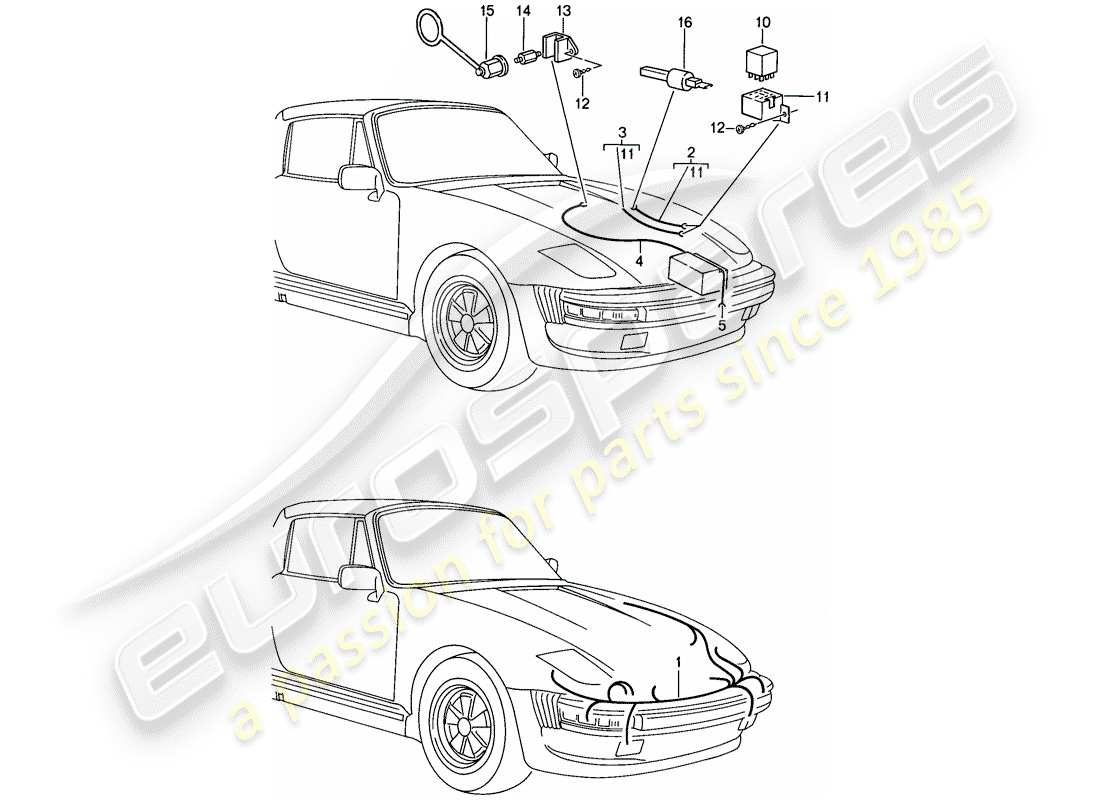

Porsche 1989 (911) SPECIAL MODEL - FLATNOSE DESIGN - WIRING HARNESSES - RELAY Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Key
                Price
                # 1
                MPN: 91161291100
                harness - Pop-up headlight
                from £42.54
                from £42.54
                harness - Pop-up headlight Genuine Porsche Part - New (to order)
                # 4
                MPN: 91161293500
                BATTERY STARTER CABLE
                from £32.96
                from £32.96
                BATTERY STARTER CABLE Genuine Porsche Part - New (to order)
                # 5
                MPN: 477971221
                ground strap - battery
                from £21.05
                from £21.05
                ground strap - battery Genuine Porsche Part - New (to order)
                # 12
                MPN: 90014507107
                TAPPING SCREW - B 3,5 X 13
                from £0.86
                from £0.86
                TAPPING SCREW - D >>- MJ 1985 Genuine Porsche Part - New (to order)
                # 13
                MPN: 92861286700
                WIRE CONNECTOR
                from £30.03
                from £30.03
                wire connector - D - MJ 1969>> - MJ 1969 Genuine Porsche Part - New (to order)
                # 14
                MPN: 92861286801
                SCREW, HEX. HD.
                from £6.65
                from £6.65
                screw, hex. hd. - D - MJ 1985>> Genuine Porsche Part - New (to order)
                # 15
                MPN: 92861207300
                PROTECTIVE CAP
                protective cap - D - MJ 1985>> Genuine Porsche Part - New (to order)
                # 15
                MPN: 92861207301
                PROTECTIVE CAP
                from £9.78
                from £9.78
                protective cap - D - MJ 1985>> Genuine Porsche Part - New (to order)
