porsche 1970 (914) air cleaner parts diagram

116-000 - AIR CLEANER

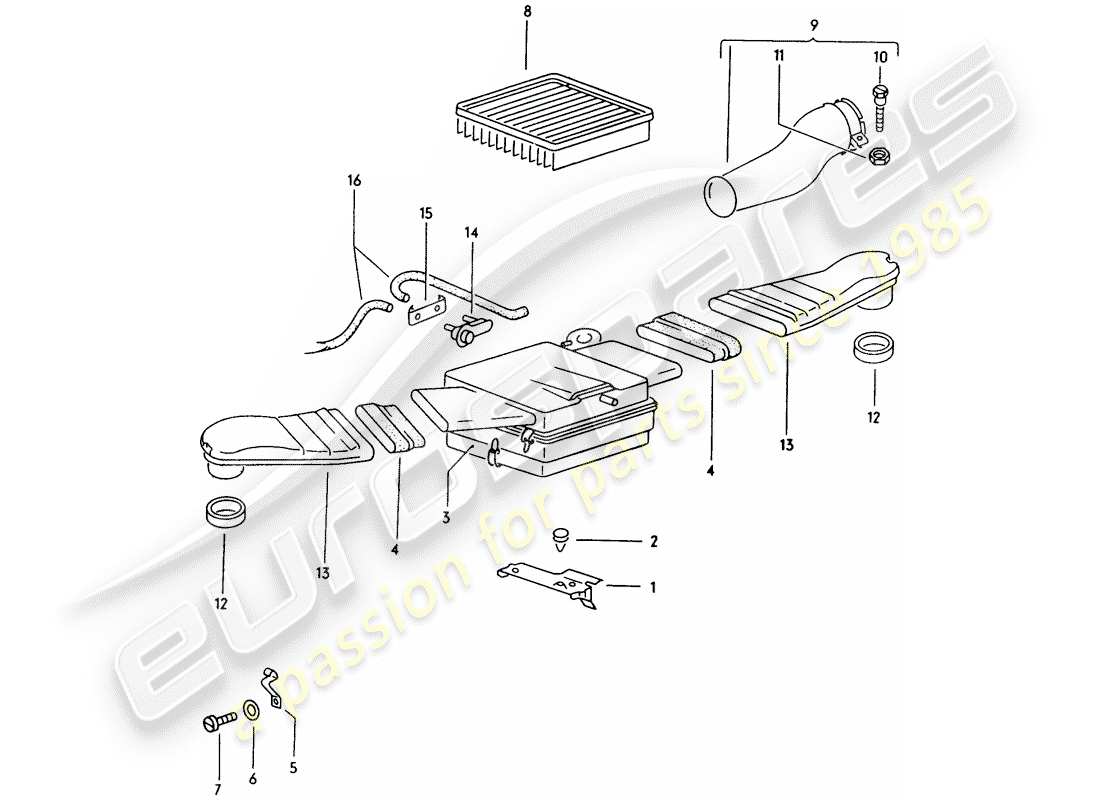

Porsche 1970 (914) AIR CLEANER Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Price
                                    # 1
                                    MPN: 021129545C
                                    Console for engine mounting - for - air cleaner
                                    # -
                                    -
                                    Washer - 7
                                    # -
                                    -
                                    FILLISTER HD. SCREW - AM 6 X 12
                                    # 2
                                    MPN: N 0200223
                                    PLUG - A 8 X 1
                                    from £3.98
                                    from £3.98
                                    # 3
                                    MPN: 021129607M
                                    AIR CLEANER
                                    # 4
                                    MPN: 021129619B
                                    RUBBER SLEEVE
                                    # 5
                                    MPN: 021129693
                                    Retaining Clip
                                    # 6
                                    MPN: N 0122265
                                    SPRING WASHER - B 6
                                    from £0.70
                                    from £0.70
                                    # 7
                                    MPN: N 0107131
                                    SCREW, CHEESE HD. - AM 6 X 8
                                    # 8
                                    MPN: 021129620
                                    AIR FILTER
                                    from £11.27
                                    from £11.27
                                    # 9
                                    MPN: 021129623
                                    INTAKE MANIFOLD
                                    # 10
                                    MPN: 111129635
                                    SCREW, HEX. HD.
                                    # 11
                                    MPN: 90007601002
                                    NUT - M 6 - DISCONTINUED PART
                                    # 11
                                    MPN: 9000760100B
                                    NUT - M 6
                                    from £0.73
                                    from £0.73
                                    # 12
                                    MPN: 021129625B
                                    SEAL RING
                                    # 13
                                    MPN: 021129631A
                                    END PIECE
                                    # 14
                                    MPN: 113129828A
                                    OIL TEMPERATUR VALVE
                                    # 15
                                    MPN: 113129830
                                    RETAINER PLATE
                                    # 16
                                    MPN: N 0203612
                                    Hose in coils of 5M - 'Order qty. 5' - 4 X 2,5
                                    from £71.86
                                    from £71.86
