porsche 1971 (914) seat belt parts diagram

812-000 - SEAT BELT

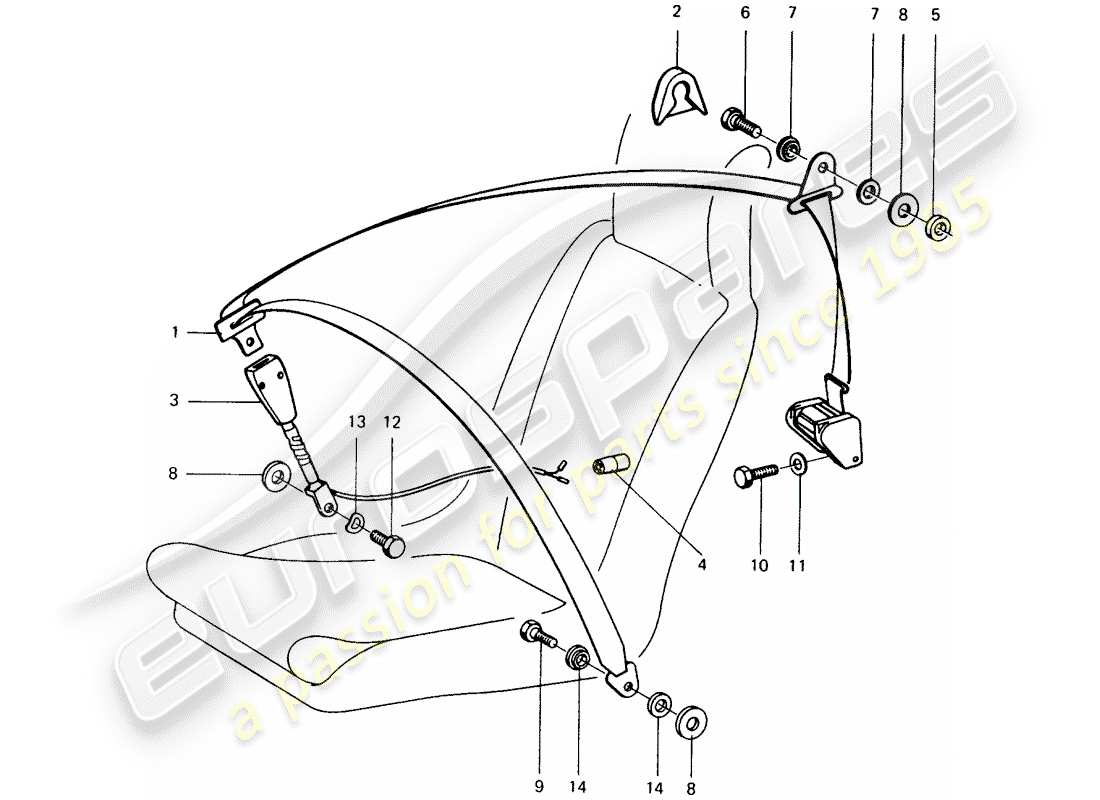

Porsche 1971 (914) SEAT BELT Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# -
-
SEAT BELT - WITH: - AUTOMATIC
# 1
MPN: 91480345511
three-point seat belt - with: - Automatic - D - MJ 1974>>
left (914-1,8V/1,8 914-2,0)
three-point seat belt - with: - Automatic - D - MJ 1974>> Genuine Porsche Part - New (to order)
# 1
MPN: 91480345611
three-point seat belt - with: - Automatic - D - MJ 1974>>
right (914-1,8V/1,8 914-2,0)
three-point seat belt - with: - Automatic - D - MJ 1974>> Genuine Porsche Part - New (to order)
# 2
MPN: 111857719G
cap - - D - MJ 1974>>
(914-1,8V/1,8 914-2,0)
cap - - D - MJ 1974>> Genuine Porsche Part - New (to order)
# 3
MPN: 91480318312
flexible lock - with: - Pushbutton - D - MJ 1974>>
(914-1,8V/1,8 914-2,0)
flexible lock - with: - Pushbutton - D - MJ 1974>> Genuine Porsche Part - New (to order)
# 5
MPN: 91480313710
SPACER TUBE
(914-1,8V/1,8 914-2,0)
SPACER TUBE - D >>- MJ 1973 Genuine Porsche Part - New (to order)
# 6
MPN: 111857793E
SCREW, HEX. HD.
(914-1,8V/1,8 914-2,0)
from £7.74
from £7.74
SCREW, HEX. HD. - FOR - STANDARD TYPE LOCK - D >>- MJ 1984 Genuine Porsche Part - New In stock
# 7
MPN: 211857771
WASHER
(914-1,8V/1,8 914-2,0)
from £1.77
from £1.77
Washer - for - flexible lock - Movable Genuine Porsche Part - New (to order)
# 8
MPN: 111857707A
SPACER WASHER
(914-1,8V/1,8 914-2,0)
SPACER WASHER - F 92-ES840 622>>- F 92-ES840 672>>- DISCONTINUED PART Genuine Porsche Part - New (to order)
# 8
MPN: WHT001373
SPACER WASHER
(914-1,8V/1,8 914-2,0)
from £4.55
from £4.55
SPACER WASHER - F 92-ES840 622>>- F 92-ES840 672>> Genuine Porsche Part - New (to order)
# 9
MPN: 111857793E
SCREW, HEX. HD.
(914-1,8V/1,8 914-2,0)
from £7.74
from £7.74
SCREW, HEX. HD. - FOR - STANDARD TYPE LOCK - D >>- MJ 1984 Genuine Porsche Part - New In stock
# 10
MPN: 111857799
SCREW, HEX. HD.
(914-1,8V/1,8 914-2,0)
from £0.66
from £0.66
screw, hex. hd. - for - flexible lock - Fixed Genuine Porsche Part - New (to order)
HEXAG. SCREW Genuine Lamborghini - New In stock
# 11
MPN: 99952310902
LOCK WASHER
(914-1,8V/1,8 914-2,0)
from £0.70
from £0.70
lock washer - M 12 - D - MJ 1969>> Genuine Porsche Part - New (to order)
# 12
MPN: 91480346810
SCREW
(914-1,8V/1,8 914-2,0)
from £6.65
from £6.65
SCREW - F >>94-KN401 291 - F >>95-KN100 776 Genuine Porsche Part - New (to order)
# 13
MPN: 90002802601
SPRING WASHER - B 14
(914-1,8V/1,8 914-2,0)
SPRING WASHER - B 14 Genuine Porsche Part - New (to order)
# 14
MPN: 211857771
WASHER
(914-1,8V/1,8 914-2,0)
from £1.77
from £1.77
Washer - for - flexible lock - Movable Genuine Porsche Part - New (to order)
# -
-
SEAT BELT - WITHOUT: - AUTOMATIC
# -
-
three-point seat belt - - D - MJ 1974>>
(914-1,8V/1,8 914-2,0)
# -
-
flexible lock - with: - Pushbutton - D - MJ 1974>>
(914-1,8V/1,8 914-2,0)
# -
-
MOUNT - FOR - BELT - FOR - ROLL BAR
# -
-
SPACER TUBE
(914-1,8V/1,8 914-2,0)
# -
-
SPACER WASHER
(914-1,8V/1,8 914-2,0)
# -
-
SPACER WASHER
(914-1,8V/1,8 914-2,0)
# -
-
Washer - - D - MJ 1974>>
(914-1,8V/1,8 914-2,0)
# -
-
SCREW, HEX. HD. - - D - MJ 1974>>
(914-1,8V/1,8 914-2,0)
# -
-
cap - - D - MJ 1974>>
(914-1,8V/1,8 914-2,0)
# -
-
MOUNT - FOR - BELT - AM - SIDE MEMBER
# -
-
MOUNT - FOR - FLEXIBLE LOCK - AM - TUNNEL
# -
-
SPRING WASHER - B 14
(914-1,8V/1,8 914-2,0)
# -
-
SCREW - - D - MJ 1974>>
(914-1,8V/1,8 914-2,0)
# -
-
three-point seat belt - with: - lock - D >> - MJ 1973
left (914-6/4/1,7)
# -
-
Belt - with: - plate - D >> - MJ 1973
(914-6/4/1,7)
# -
-
spacer tube - D >> - MJ 1973
(914-6/4/1,7)
# -
-
screw, hex. hd. - Roll bar
(914-6/4/1,7)
# -
-
SHOULDERED WASHER
(914-6/4/1,7)
# -
-
SPACER WASHER
(914-6/4/1,7)
# -
-
SPACER WASHER
(914-6/4/1,7)
# -
-
CAP
(914-6/4/1,7)
# -
-
screw, hex. hd. - side member
(914-6/4/1,7)
# -
-
RETAINER
(914-6/4/1,7)
# -
-
TAPPING SCREW, CSK. - B 2,9 X 9,5 - CHROME PLATED
(914-6/4/1,7)
# -
-
screw, hex. hd. - tunnel
(914-6/4/1,7)
# -
-
three-point seat belt - with: - lock - D >> - MJ 1973
right (914-6/4/1,7)
# -
-
THREE-POINT SEAT BELT - SEAT - LAP BELT - NOT FOR: - (CH) - COMPRISING:
center
# -
-
THREE-POINT SEAT BELT - WITH: - LOCK
# -
-
THREE-POINT SEAT BELT - WITH: - PLATE
# -
-
screw, hex. hd. - Discontinued part
# -
-
SCREW, HEX. HD.
# -
-
SPACER WASHER
# -
-
SPACER WASHER
# -
-
SPRING WASHER - B 12 - DISCONTINUED PART
# -
-
SPRING WASHER - B 12
# -
-
three-point seat belt - comprising: - D >> - MJ 1973
left (914-6/4/1,7 \\CH.\\)
# -
-
three-point seat belt - with: - lock - D >> - MJ 1973
(914-6/4/1,7)
# -
-
Belt - with: - plate - D >> - MJ 1973
(914-6/4/1,7)
# -
-
three-point seat belt - comprising: - D >> - MJ 1973
right (914-6/4/1,7 \\CH.\\)
# -
-
three-point seat belt - with: - lock - D >> - MJ 1973
right (914-6/4/1,7)
