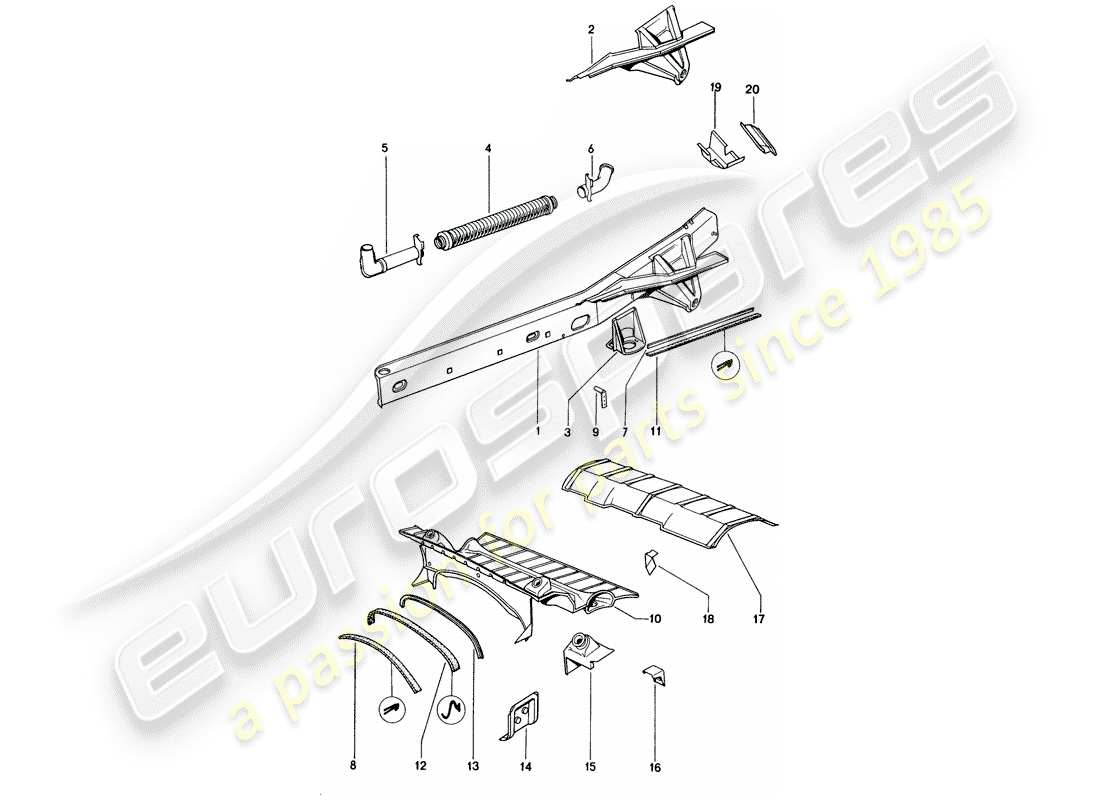

801-010 - Frame
Porsche 1972 (914) FRAME Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 91450143510
INNER PANEL - FOR - SIDE MEMBER - ALSO INCLUDES - ILLUSTRATION, ITEM: - FOR - TYP 914-6 - ITEM TO BE REMOVED IS:
left----801-010,3---3 ( 914-4 914-6)
# 1
MPN: 91450143612
INNER PANEL - FOR - SIDE MEMBER - ALSO INCLUDES - ILLUSTRATION, ITEM: - FOR - TYP 914-6 - ITEM TO BE REMOVED IS:
right----801-010,3---3 ( 914-4 914-6)
# 2
MPN: 91450104411
bracket - for - mounting - Rear axle
RIGHT
from £500.15
from £500.15
# 2
MPN: 91450101710
Console for engine mounting - for - mounting - Rear axle
LEFT
# 3
MPN: 91450118310
Engine Mounting
left (914-4/1,7 914-1,8/1,8V 914-2,0)
# 3
MPN: 91450118410
Engine Mounting
right (914-4/1,7 914-1,8/1,8V 914-2,0)
# 4
MPN: 91157202502
muffler - exhaust - D >> - MJ 1974
from £153.75
from £153.75
# 4
MPN: 91157202502
MUFFLER - EXHAUST - NOT - CLOSED - - D - MJ 1975>>
(914-1,8V/1,8 914-2,0)
from £153.75
from £153.75
# 5
MPN: 91450102710
water tube
LEFT FRONT
# 5
MPN: 91450102810
water tube
RIGHT FRONT
# 6
MPN: 91450103110
water tube
LEFT REAR
# 6
MPN: 91450103210
water tube
RIGHT REAR
# 7
MPN: 91450182510
PROFILE STRIP
# 8
MPN: 91450411710
SEAL STRIP
FRONT
# 9
MPN: 91450152510
STOP - FOR - HANDBRAKE
left (914-6/4)
# 10
MPN: 91450108310
floor pan - - D >> - MJ 1974
(914-6/4/1,7 914-1,8V/2,0)
# 10
MPN: 91450108315
floor pan - D - MJ 1975>>
(914-1,8V/2,0)
# 10
MPN: 91450701510
floor pan - - D >> - MJ 1974
(914-1,8/2,0 \\USA\\,\\J..\\)
# 11
MPN: 91450415710
SEAL STRIP
left-side
# 11
MPN: 91450415810
SEAL STRIP
right-side
# 12
MPN: 91450415510
SEAL STRIP
rear
# 13
MPN: 91450182710
PROFILE STRIP
rear
# 14
MPN: 91450107510
SUPPORT - FOR - HANDBRAKE
# 15
MPN: 91450107710
REINFORCEMENT PLATE - FOR - SHOCK ABSORBER
LEFT REAR
# 15
MPN: 91450107810
REINFORCEMENT PLATE - FOR - SHOCK ABSORBER
RIGHT REAR
# 16
MPN: 91450185112
CONSOLE FOR ENGINE MOUNTING - FOR - MOUNT - BUMPER - D >> - MJ 1974
# 16
MPN: 91450185112
Console for engine mounting - for - Mount - bumper - D - MJ 1975>>
(914-1,8V/1,8 914-2,0)
# 17
MPN: 91450159411
HEAT PROTECTION PLATE
# 18
MPN: 91450159610
RETAINING BRACKET - FOR - HEAT PROTECTION PLATE
# 19
MPN: 91450114110
FILLER PLATE
LEFT
# 19
MPN: 91450114210
FILLER PLATE
RIGHT
# 20
MPN: 91450114310
REINFORCEMENT
LEFT
# 20
MPN: 91450114410
REINFORCEMENT
RIGHT
