902-010 - wiring harnesses

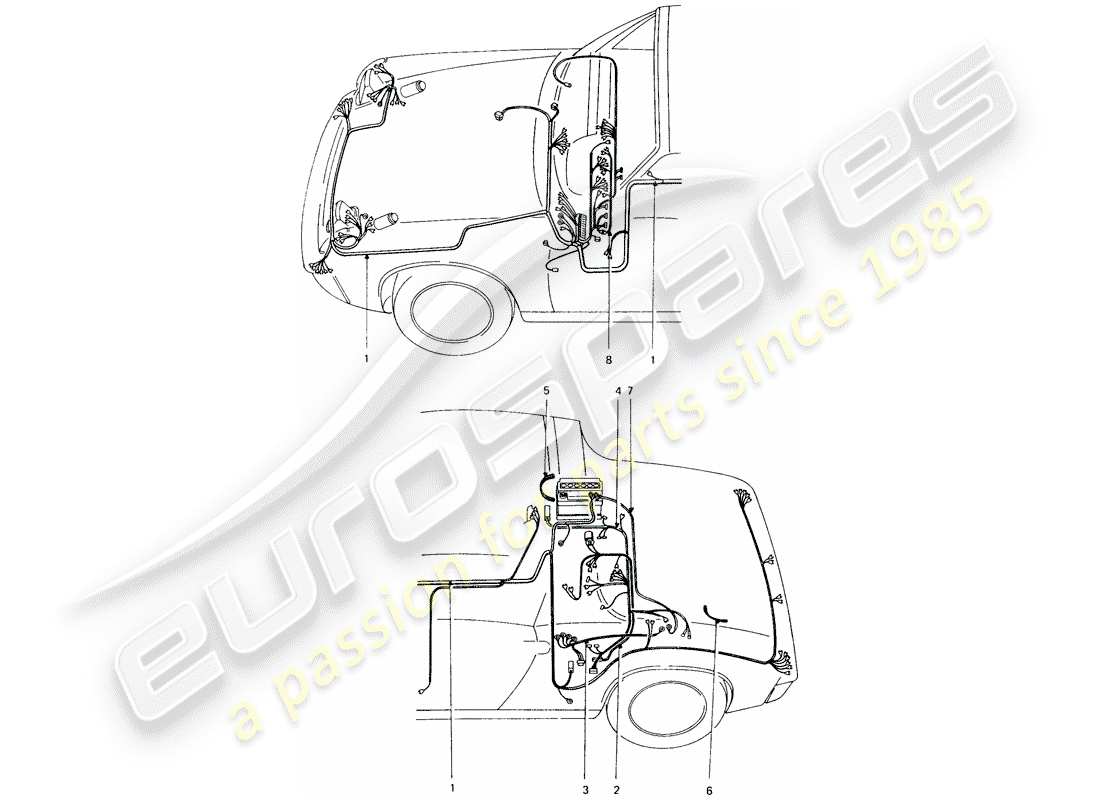

Porsche 1974 (914) WIRING HARNESSES Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 91461201810
harness - D >> - MJ 1970
(914-4)
# 1
MPN: 91461201812
harness - D - MJ 1971>>
(914-4)
# 1
MPN: 91461201813
harness - F 47-22900 001>> - D - MJ 1972>>
(914-4)
# 1
MPN: 91461201815
harness - D >> - MJ 1973
(914-1,7/2,0)
# 1
MPN: 91461201816
harness - D - MJ 1974>>
(914-1,8V/2,0)
# 1
MPN: 91461201817
harness - D - MJ 1975>>
(914-1,8V/2,0)
# -
-
grommet - for - Handbrake contact piece
# 2
MPN: 91461200713
harness - engine - governor - plate - D >> - MJ 1971
(914-4)
# 2
MPN: 91461200713
harness - engine - governor - plate - D - MJ 1972>>
(914-4)
# 2
MPN: 91461200715
harness - engine - governor - plate - D >> - MJ 1973
(914-1,7/2,0)
# 2
MPN: 91461200716
harness - engine - governor - plate - D - MJ 1974>>
(914-1,8V/2,0)
# 3
-
HARNESS - ALTERNATOR - SEE GROUP - 9/02/05
# -
-
HARNESS - FOR - CENTER CONSOLE
# -
-
CONNECTION CABLE - FOR - INSTRUMENT CLUSTER - WITHOUT: - CENTER CONSOLE
(914-2,0)
# -
-
POSITIVE CABLE - INSTRUMENT CLUSTER
(914-2,0)
# 4
-
LINES - FOR - ELECTRONIC CONTROL MODULE - SEE GROUP - 9/01/05
# 5
MPN: 91461190310
GROUND STRAP - BATTERY - BODY SHELL - D >> - MJ 1973
(914-4/1,7 914-2,0)
# 5
MPN: 91461190411
GROUND STRAP - BATTERY - BODY SHELL - D - MJ 1974>>
(914-1,8V/1,8 914-2,0)
# 6
MPN: 99961191920
GROUND STRAP - TRANSMISSION - SUSPENSION
from £17.64
from £17.64
# -
-
HEX. NUT - M 8 - DISCONTINUED PART
# -
-
hex. nut - M 8
# -
-
SPRING WASHER - B8
# 7
MPN: 91461103100
HARNESS - BATTERY - STARTER
# 8
MPN: 91461204110
HARNESS - FOR - LIGHTS - INSTRUMENTS - D >> - MJ 1973
(914-4/1,7 914-2,0)
# -
-
DIODE - FOR - BRAKES - WARNING FUNCTION
# -
-
ADDITIONAL CABLES - FOR - MANUAL GEARBOX
(914-4 \\A..\\)
# -
-
ADDITIONAL CABLES - FOR - TURN SIGNAL REPEATER
# -
-
ADDITIONAL CABLES - FOR - SWITCH - HIGH-BEAM HEADLIGHT - D >> - MJ 1973
(914-4/1,7 914-2,0)
# 8
MPN: 91461205211
ADDITIONAL CABLES - FOR - SWITCH - HIGH-BEAM HEADLIGHT
(914-1,8V/2,0)
# -
-
harness - for - license plate light - D - MJ 1975>>
(914-1,8V/1,8 914-2,0)
# -
-
ADDITIONAL CABLES - FOR - REAR WINDOW HEATING
(914-4)
# -
-
HARNESS - GROUND STRAP - FOR - FUEL PUMP
(914-1,8V/1,8 914-2,0)
# -
-
Additional cables - for - Rear window heating - F 47-22900 001>> - D - MJ 1972>>
(914-4/1,7 914-2,0)
# -
-
Additional cables - for - Rear window heating - D - MJ 1974>>
(914-1,8V/1,8 914-2,0)
# -
-
HARNESS - SWITCH - FOR - FOG LIGHTS - AND - REAR FOG LIGHT
(914-4)
# -
-
harness - switch - for - Fog lights - and - rear fog light - F 47-22900 001>> - D - MJ 1972>>
# -
-
HARNESS - FOR - EMERGENCY LIGHT SWITCH - BRAKE - 2-POLE - D >> - MJ 1973
(914-6/4/1,7 914-2,0)
# -
-
Additional cables - for - emergency light switch - Brake - Single pole - D - MJ 1974>>
(914-1,8V/1,8 914-2,0)
# -
-
HARNESS - FOR - RADIO UNIT - - BLAUPUNKT -
# -
-
CABLE FOR LOUDSPEAKER - FOR - RADIO UNIT - - BLAUPUNKT -
# -
-
ADDITIONAL CABLES - FOR - REAR FOG LIGHT
(914-4/1,7 914-2,0)
# -
-
Additional cables - for - rear fog light - D - MJ 1972>>
(914-4/1,7 914-1,8V/1,8)
# -
-
ADDITIONAL CABLES - FOR - DOUBLE - HORN
(914-4)
# -
-
Additional cables - for - Double - horn - D - MJ 1975>>
(914-1,8V/1,8 914-2,0)
# -
-
HARNESS - FOR - FOG LIGHTS
(914-4/1,7 914-1,8V/2,0 \\F..\\)
# -
-
DIODE - WITH: - CONNECTION CABLE - FOR - RELAY
# -
-
HARNESS - FOR - BRAKES - WARNING SYSTEM
# -
-
Additional cables - for - Headlight washer system - (S) - D - MJ 1974>>
(914-1,8V/1,8 914-2,0)
# -
-
Additional cables - for - Interval relay - Windscreen wiper system - D - MJ 1972>>
# -
-
HARNESS - REPAIR MATERIAL - FRONT LUGGAGE COMPARTMENT
(914-4)
# -
-
CLUTCH - FOR - GOVERNOR - PLATE
# -
-
CLUTCH - FOR - SENSOR - FUEL-LEVEL INDICATOR - AND - FAN
# -
-
MALE BLADE TERMINAL HOUSING - FOR - GOVERNOR
# -
-
Connector housing - for - Alternator
# -
-
CAP
# -
-
COVERING - FOR - CABLE HOLDER
# -
-
SHORTEN TO:
100 MM
# -
-
SHORTEN TO:
70 MM
# -
-
SHORTEN TO:
50 MM
# -
-
SHORTEN TO:
40 MM
# -
-
FLAT SLEEVE - FOR - REPAIR MATERIAL - HARNESS - 914 612 123 10
(914-4)
# -
-
FLAT SLEEVE - FOR - REPAIR MATERIAL - HARNESS - 914 612 123 10
(914-4)
# -
-
TIE WRAP - FOR - HEADLAMP - HOUSING - DISCONTINUED PART
# -
-
TIE WRAP - FOR - HEADLAMP - HOUSING - DISCONTINUED PART
# -
-
TIE WRAP - FOR - HEADLAMP - HOUSING
# -
-
tie wrap - for - starter
# -
-
tie wrap - for - engine - Connection cable - 4
# -
-
RUBBER WASHER
