308-000 - TRANSMISSION CASE

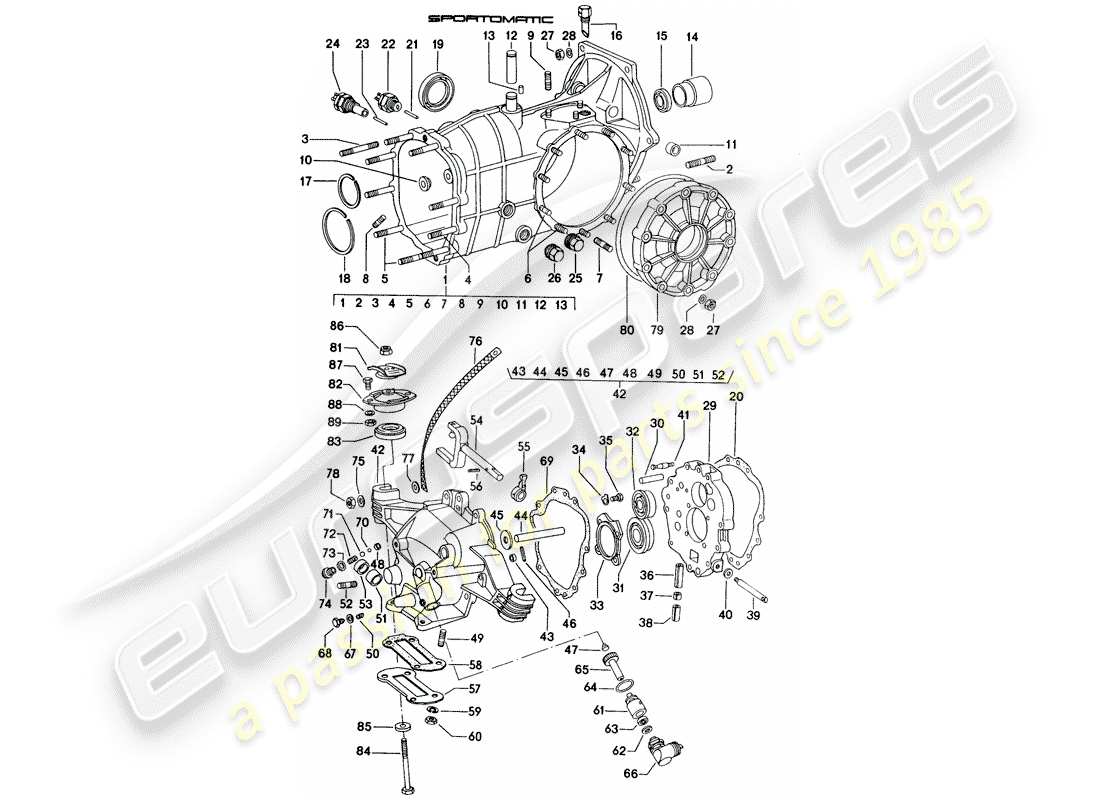

Porsche 1976 (914) TRANSMISSION CASE Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 91430101005
TRANSMISSION CASE
# 2
MPN: 90006111802
STUD - BM 10 X 28
from £0.89
from £0.89
# 3
MPN: 99906213802
STUD - BM 8 X 52 - DISCONTINUED PART
# 3
MPN: 90006010201
STUD - BM 8 X 52
from £5.20
from £5.20
# 4
MPN: 90006101202
STUD - BM 8 X 50 - DISCONTINUED PART
# 4
MPN: 99906201202
STUD - BM 8 X 50 - DISCONTINUED PART
# 4
MPN: 99906204102
STUD - BM 8 X 50
from £4.07
from £4.07
# 5
MPN: 90006101101
STUD - BM 8 X 45
# 6
MPN: 99906200802
STUD - BM 8 X 25
from £2.08
from £2.08
# 7
MPN: 99906200702
STUD - BM 8 X 22 - DISCONTINUED PART
# 7
MPN: 90006010601
STUD - BM 8 X 22
from £5.26
from £5.26
# 8
MPN: 90006105702
STUD - BM 8 X 15 - DISCONTINUED PART
# 8
MPN: 99906205702
STUD - BM 8 X 15 - DISCONTINUED PART
from £0.47
from £0.47
# 8
MPN: 99906207302
STUD - BM 8 X 15
from £3.64
from £3.64
# 9
MPN: 90006100402
STUD - BM 8 X 12
# 10
MPN: 90530229100
THRUST RING
# 11
MPN: 90511672700
BUSHING
# 12
MPN: 90511670701
BEARING PIN
# 13
MPN: 99909510200
PIN - S 5 X 12
# 14
MPN: 90511681301
GUIDE TUBE
# 15
MPN: 99911328640
SEAL
# 16
MPN: 90430107100
BREATHER ASSY.
from £12.78
from £12.78
# 17
MPN: 99904230101
CIRCLIP - SB 52
# 18
MPN: 99904130501
CIRCLIP - SB 79
from £1.57
from £1.57
# 19
MPN: 99911305850
Radial shaft seal - BA - FG 45 X 65 X 10
from £14.01
from £14.01
# 20
MPN: 90530119100
GASKET - FOR - TRANSMISSION CASE - 0,10 MM
from £0.93
from £0.93
# 20
MPN: 90530119101
GASKET - FOR - TRANSMISSION CASE - 0,15 MM
from £1.66
from £1.66
# 20
MPN: 90530119102
GASKET - FOR - TRANSMISSION CASE - 0,20 MM
from £0.88
from £0.88
# 21
MPN: 90530324502
CAM FOLLOWER - REVERSE LIGHT SWITCH
from £14.82
from £14.82
# 22
MPN: 90561305102
REVERSE LIGHT SWITCH
from £135.30
from £135.30
# 23
MPN: 91430324610
CAM FOLLOWER - BRIDGING SWITCH
from £1.66
from £1.66
# 24
MPN: 90561310102
BRIDGING SWITCH
from £130.54
from £130.54
# 25
MPN: 99906400702
THREADED PLUG - WITHOUT: - MAGNET - YELLOW - ANODISED
from £11.19
from £11.19
# 26
MPN: 99906400802
THREADED PLUG - WITH MAGNET - YELLOW - ANODISED
from £11.19
from £11.19
# 27
MPN: 90007602502
HEX. NUT - M 8 - DISCONTINUED PART
Supersession
Supersession
# 27
MPN: 90007606402
hex. nut - M 8
from £0.59
from £0.59
# 28
MPN: N 0122411
SPRING WASHER - B 8 X 15
from £0.64
from £0.64
# 29
MPN: 90530122101
INTERMEDIATE PLATE
# 30
MPN: 90001202700
DOWEL PIN - 10 M 6 X 45
# 31
MPN: 99905201600
FOUR-POINT CONTACT BEARING - DISCONTINUED PART
# 31
MPN: 9990520160A
FOUR-POINT CONTACT BEARING
from £170.10
from £170.10
# 32
MPN: 99905302500
BALL BEARING
from £198.81
from £198.81
# 33
MPN: 90130125101
TENSIONING PLATE
# 34
MPN: 99903900100
RETAINER PLATE
from £4.15
from £4.15
# 35
MPN: N 01023911
SCREW, HEX. HD. - M 8 X 18 - DISCONTINUED PART
# 35
MPN: N 01023930
SCREW, HEX. HD. - M 8 X 18
from £1.49
from £1.49
# 36
MPN: 90130324101
BUSHING - FOR - GEAR LOCK DETENT
# 37
MPN: 90530324200
BUSHING - FOR - GEAR LOCK DETENT
# 38
MPN: 90530324300
BUSHING - FOR - GEAR LOCK DETENT
from £1.20
from £1.20
# 39
MPN: 91430130700
PIN - FOR - RELAY LEVER
from £11.36
from £11.36
# 40
MPN: N 0122411
SPRING WASHER - B 8 X 15
from £0.64
from £0.64
# 41
MPN: 90530313600
ECCENTRIC BOLT
# 42
MPN: 91430103112
TRANSMISSION COVER
rear
# 43
MPN: 90131824401
BUSHING
# 44
MPN: 90530225500
PIN - FOR - REVERSE GEAR
# 45
MPN: 90530229200
THRUST WASHER
# 46
MPN: 90009501901
SPRING PIN - 5 X 30
from £0.50
from £0.50
# 47
MPN: 90131827301
PIN
# 48
MPN: 90530323600
WASHER
# 49
MPN: 99906205502
STUD - BM 6 X 12
from £3.48
from £3.48
# 50
MPN: 99950407000
HEX. NUT, SELF-LOCKING - M 8 X 1
from £1.87
from £1.87
# 51
MPN: 91430312101
BUSHING - FOR - SHIFT ROD
# 52
MPN: 90006107302
STUD - BM 8 X 16
# 53
MPN: 90011202950
RADIAL SHAFT SEAL - A 14 X 24 X 7
from £9.40
from £9.40
# 54
MPN: 91430301102
BELLCRANK
# 55
MPN: 91430301301
DISTRIBUTOR PIECE
# 56
MPN: 90030900300
PIN - 5 X 24
from £0.88
from £0.88
# 57
MPN: 91430131300
COVER
# 58
MPN: 91430139100
gasket - Discontinued part
# 58
MPN: 91430139101
GASKET
from £1.47
from £1.47
# 59
MPN: 99902510802
WASHER - 6,4 X 14
from £1.36
from £1.36
# 60
MPN: 99908401802
LOCK NUT
from £4.51
from £4.51
# 61
MPN: 90131824312
BUSHING
from £131.14
from £131.14
# 62
MPN: 91431826101
SEALING WASHER
from £6.85
from £6.85
# 63
MPN: 99911303650
Radial shaft seal - BA - FG 10 X 18 X 6
from £6.85
from £6.85
# 64
MPN: 99970108450
O-RING
from £1.56
from £1.56
# 65
MPN: 90531833310
shaft - for - Speedometer drive
from £67.46
from £67.46
# 66
MPN: 91431802901
ELBOW
# 67
MPN: 90003100102
WASHER - 8,4 - DISCONTINUED PART
# 67
MPN: 90003110501
WASHER - 8,4
from £0.59
from £0.59
# 68
MPN: 90131827203
SCREW, HEX. HD.
from £2.10
from £2.10
# 69
MPN: 90530139202
gasket - for - transmission cover
from £2.34
from £2.34
# 70
MPN: 90010801000
BALL - 7 MM - FOR - PARKING LOCK
# 71
MPN: N 0256672
BALL - 9 MM - FOR - PARKING LOCK
from £1.36
from £1.36
# 72
MPN: 90530323700
SPRING - FOR - PARKING LOCK
from £5.36
from £5.36
# 73
MPN: 90003100102
WASHER - 8,4 - DISCONTINUED PART
# 73
MPN: 90003110501
WASHER - 8,4
from £0.59
from £0.59
# 74
MPN: 90530323800
THREADED PLUG
from £16.53
from £16.53
# 75
MPN: 90003100102
WASHER - 8,4 - DISCONTINUED PART
# 75
MPN: 90003110501
WASHER - 8,4
from £0.59
from £0.59
# 76
MPN: 99961191920
GROUND STRAP
from £17.64
from £17.64
# 77
MPN: 99915102202
WASHER - 20 X 8,4 X 2
from £2.79
from £2.79
# 78
MPN: 99909010102
HEX. NUT, SELF-LOCKING
# 79
MPN: 90530131111
TRANSMISSION COVER
SIDE
from £419.89
from £419.89
# 80
MPN: 99970128640
O-RING - 160 X 3
from £13.69
from £13.69
# 80
MPN: 90530139100
GASKET
from £1.47
from £1.47
# 81
MPN: 91437505801
SHELF
from £45.15
from £45.15
# 82
MPN: 91437502600
gearbox mounting
from £88.05
from £88.05
# 83
MPN: 91437523700
WASHER
# 84
MPN: 90008204402
SCREW, HEX. HD. - M 12 X 1,5 X 125 - DISCONTINUED PART
# 84
MPN: 90008211801
SCREW, HEX. HD. - M 12 X 1,5 X 125
from £3.92
from £3.92
# 85
MPN: 91437523900
WASHER
from £1.65
from £1.65
# 86
MPN: N 0211915
HEX. NUT, SELF-LOCKING - M 12 X 1,5
from £1.35
from £1.35
# 87
MPN: 90007508502
SCREW, HEX. HD. - M 8 X 20
Supersession
Supersession
# 88
MPN: 90002500702
WASHER - 8,4 - DISCONTINUED PART
# 88
MPN: 90002500703
WASHER - 8,4
from £0.84
from £0.84
# 89
MPN: 90091002202
LOCK NUT
Supersession
Supersession
-part-diagram-309-000.webp "PORSCHE 1976 (914) GEAR WHEEL SETS PARTS DIAGRAM")
-part-diagram-309-005.webp "PORSCHE 1976 (914) GEARS AND SHAFTS PARTS DIAGRAM")
-part-diagram-310-000.webp "PORSCHE 1976 (914) SHIFT RODS - SHIFT FORKS - DIFFERENTIAL PARTS DIAGRAM")
-part-diagram-401-000.webp "PORSCHE 1976 (914) FRONT AXLE - STABILIZER PARTS DIAGRAM")
-part-diagram-402-000.webp "PORSCHE 1976 (914) SHOCK ABSORBER STRUT - LUBRICANTS PARTS DIAGRAM")
-part-diagram-403-000.webp "PORSCHE 1976 (914) STEERING GEAR - STEERING LINKAGE PARTS DIAGRAM")
-part-diagram-403-005.webp "PORSCHE 1976 (914) INTERMEDIATE STEERING SHAFT - STEERING WHEEL - STEERING COLUMN SWITCH - D >> - MJ 1971 PARTS DIAGRAM")
-part-diagram-403-007.webp "PORSCHE 1976 (914) INTERMEDIATE STEERING SHAFT - STEERING WHEEL - STEERING COLUMN SWITCH - D >> - MJ 1971 PARTS DIAGRAM")
-part-diagram-403-010.webp "PORSCHE 1976 (914) INTERMEDIATE STEERING SHAFT - STEERING WHEEL - STEERING COLUMN SWITCH - D - MJ 1972>> PARTS DIAGRAM")
-part-diagram-403-015.webp "PORSCHE 1976 (914) STEERING GEAR - REPAIR MATERIAL PARTS DIAGRAM")
-part-diagram-501-000.webp "PORSCHE 1976 (914) REAR AXLE PARTS DIAGRAM")
-part-diagram-502-000.webp "PORSCHE 1976 (914) VIBRATION DAMPER - STABILIZER PARTS DIAGRAM")
-part-diagram-601-000.webp "PORSCHE 1976 (914) WHEELS PARTS DIAGRAM")
-part-diagram-601-005.webp "PORSCHE 1976 (914) WHEELS PARTS DIAGRAM")
-part-diagram-602-000.webp "PORSCHE 1976 (914) DISC BRAKES PARTS DIAGRAM")
-part-diagram-603-000.webp "PORSCHE 1976 (914) DISC BRAKES PARTS DIAGRAM")
-part-diagram-604-000.webp "PORSCHE 1976 (914) RESERVOIR FOR - BRAKE FLUID - BRAKE MASTER CYLINDER PARTS DIAGRAM")
-part-diagram-604-005.webp "PORSCHE 1976 (914) BRAKE LINES PARTS DIAGRAM")
-part-diagram-698-005.webp "PORSCHE 1976 (914) BRAKE FLUID - PORSCHE CLASSIC PARTS DIAGRAM")
-part-diagram-701-000.webp "PORSCHE 1976 (914) TRANSMISSION CONTROL - D >> - MJ 1972 PARTS DIAGRAM")
-part-diagram-701-005.webp "PORSCHE 1976 (914) TRANSMISSION CONTROL - D - MJ 1973>> PARTS DIAGRAM")
-part-diagram-701-010.webp "PORSCHE 1976 (914) HANDBRAKE - MANUAL THROTTLE - HEATER - ACTUATOR PARTS DIAGRAM")
-part-diagram-702-000.webp "PORSCHE 1976 (914) PEDALS - FOR VEHICLES WITH - MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-702-005.webp "PORSCHE 1976 (914) PEDALS PARTS DIAGRAM")
-part-diagram-801-005.webp "PORSCHE 1976 (914) FRAME PARTS DIAGRAM")
-part-diagram-801-010.webp "PORSCHE 1976 (914) FRAME PARTS DIAGRAM")
-part-diagram-801-015.webp "PORSCHE 1976 (914) INNER PANEL PARTS DIAGRAM")
-part-diagram-801-020.webp "PORSCHE 1976 (914) EXTERIOR PANELLING PARTS DIAGRAM")
-part-diagram-802-000.webp "PORSCHE 1976 (914) BUMPER - D >> - MJ 1974 PARTS DIAGRAM")
-part-diagram-802-005.webp "PORSCHE 1976 (914) BUMPER - D - MJ 1975>> PARTS DIAGRAM")
-part-diagram-802-010.webp "PORSCHE 1976 (914) BUMPER - D - MJ 1975>> PARTS DIAGRAM")
-part-diagram-803-000.webp "PORSCHE 1976 (914) COVER PARTS DIAGRAM")
-part-diagram-803-005.webp "PORSCHE 1976 (914) COVER - ENGINE COMPARTMENT PARTS DIAGRAM")
-part-diagram-803-010.webp "PORSCHE 1976 (914) COVER PARTS DIAGRAM")
-part-diagram-804-000.webp "PORSCHE 1976 (914) DOOR - WITH INSTALLATION PARTS PARTS DIAGRAM")
-part-diagram-804-005.webp "PORSCHE 1976 (914) DOOR - WITH INSTALLATION PARTS - D - MJ 1973>> PARTS DIAGRAM")
-part-diagram-804-010.webp "PORSCHE 1976 (914) WINDOW FRAME PARTS DIAGRAM")
-part-diagram-805-000.webp "PORSCHE 1976 (914) WINDOW GLASSES PARTS DIAGRAM")
-part-diagram-807-000.webp "PORSCHE 1976 (914) INTERIOR EQUIPMENT PARTS DIAGRAM")
-part-diagram-807-005.webp "PORSCHE 1976 (914) INTERIOR EQUIPMENT PARTS DIAGRAM")
-part-diagram-807-010.webp "PORSCHE 1976 (914) SOUND ABSORBER PARTS DIAGRAM")
-part-diagram-808-000.webp "PORSCHE 1976 (914) SEAT PARTS DIAGRAM")
-part-diagram-809-000.webp "PORSCHE 1976 (914) DASHBOARD - REAR VIEW MIRROR PARTS DIAGRAM")
-part-diagram-809-005.webp "PORSCHE 1976 (914) REAR VIEW MIRROR INNER - GLOVE BOX - SUN VIZOR PARTS DIAGRAM")
-part-diagram-810-000.webp "PORSCHE 1976 (914) DECORATIVE FITTINGS PARTS DIAGRAM")
-part-diagram-811-000.webp "PORSCHE 1976 (914) ROOF PARTS DIAGRAM")
-part-diagram-812-000.webp "PORSCHE 1976 (914) SEAT BELT PARTS DIAGRAM")
-part-diagram-813-000.webp "PORSCHE 1976 (914) VENTILATION - HEATER PARTS DIAGRAM")
-part-diagram-813-005.webp "PORSCHE 1976 (914) VENTILATION - HEATER - D - MJ 1972>> PARTS DIAGRAM")
-part-diagram-901-000.webp "PORSCHE 1976 (914) GOVERNOR - ALTERNATOR - STARTER PARTS DIAGRAM")
-part-diagram-901-005.webp "PORSCHE 1976 (914) ELECTRICAL EQUIPMENT - ENGINE PARTS DIAGRAM")
-part-diagram-901-010.webp "PORSCHE 1976 (914) ENGINE ELECTRICS PARTS DIAGRAM")
-part-diagram-901-015.webp "PORSCHE 1976 (914) ENGINE ELECTRICS PARTS DIAGRAM")
-part-diagram-902-000.webp "PORSCHE 1976 (914) BATTERY - FUSE BOX PARTS DIAGRAM")
-part-diagram-902-005.webp "PORSCHE 1976 (914) ALTERNATOR - SINGLE PARTS PARTS DIAGRAM")
-part-diagram-902-010.webp "PORSCHE 1976 (914) WIRING HARNESSES PARTS DIAGRAM")
-part-diagram-902-015.webp "PORSCHE 1976 (914) WIRING HARNESSES PARTS DIAGRAM")
-part-diagram-903-000.webp "PORSCHE 1976 (914) SWITCH - DASHBOARD TRIM PARTS DIAGRAM")
-part-diagram-903-005.webp "PORSCHE 1976 (914) SWITCH - RELAY - HORN PARTS DIAGRAM")
-part-diagram-903-010.webp "PORSCHE 1976 (914) STEERING COLUMN SWITCH PARTS DIAGRAM")
-part-diagram-903-015.webp "PORSCHE 1976 (914) STEERING COLUMN SWITCH - D >> - MJ 1971 PARTS DIAGRAM")
-part-diagram-903-020.webp "PORSCHE 1976 (914) STEERING COLUMN SWITCH - D - MJ 1972>> - MJ 1974 PARTS DIAGRAM")
-part-diagram-903-025.webp "PORSCHE 1976 (914) STEERING COLUMN SWITCH - D - MJ 1975>> PARTS DIAGRAM")
-part-diagram-904-000.webp "PORSCHE 1976 (914) WINDSCREEN WIPER SYSTEM - D >> - MJ 1971 PARTS DIAGRAM")
-part-diagram-904-005.webp "PORSCHE 1976 (914) WINDSCREEN WIPER SYSTEM PARTS DIAGRAM")
-part-diagram-904-010.webp "PORSCHE 1976 (914) WINDSHIELD WASHER UNIT - D >> - MJ 1971 PARTS DIAGRAM")
-part-diagram-904-015.webp "PORSCHE 1976 (914) WINDSHIELD WASHER UNIT PARTS DIAGRAM")
-part-diagram-904-020.webp "PORSCHE 1976 (914) HEADLIGHT WASHER SYSTEM - D - MJ 1974>> PARTS DIAGRAM")
-part-diagram-905-000.webp "PORSCHE 1976 (914) HEADLAMP PARTS DIAGRAM")
-part-diagram-905-005.webp "PORSCHE 1976 (914) TAILLIGHT PARTS DIAGRAM")
-part-diagram-906-000.webp "PORSCHE 1976 (914) INSTRUMENTS PARTS DIAGRAM")
-part-diagram-909-000.webp "PORSCHE 1976 (914) CATALYST - COUNTER SWITCH - WARNING LAMP - D - MJ 1975>> PARTS DIAGRAM")
-part-diagram-001-000.webp "PORSCHE 1976 (914) TOOL - JACK PARTS DIAGRAM")
-part-diagram-001-003.webp "PORSCHE 1976 (914) CLEANING AGENT - PORSCHE CLASSIC PARTS DIAGRAM")
-part-diagram-001-007.webp "PORSCHE 1976 (914) IDENTIFICATION PLATE PARTS DIAGRAM")
-part-diagram-001-010.webp "PORSCHE 1976 (914) ACCESSORIES - PORSCHE CLASSIC PARTS DIAGRAM")
-part-diagram-005-003.webp "PORSCHE 1976 (914) INSTRUCTION MANUAL PARTS DIAGRAM")
-part-diagram-005-005.webp "PORSCHE 1976 (914) OWNER'S MANUAL - CARE PASS PARTS DIAGRAM")
-part-diagram-101-005.webp "PORSCHE 1976 (914) CRANKCASE PARTS DIAGRAM")
-part-diagram-101-010.webp "PORSCHE 1976 (914) CRANKCASE PARTS DIAGRAM")
-part-diagram-102-000.webp "PORSCHE 1976 (914) CRANKSHAFT PARTS DIAGRAM")
-part-diagram-103-000.webp "PORSCHE 1976 (914) CYLINDER HEAD - CYLINDER WITH PISTONS PARTS DIAGRAM")
-part-diagram-103-005.webp "PORSCHE 1976 (914) CHAIN CASE - CAMSHAFT HOUSING PARTS DIAGRAM")
-part-diagram-103-010.webp "PORSCHE 1976 (914) VALVE CONTROL PARTS DIAGRAM")
-part-diagram-103-015.webp "PORSCHE 1976 (914) VALVE CONTROL PARTS DIAGRAM")
-part-diagram-104-000.webp "PORSCHE 1976 (914) ENGINE LUBRICATION PARTS DIAGRAM")
-part-diagram-104-005.webp "PORSCHE 1976 (914) OIL SUPPLY - FOR - TORQUE CONVERTER - D >> - MJ 1971 PARTS DIAGRAM")
-part-diagram-105-000.webp "PORSCHE 1976 (914) AIR COOLING PARTS DIAGRAM")
-part-diagram-105-005.webp "PORSCHE 1976 (914) AIR DUCT PARTS DIAGRAM")
-part-diagram-105-010.webp "PORSCHE 1976 (914) ENGINE COVER - AIR DUCT PARTS DIAGRAM")
-part-diagram-106-000.webp "PORSCHE 1976 (914) AIR CLEANER SYSTEM PARTS DIAGRAM")
-part-diagram-107-000.webp "PORSCHE 1976 (914) CARBURETOR PARTS DIAGRAM")
-part-diagram-107-005.webp "PORSCHE 1976 (914) CARBURETOR - REPAIR MATERIAL PARTS DIAGRAM")
-part-diagram-107-020.webp "PORSCHE 1976 (914) VACUUM SYSTEM - FOR - CLUTCH RELEASE - D >> - MJ 1971 PARTS DIAGRAM")
-part-diagram-111-005.webp "PORSCHE 1976 (914) CRANKCASE PARTS DIAGRAM")
-part-diagram-112-000.webp "PORSCHE 1976 (914) CRANKSHAFT PARTS DIAGRAM")
-part-diagram-112-005.webp "PORSCHE 1976 (914) CYLINDER WITH PISTONS PARTS DIAGRAM")
-part-diagram-113-000.webp "PORSCHE 1976 (914) CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-113-005.webp "PORSCHE 1976 (914) CAMSHAFT - VALVES PARTS DIAGRAM")
-part-diagram-114-000.webp "PORSCHE 1976 (914) ENGINE LUBRICATION - OIL PUMP - OIL FILTER - OIL STRAINER PARTS DIAGRAM")
-part-diagram-114-005.webp "PORSCHE 1976 (914) ENGINE LUBRICATION - FILLER NECK - BLEEDING PARTS DIAGRAM")
-part-diagram-114-010.webp "PORSCHE 1976 (914) ENGINE LUBRICATION - OIL COOLER PARTS DIAGRAM")
-part-diagram-115-000.webp "PORSCHE 1976 (914) AIR COOLING PARTS DIAGRAM")
-part-diagram-115-005.webp "PORSCHE 1976 (914) ENGINE COVER - AIR DUCT PARTS DIAGRAM")
-part-diagram-115-010.webp "PORSCHE 1976 (914) COOLING AIR CONTROL PARTS DIAGRAM")
-part-diagram-116-000.webp "PORSCHE 1976 (914) AIR CLEANER PARTS DIAGRAM")
-part-diagram-116-005.webp "PORSCHE 1976 (914) AIR CLEANER PARTS DIAGRAM")
-part-diagram-117-000.webp "PORSCHE 1976 (914) CARBURETOR PARTS DIAGRAM")
-part-diagram-117-005.webp "PORSCHE 1976 (914) INTAKE MANIFOLD - SUCTION PIPE - RELAY SHAFT PARTS DIAGRAM")
-part-diagram-117-010.webp "PORSCHE 1976 (914) INJECTION SYSTEM PARTS DIAGRAM")
-part-diagram-119-000.webp "PORSCHE 1976 (914) ENGINE CARRIER PARTS DIAGRAM")
-part-diagram-198-005.webp "PORSCHE 1976 (914) ENGINE OIL - PORSCHE CLASSIC 20W50 PARTS DIAGRAM")
-part-diagram-201-000.webp "PORSCHE 1976 (914) FUEL TANK - D >> - MJ 1973 PARTS DIAGRAM")
-part-diagram-201-005.webp "PORSCHE 1976 (914) FUEL TANK - D - MJ 1974>> PARTS DIAGRAM")
-part-diagram-201-010.webp "PORSCHE 1976 (914) FUEL LINE - D >> - MJ 1974 PARTS DIAGRAM")
-part-diagram-201-015.webp "PORSCHE 1976 (914) FUEL LINE - D - MJ 1975>> PARTS DIAGRAM")
-part-diagram-201-020.webp "PORSCHE 1976 (914) FUEL PUMP PARTS DIAGRAM")
-part-diagram-202-000.webp "PORSCHE 1976 (914) EXHAUST SYSTEM - HEATING AIR SUPPLY - ENGINE SUSPENSION PARTS DIAGRAM")
-part-diagram-202-005.webp "PORSCHE 1976 (914) EXHAUST SYSTEM - SILENCER PARTS DIAGRAM")
-part-diagram-202-015.webp "PORSCHE 1976 (914) EXHAUST SYSTEM - HEATER CORE PARTS DIAGRAM")
-part-diagram-298-005.webp "PORSCHE 1976 (914) PORSCHE CLASSIC - ADDITIVE - FOR FUEL PARTS DIAGRAM")
-part-diagram-301-000.webp "PORSCHE 1976 (914) CLUTCH PARTS DIAGRAM")
-part-diagram-301-005.webp "PORSCHE 1976 (914) CLUTCH PARTS DIAGRAM")
-part-diagram-301-010.webp "PORSCHE 1976 (914) CLUTCH RELEASE PARTS DIAGRAM")
-part-diagram-302-000.webp "PORSCHE 1976 (914) REPLACEMENT TRANSMISSION - TRANSMISSION CASE PARTS DIAGRAM")
-part-diagram-302-005.webp "PORSCHE 1976 (914) TRANSMISSION COVER - TRANSMISSION SUSPENSION PARTS DIAGRAM")
-part-diagram-303-000.webp "PORSCHE 1976 (914) GEAR WHEEL SETS - FOR - 5-SPEED - TRANSMISSION PARTS DIAGRAM")
-part-diagram-303-005.webp "PORSCHE 1976 (914) GEARS AND SHAFTS PARTS DIAGRAM")
-part-diagram-304-000.webp "PORSCHE 1976 (914) SHIFT RODS - SHIFT FORKS - FOR - 5-SPEED - TRANSMISSION - D >> - MJ 1972 PARTS DIAGRAM")
-part-diagram-304-005.webp "PORSCHE 1976 (914) SHIFT RODS - SHIFT FORKS - FOR - 5-SPEED - TRANSMISSION - D - MJ 1973>> PARTS DIAGRAM")
-part-diagram-305-000.webp "PORSCHE 1976 (914) DIFFERENTIAL - MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-305-005.webp "PORSCHE 1976 (914) LIMITED SLIP DIFFERENTIAL PARTS DIAGRAM")
-part-diagram-307-000.webp "PORSCHE 1976 (914) CLUTCH RELEASE PARTS DIAGRAM")
-part-diagram-307-005.webp "PORSCHE 1976 (914) TORQUE CONVERTER - CONVERTER HOUSING PARTS DIAGRAM")
