801-005 - SIDE MEMBER - SHIELD

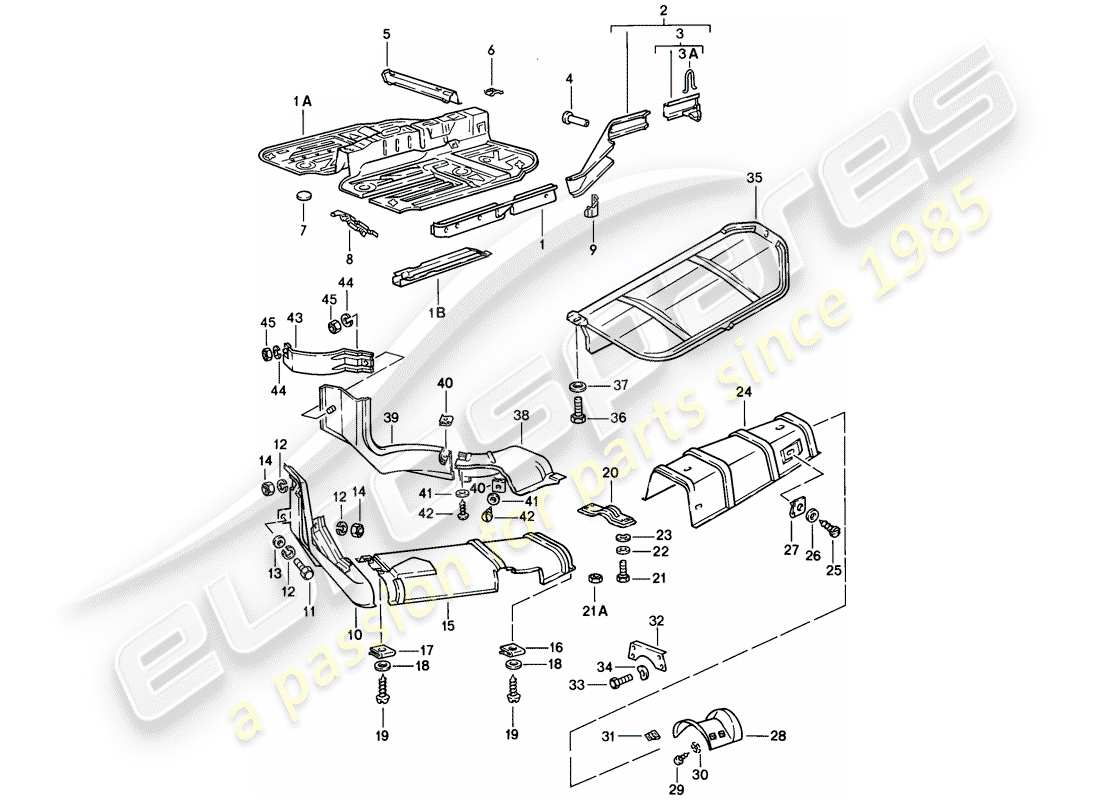

Porsche 1976 (924) SIDE MEMBER - SHIELD Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 477803103
SIDE MEMBER
left-center
# 1
MPN: 477803112
SIDE MEMBER
right lhd-center
# 1
MPN: 478803104
SIDE MEMBER
right rhd-center
# -
-
plug - side member
# 1
MPN: 94450150100
floor pan
from £1,497.82
from £1,497.82
# 1
MPN: 477803283
SIDE MEMBER - FLOOR PAN
center
from £231.68
from £231.68
# 2
MPN: 477803105
side member - also use: - F >> 92-48100 776
left-477 803 145 (924)
# 2
MPN: 477803105A
side member - also use: - F 92-48100 777>>
left-477 803 145
from £106.45
from £106.45
# 2
MPN: 477803106
side member - also use: - F >> 92-48100 776
right-477 803 145 (924)
# 2
MPN: 477803106A
side member - also use: - F 92-48100 777>>
right-477 803 145
# 3
MPN: 477803125A
FILLER PLATE FOR SIDE - MEMBER
LEFT
from £84.44
from £84.44
# 3
MPN: 477803126
END PIECE
RIGHT
from £54.20
from £54.20
# 3
MPN: 477803129
RETAINER PLATE
from £1.08
from £1.08
# 4
MPN: 477803145
BUSHING
from £15.62
from £15.62
# 5
MPN: 477803231
CROSS MEMBER
LEFT FRONT
# 5
MPN: 477803232
CROSS MEMBER
RIGHT FRONT
from £38.41
from £38.41
# 6
MPN: 477803241
mounting - Front seat
rear
from £58.09
from £58.09
# 7
MPN: 411803595
COVER
from £29.09
from £29.09
# 8
MPN: 477803729
FOOT SUPPORT
LHD
from £19.64
from £19.64
# 9
MPN: 477803871
mounting - F >> 92-48100 776
left (924)
# 9
MPN: 477803871A
socket - jack - F 92-48100 777>>
LEFT
from £17.90
from £17.90
# 9
MPN: 477803872
mounting - F >> 92-48100 776
right (924)
# 9
MPN: 477803872A
socket - jack - F 92-48100 777>>
RIGHT
from £28.37
from £28.37
# 10
MPN: 477809214A
RIP PLATE
from £147.66
from £147.66
# 11
MPN: 99907200509
HEX. NUT - M 6 X 12 - DISCONTINUED PART
# 11
MPN: 99907200501
SCREW, HEX. HD. - M 6 X 12
from £2.58
from £2.58
# 12
MPN: N 0120064
LOCK RING - B 6
from £0.70
from £0.70
# 13
MPN: N 0115247
WASHER - A 6,4 - DISCONTINUED PART
# 13
MPN: N 01152427
Washer - A 6,4
from £0.47
from £0.47
# 14
MPN: 90007601002
NUT - M 6 - DISCONTINUED PART
# 14
MPN: 9000760100B
NUT - M 6
Supersession
Supersession
# 15
MPN: 477803397
shield - D >> - MJ 1978
# 15
MPN: 477803387
shield - D - MJ 1979>>
# 16
MPN: N 0154581
SPEED NUT - B 4,8 X 19 - D >> - MJ 1978
Supersession
Supersession
# 16
MPN: N 0154581
speed nut - B 4,8 X 20 - D - MJ 1979>>
Supersession
Supersession
# 17
MPN: N 0154581
SPEED NUT - B 4,8 X 20
Supersession
Supersession
# 18
MPN: 90015102702
WASHER - B 5,3 - DISCONTINUED PART
# 18
MPN: 90015102703
WASHER - B 5,3
from £0.65
from £0.65
# 19
MPN: N 0139687
tapping screw - B 4,8 X 13 - Discontinued part
# 19
MPN: 90014309701
TAPPING SCREW - B 4,8 X 13
from £1.02
from £1.02
# 20
MPN: 477803275
Transverse strut - D >> - MJ 1978
# 20
MPN: 477803253
Transverse strut - D - MJ 1979>>
from £39.50
from £39.50
# 21
MPN: 90007508702
screw, hex. hd. - M 8 X 15 - D >> - MJ 1978 - Discontinued part
# 21
MPN: 90007508703
SCREW, HEX. HD. - M 8 X 15
Supersession
Supersession
# 21
MPN: 90007508704
SCREW, HEX. HD. - M 8 X 15
M8X16-yellow
from £0.86
from £0.86
This part replaces part number 90007508703
# 21
MPN: N 0110088
hex. nut - M 8 - D - MJ 1979>>
from £0.52
from £0.52
# 22
MPN: N 0116701
Washer - 8,1 - D >> - MJ 1978
from £0.78
from £0.78
# 22
MPN: N 01152513
Washer - A 8,4 - D - MJ 1979>>
# 23
MPN: N 0122293
SPRING WASHER - A 8 - D >> - MJ 1978
from £0.64
from £0.64
# 23
MPN: 90002701502
LOCK RING - B 8 - D - MJ 1979>> - DISCONTINUED PART
# 23
MPN: 90002701503
LOCK RING - B 8 - D - MJ 1979>>
from £0.86
from £0.86
# 24
MPN: 477803869
shield - D - MJ 1979>>
(TURBO)
# 28
MPN: 477803879
shield - D >> - MJ 1978
# 29
MPN: 90014300702
tapping screw, fill. hd. - B 4,2 X 13 - D >> - MJ 1978 - Discontinued part
# 29
MPN: 90007350701
TAPPING SCREW, FILL. HD. - B 4,2 X 13
from £0.99
from £0.99
# 30
MPN: 90011500401
Serrated washer - A 4,3 - D >> - MJ 1978
# 31
MPN: 99959133102
speed nut - D >> - MJ 1978 - Discontinued part
# 31
MPN: 99959133101
SPEED NUT
from £0.82
from £0.82
# 32
MPN: 477803291
TRANSVERSE STRUT
from £15.04
from £15.04
# 33
MPN: N 0102376
SCREW, HEX. HD. - M 8 X 12 - DISCONTINUED PART
# 33
MPN: N 01023714
SCREW, HEX. HD. - M 8 X 12
from £0.55
from £0.55
# 34
MPN: N 0122293
spring washer - A 8
from £0.64
from £0.64
# 35
MPN: 477813139
SHIELD
(\\B..\\)
# 35
MPN: 477813139A
SHIELD
AUT.
# 35
MPN: 94450313900
SHIELD - SECTION: OVAL
# 36
MPN: 99907200509
HEX. NUT - M 6 X 12 - DISCONTINUED PART
# 36
MPN: 99907200501
SCREW, HEX. HD. - M 6 X 12
from £2.58
from £2.58
# 37
MPN: 90015102902
WASHER - 6,4
# 38
MPN: 477803393
SHIELD
(TURBO)
# 39
MPN: 477803394
SHIELD
(TURBO)
# 40
MPN: N 90062001
SPEED NUT
(TURBO)
# 41
MPN: 90015102702
WASHER - B 5,3 - DISCONTINUED PART
(TURBO)
# 41
MPN: 90015102703
WASHER - B 5,3
(TURBO)
from £0.65
from £0.65
# 42
MPN: N 0139687
tapping screw - B 4,8 X 13 - Discontinued part
(TURBO)
# 42
MPN: 90014309701
TAPPING SCREW - B 4,8 X 13
(TURBO)
from £1.02
from £1.02
# 43
MPN: 477809497
SHIELD
(TURBO)
# 44
MPN: N 0120263
LOCK RING - 6
(TURBO)
from £0.47
from £0.47
# 45
MPN: 90007601002
NUT - M 6 - DISCONTINUED PART
(TURBO)
# 45
MPN: 9000760100B
NUT - M 6
(TURBO)
Supersession
Supersession
# -
-
HEAT INSULATION
rear (TURBO)
-part-diagram-801-010.webp "PORSCHE 1976 (924) BODY FRONT SECTION PARTS DIAGRAM")
-part-diagram-801-015.webp "PORSCHE 1976 (924) SIDE PANEL PARTS DIAGRAM")
-part-diagram-801-020.webp "PORSCHE 1976 (924) TRANSMISSION CARRIER - LUGGAGE COMPARTMENT FLOOR - ROOF PARTS DIAGRAM")
-part-diagram-801-025.webp "PORSCHE 1976 (924) FENDER PARTS DIAGRAM")
-part-diagram-802-000.webp "PORSCHE 1976 (924) BUMPER - WITHOUT: - BUFFER PARTS DIAGRAM")
-part-diagram-802-005.webp "PORSCHE 1976 (924) BUMPER - WITH: - BUFFER PARTS DIAGRAM")
-part-diagram-803-000.webp "PORSCHE 1976 (924) COVER - ACTUATOR - LID LOCK PARTS DIAGRAM")
-part-diagram-803-005.webp "PORSCHE 1976 (924) REAR TRUNK LID - WITH: - REAR WINDOW GLASS PARTS DIAGRAM")
-part-diagram-804-000.webp "PORSCHE 1976 (924) DOOR PARTS DIAGRAM")
-part-diagram-804-005.webp "PORSCHE 1976 (924) INSTALLATION PARTS - DOOR - DOOR LATCH PARTS DIAGRAM")
-part-diagram-804-010.webp "PORSCHE 1976 (924) INSTALLATION PARTS - DOOR WINDOW - WINDOW REGULATOR PARTS DIAGRAM")
-part-diagram-805-000.webp "PORSCHE 1976 (924) WINDOW GLAZING PARTS DIAGRAM")
-part-diagram-806-000.webp "PORSCHE 1976 (924) POP-UP HEADLIGHT PARTS DIAGRAM")
-part-diagram-807-000.webp "PORSCHE 1976 (924) TRIMS - FLOOR COVER PARTS DIAGRAM")
-part-diagram-807-001.webp "PORSCHE 1976 (924) SOUND ABSORBER PARTS DIAGRAM")
-part-diagram-807-005.webp "PORSCHE 1976 (924) TRIMS PARTS DIAGRAM")
-part-diagram-808-000.webp "PORSCHE 1976 (924) FRONT SEAT - COMPLETE - SEAT COVER PARTS DIAGRAM")
-part-diagram-808-001.webp "PORSCHE 1976 (924) FRONT SEAT - SINGLE PARTS PARTS DIAGRAM")
-part-diagram-808-005.webp "PORSCHE 1976 (924) EMERGENCY SEAT - COMPLETE PARTS DIAGRAM")
-part-diagram-808-010.webp "PORSCHE 1976 (924) EMERGENCY SEAT - SINGLE PARTS PARTS DIAGRAM")
-part-diagram-809-000.webp "PORSCHE 1976 (924) DASHBOARD PARTS DIAGRAM")
-part-diagram-809-005.webp "PORSCHE 1976 (924) REAR VIEW MIRROR - REAR VIEW MIRROR INNER - SUN VIZOR PARTS DIAGRAM")
-part-diagram-809-010.webp "PORSCHE 1976 (924) LUGGAGE COMPARTMENT COVER PARTS DIAGRAM")
-part-diagram-810-000.webp "PORSCHE 1976 (924) DECORATIVE FRAME - NAMEPLATES PARTS DIAGRAM")
-part-diagram-811-000.webp "PORSCHE 1976 (924) LIFTING ROOF PARTS DIAGRAM")
-part-diagram-812-000.webp "PORSCHE 1976 (924) SEAT BELT PARTS DIAGRAM")
-part-diagram-813-000.webp "PORSCHE 1976 (924) HEATER - VENTILATION - HEATER CORE PARTS DIAGRAM")
-part-diagram-813-005.webp "PORSCHE 1976 (924) AIR VENT - TRIM - AIR HOSE PARTS DIAGRAM")
-part-diagram-813-010.webp "PORSCHE 1976 (924) AIR VENT - AIR HOSE PARTS DIAGRAM")
-part-diagram-813-015.webp "PORSCHE 1976 (924) AIR VENT - AIR HOSE PARTS DIAGRAM")
-part-diagram-813-020.webp "PORSCHE 1976 (924) HEATER PARTS DIAGRAM")
-part-diagram-813-025.webp "PORSCHE 1976 (924) HEATER - D - MJ 1979>> - MJ 1979 PARTS DIAGRAM")
-part-diagram-813-030.webp "PORSCHE 1976 (924) AIR CONDITIONER PARTS DIAGRAM")
-part-diagram-813-035.webp "PORSCHE 1976 (924) AIR CONDITIONER - - D >> - MJ 1978 PARTS DIAGRAM")
-part-diagram-813-040.webp "PORSCHE 1976 (924) AIR CONDITIONER - D - MJ 1979>> - MJ 1979 PARTS DIAGRAM")
-part-diagram-813-045.webp "PORSCHE 1976 (924) AIR CONDITIONER - D - MJ 1979>> - MJ 1979 PARTS DIAGRAM")
-part-diagram-813-050.webp "PORSCHE 1976 (924) EVAPORATOR PARTS DIAGRAM")
-part-diagram-813-055.webp "PORSCHE 1976 (924) COMPRESSOR - D >> - MJ 1978 PARTS DIAGRAM")
-part-diagram-813-060.webp "PORSCHE 1976 (924) COMPRESSOR - D - MJ 1979>> - MJ 1979 PARTS DIAGRAM")
-part-diagram-901-000.webp "PORSCHE 1976 (924) ENGINE ELECTRICS 1 PARTS DIAGRAM")
-part-diagram-901-005.webp "PORSCHE 1976 (924) ENGINE ELECTRICS 2 - SEE TECHNICAL INFORMATION - GR.2 NR. 2/86 PARTS DIAGRAM")
-part-diagram-902-000.webp "PORSCHE 1976 (924) ALTERNATOR PARTS DIAGRAM")
-part-diagram-902-010.webp "PORSCHE 1976 (924) STARTER PARTS DIAGRAM")
-part-diagram-902-015.webp "PORSCHE 1976 (924) BATTERY - WIRING HARNESSES - FOR - STARTER - ALTERNATOR PARTS DIAGRAM")
-part-diagram-902-020.webp "PORSCHE 1976 (924) WIRING HARNESSES - ENGINE BAY PARTS DIAGRAM")
-part-diagram-902-025.webp "PORSCHE 1976 (924) WIRING HARNESSES PARTS DIAGRAM")
-part-diagram-902-030.webp "PORSCHE 1976 (924) WIRING HARNESSES - REAR END PARTS DIAGRAM")
-part-diagram-902-035.webp "PORSCHE 1976 (924) PUSH-ON CONNECTOR PARTS DIAGRAM")
-part-diagram-903-000.webp "PORSCHE 1976 (924) SWITCH - FUSE BOX - RELAY PARTS DIAGRAM")
-part-diagram-903-005.webp "PORSCHE 1976 (924) STEERING COLUMN SWITCH PARTS DIAGRAM")
-part-diagram-903-010.webp "PORSCHE 1976 (924) HORN - D >> - MJ 1978 PARTS DIAGRAM")
-part-diagram-903-015.webp "PORSCHE 1976 (924) HORN PARTS DIAGRAM")
-part-diagram-904-000.webp "PORSCHE 1976 (924) WINDSCREEN WIPER SYSTEM PARTS DIAGRAM")
-part-diagram-904-005.webp "PORSCHE 1976 (924) REAR WINDOW WIPER PARTS DIAGRAM")
-part-diagram-904-010.webp "PORSCHE 1976 (924) WINDSHIELD WASHER UNIT - D >> - MJ 1978 PARTS DIAGRAM")
-part-diagram-904-015.webp "PORSCHE 1976 (924) WINDSHIELD WASHER UNIT - D - MJ 1979>> - MJ 1979 PARTS DIAGRAM")
-part-diagram-904-020.webp "PORSCHE 1976 (924) HEADLIGHT WASHER SYSTEM - D >> - MJ 1978 PARTS DIAGRAM")
-part-diagram-904-025.webp "PORSCHE 1976 (924) HEADLIGHT WASHER SYSTEM - D - MJ 1979>> PARTS DIAGRAM")
-part-diagram-905-000.webp "PORSCHE 1976 (924) HEADLAMP - ELECTRIC MOTOR - POP-UP HEADLIGHT PARTS DIAGRAM")
-part-diagram-905-010.webp "PORSCHE 1976 (924) LICENSE PLATE LIGHT - REAR LIGHT PARTS DIAGRAM")
-part-diagram-905-015.webp "PORSCHE 1976 (924) INTERIOR LIGHT - TURN SIGNAL PARTS DIAGRAM")
-part-diagram-905-020.webp "PORSCHE 1976 (924) TURN SIGNAL PARTS DIAGRAM")
-part-diagram-906-000.webp "PORSCHE 1976 (924) INSTRUMENTS PARTS DIAGRAM")
-part-diagram-906-005.webp "PORSCHE 1976 (924) SPEEDOMETER - D >> - MJ 1978 PARTS DIAGRAM")
-part-diagram-906-010.webp "PORSCHE 1976 (924) SPEEDOMETER PARTS DIAGRAM")
-part-diagram-910-000.webp "PORSCHE 1976 (924) ELECTRIC FAN PARTS DIAGRAM")
-part-diagram-001-000.webp "PORSCHE 1976 (924) ACCESSORIES - ADDITIONAL ACCESSORIES IN THE - CLASSIC CATALOGUE - (MODEL: CLA) PARTS DIAGRAM")
-part-diagram-001-003.webp "PORSCHE 1976 (924) CLEANING AGENT - PORSCHE CLASSIC PARTS DIAGRAM")
-part-diagram-001-004.webp "PORSCHE 1976 (924) ACCESSORIES - PORSCHE CLASSIC PARTS DIAGRAM")
-part-diagram-001-005.webp "PORSCHE 1976 (924) SIGNS/NOTICES PARTS DIAGRAM")
-part-diagram-001-010.webp "PORSCHE 1976 (924) IDENTIFICATION PLATE PARTS DIAGRAM")
-part-diagram-004-000.webp "PORSCHE 1976 (924) LACQUERS - BASIC MATERIALS PARTS DIAGRAM")
-part-diagram-005-003.webp "PORSCHE 1976 (924) INSTRUCTION MANUAL PARTS DIAGRAM")
-part-diagram-005-005.webp "PORSCHE 1976 (924) OWNER'S MANUAL - CARE PASS PARTS DIAGRAM")
-part-diagram-101-000.webp "PORSCHE 1976 (924) REPLACEMENT ENGINE PARTS DIAGRAM")
-part-diagram-101-005.webp "PORSCHE 1976 (924) SHORT ENGINE - WITH: - CRANKSHAFT - PISTON - OIL PUMP PARTS DIAGRAM")
-part-diagram-101-010.webp "PORSCHE 1976 (924) CYLINDER BLOCK - WITH PISTONS - OIL PAN - PROTECTIVE PLATE F. ENGINE PARTS DIAGRAM")
-part-diagram-102-005.webp "PORSCHE 1976 (924) PISTON - PISTON RINGS PARTS DIAGRAM")
-part-diagram-103-000.webp "PORSCHE 1976 (924) CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-103-005.webp "PORSCHE 1976 (924) CAMSHAFT - VALVES PARTS DIAGRAM")
-part-diagram-104-000.webp "PORSCHE 1976 (924) ENGINE LUBRICATION PARTS DIAGRAM")
-part-diagram-104-005.webp "PORSCHE 1976 (924) ENGINE LUBRICATION - ENGINE OIL COOLER PARTS DIAGRAM")
-part-diagram-104-010.webp "PORSCHE 1976 (924) ENGINE LUBRICATION - EXHAUST GAS TURBOCHARGER PARTS DIAGRAM")
-part-diagram-105-000.webp "PORSCHE 1976 (924) WATER PUMP PARTS DIAGRAM")
-part-diagram-105-005.webp "PORSCHE 1976 (924) WATER COOLING PARTS DIAGRAM")
-part-diagram-105-010.webp "PORSCHE 1976 (924) WATER COOLING PARTS DIAGRAM")
-part-diagram-106-000.webp "PORSCHE 1976 (924) AIR CLEANER SYSTEM PARTS DIAGRAM")
-part-diagram-106-005.webp "PORSCHE 1976 (924) AIR CLEANER SYSTEM PARTS DIAGRAM")
-part-diagram-107-000.webp "PORSCHE 1976 (924) K-JETRONIC - MIXTURE CONTROL UNIT PARTS DIAGRAM")
-part-diagram-107-005.webp "PORSCHE 1976 (924) K-JETRONIC - MIXTURE CONTROL UNIT PARTS DIAGRAM")
-part-diagram-107-010.webp "PORSCHE 1976 (924) FOR - K-JETRONIC PARTS DIAGRAM")
-part-diagram-107-015.webp "PORSCHE 1976 (924) K-JETRONIC PARTS DIAGRAM")
-part-diagram-107-020.webp "PORSCHE 1976 (924) K-JETRONIC PARTS DIAGRAM")
-part-diagram-107-025.webp "PORSCHE 1976 (924) TURBOCHARGING PARTS DIAGRAM")
-part-diagram-109-000.webp "PORSCHE 1976 (924) ENGINE SUSPENSION PARTS DIAGRAM")
-part-diagram-198-005.webp "PORSCHE 1976 (924) ENGINE OIL - PORSCHE CLASSIC 10W50 PARTS DIAGRAM")
-part-diagram-201-000.webp "PORSCHE 1976 (924) FUEL TANK PARTS DIAGRAM")
-part-diagram-201-005.webp "PORSCHE 1976 (924) EVAPORATIVE EMISSION CANISTER PARTS DIAGRAM")
-part-diagram-201-010.webp "PORSCHE 1976 (924) FUEL SYSTEM - F >> 92-46104 800 PARTS DIAGRAM")
-part-diagram-201-012.webp "PORSCHE 1976 (924) FUEL SYSTEM - F 92-46104 800>> - F >> 92-48199 999 PARTS DIAGRAM")
-part-diagram-201-014.webp "PORSCHE 1976 (924) FUEL SYSTEM - F 92-49100 001>> - F >> 92-49103 157 PARTS DIAGRAM")
-part-diagram-201-015.webp "PORSCHE 1976 (924) FUEL SYSTEM - F 92-49103 158>> - F 92-49400 051>> PARTS DIAGRAM")
-part-diagram-202-000.webp "PORSCHE 1976 (924) EXHAUST SYSTEM - EXHAUST SILENCER, FRONT PARTS DIAGRAM")
-part-diagram-202-005.webp "PORSCHE 1976 (924) EXHAUST SYSTEM - EXHAUST SILENCER, FRONT PARTS DIAGRAM")
-part-diagram-202-015.webp "PORSCHE 1976 (924) EXHAUST SYSTEM - EXHAUST SILENCER, REAR PARTS DIAGRAM")
-part-diagram-202-020.webp "PORSCHE 1976 (924) EXHAUST SYSTEM - EXHAUST SILENCER, REAR PARTS DIAGRAM")
-part-diagram-202-025.webp "PORSCHE 1976 (924) EXHAUST GAS TURBOCHARGER PARTS DIAGRAM")
-part-diagram-298-005.webp "PORSCHE 1976 (924) PORSCHE CLASSIC - ADDITIVE - FOR FUEL PARTS DIAGRAM")
-part-diagram-301-000.webp "PORSCHE 1976 (924) CENTRAL TUBE PARTS DIAGRAM")
-part-diagram-301-005.webp "PORSCHE 1976 (924) CENTRAL TUBE PARTS DIAGRAM")
-part-diagram-301-010.webp "PORSCHE 1976 (924) CLUTCH PARTS DIAGRAM")
-part-diagram-301-015.webp "PORSCHE 1976 (924) CLUTCH PARTS DIAGRAM")
-part-diagram-302-000.webp "PORSCHE 1976 (924) REPLACEMENT TRANSMISSION - TRANSMISSION CASE - 4-SPEED PARTS DIAGRAM")
-part-diagram-302-005.webp "PORSCHE 1976 (924) REPLACEMENT TRANSMISSION - TRANSMISSION CASE - 5-SPEED PARTS DIAGRAM")
-part-diagram-303-000.webp "PORSCHE 1976 (924) GEARS AND SHAFTS - 4-SPEED PARTS DIAGRAM")
-part-diagram-303-005.webp "PORSCHE 1976 (924) GEARS AND SHAFTS - 5-SPEED - TRANSMISSION - GEAR WHEEL SETS - 016 Z PARTS DIAGRAM")
-part-diagram-304-000.webp "PORSCHE 1976 (924) TRANSMISSION CONTROL - 4-SPEED PARTS DIAGRAM")
-part-diagram-304-005.webp "PORSCHE 1976 (924) TRANSMISSION CONTROL - 5-SPEED PARTS DIAGRAM")
-part-diagram-305-000.webp "PORSCHE 1976 (924) DIFFERENTIAL - 4-SPEED PARTS DIAGRAM")
-part-diagram-305-005.webp "PORSCHE 1976 (924) DIFFERENTIAL - 5-SPEED PARTS DIAGRAM")
-part-diagram-305-010.webp "PORSCHE 1976 (924) LIMITED SLIP DIFFERENTIAL - 5-SPEED PARTS DIAGRAM")
-part-diagram-306-000.webp "PORSCHE 1976 (924) TRANSMISSION SUSPENSION PARTS DIAGRAM")
-part-diagram-307-000.webp "PORSCHE 1976 (924) CENTRAL TUBE - AUTOMATIC TRANSMISSION PARTS DIAGRAM")
-part-diagram-308-000.webp "PORSCHE 1976 (924) REPLACEMENT TRANSMISSION - FINAL DRIVE HOUSING - AUTOMATIC TRANSMISSION PARTS DIAGRAM")
-part-diagram-309-000.webp "PORSCHE 1976 (924) TRANSMISSION CASE - AUTOMATIC TRANSMISSION PARTS DIAGRAM")
-part-diagram-310-000.webp "PORSCHE 1976 (924) SHIFT MECHANISM - AUTOMATIC TRANSMISSION PARTS DIAGRAM")
-part-diagram-310-005.webp "PORSCHE 1976 (924) VALVE BODY - OIL STRAINER - GOVERNOR - AUTOMATIC TRANSMISSION PARTS DIAGRAM")
-part-diagram-311-000.webp "PORSCHE 1976 (924) DIFFERENTIAL - AUTOMATIC TRANSMISSION PARTS DIAGRAM")
-part-diagram-312-000.webp "PORSCHE 1976 (924) TRANSMISSION SUSPENSION - AUTOMATIC TRANSMISSION PARTS DIAGRAM")
-part-diagram-401-000.webp "PORSCHE 1976 (924) TRACK CONTROL ARM - CROSS MEMBER PARTS DIAGRAM")
-part-diagram-401-005.webp "PORSCHE 1976 (924) STEERING KNUCKLE - LUBRICANTS PARTS DIAGRAM")
-part-diagram-401-010.webp "PORSCHE 1976 (924) STEERING KNUCKLE - - LUBRICANTS PARTS DIAGRAM")
-part-diagram-402-000.webp "PORSCHE 1976 (924) SUSPENSION - SHOCK ABSORBER PARTS DIAGRAM")
-part-diagram-402-005.webp "PORSCHE 1976 (924) STABILIZER PARTS DIAGRAM")
-part-diagram-403-000.webp "PORSCHE 1976 (924) STEERING GEAR - STEERING TRACK ROD PARTS DIAGRAM")
-part-diagram-501-000.webp "PORSCHE 1976 (924) REAR AXLE CARRIER - TRAILING ARM PARTS DIAGRAM")
-part-diagram-501-005.webp "PORSCHE 1976 (924) REAR AXLE CARRIER - TRAILING ARM PARTS DIAGRAM")
-part-diagram-501-010.webp "PORSCHE 1976 (924) REAR WHEEL SHAFT - LUBRICANTS PARTS DIAGRAM")
-part-diagram-501-015.webp "PORSCHE 1976 (924) DRIVE SHAFT PARTS DIAGRAM")
-part-diagram-602-000.webp "PORSCHE 1976 (924) DISC BRAKES - FRONT AXLE PARTS DIAGRAM")
-part-diagram-602-005.webp "PORSCHE 1976 (924) DISC BRAKES - FRONT AXLE PARTS DIAGRAM")
-part-diagram-603-000.webp "PORSCHE 1976 (924) BRAKE - REAR AXLE PARTS DIAGRAM")
-part-diagram-603-005.webp "PORSCHE 1976 (924) BRAKE - WHEEL BRAKE CYLINDER PARTS DIAGRAM")
-part-diagram-603-010.webp "PORSCHE 1976 (924) DISC BRAKES - REAR AXLE PARTS DIAGRAM")
-part-diagram-604-000.webp "PORSCHE 1976 (924) BRAKE MASTER CYLINDER PARTS DIAGRAM")
-part-diagram-604-005.webp "PORSCHE 1976 (924) RESERVOIR - BRAKE BOOSTER PARTS DIAGRAM")
-part-diagram-604-010.webp "PORSCHE 1976 (924) BRAKE LINES PARTS DIAGRAM")
-part-diagram-604-015.webp "PORSCHE 1976 (924) BRAKE LINES PARTS DIAGRAM")
-part-diagram-698-005.webp "PORSCHE 1976 (924) BRAKE FLUID - PORSCHE CLASSIC PARTS DIAGRAM")
-part-diagram-701-000.webp "PORSCHE 1976 (924) SHIFT MECHANISM - MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-701-001.webp "PORSCHE 1976 (924) SHIFT MECHANISM - MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-701-005.webp "PORSCHE 1976 (924) SHIFT MECHANISM - AUTOMATIC TRANSMISSION PARTS DIAGRAM")
-part-diagram-701-010.webp "PORSCHE 1976 (924) HAND BRAKE LEVER PARTS DIAGRAM")
-part-diagram-702-000.webp "PORSCHE 1976 (924) BRAKE AND CLUTCH PEDALS - CLUSTER PARTS DIAGRAM")
-part-diagram-702-005.webp "PORSCHE 1976 (924) PEDALS - BRAKE - CLUTCH PARTS DIAGRAM")
-part-diagram-702-010.webp "PORSCHE 1976 (924) ACCELERATOR PEDAL - ACCELERATOR CABLE PARTS DIAGRAM")
-part-diagram-702-015.webp "PORSCHE 1976 (924) ACCELERATOR PEDAL - ACCELERATOR CABLE PARTS DIAGRAM")
-part-diagram-801-000.webp "PORSCHE 1976 (924) CAR BODY - WITH: - COVER - FENDER - DOORS PARTS DIAGRAM")
