porsche 1978 (924) engine lubrication - exhaust gas turbocharger parts diagram

104-010 - ENGINE LUBRICATION - EXHAUST GAS TURBOCHARGER

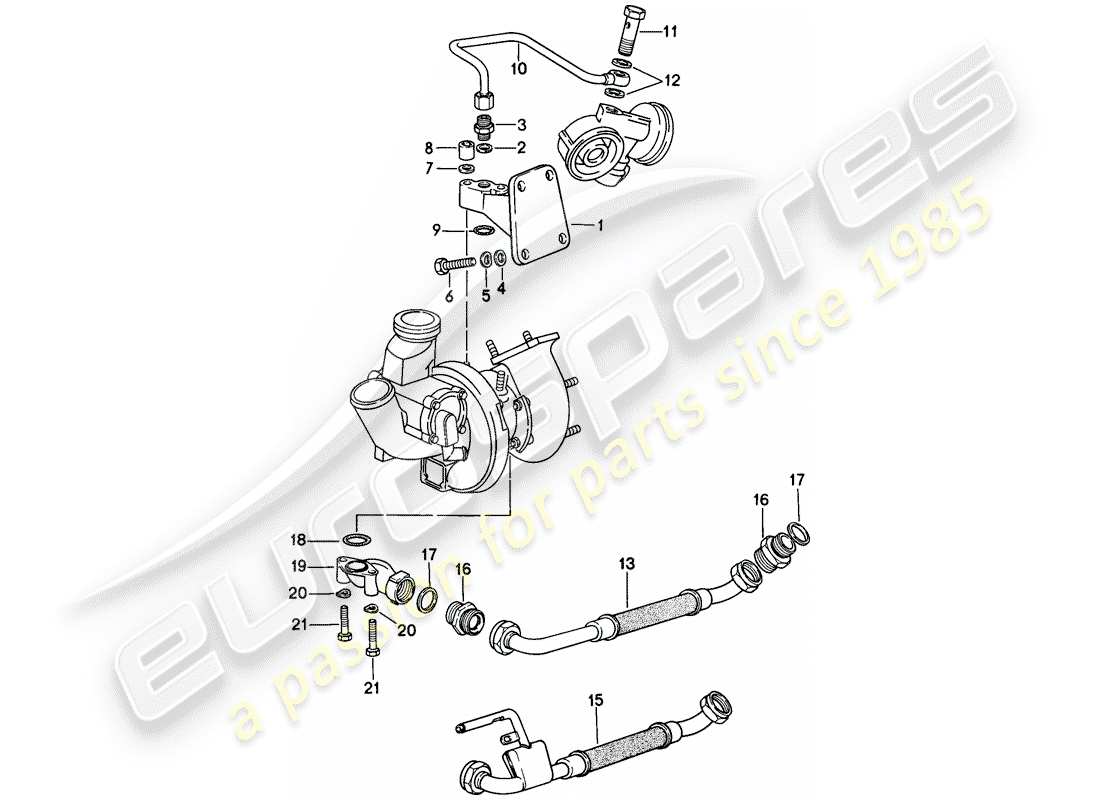

Porsche 1978 (924) ENGINE LUBRICATION - EXHAUST GAS TURBOCHARGER Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Price
                                          # 1
                                          MPN: 93112312403
                                          BRACKET
                                          # 2
                                          MPN: 90012300830
                                          SEAL RING - A 14 X 20
                                          from £2.04
                                          from £2.04
                                          # 3
                                          MPN: N 0207021
                                          SCREWED SOCKET
                                          from £5.62
                                          from £5.62
                                          # 4
                                          MPN: 90002500702
                                          Washer - Discontinued part
                                          # 4
                                          MPN: 90002500703
                                          WASHER
                                          from £0.84
                                          from £0.84
                                          # 5
                                          MPN: N 0122418
                                          SPRING WASHER
                                          from £0.70
                                          from £0.70
                                          # 6
                                          MPN: 90007508302
                                          SCREW, HEX. HD. - M 8 X 25
                                          # 8
                                          MPN: 99908500102
                                          SOCKET HEAD NUT
                                          from £7.44
                                          from £7.44
                                          # 9
                                          MPN: 99970704340
                                          O-RING - 17 X 3
                                          from £1.47
                                          from £1.47
                                          # 10
                                          MPN: 93110710905
                                          OIL PIPE
                                          # 11
                                          MPN: N 0210741
                                          BANJO BOLT - DISCONTINUED PART
                                          from £11.36
                                          from £11.36
                                          # 11
                                          MPN: N 0210747
                                          BANJO BOLT
                                          from £8.68
                                          from £8.68
                                          # 12
                                          MPN: 90012300830
                                          SEAL RING
                                          from £2.04
                                          from £2.04
                                          # 13
                                          MPN: 93110710803
                                          OIL PIPE
                                          from £633.99
                                          from £633.99
                                          # 16
                                          MPN: 90091500802
                                          FITTING
                                          from £13.24
                                          from £13.24
                                          # 17
                                          MPN: 90012308430
                                          SEAL RING - A 26 X 31
                                          from £2.34
                                          from £2.34
                                          # 18
                                          MPN: 90017404540
                                          SEAL RING - 25 X 3,15
                                          # 19
                                          MPN: 93110711102
                                          BRACKET
                                          # 20
                                          MPN: N 0122418
                                          SPRING WASHER
                                          from £0.70
                                          from £0.70
                                          # 21
                                          MPN: 90007413402
                                          SCREW, HEX. HD. - M 8 X 45
                                          Supersession
                                          Supersession
