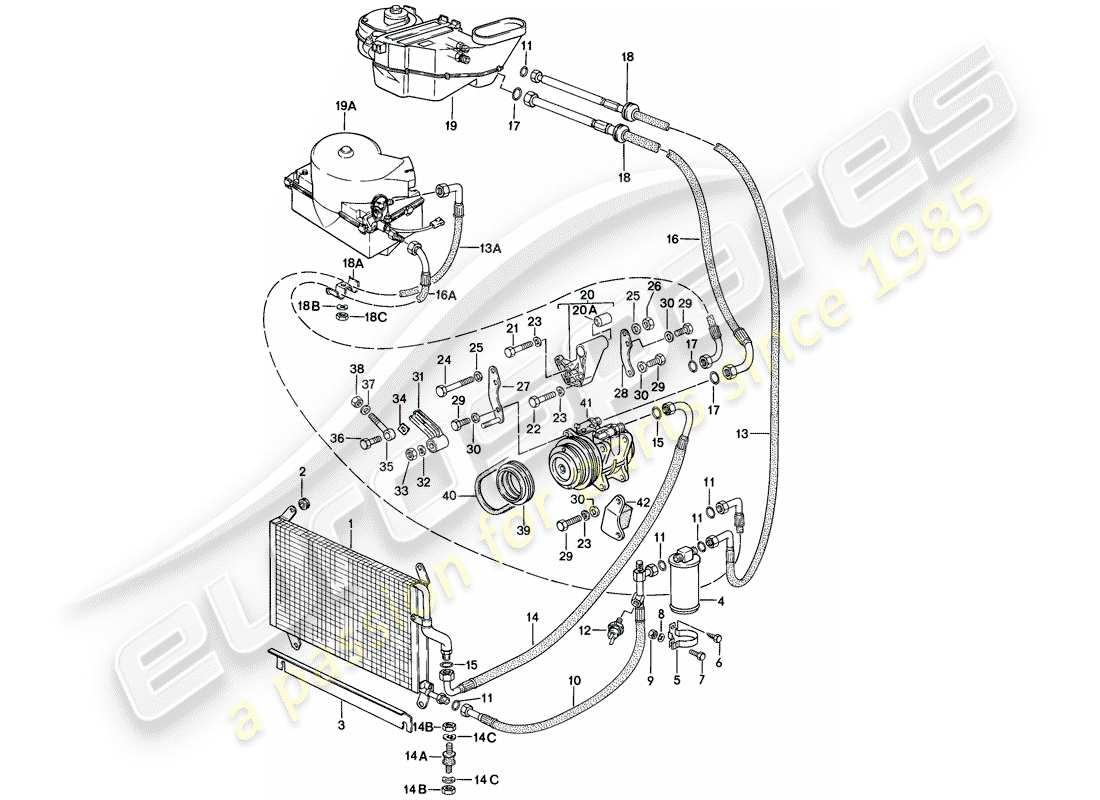

813-040 - Air conditioner - D - MJ 1979>> - MJ 1979
Porsche 1978 (924) AIR CONDITIONER - D - MJ 1979>> - MJ 1979 Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 477820751B
capacitor
# 2
MPN: 477820773
GROMMET
# 3
MPN: 477853717A
cooling air duct
# 4
MPN: 477820193
RECEIVER DRIER
# 5
MPN: 477820195
BRACKET - FLUID CONTAINER
# 6
MPN: N 0138845
TAPPING SCREW,HEX.HD. - B 4,8 X 13
from £0.87
from £0.87
# 7
MPN: N 0102644
SCREW, HEX. HD. - M 5 X 20
from £1.24
from £1.24
# 8
MPN: N 0120053
LOCK RING - 5
from £0.66
from £0.66
# 9
MPN: N 01100514
HEX. NUT - M 5 - DISCONTINUED PART
# 9
MPN: 90007609101
hex. nut - M 5
from £1.00
from £1.00
# 10
MPN: 477820423
REFRIGERANT LINE - CAPACITOR - FLUID CONTAINER
(924)
# 10
MPN: 477820423
REFRIGERANT LINE - CAPACITOR - FLUID CONTAINER
rhd (TURBO)
# 10
MPN: 477820423A
REFRIGERANT LINE - CAPACITOR - FLUID CONTAINER
lhd (TURBO)
# 11
MPN: 477820489
O-RING
# 12
MPN: 95961313700
low pressure switch
from £57.90
from £57.90
# 13
MPN: 477820424
refrigerant line - fluid container - evaporator
LHD
# 13
MPN: 478820735
refrigerant line - fluid container - evaporator
RHD
# -
-
TIE WRAP
# 14
MPN: 477820422B
REFRIGERANT LINE - COMPRESSOR - CAPACITOR
# 14
MPN: 810906219A
BONDED RUBBER MOUNTING
# 14
MPN: 90007601002
NUT - M 6 - DISCONTINUED PART
# 14
MPN: 9000760100B
NUT - M 6
from £0.73
from £0.73
# 14
MPN: N 0120072
LOCK RING - A 6 - DISCONTINUED PART
# 14
MPN: 90002700403
LOCK RING - A 6
from £0.63
from £0.63
# 15
MPN: 477820491
O-ring - Discontinued part
# 15
MPN: 99970725040
O-ring - Discontinued part
# 15
MPN: 99970743441
O-RING
from £5.61
from £5.61
# 16
MPN: 477820425
REFRIGERANT LINE - COMPRESSOR - EVAPORATOR
LHD
# 16
MPN: 477820425A
REFRIGERANT LINE - COMPRESSOR - EVAPORATOR
lhd (TURBO)
# 16
MPN: 478820723A
REFRIGERANT LINE - COMPRESSOR - EVAPORATOR
RHD
# 17
MPN: 478820731
O-RING
# 18
MPN: 90157314300
RUBBER GROMMET
from £4.76
from £4.76
# 18
MPN: 477820757
CLAMP
RHD
from £0.92
from £0.92
# 18
MPN: N 0120261
LOCK RING - B 6
RHD
# 18
MPN: 90007601002
NUT - M 6 - DISCONTINUED PART
RHD
# 18
MPN: 9000760100B
NUT - M 6
RHD
from £0.73
from £0.73
# 19
MPN: 477820002
AIR CONDITIONER - SEE GROUP - 8/13/45
LHD
# 19
MPN: 478820017
EVAPORATOR - SEE GROUP - 8/13/50
RHD
# 20
MPN: 047260877E
BRACKET
(924)
from £172.68
from £172.68
# 20
MPN: 93110101400
BRACKET
(TURBO)
# 20
MPN: 047260905C
RUBBER ISOLATOR
# 21
MPN: 90007406502
SCREW, HEX. HD. - M 10 X 70
# 22
MPN: 90007406302
SCREW, HEX. HD. - M 10 X 55
# 22
MPN: 90007438001
SCREW, HEX. HD. - M 10 X 55
from £2.20
from £2.20
# 23
MPN: N 0122306
SPRING WASHER - B 10
# 24
MPN: N 0104944
SCREW, HEX. HD. - M 10 X 125
from £1.73
from £1.73
# 25
MPN: 90002500809
WASHER - A 10,5 - DISCONTINUED PART
# 25
MPN: 90002500804
Washer - A 10,5
from £0.80
from £0.80
# 25
MPN: 9000250080E
Washer - A 10,5
Yellow
from £0.62
from £0.62
# 26
MPN: N 0110106
HEX. NUT - M 10 - DISCONTINUED PART
# 26
MPN: N 10155210
hex. nut - M 10
from £1.41
from £1.41
# 27
MPN: 047260883B
COMPRESSOR BRACKETS - COMPRESSOR
FRONT
# 28
MPN: 047260859C
BRACKET
rear
from £14.14
from £14.14
# 29
MPN: N 0401251
SCREW, HEX. HD. - M 10 X 30
Supersession
Supersession
# 30
MPN: 90002500809
WASHER - A 10,5 - DISCONTINUED PART
# 30
MPN: 90002500804
Washer - A 10,5
from £0.80
from £0.80
# 30
MPN: 9000250080E
Washer - A 10,5
Yellow
from £0.62
from £0.62
# 31
MPN: 047260903B
BRACKET
# 32
MPN: N 0122306
SPRING WASHER - B 10
# 33
MPN: N 0110106
HEX. NUT - M 10 - DISCONTINUED PART
# 33
MPN: N 10155210
hex. nut - M 10
from £1.41
from £1.41
# 34
MPN: 047260947A
WASHER
# 35
MPN: N 90079801
EYE BOLT
# 36
MPN: 90007504302
SCREW, HEX. HD. - M 10 X 30
Supersession
Supersession
# 37
MPN: 211843661
Washer - Discontinued part
# 37
MPN: N 01152513
WASHER
# 38
MPN: 311101463
HEX. NUT, SELF-LOCKING - M 8
from £5.57
from £5.57
# 39
MPN: 046105255F
V-BELT PULLEY
# 40
MPN: 047260849A
V-BELT
from £11.69
from £11.69
# 41
MPN: 047260803
COMPRESSOR - SEE GROUP - 8/13/60
# 42
MPN: 047260823B
VIBRATION DAMPER
