porsche 1981 (924) luggage compartment cover parts diagram

809-010 - LUGGAGE COMPARTMENT COVER

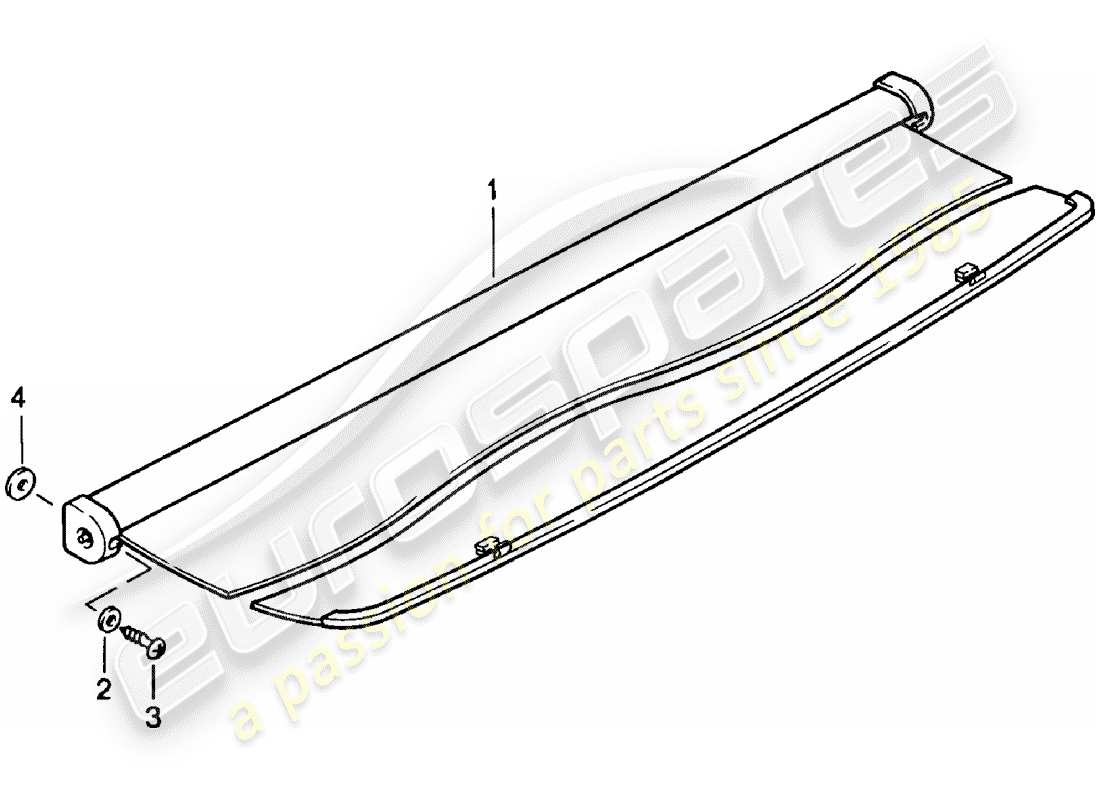

Porsche 1981 (924) LUGGAGE COMPARTMENT COVER Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 1
          MPN: 477863511A
          cover for trunk
          cover for trunk - D >> - MJ 1990 Genuine Porsche Part - New (to order)
          # -
          -
          HOUSING COVER - LUGGAGE COMPARTMENT COVER - 17,5 MM - BREADTH OF RIM
          LEFT
          # -
          -
          HOUSING COVER - LUGGAGE COMPARTMENT COVER - 17,5 MM - BREADTH OF RIM
          RIGHT
          # -
          -
          COVER - LUGGAGE COMPARTMENT COVER - 16 MM - BREADTH OF RIM
          LEFT
          # -
          -
          COVER - LUGGAGE COMPARTMENT COVER - 16 MM - BREADTH OF RIM
          RIGHT
          # 2
          MPN: 90002500302
          WASHER - A 5,3 - DISCONTINUED PART
          Washer - M 5 Genuine Porsche Part - New (to order)
          # 2
          MPN: 90002508001
          Washer - A 5,3
          from £0.94
          from £0.94
          WASHER - A 5.3 Genuine Porsche Part - New (to order)
          # 3
          MPN: N 0139713
          tapping screw, fill. hd. - 4,8 X 22
          from £1.17
          from £1.17
          tapping screw, fill. hd. - B4,8 X 22 Genuine Porsche Part - New (to order)
          # -
          -
          CARGO NET
          # 4
          MPN: 99970413940
          spacer washer - D - MJ 1984>>
          from £3.06
          from £3.06
          spacer washer - D - MJ 1984>> Genuine Porsche Part - New (to order)
