porsche 1981 (924) headlight washer system parts diagram

904-015 - HEADLIGHT WASHER SYSTEM

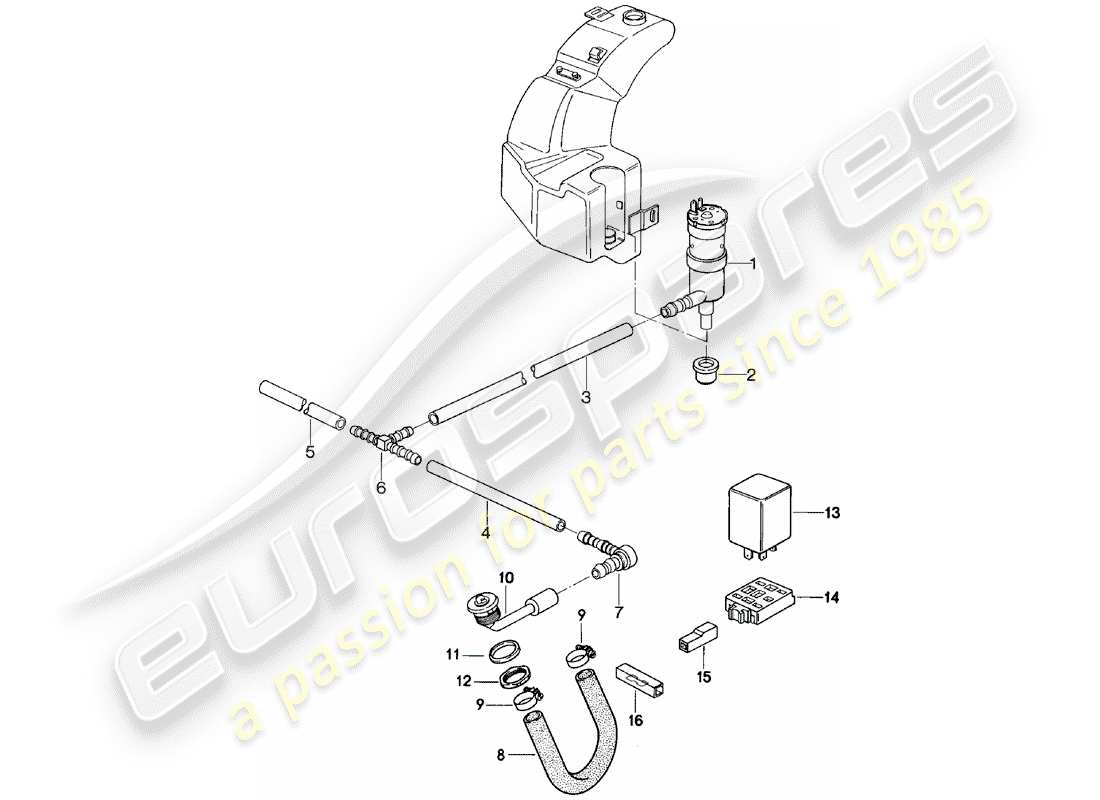

Porsche 1981 (924) HEADLIGHT WASHER SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Key
                    Price
                    # 1
                    MPN: 191955681
                    WINDSCREEN WASHER SYSTEM PUMP - ALSO USE:
                    -PCG90103240
                    from £94.11
                    from £94.11
                    WINDSCREEN WASHER SYSTEM PUMP - ALSO USE: Genuine Porsche Part - New (to order)
                    # 2
                    MPN: 431955465A
                    GASKET
                    from £2.30
                    from £2.30
                    GASKET Genuine Porsche Part - New (to order)
                    GASKET Genuine Lamborghini - New (to order)
                    # -
                    -
                    tube - 12,5 X 1,25
                    # 3
                    -
                    SHORTEN TO:
                    410 MM
                    # 4
                    -
                    SHORTEN TO:
                    890 MM (924/TURBO)
                    # 4
                    -
                    SHORTEN TO:
                    800 MM (GT)
                    # 5
                    -
                    SHORTEN TO:
                    100 MM (924/TURBO)
                    # 5
                    -
                    SHORTEN TO:
                    60 MM (GT)
                    # 6
                    MPN: 113955975B
                    T-PIECE
                    from £6.89
                    from £6.89
                    T-PIECE Genuine Porsche Part - New In stock
                    # 7
                    MPN: 477955183
                    PRESSURE SWITCH VALVE
                    from £12.04
                    from £12.04
                    Pressure switch valve - F >> 92-ES840 148 - F >> 92-ES849 566 Genuine Porsche Part - New (to order)
                    # 8
                    MPN: 92852816102
                    HOSE
                    (GT)
                    from £16.02
                    from £16.02
                    Hose - C 9 X 15 - F >> 92-ES840 148 - F >> 92-ES849 566 Genuine Porsche Part - New (to order)
                    # 9
                    MPN: N 0235702
                    HOSE CLAMP
                    (GT)
                    from £2.20
                    from £2.20
                    Hose Clamp - S19/9ZY Genuine Porsche Part - New (to order)
                    # 10
                    MPN: 477955177
                    NOZZLE HOLDER
                    (924/TURBO)
                    NOZZLE HOLDER Genuine Porsche Part - New (to order)
                    # 10
                    MPN: 93762807100
                    NOZZLE HOLDER
                    (GT)
                    NOZZLE HOLDER Genuine Porsche Part - New (to order)
                    # 11
                    MPN: 93762818500
                    SPACER SLEEVE
                    (GT)
                    SPACER SLEEVE Genuine Porsche Part - New (to order)
                    # 12
                    MPN: N 0191211
                    NUT - MPG 11
                    from £4.48
                    from £4.48
                    NUT - MPG 11 Genuine Porsche Part - New (to order)
                    # 13
                    MPN: 92861811100
                    RELAY FOR HEADLIGHT - WASHER
                    from £71.26
                    from £71.26
                    RELAY FOR HEADLIGHT - WASHER - RELAY LOCATION/CODE NO.: Genuine Porsche Part - New (to order)
                    # 14
                    MPN: 135937501A
                    RELAY PLATE
                    from £11.23
                    from £11.23
                    relay plate - 2,8 / 6,3 Genuine Porsche Part - New (to order)
                    # 15
                    MPN: 825971990
                    FLAT CONTACT HOUSING
                    from £1.02
                    from £1.02
                    flat contact housing - 6,3 Genuine Porsche Part - New (to order)
                    # 16
                    MPN: 111937077E
                    WIRE CONNECTOR
                    from £2.37
                    from £2.37
                    WIRE CONNECTOR Genuine Porsche Part - New (to order)
