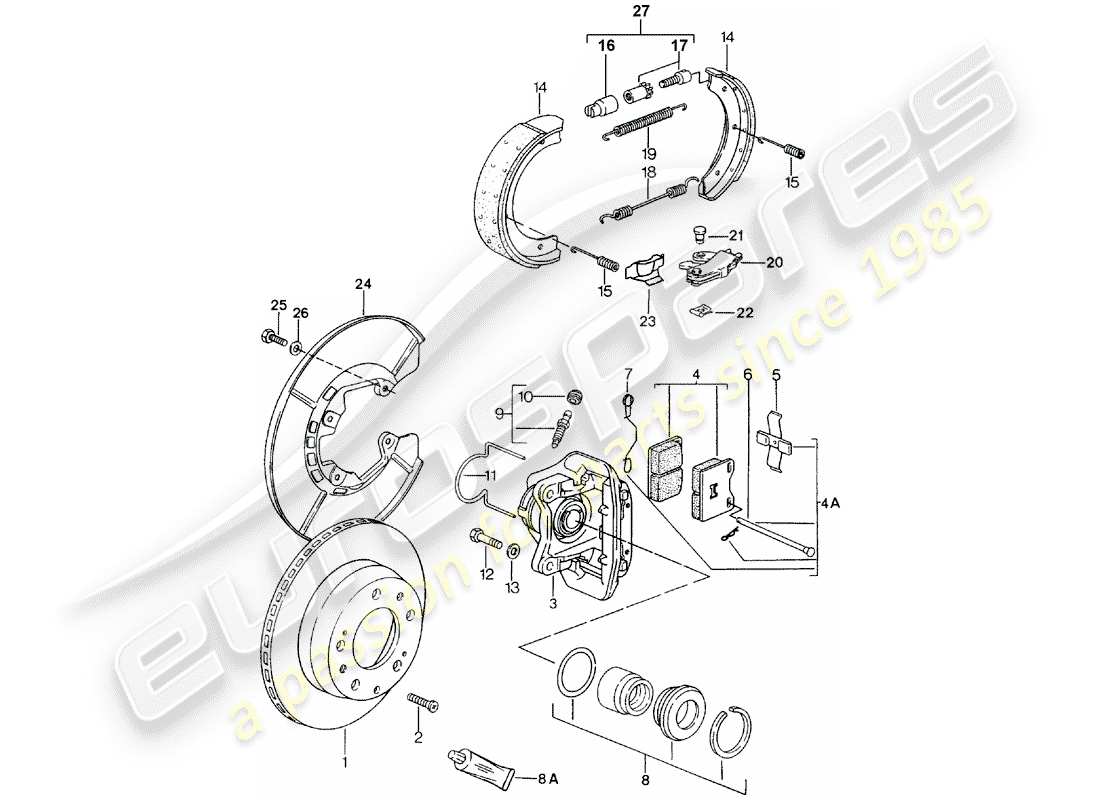

603-000 - DISC BRAKES - REAR AXLE
Porsche 1986 (924S) DISC BRAKES - REAR AXLE Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 94435204102
BRAKE DISC
# 1
MPN: 94435204105
BRAKE DISC - ALSO USE:
-92835295102-94435295200-90026904701
from £143.77
from £143.77
# 2
MPN: N 0331671
SCREW, CSK. HD. - DISCONTINUED PART
# 2
MPN: 90026904701
SCREW, CSK. HD.
from £0.59
from £0.59
This part replaces part number 90026904709
# 3
MPN: 94435242900
floating caliper - without pad
LEFT
from £1,249.47
from £1,249.47
# 3
MPN: 94435243000
floating caliper - without pad
RIGHT
from £1,102.96
from £1,102.96
# 4
MPN: 94435295102
1 SET OF BRAKE PADS FOR DISC - BRAKES - (ASBESTOS FREE) - DISCONTINUED PART
# 4
MPN: 92835295102
1 SET OF BRAKE PADS FOR DISC - BRAKES - (ASBESTOS FREE)
from £68.18
from £68.18
# 4
MPN: 94435295200
1 SET OF SECURING PARTS
Supersession
Supersession
# 5
MPN: 92835293500
SPEADER SPRING
# 6
MPN: 92835193600
RETAINING PIN
from £6.62
from £6.62
# 7
MPN: 94435296300
SAFETY SEAL
from £18.68
from £18.68
# 8
MPN: 92835294100
GASKET SET
from £34.67
from £34.67
# 8
MPN: 00004311700
BRAKE CYLINDER PASTE - 1 50-G TUBE - DISCONTINUED PART
# 8
MPN: 00004330511
BRAKE CYLINDER PASTE - 1 50-G TUBE
from £22.38
from £22.38
# 10
MPN: 90135192710
DUST CAP
from £2.98
from £2.98
# 11
MPN: 94435295400
GUIDE SPRING
RIGHT
# 11
MPN: 94435295300
GUIDE SPRING
LEFT
from £73.28
from £73.28
# 12
MPN: 90008207702
SCREW, HEX. HD. - M 12 X 1,5 X 37
# 12
MPN: 90008214501
SCREW, HEX. HD. - M 12 X 1,5 X 37
from £6.24
from £6.24
# 13
MPN: 90002801402
SPRING WASHER - DISCONTINUED PART
# 13
MPN: 90002801403
SPRING WASHER
from £1.32
from £1.32
# -
-
Handbrake
# 14
MPN: 99635299300
REPAIR KIT - (ASBESTOS FREE) - DISCONTINUED PART
# 14
MPN: 99735299302
BRAKE LINING - 1 SET - ONLY IN COMBINATION WITH: - PRESSURE SPRING - 996.352.741.00 - ADJUSTMENT SCREW - 993.352.071.00
Supersession
Supersession
# 15
MPN: 92835295702
PRESSURE SPRING
from £8.91
from £8.91
# 15
MPN: 99635274100
PRESSURE SPRING - ONLY IN COMBINATION WITH: - REPAIR KIT - 997.352.993.02
Supersession
Supersession
# 16
MPN: 91135294400
BUSHING
Supersession
Supersession
# 17
MPN: 91135209800
adjustment screw - Discontinued part
# 17
MPN: 91135209801
ADJUSTMENT SCREW
Supersession
Supersession
# 18
MPN: 95135245400
Return spring - Discontinued part
# 18
MPN: 99635272300
TENSION SPRING
from £20.83
from £20.83
# 19
MPN: 90135293210
RETURN SPRING
from £5.97
from £5.97
# 20
MPN: 95135209000
EXPANDING BOW
from £65.77
from £65.77
# 21
MPN: 477609459
PIN
# 22
MPN: N 90058801
FUSE
from £1.87
from £1.87
# 23
MPN: 95135280700
SUPPORT PLATE
from £13.18
from £13.18
# 24
MPN: 96435280100
PROTECTIVE PLATE - DISCONTINUED PART
# 24
MPN: 96435280101
PROTECTIVE PLATE
from £113.25
from £113.25
# 25
MPN: 99907200509
HEX. NUT - M 6 X 12 - DISCONTINUED PART
# 25
MPN: 99907200501
SCREW, HEX. HD. - M 6 X 12
from £2.58
from £2.58
# 26
MPN: N 0122265
SPRING WASHER - B 6
from £0.70
from £0.70
# 27
MPN: 99335207100
ADJUSTMENT SCREW - ONLY IN COMBINATION WITH: - REPAIR KIT - 997.352.993.02 - DISCONTINUED PART
# 27
MPN: 298609723
ADJUSTMENT SCREW - ONLY IN COMBINATION WITH: - REPAIR KIT - 997.352.993.02
from £5.73
from £5.73
