porsche 1988 (924s) license plate light - rear light parts diagram

905-015 - LICENSE PLATE LIGHT - REAR LIGHT

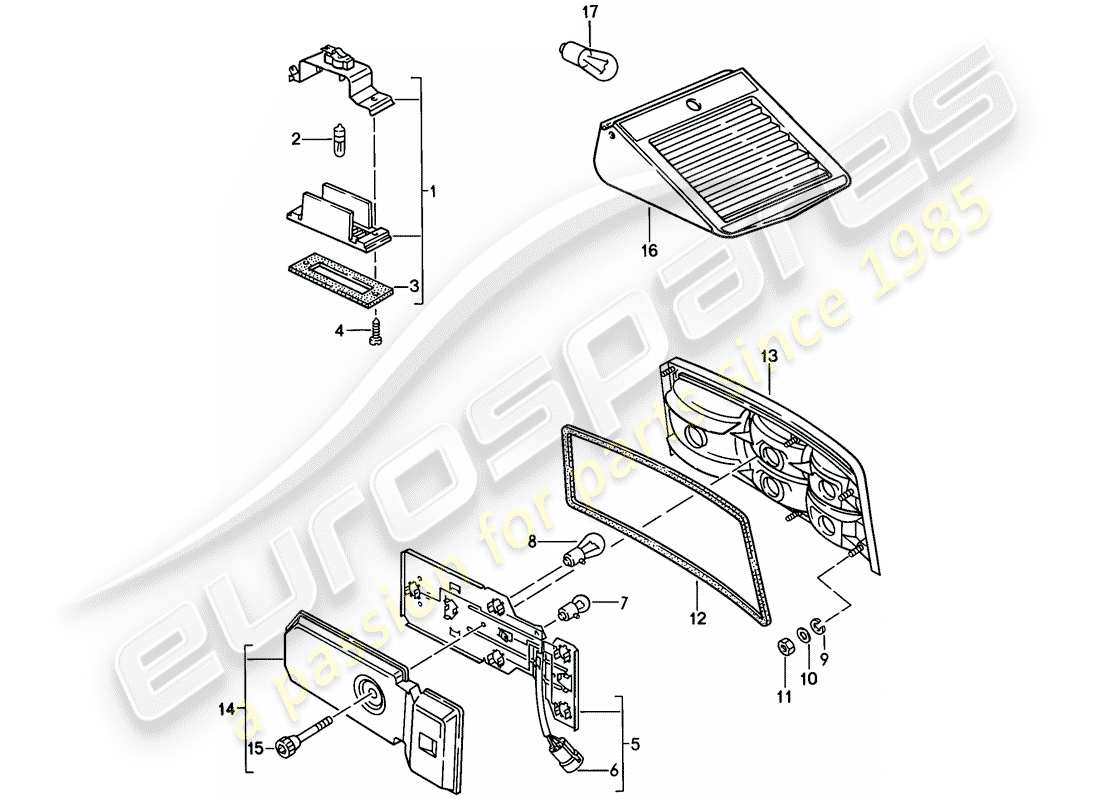

Porsche 1988 (924S) LICENSE PLATE LIGHT - REAR LIGHT Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Key
                          Price
                          # 1
                          MPN: 477943021A
                          LICENSE PLATE LIGHT
                          from £35.66
                          from £35.66
                          LICENSE PLATE LIGHT Genuine Porsche Part - New (to order)
                          # 2
                          MPN: 90063110390
                          BULB - 12 V, 4 W
                          from £3.22
                          from £3.22
                          bulb - HL 12V, 4W Genuine Porsche Part - New (to order)
                          # 3
                          MPN: 477943131
                          GASKET
                          Supersession
                          Supersession
                          Genuine Porsche Part (no longer available to order)
                          # 4
                          MPN: N 0139612
                          TAPPING SCREW, FILL. HD. - B 3,9 X 13
                          tapping screw, fill. hd. - M 3,9 X 13 Genuine Porsche Part - New (to order)
                          # 4
                          MPN: N 01396111
                          TAPPING SCREW, FILL. HD. - B 3,9 X 13
                          from £0.66
                          from £0.66
                          tapping screw, fill. hd. - M 3,9 X 13 Genuine Porsche Part - New (to order)
                          # 5
                          MPN: 477945113
                          BULB HOLDER - DISCONTINUED PART
                          LEFT
                          from £87.26
                          from £87.26
                          bulb holder - Rear light - Discontinued part Genuine Porsche Part - New (to order)
                          # -
                          -
                          BULB SOCKET - FOR - BULB HOLDER
                          LEFT
                          # 5
                          MPN: 477945114
                          BULB HOLDER - DISCONTINUED PART
                          RIGHT
                          from £78.80
                          from £78.80
                          bulb holder - Rear light - Discontinued part Genuine Porsche Part - New (to order)
                          # -
                          -
                          BULB SOCKET - FOR - BULB HOLDER
                          RIGHT
                          # 6
                          MPN: 803971980
                          PIN (MALE) TERMINAL HOUSING - 7-POLE
                          from £3.07
                          from £3.07
                          pin (male) terminal housing - for - contact pin - $ 3,5 - for - contact pin - $ 1,6 Genuine Porsche Part - New (to order)
                          # 7
                          MPN: 90063110490
                          BULB - 12V, 5W
                          from £3.59
                          from £3.59
                          bulb - license plate light - 12 V - 5 W Genuine Porsche Part - New (to order)
                          # 8
                          MPN: 90063112790
                          BULB - 12V, 21W
                          from £1.34
                          from £1.34
                          bulb - RL 12V, 21W Genuine Porsche Part - New In stock
                          # 9
                          MPN: N 0120053
                          LOCK RING - B 5
                          from £0.66
                          from £0.66
                          LOCK RING Genuine Porsche Part - New (to order)
                          # 11
                          MPN: N 01100514
                          HEX. NUT - M 5 - DISCONTINUED PART
                          hex. nut - M 5 - See technical information - GR. X NR. 15 - Discontinued part Genuine Porsche Part - New (to order)
                          # 11
                          MPN: 90007609101
                          hex. nut - M 5
                          from £1.00
                          from £1.00
                          hex. nut - M 5 - See technical information - GR. X NR. 15 Genuine Porsche Part - New In stock
                          # -
                          -
                          SEALING CORD - $ 9 MM - ROLLER - 10 M
                          # 12
                          -
                          SHORTEN TO:
                          1070 MM
                          # 13
                          MPN: 477945205
                          HOUSING - WITH: - LENS
                          LEFT
                          from £179.83
                          from £179.83
                          HOUSING - WITH: - LENS Genuine Porsche Part - New (to order)
                          # 13
                          MPN: 477945206
                          HOUSING - WITH: - LENS
                          RIGHT
                          from £183.21
                          from £183.21
                          HOUSING - WITH: - LENS Genuine Porsche Part - New (to order)
                          # 13
                          MPN: 477945215
                          HOUSING - WITH: - LENS - WITH REAR FOGLAMP
                          LEFT
                          from £194.33
                          from £194.33
                          housing - with rear foglamp Genuine Porsche Part - New (to order)
                          # 13
                          MPN: 477945216
                          HOUSING - WITH: - LENS - WITH REAR FOGLAMP
                          RIGHT
                          from £169.44
                          from £169.44
                          housing - with rear foglamp Genuine Porsche Part - New (to order)
                          # 14
                          MPN: 477945285
                          CAP
                          from £18.13
                          from £18.13
                          CAP - DISCONTINUED PART Genuine Porsche Part - New (to order)
                          # 15
                          MPN: 477945285
                          CAP
                          from £18.13
                          from £18.13
                          CAP - DISCONTINUED PART Genuine Porsche Part - New (to order)
