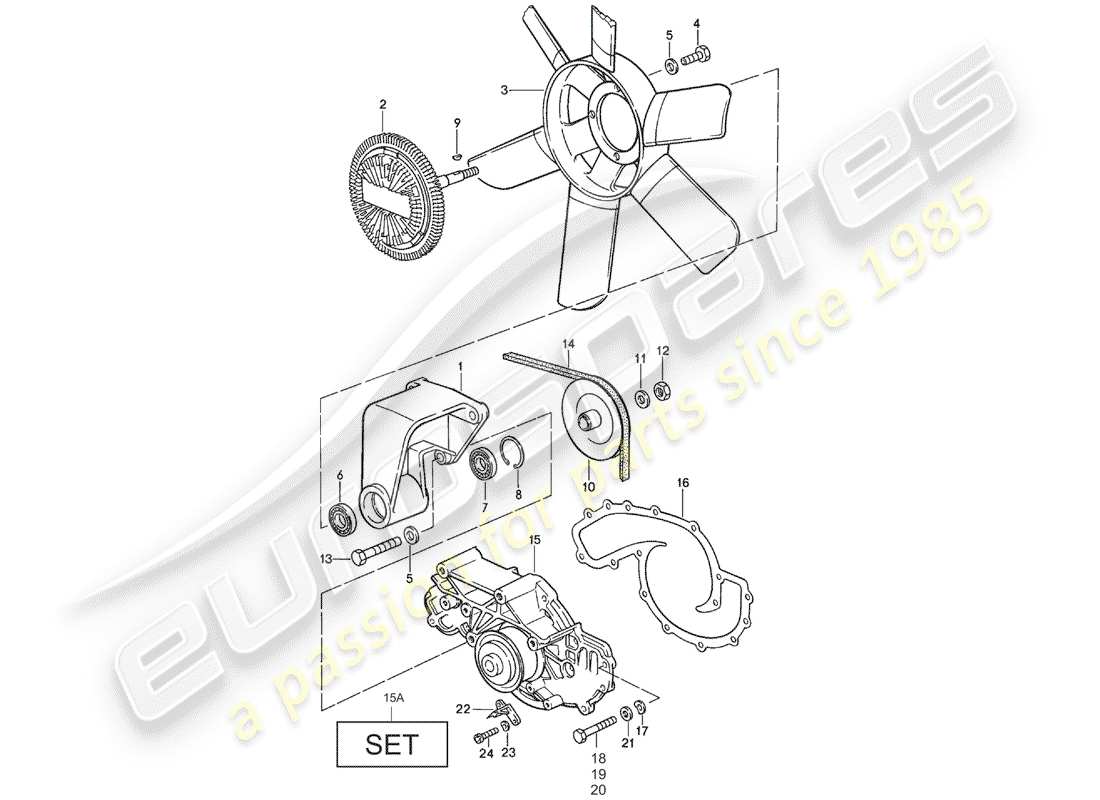

105-000 - FAN WHEEL - WATER PUMP
Porsche 1979 (928) FAN WHEEL - WATER PUMP Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 92810611000
Fan carrier - D >> - MJ 1980 - Discontinued part
# 1
MPN: 92810611004
Fan carrier - Discontinued part
# 2
MPN: 92810611205
Viscous clutch - Only in combination with: - 928.106.445.00 - Use
from £670.50
from £670.50
# 3
MPN: 92810613701
FAN WHEEL
from £76.33
from £76.33
# 4
MPN: 90007508702
SCREW, HEX. HD. - M 8 X 16 - DISCONTINUED PART
# 4
MPN: 90007508703
SCREW, HEX. HD. - M 8 X 16
Supersession
Supersession
# 4
MPN: 90007508704
SCREW, HEX. HD. - M 8 X 16
M8X16-yellow
from £0.86
from £0.86
This part replaces part number 90007508703
# 5
MPN: N 01152513
WASHER
# 6
MPN: 92810211102
BALL BEARING - ONLY IN COMBINATION WITH: - 928.106.112.02 - USE - D >> - MJ 1980
from £15.29
from £15.29
# 6
MPN: 92810644502
ball bearing - Only in combination with: - 928.106.112.03 - Use - D - MJ 1981>>
from £25.02
from £25.02
# 7
MPN: 92810644105
BALL BEARING
from £18.28
from £18.28
# 8
MPN: 90004202601
LOCK RING - 37 X 1,5
from £1.64
from £1.64
# 9
MPN: 90011800500
WOODRUFF KEY
# 9
MPN: N 0127082
WOODRUFF KEY
from £1.06
from £1.06
# 10
MPN: 92810611302
pulley - D >> - MJ 1978
from £52.51
from £52.51
# 10
MPN: 92810611302
pulley - D - MJ 1979>>
from £52.51
from £52.51
# 11
MPN: N 0122423
SPRING WASHER
from £0.60
from £0.60
# 11
MPN: 90002500809
Washer - Discontinued part
# 11
MPN: 90002500804
WASHER
from £0.80
from £0.80
This part replaces part number 90002500802
# 11
MPN: 9000250080E
WASHER
Yellow
from £0.62
from £0.62
# 12
MPN: N 0110106
HEX. NUT - DISCONTINUED PART
# 12
MPN: N 10155210
HEX. NUT
from £0.88
from £0.88
# 13
MPN: N 0103355
SCREW, HEX. HD. - M 8 X 35
# 13
MPN: 90007503203
SCREW, HEX. HD. - M 8 X 35
from £2.56
from £2.56
# 14
MPN: 99919211750
Narrow v-belt - 12,5 X 1050 MM - D >> - MJ 1978
from £11.68
from £11.68
# 14
MPN: 99919216050
Narrow v-belt - 12,5 X 1040 MM - D - MJ 1979>>
from £20.39
from £20.39
# 15
MPN: 92810601509
WATER PUMP - DISCONTINUED PART
# 15
MPN: 92810601522
WATER PUMP
from £793.05
from £793.05
# 15
MPN: PCG10601522
REPAIR KIT - FOR - WATER PUMP - COMPRISING:
from £32.60
from £32.60
# -
-
GASKET
# -
-
TDC PIONTER
# -
-
SCREW, CHEESE HD. - M 5 X 18
# -
-
Washer - A 5,3
# -
-
SCREW, HEX. HD.
M6X20
This part replaces part number N 0102179
# -
-
WASHER
6,4X12,5X1,6
# -
-
SCREW, HEX. HD.
AM6X25
# -
-
SCREW, HEX. HD. - M 6 X 73
# -
-
WASHER
A8,4
# -
-
SCREW, HEX. HD.
M8X35
# 15
MPN: 928106015AX
WATER PUMP
from £765.83
from £765.83
# 15
MPN: 928106915AX
WATER PUMP - COMPRISING:
from £672.66
from £672.66
# -
-
gasket - Discontinued part
# -
-
Washer - Discontinued part
# -
-
WASHER
# -
-
SCREW, HEX. HD.
# -
-
BOLT WITH WASHER - DISCONTINUED PART
# -
-
BOLT WITH WASHER
# -
-
SCREW, HEX. HD.
# -
-
WASHER
# -
-
SCREW, CHEESE HD. - DISCONTINUED PART
# -
-
SCREW, CHEESE HD.
# -
-
WATER PUMP - --------------
# 16
MPN: 92810613403
GASKET
# 16
MPN: 92810613405
GASKET - (ASBESTOS FREE) - DISCONTINUED PART
# 16
MPN: 92810613406
gasket - (asbestos free)
from £4.63
from £4.63
# 17
MPN: N 0115247
Washer - Discontinued part
# 17
MPN: N 01152427
WASHER
from £0.47
from £0.47
# 18
MPN: N 0102179
SCREW, HEX. HD. - M 6 X 20
Supersession
Supersession
# 19
MPN: 90007533302
Bolt with washer - M 6 X 25 Z2 - Discontinued part
# 19
MPN: 90007533301
Bolt with washer - M 6 X 25 Z2
from £9.41
from £9.41
# 20
MPN: N 0403071
SCREW, HEX. HD. - M 6 X 72
from £6.67
from £6.67
# 21
MPN: 90002501402
WASHER
# 22
MPN: 92810517601
tdc pionter - Discontinued part
from £6.80
from £6.80
# 23
MPN: N 0115239
Washer - A 5,3
# 24
MPN: 90001406602
SCREW, CHEESE HD. - M 5 X 18 - DISCONTINUED PART
# 24
MPN: 90097601001
SCREW, CHEESE HD. - M 5 X 18
from £1.47
from £1.47
