109-000 - engine suspension

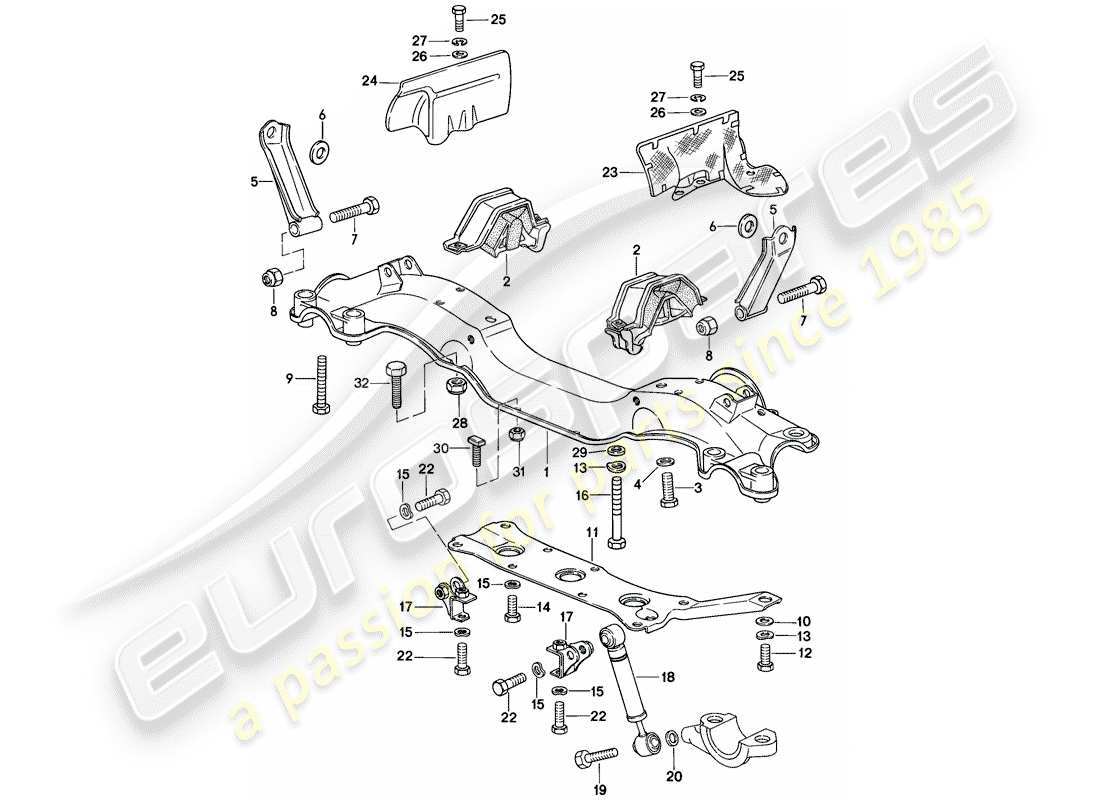

Porsche 1979 (928) ENGINE SUSPENSION Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 92837501104
ENGINE CARRIER
LHD
# 1
MPN: 92737501100
engine carrier - D >> - MJ 1980
RHD
# 1
MPN: 92737501104
engine carrier - D - MJ 1981>>
RHD
# 2
MPN: 92837504302
Engine Mounting
Supersession
Supersession
# 3
MPN: N 0401081
SCREW, HEX. HD. - M 12 X 1,5 X 40
Supersession
Supersession
# 4
MPN: 90133314301
WASHER
from £3.30
from £3.30
# 5
MPN: 92837506300
SUPPORT
LEFT
from £19.67
from £19.67
# 5
MPN: 92837506400
SUPPORT
RIGHT
from £19.67
from £19.67
# 6
MPN: 92837521100
WASHER
from £11.13
from £11.13
# 7
MPN: N 0101563
SCREW, HEX. HD. - M 12 X 1,5 X 70
Supersession
Supersession
# 8
MPN: 90091004602
lock nut - VM 12 X 1,5 - Discontinued part
# 8
MPN: 99908443909
lock nut - VM 12 X 1,5 - Discontinued part
# 8
MPN: 99908444509
lock nut - VM 12 X 1,5 - Discontinued part
Supersession
Supersession
# 8
MPN: 99908444501
lock nut - VM 12 X 1,5
from £2.29
from £2.29
This part replaces part number 99908444509
# 9
MPN: N 0104553
SCREW, HEX. HD. - M 10 X 55
from £3.61
from £3.61
# 10
MPN: 92837521200
WASHER
# 11
MPN: 92837510901
REINFORCEMENT PLATE
LHD
from £87.80
from £87.80
# 11
MPN: 92737502100
REINFORCEMENT PLATE
RHD
from £87.80
from £87.80
# 12
MPN: 90007504302
SCREW, HEX. HD. - M 10 X 30
Supersession
Supersession
# 13
MPN: 90002803202
SPRING WASHER - B 10
from £0.70
from £0.70
# 14
MPN: 90007507902
SCREW, HEX. HD. - M 8 X 25
Supersession
Supersession
# 15
MPN: N 0122418
SPRING WASHER
from £0.70
from £0.70
# 16
MPN: N 0105003
SCREW, HEX. HD. - M 10 X 110
from £2.88
from £2.88
# 17
MPN: 92837508101
CONNECTING BOW
LEFT
from £16.36
from £16.36
# 17
MPN: 92837508201
CONNECTING BOW
RIGHT
from £16.36
from £16.36
# 18
MPN: 92837517902
VIBRATION DAMPER
from £108.59
from £108.59
# 19
MPN: N 0104505
SCREW, HEX. HD. - M 10 X 50
# 19
MPN: 90007437302
SCREW, HEX. HD. - M 10 X 50
from £3.82
from £3.82
# 20
MPN: 90008900202
WASHER - 10 MM
from £0.47
from £0.47
# 22
MPN: N 0103406
SCREW, HEX. HD. - M 8 X 40
Supersession
Supersession
# 23
MPN: 92837505501
SHIELD
LEFT
# 24
MPN: 92837505601
SHIELD
RIGHT
from £68.75
from £68.75
# 25
MPN: 90007505702
SCREW, HEX. HD. - M 6 X 16
Supersession
Supersession
# 25
MPN: 90007505703
SCREW, HEX. HD. - M 6 X 16 - NO LONGER USE THE PART HERE
from £3.27
from £3.27
# 26
MPN: 90022300302
WASHER
from £0.82
from £0.82
# 27
MPN: N 0120064
LOCK RING - B 6
from £0.70
from £0.70
# 28
MPN: 90091003109
LOCK NUT
# 28
MPN: 90091003101
LOCK NUT
from £4.04
from £4.04
# 29
MPN: 90002500809
Washer - Discontinued part
# 29
MPN: 90002500804
WASHER
from £0.80
from £0.80
This part replaces part number 90002500802
# 29
MPN: 9000250080E
WASHER
Yellow
from £0.62
from £0.62
# 30
MPN: 92837512500
t-head screw - D - MJ 1981>>
from £5.08
from £5.08
# 31
MPN: 90091002202
lock nut - D - MJ 1981>>
Supersession
Supersession
# 32
MPN: N 0104452
SCREW, HEX. HD. - M 10 X 45 - D - MJ 1981>> - DISCONTINUED PART
# 32
MPN: 90007437201
screw, hex. hd. - M 10 X 45 - D - MJ 1981>>
from £1.47
from £1.47
