604-010 - BRAKE LINES - D - MJ 1984>>

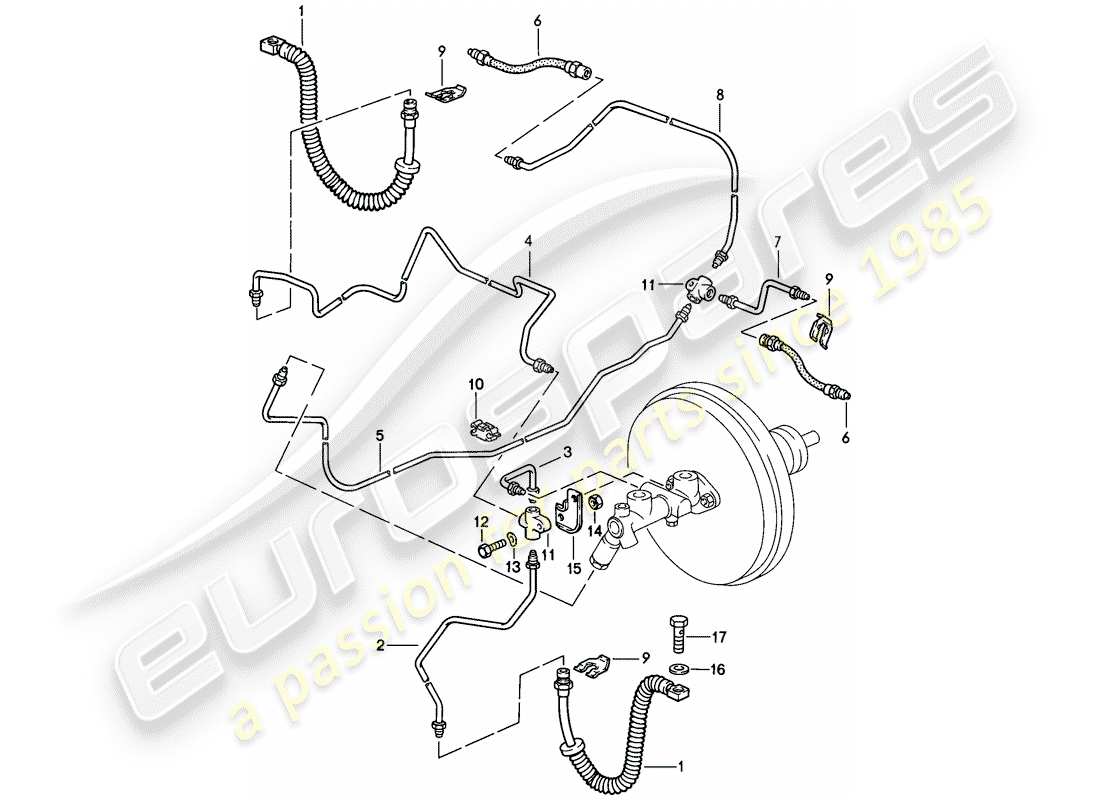

Porsche 1983 (928) BRAKE LINES - D - MJ 1984>> Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 92835508100
brake hose - D >> - MJ 1985 - Discontinued part
FRONT
# 1
MPN: 92835508103
BRAKE HOSE
FRONT
from £154.47
from £154.47
# 1
MPN: 92835508102
brake hose - D - MJ 1986>> - MJ 1986
FRONT
# 2
MPN: 92835505301
brake line
lhd-left-front
from £19.17
from £19.17
# 2
MPN: 92735505301
brake line
rhd-left-front
from £33.98
from £33.98
# 3
MPN: 92835504900
brake line
LHD
from £9.92
from £9.92
# 3
MPN: 92735504900
brake line
rhd-front
from £1.98
from £1.98
# 4
MPN: 92835505102
brake line
lhd-front
from £47.36
from £47.36
# 4
MPN: 92735505101
brake line
rhd-front
from £20.77
from £20.77
# 5
MPN: 92835505500
brake line
center
from £63.86
from £63.86
# 5
MPN: 92735505500
Brake line - - D >> - MJ 1985
rhd-center
# 6
MPN: 92835508002
BRAKE HOSE
rear
# 7
MPN: 92835505702
Brake line - - D >> - MJ 1985
left-rear
from £70.35
from £70.35
# 7
MPN: 92835505704
Brake line - - D - MJ 1986>> - MJ 1986
left-rear
from £70.35
from £70.35
# 8
MPN: 92835505901
Brake line - - D >> - MJ 1985
right-rear
from £70.35
from £70.35
# 8
MPN: 92835505901
Brake line - - D - MJ 1986>> - MJ 1986
right-rear
from £70.35
from £70.35
# 9
MPN: 113611715A
BRAKE HOSE BRACKET
from £2.76
from £2.76
# 10
MPN: 477611767B
Cable clip - D >> - MJ 1985
from £1.43
from £1.43
# 10
MPN: 811611797
bracket - D - MJ 1986>> - MJ 1986
from £1.68
from £1.68
# 11
MPN: 91435566700
DISTRIBUTOR
from £28.66
from £28.66
# 12
MPN: 90007501702
SCREW, HEX. HD. - M 6 X 25
# 12
MPN: 90007501703
SCREW, HEX. HD. - M 6 X 25
from £0.73
from £0.73
# 13
MPN: N 0122265
SPRING WASHER - B 6
from £0.70
from £0.70
# 14
MPN: 90007601002
NUT - M 6 - DISCONTINUED PART
# 14
MPN: 9000760100B
NUT - M 6
from £0.73
from £0.73
# 15
MPN: 92835565100
BRACKET
LHD
# 15
MPN: 92735565100
BRACKET
RHD
# 16
MPN: N 0138062
SEAL RING - A 10 X 14
from £0.65
from £0.65
# 17
MPN: 99913402702
BANJO BOLT - M 10 X 1 - DISCONTINUED PART
# 17
MPN: 9991340270B
banjo bolt - M 10 X 1
from £9.62
from £9.62
