802-005 - BUMPER

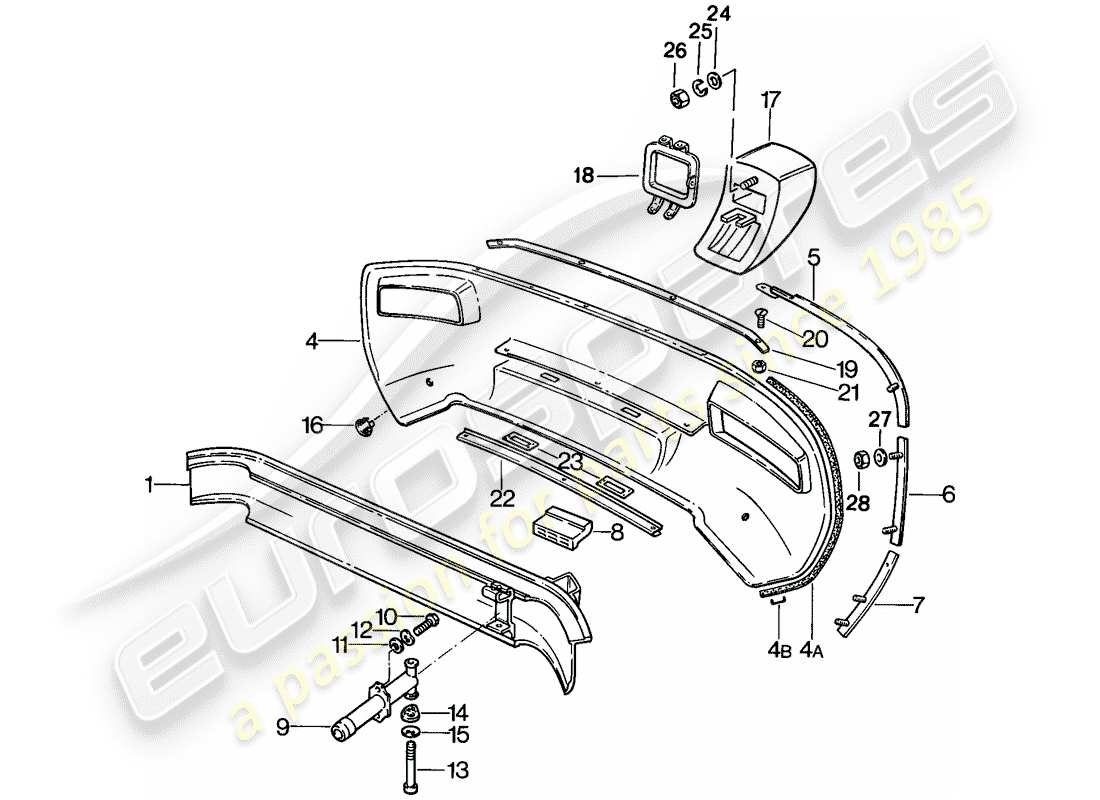

Porsche 1984 (928) BUMPER Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 92850502008
bracket - D - MJ 1984>> - MJ 1984
(PR:215)
from £488.04
from £488.04
# 1
MPN: 92850502007
bracket - Up to model 83 - also use:
--928 722 101 05
from £397.99
from £397.99
# 4
MPN: 92850512303
lining - without rear foglamp
# 4
MPN: 92850512305
lining - D - MJ 1984>> - MJ 1984
(PR:215)
# -
-
BEADING
# 4
-
SHORTEN TO:
1000 MM
# 5
MPN: 92850503502
RETAINING STRIP
left-upper
from £49.46
from £49.46
# 5
MPN: 92850503602
RETAINING STRIP
right-upper
from £48.02
from £48.02
# 6
MPN: 92850503702
RETAINING STRIP
left-center
from £25.02
from £25.02
# 6
MPN: 92850503802
RETAINING STRIP
right-center
from £25.02
from £25.02
# 7
MPN: 92850503902
RETAINING STRIP
left-lower
from £22.10
from £22.10
# 7
MPN: 92850504002
RETAINING STRIP
right-lower
from £18.32
from £18.32
# -
-
rivet - 3,2
# -
-
POP-RIVET - 3,2
# 8
MPN: 92850524502
OVERRIDER - BUMPER
from £46.39
from £46.39
# -
-
rivet - 4,8
# -
-
rivet - 4,8
# 9
MPN: 92850501702
BUFFER
# 9
MPN: 92850501502
BUFFER
(M 58 PR:215)
from £262.64
from £262.64
# 10
MPN: 90007508502
SCREW, HEX. HD. - M 8 X 20
Supersession
Supersession
# 11
MPN: 90002500702
WASHER - 8,4 - DISCONTINUED PART
# 11
MPN: 90002500703
WASHER - 8,4
from £0.84
from £0.84
# 12
MPN: N 0122418
SPRING WASHER - B 8
from £0.70
from £0.70
# 13
MPN: 90006708402
SCREW, CHEESE HD. - M 12 X 110
# 13
MPN: 90006708403
SCREW, CHEESE HD. - M 12 X 110
from £3.68
from £3.68
# 14
MPN: 99902521209
WASHER - 12 - DISCONTINUED PART
# 14
MPN: 99902521201
Washer - 12
from £4.93
from £4.93
# 14
MPN: 92850524302
ECCENTRIC WASHER
(M 58)
from £13.82
from £13.82
# 14
MPN: 92850524302
eccentric washer - D - MJ 1984>> - MJ 1984
(PR:215)
from £13.82
from £13.82
# 15
MPN: 90022200301
CONCAVE WASHER
from £1.47
from £1.47
# 16
MPN: 92850513102
SEALING CAP
# 17
MPN: 92850500503
overrider - bumper - D - MJ 1984>> - MJ 1984
left (PR:215)
from £67.50
from £67.50
# 17
MPN: 92850500603
overrider - bumper - D - MJ 1984>> - MJ 1984
right (PR:215)
from £78.07
from £78.07
# 18
MPN: 92850528502
FRAME - FOR - REAR FOG LIGHT
LEFT
from £11.11
from £11.11
# 19
MPN: 92850526702
RAIL
from £50.65
from £50.65
# 20
MPN: 90014402907
TAPP. SCREW,CSK.HD. - B 4,8 X 25 - DISCONTINUED PART
# 20
MPN: 9001440290G
TAPP. SCREW,CSK.HD. - B 4,8 X 25
from £2.11
from £2.11
# 21
MPN: 99959148502
speed nut - B6 4,8
# 22
MPN: 92850525302
REINFORCEMENT
from £12.32
from £12.32
# 23
MPN: 92850511202
SECURING PLATE
from £7.07
from £7.07
# 24
MPN: 90002500702
WASHER - A 8,4 - D - MJ 1984>> - DISCONTINUED PART
(PR:215)
# 24
MPN: 90002500703
Washer - A 8,4 - D - MJ 1984>>
(PR:215)
from £0.84
from £0.84
# 25
MPN: N 0122418
spring washer - B 8 - D - MJ 1984>> - MJ 1984
(PR:215)
from £0.70
from £0.70
# 26
MPN: 90007604402
hex. nut - M 8 - D - MJ 1984>> - MJ 1984
(PR:215)
from £0.50
from £0.50
# 27
MPN: 90002500302
Washer - A 5,3
# 28
MPN: N 0211961
LOCK NUT - M 5 - DISCONTINUED PART
# 28
MPN: N 0211963
hex. nut - M 5
from £0.54
from £0.54
