porsche 1984 (928) alternator parts diagram

901-005 - ALTERNATOR

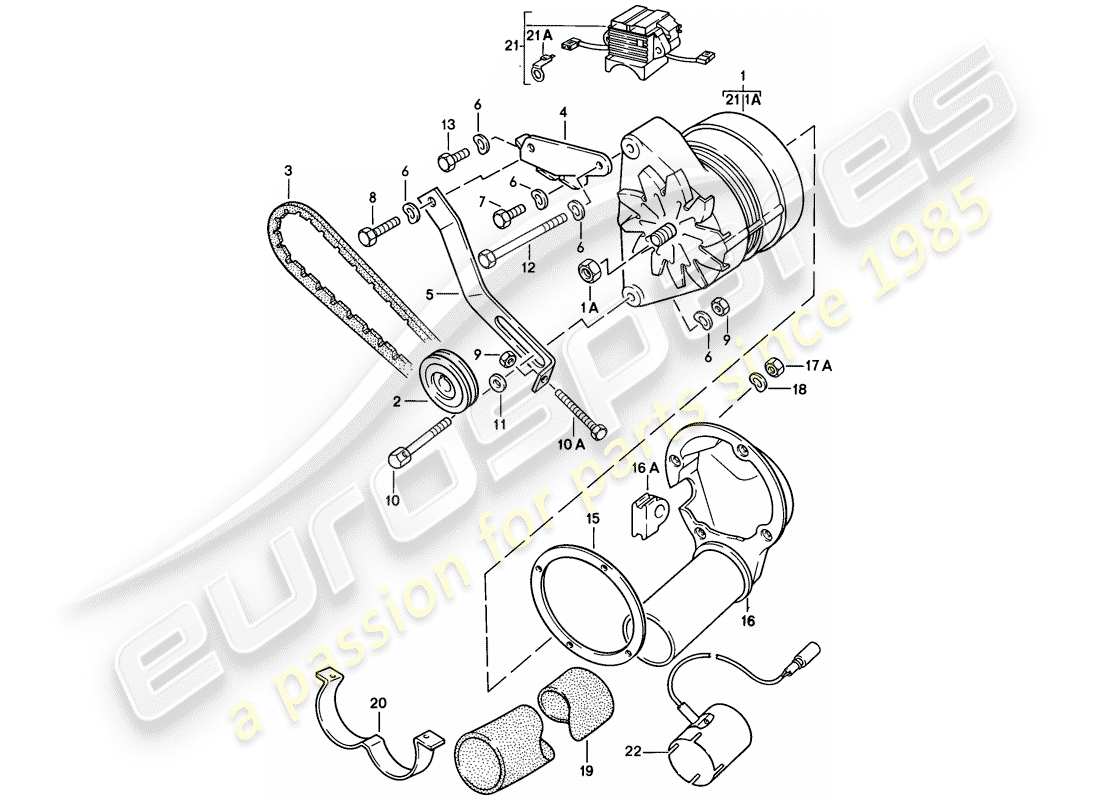

Porsche 1984 (928) ALTERNATOR Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Key
                                        Price
                                        # 1
                                        MPN: 92860311401
                                        ALTERNATOR
                                        -84
                                        from £1,066.34
                                        from £1,066.34
                                        ALTERNATOR - D - MJ 1982>> - MJ 1982 Genuine Porsche Part - New (to order)
                                        # 1
                                        MPN: 928603114AX
                                        Alternator - Discontinued part
                                        -84
                                        ALTERNATOR Genuine Porsche Part - New (to order)
                                        # 1
                                        MPN: 928603114BX
                                        ALTERNATOR
                                        82-
                                        from £986.41
                                        from £986.41
                                        ALTERNATOR Genuine Porsche Part - New (to order)
                                        # 1
                                        MPN: 92860390400
                                        1 SET OF SECURING PARTS - 1 SET - D >> - MJ 1983
                                        from £14.17
                                        from £14.17
                                        1 set of securing parts - pulley - Alternator - comprising: - hex. nut - SW 24 - Washer - thrust washer - woodruff key Genuine Porsche Part - New (to order)
                                        # 2
                                        MPN: 92860314502
                                        pulley - D >> - MJ 1983
                                        pulley - D - MJ 1982>> - MJ 1982 Genuine Porsche Part - New (to order)
                                        # 2
                                        MPN: 92860314503
                                        PULLEY
                                        84
                                        from £32.25
                                        from £32.25
                                        PULLEY Genuine Porsche Part - New (to order)
                                        # 3
                                        MPN: 99919221450
                                        V-RIBBED BELT - K4 858 - ONLY IN COMBINATION WITH: - PULLEY - 928 603 145 02 - D >> - MJ 1983
                                        from £23.90
                                        from £23.90
                                        v-ribbed belt - K4 858 - D - MJ 1982>> - MJ 1982 Genuine Porsche Part - New (to order)
                                        # 3
                                        MPN: 99919225950
                                        V-RIBBED BELT - K5 886 - ONLY IN COMBINATION WITH: - PULLEY - 928 603 145 03 - DISCONTINUED PART
                                        84
                                        V-RIBBED BELT - K5 886 - ONLY IN COMBINATION WITH: - PULLEY - 928 603 145 03 - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                        # 3
                                        MPN: 99919225050
                                        V-RIBBED BELT - K5 886 - ONLY IN COMBINATION WITH: - PULLEY - 928 603 145 03
                                        84-
                                        from £14.67
                                        from £14.67
                                        V-RIBBED BELT - K5 886 - ONLY IN COMBINATION WITH: - PULLEY - 928 603 145 03 Genuine Porsche Part - New (to order)
                                        # 4
                                        MPN: 92810104103
                                        BRACKET
                                        from £47.49
                                        from £47.49
                                        BRACKET - ALTERNATOR - D >>- MJ 1978 - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                        # 5
                                        MPN: 92810140207
                                        TENSION SHACKLE
                                        from £16.40
                                        from £16.40
                                        TENSION SHACKLE - FOR - ALTERNATOR Genuine Porsche Part - New (to order)
                                        # 6
                                        MPN: 90002500702
                                        Washer - Discontinued part
                                        Washer - M 8,4 - Discontinued part Genuine Porsche Part - New (to order)
                                        # 6
                                        MPN: 90002500703
                                        WASHER
                                        from £0.84
                                        from £0.84
                                        Washer - M 8,4 Genuine Porsche Part - New In stock
                                        # 7
                                        MPN: 90007508502
                                        SCREW, HEX. HD. - M 8 X 20
                                        Supersession
                                        Supersession
                                        Genuine Porsche Part (no longer available to order)
                                        # 8
                                        MPN: 90007502909
                                        SCREW, HEX. HD. - M 8 X 25 - DISCONTINUED PART
                                        SCREW, HEX. HD. - M 8 X 25 - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                        # 8
                                        MPN: 90007502903
                                        SCREW, HEX. HD. - M 8 X 25
                                        from £1.61
                                        from £1.61
                                        SCREW, HEX. HD. - M 8 X 25 Genuine Porsche Part - New (to order)
                                        # 9
                                        MPN: 90007602502
                                        HEX. NUT - M 8 - DISCONTINUED PART
                                        Supersession
                                        Supersession
                                        Genuine Porsche Part (no longer available to order)
                                        # 9
                                        MPN: 90007606402
                                        hex. nut - M 8
                                        from £0.59
                                        from £0.59
                                        hex. nut - SW 13 M 8 Genuine Porsche Part - New In stock
                                        # 10
                                        MPN: 92810140300
                                        SCREW, HEX. HD. - M 8 X 75
                                        from £16.01
                                        from £16.01
                                        SCREW, HEX. HD. - M 8 X 75 Genuine Porsche Part - New (to order)
                                        # 10
                                        MPN: N 0102741
                                        SCREW, HEX. HD.
                                        SCREW, HEX. HD Genuine Porsche Part - New (to order)
                                        # 11
                                        MPN: 90022300102
                                        WASHER - - 8,4 -
                                        from £1.38
                                        from £1.38
                                        Washer - A 8,4 Genuine Porsche Part - New (to order)
                                        # 12
                                        MPN: 90007405002
                                        SCREW, HEX. HD. - M 8 X 120
                                        from £6.85
                                        from £6.85
                                        SCREW, HEX. HD. - M 8 X 120 Genuine Porsche Part - New (to order)
                                        # 17
                                        MPN: N 01100514
                                        HEX. NUT - M 5 - DISCONTINUED PART
                                        hex. nut - M 5 - See technical information - GR. X NR. 15 - Discontinued part Genuine Porsche Part - New (to order)
                                        # 17
                                        MPN: 90007609101
                                        hex. nut - M 5
                                        from £1.00
                                        from £1.00
                                        hex. nut - M 5 - See technical information - GR. X NR. 15 Genuine Porsche Part - New In stock
                                        # 18
                                        MPN: 90002500302
                                        WASHER
                                        Washer - M 5 Genuine Porsche Part - New (to order)
                                        # 19
                                        MPN: 92860314301
                                        FLEXIBLE HOSE - 320 MM
                                        from £24.35
                                        from £24.35
                                        FLEXIBLE HOSE - 320 MM Genuine Porsche Part - New (to order)
                                        # 19
                                        MPN: 92860314304
                                        FLEXIBLE HOSE - 900 MM
                                        from £78.05
                                        from £78.05
                                        FLEXIBLE HOSE - 900 MM Genuine Porsche Part - New (to order)
                                        # -
                                        -
                                        PROTECTIVE EDGING
                                        # -
                                        -
                                        HOSE CLAMP - DISCONTINUED PART
                                        # -
                                        -
                                        HOSE CLAMP
                                        This part replaces part number 99951234902
                                        # -
                                        -
                                        HOSE CLAMP
                                        # -
                                        -
                                        TIE WRAP
                                        # 20
                                        MPN: 92860313900
                                        RETAINER
                                        from £15.24
                                        from £15.24
                                        RETAINER Genuine Porsche Part - New (to order)
                                        # 21
                                        MPN: 91160391301
                                        ELECTRONIC GOVERNOR
                                        from £62.88
                                        from £62.88
                                        ELECTRONIC GOVERNOR - D - MJ 1982>>- MJ 1982 Genuine Porsche Part - New (to order)
                                        # 21
                                        MPN: 91160391100
                                        MALE BLADE TERMINAL - ONLY IN COMBINATION WITH: - 928 603 913 01 - 928 603 114 00
                                        from £0.61
                                        from £0.61
                                        MALE BLADE TERMINAL - 6,3 Genuine Porsche Part - New (to order)
                                        # 22
                                        MPN: 92865902101
                                        OUTER SENSOR - AUTOMATIC AIR CONDITIONER
                                        Outer sensor - for - Automatic air conditioner Genuine Porsche Part - New (to order)
                                        # -
                                        -
                                        DIODE PLATE - FOR - 928 603 114 00 - 928 603 114 01
