4.gear (A2801,A2802, A2803,A2804, A2805,A2806, A2807,A2808, A2809,A2811)
porsche 1985 (928) automatic transmission - clutch - k 2 parts diagram

308-040 - AUTOMATIC TRANSMISSION - CLUTCH - K 2

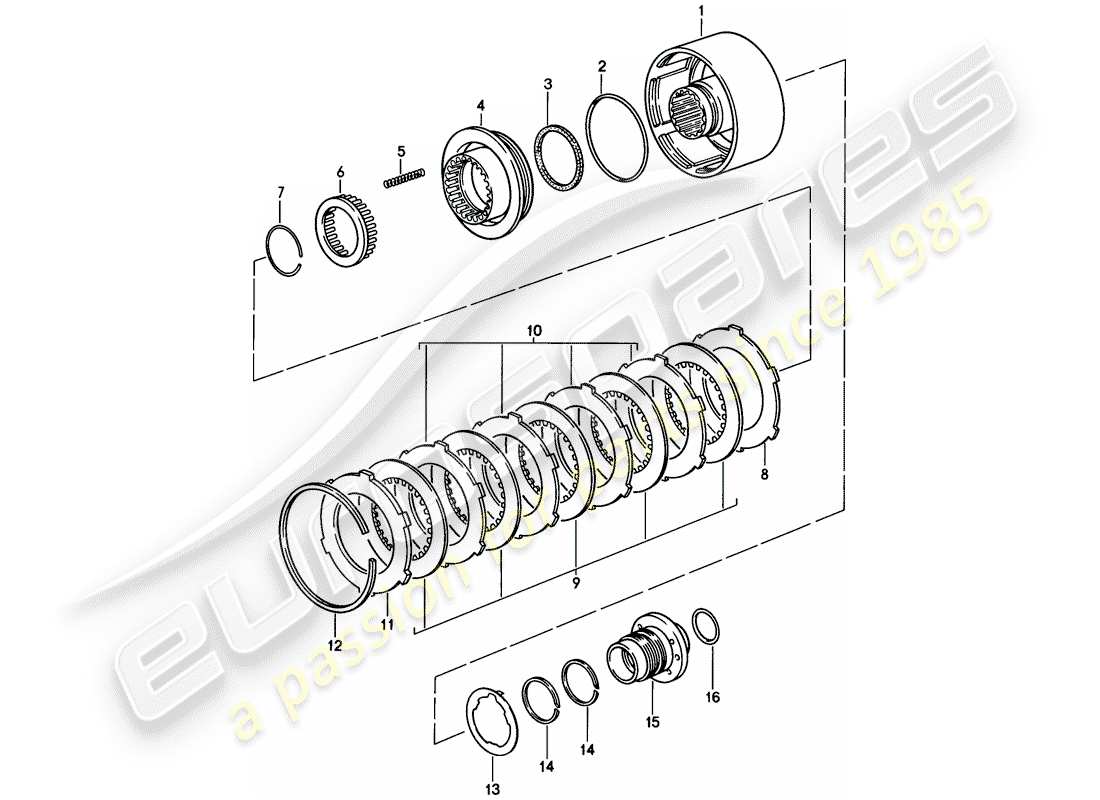

Porsche 1985 (928) AUTOMATIC TRANSMISSION - CLUTCH - K 2 Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Key
                                  Price
                                  # 2
                                  MPN: 1262720255
                                  SEAL RING
                                  from £5.22
                                  from £5.22
                                  SEAL RING Genuine Porsche Part - New (to order)
                                  # 3
                                  MPN: 1262720392
                                  CUP
                                  from £4.48
                                  from £4.48
                                  CUP Genuine Porsche Part - New (to order)
                                  # 4
                                  MPN: 1262721231
                                  PISTON
                                  PISTON Genuine Porsche Part - New (to order)
                                  # 5
                                  MPN: 1269930703
                                  SPRING
                                  from £1.03
                                  from £1.03
                                  SPRING Genuine Porsche Part - New (to order)
                                  # 6
                                  MPN: 1262720264
                                  SPRING SEAT
                                  from £2.90
                                  from £2.90
                                  SPRING SEAT Genuine Porsche Part - New (to order)
                                  # 7
                                  MPN: 1269940635
                                  CIRCLIP
                                  from £1.66
                                  from £1.66
                                  CIRCLIP Genuine Porsche Part - New (to order)
                                  # 8
                                  MPN: 1262724726
                                  external disc - 2,0 MM
                                  external disc - 2,0 MM Genuine Porsche Part - New (to order)
                                  # 9
                                  MPN: 1262720725
                                  driving disc - 2,14 MM
                                  from £24.53
                                  from £24.53
                                  driving disc - 2,14 MM Genuine Porsche Part - New (to order)
                                  # 10
                                  MPN: 1262723626
                                  external disc - 3,0 MM
                                  from £62.27
                                  from £62.27
                                  external disc - 3,0 MM Genuine Porsche Part - New (to order)
                                  # 10
                                  MPN: 1262724826
                                  external disc - 3,5 MM
                                  from £78.20
                                  from £78.20
                                  external disc - 3,5 MM Genuine Porsche Part - New (to order)
                                  # 11
                                  MPN: 1262723426
                                  external disc - 4,5 MM
                                  from £152.67
                                  from £152.67
                                  external disc - 4,5 MM Genuine Porsche Part - New (to order)
                                  # 12
                                  MPN: 1262720273
                                  LOCK RING - 2,0 MM
                                  from £4.30
                                  from £4.30
                                  LOCK RING - 2,0 MM Genuine Porsche Part - New (to order)
                                  # 12
                                  MPN: 1269940334
                                  LOCK RING - 2,5 MM
                                  from £3.14
                                  from £3.14
                                  LOCK RING - 2,5 MM Genuine Porsche Part - New (to order)
                                  # 12
                                  MPN: 1269940434
                                  LOCK RING - 3,0 MM
                                  from £2.18
                                  from £2.18
                                  LOCK RING - 3,0 MM Genuine Porsche Part - New (to order)
                                  # 13
                                  MPN: 1262722262
                                  THRUST WASHER
                                  from £27.76
                                  from £27.76
                                  THRUST WASHER Genuine Porsche Part - New (to order)
                                  # 14
                                  MPN: 1262720955
                                  SEAL RING
                                  SEAL RING Genuine Porsche Part - New (to order)
                                  # 15
                                  MPN: 7222720145
                                  FLANGE
                                  from £160.98
                                  from £160.98
                                  FLANGE Genuine Porsche Part - New (to order)
                                  # 16
                                  MPN: 0069977548
                                  SEAL RING
                                  from £1.62
                                  from £1.62
                                  SEAL RING Genuine Porsche Part - New (to order)
