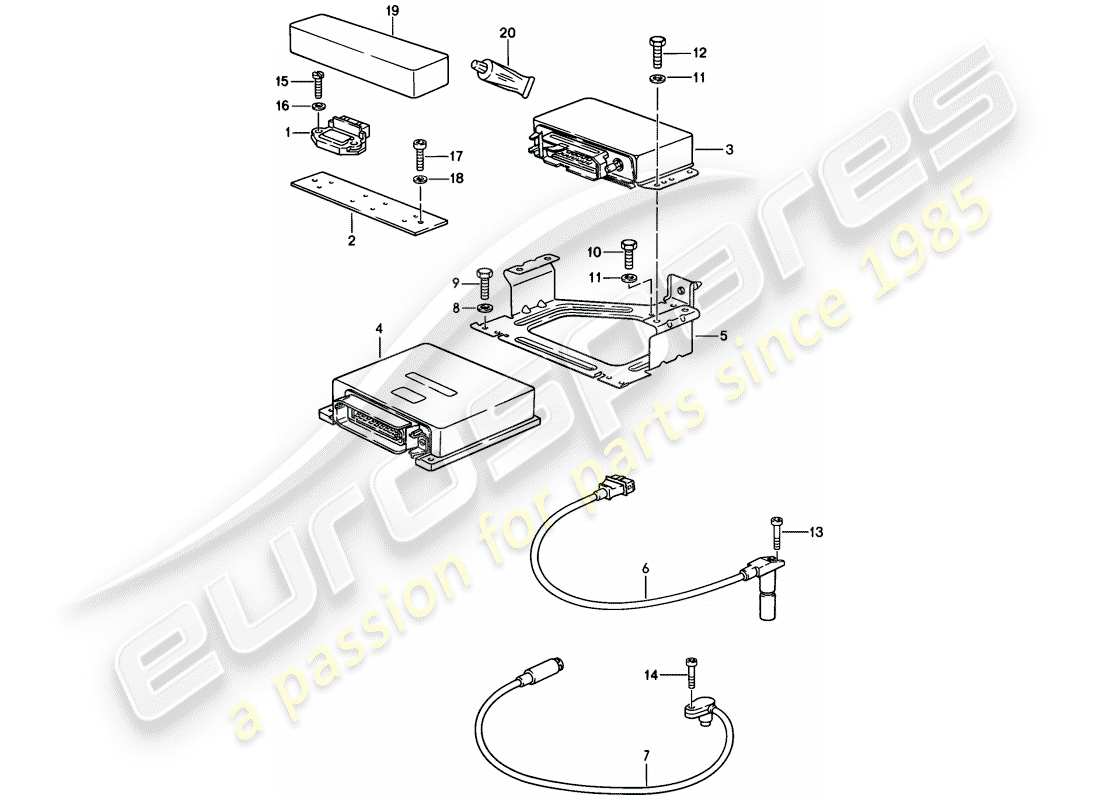

901-003 - ENGINE ELECTRICS - LH-JETRONIC
Porsche 1986 (928) ENGINE ELECTRICS - LH-JETRONIC Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 92860270601
Ignition switch unit
from £157.79
from £157.79
# 2
MPN: 92860271600
HEAT DISSIPATOR
from £26.68
from £26.68
# 3
MPN: 92861812403
IGNITION CONTROL UNIT
(2821,2822)
# 3
MPN: 92861812404
IGNITION CONTROL UNIT
(2821,2822)
# 3
MPN: 928618124DX
IGNITION CONTROL UNIT
(2821,2822+ PR:154)
from £937.12
from £937.12
# 3
MPN: 92861812405
Ignition control unit - D - MJ 1985>>
(2843,2844)
from £1,219.20
from £1,219.20
# 3
MPN: 92861812406
Ignition control unit - D - MJ 1986>> - MJ 1986
(2845,2846)
# 3
MPN: 928618124EX
Ignition control unit - D - MJ 1986>> - MJ 1986
(2845,2846)
# 4
MPN: 92861812302
ELECTRONIC CONTROL MODULE - DISCONTINUED PART
(2821,2822)
from £2,618.22
from £2,618.22
# 4
MPN: 928618123BX
ELECTRONIC CONTROL MODULE - LH-JETRONIC
(2821,2822)
from £2,094.58
from £2,094.58
# 4
MPN: 92861812304
electronic control module - D - MJ 1985>> - MJ 1985
(2843,2844)
from £2,618.22
from £2,618.22
# 4
MPN: 928618123DX
electronic control module - Lh-jetronic - D - MJ 1985>> - MJ 1985
( 2843,2844, 2845,2846)
from £2,094.58
from £2,094.58
# 5
MPN: 92861801000
BRACKET
from £10.77
from £10.77
# 6
MPN: 94460611500
IMPULSE SENDER
from £214.33
from £214.33
# 7
MPN: 91160610800
RELAY - TDC MARKER
# 8
MPN: N 0115247
WASHER - A 6,6 - DISCONTINUED PART
# 8
MPN: N 01152427
Washer - A 6,6
from £0.47
from £0.47
# 9
MPN: N 01021013
SCREW, HEX. HD. - M 6 X 10
from £1.06
from £1.06
# 10
MPN: 90007514502
SCREW, HEX. HD. - M 5 X 15
from £0.89
from £0.89
# 11
MPN: 90002500302
Washer - A 5,3
# 12
MPN: N 0102056
SCREW, HEX. HD. - M 5 X 10 - DISCONTINUED PART
# 12
MPN: 90007510502
SCREW - M 5 X 10
from £0.73
from £0.73
# 13
MPN: 99921800502
SCREW, CHEESE HD. - M 6 X 16 - DISCONTINUED PART
# 13
MPN: 99921800501
SCREW, CHEESE HD. - M 6 X 16
from £1.51
from £1.51
# 14
MPN: 90006708902
SCREW, CHEESE HD. - M 6 X 25 - DISCONTINUED PART
# 14
MPN: 90006708901
SCREW, CHEESE HD. - M 6 X 25
from £1.18
from £1.18
# 15
MPN: 90007526002
SCREW, HEX. HD. - M 6 X 15
from £2.01
from £2.01
# 16
MPN: N 0115247
WASHER - A 6,4 - DISCONTINUED PART
# 16
MPN: N 01152427
Washer - A 6,4
from £0.47
from £0.47
# 17
MPN: 90007526002
SCREW, HEX. HD. - M 6 X 15
from £2.01
from £2.01
# 18
MPN: N 0115247
WASHER - A 6,4 - DISCONTINUED PART
# 18
MPN: N 01152427
Washer - A 6,4
from £0.47
from £0.47
# 19
MPN: 92860270700
COVER
from £5.98
from £5.98
# 20
MPN: 99991503100
SEALANT - CURIL K 2 - 1 100-GRAMME TUBE
# -
-
fasteners
# -
-
RELAY - TDC MARKER
# -
-
WASHER - A 6,4 - DISCONTINUED PART
# -
-
Washer - A 6,4
# -
-
HEX. NUT - M 6 X 12 - DISCONTINUED PART
# -
-
SCREW, HEX. HD. - M 6 X 12
# -
-
CLAMP - 17 X 15
# -
-
SENSOR - IGNITION POINT
# -
-
CABLE CLIP
# -
-
TIE WRAP
