porsche 1987 (928) air injection - for vehicles with - catalyst parts diagram

108-000 - AIR INJECTION - FOR VEHICLES WITH - CATALYST

Porsche 1987 (928) AIR INJECTION - FOR VEHICLES WITH - CATALYST Parts Diagram

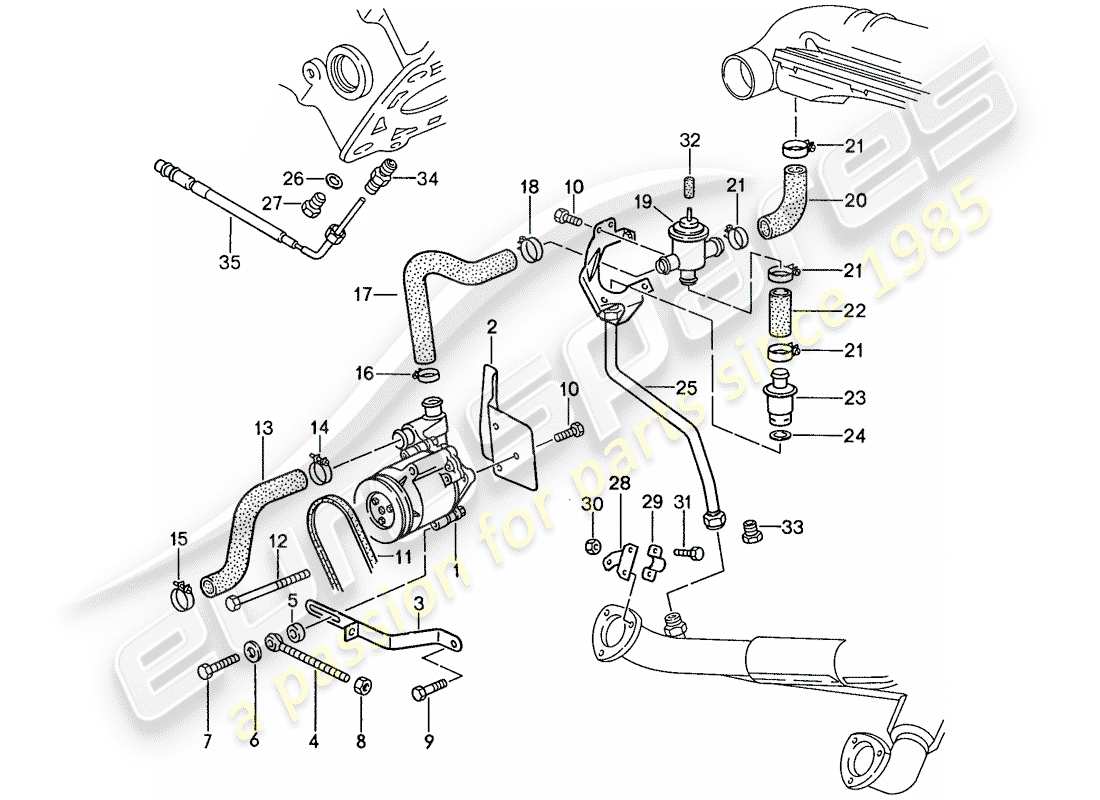

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                    #
                                                                    Part number
                                                                    Description
                                                                    Key
                                                                    Price
                                                                    # 1
                                                                    MPN: 92811301700
                                                                    AIR PUMP
                                                                    AIR PUMP Genuine Porsche Part - New (to order)
                                                                    # 2
                                                                    MPN: 92811312505
                                                                    COVER PLATE
                                                                    from £17.33
                                                                    from £17.33
                                                                    COVER PLATE Genuine Porsche Part - New (to order)
                                                                    # 3
                                                                    MPN: 92811311310
                                                                    cross support
                                                                    from £21.37
                                                                    from £21.37
                                                                    cross support - for - air pump - D - MJ 1980>> Genuine Porsche Part - New (to order)
                                                                    # 4
                                                                    MPN: 99946000202
                                                                    EYE BOLT
                                                                    from £9.62
                                                                    from £9.62
                                                                    eye bolt - AM 8 X 90 X 75 - D - MJ 1980>> Genuine Porsche Part - New (to order)
                                                                    # 5
                                                                    MPN: 99902507502
                                                                    WASHER - 8,5 X 19 X 6
                                                                    from £6.85
                                                                    from £6.85
                                                                    WASHER - 8,5 X 20 X 6 Genuine Porsche Part - New (to order)
                                                                    # 6
                                                                    MPN: 90002500702
                                                                    WASHER - A 8,4 - DISCONTINUED PART
                                                                    Washer - M 8,4 - Discontinued part Genuine Porsche Part - New (to order)
                                                                    # 6
                                                                    MPN: 90002500703
                                                                    Washer - A 8,4
                                                                    from £0.84
                                                                    from £0.84
                                                                    Washer - M 8,4 Genuine Porsche Part - New In stock
                                                                    # 7
                                                                    MPN: N 0103406
                                                                    SCREW, HEX. HD. - M 8 X 40
                                                                    Supersession
                                                                    Supersession
                                                                    Genuine Porsche Part (no longer available to order)
                                                                    # 8
                                                                    MPN: 90007602502
                                                                    HEX. NUT - M 8 - DISCONTINUED PART
                                                                    Supersession
                                                                    Supersession
                                                                    Genuine Porsche Part (no longer available to order)
                                                                    # 8
                                                                    MPN: 90007606402
                                                                    hex. nut - M 8
                                                                    from £0.59
                                                                    from £0.59
                                                                    hex. nut - SW 13 M 8 Genuine Porsche Part - New In stock
                                                                    # 9
                                                                    MPN: 90007507902
                                                                    SCREW, HEX. HD. - M 8 X 22
                                                                    Supersession
                                                                    Supersession
                                                                    Genuine Porsche Part (no longer available to order)
                                                                    # 10
                                                                    MPN: 90007535702
                                                                    BOLT WITH WASHER - M 6 X 12 - DISCONTINUED PART
                                                                    BOLT WITH WASHER - M 6 X 16 - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                                    # 10
                                                                    MPN: 90007545601
                                                                    BOLT WITH WASHER - M 6 X 12
                                                                    from £2.50
                                                                    from £2.50
                                                                    BOLT WITH WASHER - M 6 X 16 Genuine Porsche Part - New (to order)
                                                                    # 11
                                                                    MPN: 99919230650
                                                                    Narrow v-belt - 12,5 X 925
                                                                    from £10.12
                                                                    from £10.12
                                                                    Narrow v-belt - 12,5 X 925 Genuine Porsche Part - New (to order)
                                                                    # 12
                                                                    MPN: 90007404902
                                                                    SCREW - M 8 X 110
                                                                    from £2.48
                                                                    from £2.48
                                                                    SCREW - M 8 X 110 Genuine Porsche Part - New (to order)
                                                                    # 13
                                                                    MPN: 92811315502
                                                                    MOLDED HOSE
                                                                    MOLDED HOSE Genuine Porsche Part - New (to order)
                                                                    # 15
                                                                    MPN: 99951235802
                                                                    HOSE CLAMP
                                                                    from £2.41
                                                                    from £2.41
                                                                    Hose Clamp - S34/9ZY Genuine Porsche Part - New (to order)
                                                                    # 16
                                                                    MPN: 99951203802
                                                                    HOSE CLAMP
                                                                    from £7.40
                                                                    from £7.40
                                                                    Hose Clamp - SGT. 28/9 Genuine Porsche Part - New (to order)
                                                                    # 16
                                                                    MPN: PCG51203802
                                                                    HOSE CLAMP - DISCONTINUED PART
                                                                    Hose Clamp - SGT. 28/9 - Discontinued part Genuine Porsche Part - New (to order)
                                                                    # 17
                                                                    MPN: 92811313910
                                                                    MOLDED HOSE
                                                                    from £35.94
                                                                    from £35.94
                                                                    MOLDED HOSE Genuine Porsche Part - New (to order)
                                                                    # 18
                                                                    MPN: 99951255200
                                                                    HOSE CLAMP - DISCONTINUED PART
                                                                    Supersession
                                                                    Supersession
                                                                    Genuine Porsche Part (no longer available to order)
                                                                    # 18
                                                                    MPN: 99951255201
                                                                    HOSE CLAMP
                                                                    from £2.29
                                                                    from £2.29
                                                                    This part replaces part number 99951250702 - and 1 more. Click to view details
                                                                    Hose Clamp - S25/9ZY Genuine Porsche Part - New (to order)
                                                                    # 19
                                                                    MPN: 93011314701
                                                                    DIVERTER VALVE
                                                                    from £270.95
                                                                    from £270.95
                                                                    Diverter valve - D - MJ 1979>> - MJ 1980 - Discontinued part Genuine Porsche Part - New (to order)
                                                                    # 20
                                                                    MPN: 92811315903
                                                                    MOLDED HOSE
                                                                    from £39.10
                                                                    from £39.10
                                                                    MOLDED HOSE Genuine Porsche Part - New (to order)
                                                                    # 22
                                                                    MPN: 92811314007
                                                                    MOLDED HOSE
                                                                    from £32.39
                                                                    from £32.39
                                                                    MOLDED HOSE Genuine Porsche Part - New (to order)
                                                                    # 23
                                                                    MPN: 91111311501
                                                                    CHECK VALVE
                                                                    from £32.53
                                                                    from £32.53
                                                                    check valve - D >> - MJ 1981 - Discontinued part Genuine Porsche Part - New (to order)
                                                                    # 24
                                                                    MPN: 90012306030
                                                                    SEAL RING - A 24 X 29
                                                                    from £6.80
                                                                    from £6.80
                                                                    seal ring - A 24 X 29 AL Genuine Porsche Part - New (to order)
                                                                    # 25
                                                                    MPN: 92811314604
                                                                    PIPE ASSEMBLY
                                                                    PIPE ASSEMBLY Genuine Porsche Part - New (to order)
                                                                    # 26
                                                                    MPN: 90012304330
                                                                    SEAL RING - A 12 X 15,5
                                                                    from £1.12
                                                                    from £1.12
                                                                    seal ring - D >> - MJ 1979 - Discontinued part Genuine Porsche Part - New (to order)
                                                                    # 27
                                                                    MPN: 90012400802
                                                                    THREADED PLUG - M 12 X 1,5
                                                                    from £5.00
                                                                    from £5.00
                                                                    threaded plug - M12 X 1,5 - also use: Genuine Porsche Part - New (to order)
                                                                    # 28
                                                                    MPN: 92811321502
                                                                    BRACKET
                                                                    from £17.94
                                                                    from £17.94
                                                                    BRACKET Genuine Porsche Part - New (to order)
                                                                    # 29
                                                                    MPN: 99951232902
                                                                    CLAMP
                                                                    from £1.52
                                                                    from £1.52
                                                                    CLAMP Genuine Porsche Part - New (to order)
                                                                    # 30
                                                                    MPN: N 01100514
                                                                    HEX. NUT - M 5 - DISCONTINUED PART
                                                                    hex. nut - M 5 - See technical information - GR. X NR. 15 - Discontinued part Genuine Porsche Part - New (to order)
                                                                    # 30
                                                                    MPN: 90007609101
                                                                    hex. nut - M 5
                                                                    from £1.00
                                                                    from £1.00
                                                                    hex. nut - M 5 - See technical information - GR. X NR. 15 Genuine Porsche Part - New In stock
                                                                    # 31
                                                                    MPN: N 0102056
                                                                    SCREW, HEX. HD. - M 5 X 10 - DISCONTINUED PART
                                                                    screw, hex. hd. - M 5X10 DIN 933-8.8 VERZ. - Discontinued part Genuine Porsche Part - New (to order)
                                                                    # 31
                                                                    MPN: 90007510502
                                                                    SCREW - M 5 X 10
                                                                    from £0.73
                                                                    from £0.73
                                                                    SCREW - M 5X10 DIN 933-8.8 VERZ Genuine Porsche Part - New (to order)
                                                                    # 32
                                                                    MPN: 91111029700
                                                                    SEALING CAP
                                                                    (PR:900)
                                                                    from £11.29
                                                                    from £11.29
                                                                    Sealing cap - vacuum unit Genuine Porsche Part - New (to order)
                                                                    # 33
                                                                    MPN: 92811321600
                                                                    THREADED PLUG
                                                                    (PR:900)
                                                                    from £64.58
                                                                    from £64.58
                                                                    THREADED PLUG Genuine Porsche Part - New (to order)
                                                                    # 34
                                                                    MPN: 92860625500
                                                                    adapter - D - MJ 1989>>
                                                                    from £2.54
                                                                    from £2.54
                                                                    adapter - D - MJ 1989>> Genuine Porsche Part - New (to order)
                                                                    # 35
                                                                    MPN: 92860615502
                                                                    temperature sensor - Cylinlder 4 - and - Cylinder 8 - D - MJ 1989>> - MJ 1990
                                                                    from £363.13
                                                                    from £363.13
                                                                    TEMPERATURE SENSOR - CYLINLDER 4 - AND - CYLINDER 8 - D - MJ 1989>>- MJ 1990 Genuine Porsche Part - New (to order)
                                                                    # 35
                                                                    MPN: 92860615502
                                                                    TEMPERATURE SENSOR - CYLINDER 3 - AND - CYLINDER 7 - D - MJ 1991>>
                                                                    from £363.13
                                                                    from £363.13
                                                                    TEMPERATURE SENSOR - CYLINLDER 4 - AND - CYLINDER 8 - D - MJ 1989>>- MJ 1990 Genuine Porsche Part - New (to order)
