porsche 1987 (928) central locking system - d - mj 1989>> parts diagram

804-011 - CENTRAL LOCKING SYSTEM - D - MJ 1989>>

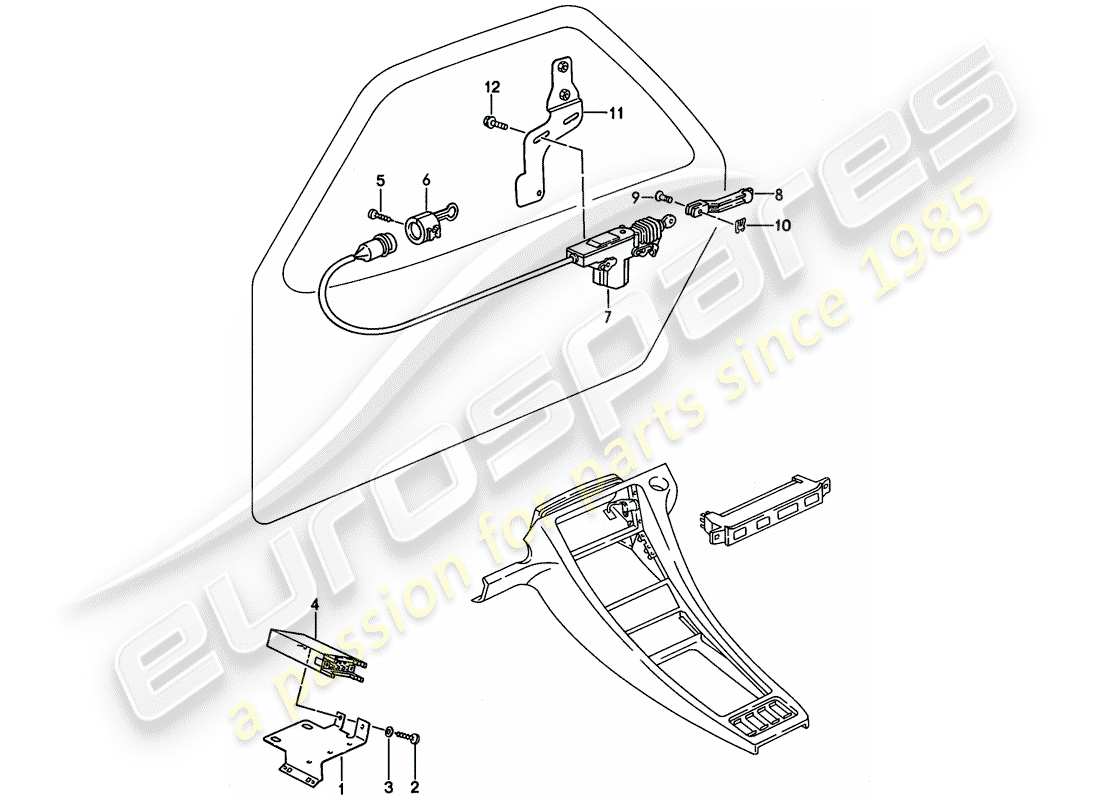

Porsche 1987 (928) CENTRAL LOCKING SYSTEM - D - MJ 1989>> Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # 1
                        MPN: 92861841601
                        plate - D - MJ 1989>> - MJ 1989
                        from £2.57
                        from £2.57
                        plate - D - MJ 1990>> - MJ 1990 Genuine Porsche Part - New (to order)
                        # 1
                        MPN: 92861841601
                        plate - D - MJ 1990>> - MJ 1990
                        from £2.57
                        from £2.57
                        plate - D - MJ 1990>> - MJ 1990 Genuine Porsche Part - New (to order)
                        # 2
                        MPN: N 0139575
                        TAPPING SCREW, FILL. HD. - BZ 3,5 X 9,5 - D >> - MJ 1990
                        Supersession
                        Supersession
                        Genuine Porsche Part (no longer available to order)
                        # 3
                        MPN: N 0115213
                        Washer - A 3,7 - D >> - MJ 1990
                        from £1.64
                        from £1.64
                        Washer - M 4 Genuine Porsche Part - New (to order)
                        # 4
                        MPN: 91161811301
                        ELECTRONIC CONTROL UNIT FOR - CENTRAL LOCKING SYSTEM - D >> - MJ 1990 - DISCONTINUED PART
                        electronic control unit for - central locking system - Discontinued part Genuine Porsche Part - New (to order)
                        # 4
                        MPN: 91161811302
                        ELECTRONIC CONTROL UNIT FOR - CENTRAL LOCKING SYSTEM
                        from £444.75
                        from £444.75
                        electronic control unit for - central locking system - D - MJ 1989>> Genuine Porsche Part - New (to order)
                        # 5
                        MPN: 90014310402
                        TAPPING SCREW, FILL. HD. - BZ 3,5 X 9,5
                        from £0.60
                        from £0.60
                        TAPPING SCREW, FILL. HD. - BZ 3,5 X 9,5 Genuine Porsche Part - New (to order)
                        # 6
                        MPN: 94461245001
                        BRACKET
                        from £9.63
                        from £9.63
                        BRACKET - D >>- MJ 1990 Genuine Porsche Part - New (to order)
                        # 7
                        MPN: 92862421100
                        Transmission element - for vehicles up to - MOD.90 - also use:
                        ---928 612 930 00
                        Supersession
                        Supersession
                        Genuine Porsche Part (no longer available to order)
                        # -
                        -
                        ADAPTER - FOR VEHICLES UP TO - MOD.90
                        # 8
                        MPN: 92853757100
                        OPERATING ROD
                        from £2.65
                        from £2.65
                        OPERATING ROD Genuine Porsche Part - New (to order)
                        # 9
                        MPN: N 10043801
                        PIN
                        Supersession
                        Supersession
                        Genuine Porsche Part (no longer available to order)
                        # 10
                        MPN: N 0126441
                        FUSE
                        from £1.10
                        from £1.10
                        FUSE Genuine Porsche Part - New (to order)
                        # 11
                        MPN: 92853711303
                        BRACKET
                        LEFT
                        from £2.41
                        from £2.41
                        BRACKET Genuine Porsche Part - New (to order)
                        # 11
                        MPN: 92853711403
                        BRACKET
                        RIGHT
                        BRACKET Genuine Porsche Part - New (to order)
                        # 12
                        MPN: 99991903502
                        SCREW, HEX. HD.
                        from £0.88
                        from £0.88
                        screw, hex. hd. - with: - Washer Genuine Porsche Part - New (to order)
