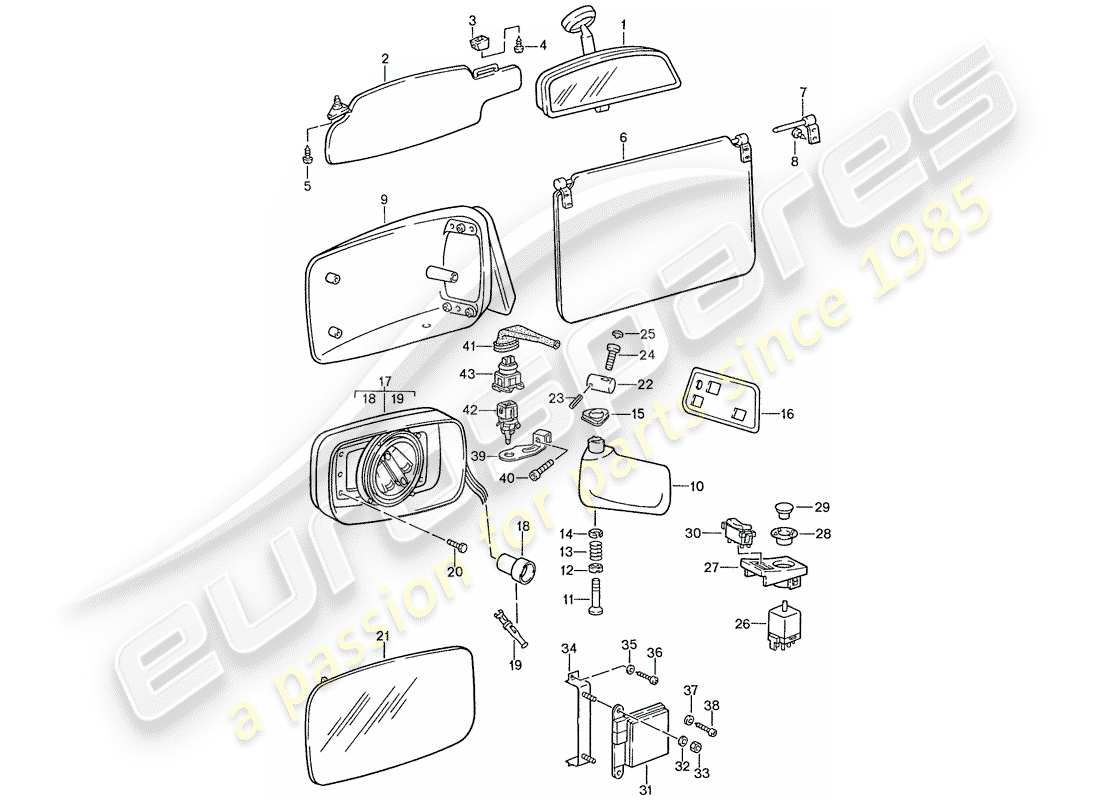

809-010 - SUN VIZOR - REAR VIEW MIRROR INNER - REAR VIEW MIRROR
Porsche 1987 (928) SUN VIZOR - REAR VIEW MIRROR INNER - REAR VIEW MIRROR Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 477857511A
rear view mirror inner
# 2
MPN: 92873103111
SUN VIZOR - WITH MIRROR - LEATHERETTE
LEFT
# 2
MPN: 92873103211
SUN VIZOR - WITH MIRROR - LEATHERETTE
RIGHT
# 2
MPN: 92873103112
SUN VIZOR WITH MIRROR - - LEATHERETTE
left (\\S..\\,\\AUS\\)
# 2
MPN: 92873103212
SUN VIZOR WITH MIRROR - - LEATHERETTE
right (\\S..\\,\\AUS\\)
# 2
MPN: 92873105350
SUN VIZOR WITH MIRROR - LEATHER - D >> - MJ 1990
LEFT
# 2
MPN: 92873105450
SUN VIZOR WITH MIRROR - LEATHER - D >> - MJ 1990
RIGHT
# 2
MPN: 92873105350
sun vizor with mirror - Leather - D - MJ 1991>>
LEFT
# 2
MPN: 92873105450
sun vizor with mirror - Leather - D - MJ 1991>>
RIGHT
# 2
MPN: 92873105351
SUN VIZOR WITH MIRROR - - LEATHER - D >> - MJ 1990
left (\\S..\\,\\AUS\\)
# 2
MPN: 92873105451
SUN VIZOR WITH MIRROR - - LEATHER - D >> - MJ 1990
right (\\S..\\,\\AUS\\)
# 2
MPN: 92873105351
SUN VIZOR WITH MIRROR - - LEATHER - D - MJ 1991>>
left (\\S..\\,\\AUS\\)
# 2
MPN: 92873105451
SUN VIZOR WITH MIRROR - - LEATHER - D - MJ 1991>>
right (\\S..\\,\\AUS\\)
# 3
MPN: 91173133100
SUPPORT
Supersession
Supersession
# 3
MPN: 91173133100
SUPPORT
(PR:650)
Supersession
Supersession
# 4
MPN: 90014303407
tapping screw, fill. hd. - 3,9 X 19
from £1.12
from £1.12
# 5
MPN: 90014501607
TAPPING SCREW - 4,2 X 19
from £1.06
from £1.06
# 6
MPN: 92873103504
sun vizor - Leatherette - D >> - MJ 1991
rear
# 6
MPN: 92873103552
SUN VIZOR - LEATHER - D >> - MJ 1990
rear
# 6
MPN: 92873103552
sun vizor - Leather - D - MJ 1991>>
rear
# 7
MPN: 92873104302
BRACKET
LEFT
# 7
MPN: 92873104402
BRACKET
RIGHT
# 8
MPN: 90014501607
tapping screw - 4,2 X 19 - D - MJ 1990>>
from £1.06
from £1.06
# 9
MPN: 91173104303
MIRROR HOUSING
LEFT
from £196.41
from £196.41
# 9
MPN: 91173104403
MIRROR HOUSING
RIGHT
from £196.41
from £196.41
# 9
MPN: 94473102101
MIRROR HOUSING
LEFT
# 10
MPN: 92873114106
MIRROR BASE
LEFT LHD
from £46.09
from £46.09
# 10
MPN: 92873114308
MIRROR BASE
RIGHT LHD
from £46.09
from £46.09
# 10
MPN: 92773114106
MIRROR BASE
RIGHT RHD
from £46.09
from £46.09
# 10
MPN: 92773114308
MIRROR BASE
left rhd
from £46.09
from £46.09
# 11
MPN: 91173125702
GUIDE TUBE
# 11
MPN: 91173125703
GUIDE TUBE
from £18.30
from £18.30
# 12
MPN: 91173134502
CENTRING PLATE
LOWER
from £3.79
from £3.79
# 13
MPN: 91173102901
PRESSURE SPRING
from £3.24
from £3.24
# 14
MPN: 91173134700
CENTRING PLATE
UPPER
from £3.79
from £3.79
# 15
MPN: 94473114300
SEAL STRIP
from £3.01
from £3.01
# 16
MPN: 92873124703
PACKING
LEFT LHD
Supersession
Supersession
# 16
MPN: 92873124904
PACKING
RIGHT LHD
from £24.80
from £24.80
# 16
MPN: 92773124703
PACKING
RIGHT RHD
# 16
MPN: 92773124904
PACKING
left rhd
from £15.29
from £15.29
# 17
MPN: 94473102701
COVER FRAME
LEFT A. RIGHT
from £305.14
from £305.14
# 17
MPN: 92862406700
COVER FRAME - WITH: - TRANSMISSION
(PR:537,538)
from £291.14
from £291.14
# 18
MPN: 803971980
PIN (MALE) TERMINAL HOUSING - 7-POLE
from £3.07
from £3.07
# 19
MPN: N 0175641
cyl.connector with retain. lug - 1,6 - 1
from £0.70
from £0.70
# 20
MPN: 99914300302
SCREW, HEX. HD. - M 5 X 10
from £0.76
from £0.76
# 21
MPN: 94473103502
MIRROR GLASS (FLAT)
from £135.54
from £135.54
# 21
MPN: 94473103504
MIRROR GLASS (FLAT)
(\\S..\\)
from £135.54
from £135.54
# 21
MPN: 94473103503
MIRROR GLASS (CONVEX)
from £135.54
from £135.54
# 21
MPN: 94473103505
MIRROR GLASS (CONVEX)
(\\S..\\)
from £135.54
from £135.54
# 22
MPN: 92853123503
THREADED PIN
from £6.85
from £6.85
# 23
MPN: N 0132951
SPRING PIN
from £0.69
from £0.69
# 24
MPN: 99921801902
SCREW - M 5 X 45 - D >> - MJ 1990
# 24
MPN: 99921807302
screw, cheese hd. - M 5 X 45 - D - MJ 1991>> - MJ 1991
from £10.69
from £10.69
# 25
MPN: 99970313740
CAP
from £1.36
from £1.36
# 26
MPN: 92861324100
SWITCH
from £81.22
from £81.22
# 27
MPN: 92855546103
SUPPORT SECTION
LHD
# 27
MPN: 92755546203
SUPPORT SECTION
RHD
# 28
MPN: 92855546302
THREADED BUSHING
from £6.16
from £6.16
# 29
MPN: 92861308200
button
# 30
MPN: 92861324000
SWITCH
# 31
MPN: 92861813600
electronic control module - D >> - MJ 1989
(PR:537,538)
# 31
MPN: 92861813602
electronic control module - D - MJ 1990>>
(PR:537,538)
from £400.50
from £400.50
# 32
MPN: N 01152513
Washer - A 8,4
lhd (PR:537)
# 33
MPN: 90007602502
HEX. NUT - M 8 - DISCONTINUED PART
lhd (PR:537)
Supersession
Supersession
# 33
MPN: 90007606402
hex. nut - M 8
lhd (PR:537)
from £0.59
from £0.59
# 34
MPN: 92861843100
RETAINING BRACKET
lhd (PR:537)
from £1.70
from £1.70
# 35
MPN: N 0115247
WASHER - A 6,4 - DISCONTINUED PART
lhd (PR:537)
# 35
MPN: N 01152427
Washer - A 6,4
lhd (PR:537)
from £0.47
from £0.47
# 36
MPN: N 0141387
fillister hd. screw - M 6 X 10
lhd (PR:537)
from £0.73
from £0.73
# 37
MPN: N 0116667
WASHER - B 6,4
rhd (PR:538)
# 38
MPN: N 0141423
fillister hd. screw - M 6 X 20
rhd (PR:538)
from £0.65
from £0.65
# 39
MPN: 92864134200
BRACKET
LHD
from £4.19
from £4.19
# 39
MPN: 92764134200
BRACKET
RHD
from £2.92
from £2.92
# 40
MPN: N 0147603
SCREW, CHEESE HD. - M 5 X 12 - DISCONTINUED PART
from £0.86
from £0.86
# 40
MPN: 90006707001
SCREW, CHEESE HD. - M 5 X 12
from £1.60
from £1.60
# 41
MPN: 91161281700
PROTECTIVE CAP
from £11.14
from £11.14
# 42
MPN: 92864114200
TEMPERATURE SENSOR
from £69.31
from £69.31
# 43
MPN: 443906232
FLAT CONTACT HOUSING WITH - GASKET
from £7.55
from £7.55
-part-diagram-809-015.webp "PORSCHE 1987 (928) LUGGAGE COMPARTMENT COVER PARTS DIAGRAM")
-part-diagram-810-000.webp "PORSCHE 1987 (928) DECORATIVE FITTINGS - EXTERIOR EQUIPMENT PARTS DIAGRAM")
-part-diagram-810-005.webp "PORSCHE 1987 (928) SIDE MEMBER TRIM PARTS DIAGRAM")
-part-diagram-811-005.webp "PORSCHE 1987 (928) SUNROOF - ELECTRICALLY ADJUSTABLE PARTS DIAGRAM")
-part-diagram-812-000.webp "PORSCHE 1987 (928) SEAT BELT - AUTOMATIC PARTS DIAGRAM")
-part-diagram-812-005.webp "PORSCHE 1987 (928) SEAT BELT PARTS DIAGRAM")
-part-diagram-813-005.webp "PORSCHE 1987 (928) AIR CONDITIONER - CONTROL SWITCH - LINES - AIR DUCT PARTS DIAGRAM")
-part-diagram-813-010.webp "PORSCHE 1987 (928) AIR CONDITIONER - HOSES - HEATING NOZZLES PARTS DIAGRAM")
-part-diagram-813-015.webp "PORSCHE 1987 (928) AIR CONDITIONER - COMPRESSOR PARTS DIAGRAM")
-part-diagram-813-020.webp "PORSCHE 1987 (928) COMPRESSOR - ASSEMBLY PARTS DIAGRAM")
-part-diagram-813-021.webp "PORSCHE 1987 (928) COMPRESSOR - ASSEMBLY PARTS DIAGRAM")
-part-diagram-813-025.webp "PORSCHE 1987 (928) AIR CONDITIONER - LINES - AUXILIARY UNITS PARTS DIAGRAM")
-part-diagram-813-026.webp "PORSCHE 1987 (928) AIR CONDITIONER - LINES - AUXILIARY UNITS PARTS DIAGRAM")
-part-diagram-813-030.webp "PORSCHE 1987 (928) AIR CONDITIONER - AIR CONDITIONER PARTS DIAGRAM")
-part-diagram-901-000.webp "PORSCHE 1987 (928) ENGINE ELECTRICS PARTS DIAGRAM")
-part-diagram-901-002.webp "PORSCHE 1987 (928) ENGINE ELECTRICS - LH-JETRONIC PARTS DIAGRAM")
-part-diagram-901-005.webp "PORSCHE 1987 (928) ALTERNATOR PARTS DIAGRAM")
-part-diagram-902-000.webp "PORSCHE 1987 (928) STARTER - BATTERY PARTS DIAGRAM")
-part-diagram-902-005.webp "PORSCHE 1987 (928) HARNESS PARTS DIAGRAM")
-part-diagram-902-006.webp "PORSCHE 1987 (928) HARNESS - ENGINE PARTS DIAGRAM")
-part-diagram-902-008.webp "PORSCHE 1987 (928) HARNESS - LH-JETRONIC PARTS DIAGRAM")
-part-diagram-902-010.webp "PORSCHE 1987 (928) HARNESS - DASHBOARD PARTS DIAGRAM")
-part-diagram-902-011.webp "PORSCHE 1987 (928) HARNESS - DOOR PARTS DIAGRAM")
-part-diagram-902-012.webp "PORSCHE 1987 (928) HARNESS - PASSENGER COMPARTMENT PARTS DIAGRAM")
-part-diagram-902-015.webp "PORSCHE 1987 (928) HARNESS - LOUDSPEAKER PARTS DIAGRAM")
-part-diagram-902-017.webp "PORSCHE 1987 (928) HARNESS - ANTI-LOCKING BRAKE SYST. -ABS- PARTS DIAGRAM")
-part-diagram-902-020.webp "PORSCHE 1987 (928) HARNESS - REAR END PARTS DIAGRAM")
-part-diagram-903-000.webp "PORSCHE 1987 (928) SWITCH - MANUALLY PARTS DIAGRAM")
-part-diagram-903-005.webp "PORSCHE 1987 (928) FANFARE HORN PARTS DIAGRAM")
-part-diagram-903-010.webp "PORSCHE 1987 (928) FUSE BOX/RELAY PLATE - RELAY - FUSE PARTS DIAGRAM")
-part-diagram-904-000.webp "PORSCHE 1987 (928) WINDSCREEN WIPER SYSTEM PARTS DIAGRAM")
-part-diagram-904-005.webp "PORSCHE 1987 (928) REAR WINDOW WIPER PARTS DIAGRAM")
-part-diagram-904-010.webp "PORSCHE 1987 (928) WINDSHIELD WASHER UNIT - HEADLIGHT WASHER SYSTEM - INTENSIVE WINDSCREEN WASHER PARTS DIAGRAM")
-part-diagram-905-000.webp "PORSCHE 1987 (928) HEADLAMP - TURN SIGNAL PARTS DIAGRAM")
-part-diagram-905-010.webp "PORSCHE 1987 (928) REAR LIGHT PARTS DIAGRAM")
-part-diagram-905-015.webp "PORSCHE 1987 (928) INTERIOR LIGHTS PARTS DIAGRAM")
-part-diagram-906-000.webp "PORSCHE 1987 (928) INSTRUMENT CLUSTER - D >> - MJ 1988 PARTS DIAGRAM")
-part-diagram-906-001.webp "PORSCHE 1987 (928) INSTRUMENT CLUSTER - D - MJ 1989>> PARTS DIAGRAM")
-part-diagram-906-005.webp "PORSCHE 1987 (928) CENTRAL INDICATOR PARTS DIAGRAM")
-part-diagram-907-000.webp "PORSCHE 1987 (928) CRUISE CONTROL SYSTEM - D - MJ 1987>> - MJ 1987 PARTS DIAGRAM")
-part-diagram-907-001.webp "PORSCHE 1987 (928) CRUISE CONTROL SYSTEM - D - MJ 1988>> PARTS DIAGRAM")
-part-diagram-911-000.webp "PORSCHE 1987 (928) RADIO UNIT - INSTALLATION PARTS PARTS DIAGRAM")
-part-diagram-911-001.webp "PORSCHE 1987 (928) AMPLIFIER - LOUDSPEAKER - D >> - MJ 1988 PARTS DIAGRAM")
-part-diagram-911-002.webp "PORSCHE 1987 (928) SOUND SYSTEM - WITH: - AMPLIFIER - D - MJ 1989>> PARTS DIAGRAM")
-part-diagram-912-000.webp "PORSCHE 1987 (928) PHONE PREPARATION PARTS DIAGRAM")
-part-diagram-912-001.webp "PORSCHE 1987 (928) PHONE PREPARATION PARTS DIAGRAM")
-part-diagram-001-000.webp "PORSCHE 1987 (928) TOOL - JACK PARTS DIAGRAM")
-part-diagram-001-003.webp "PORSCHE 1987 (928) CLEANING AGENT - PORSCHE CLASSIC PARTS DIAGRAM")
-part-diagram-001-004.webp "PORSCHE 1987 (928) ACCESSORIES - PORSCHE CLASSIC PARTS DIAGRAM")
-part-diagram-001-005.webp "PORSCHE 1987 (928) SIGNS/NOTICES PARTS DIAGRAM")
-part-diagram-001-010.webp "PORSCHE 1987 (928) IDENTIFICATION PLATE PARTS DIAGRAM")
-part-diagram-001-015.webp "PORSCHE 1987 (928) FLOOR MAT PARTS DIAGRAM")
-part-diagram-002-000.webp "PORSCHE 1987 (928) ACCESSORIES PARTS DIAGRAM")
-part-diagram-002-001.webp "PORSCHE 1987 (928) ACCESSORIES PARTS DIAGRAM")
-part-diagram-002-005.webp "PORSCHE 1987 (928) ROOF TRANSPORT SYSTEM PARTS DIAGRAM")
-part-diagram-002-006.webp "PORSCHE 1987 (928) ROOF TRANSPORT SYSTEM PARTS DIAGRAM")
-part-diagram-004-000.webp "PORSCHE 1987 (928) LACQUERS - BASIC MATERIALS PARTS DIAGRAM")
-part-diagram-005-003.webp "PORSCHE 1987 (928) INSTRUCTION MANUAL - CARE PASS PARTS DIAGRAM")
-part-diagram-006-005.webp "PORSCHE 1987 (928) OWNER'S MANUAL - CARE PASS PARTS DIAGRAM")
-part-diagram-101-000.webp "PORSCHE 1987 (928) REPLACEMENT ENGINE - SHORT ENGINE - CRANKCASE PARTS DIAGRAM")
-part-diagram-101-005.webp "PORSCHE 1987 (928) CRANKCASE - SINGLE PARTS - REPAIR SET FOR MAINTENANCE - SEE ILLUSTRATION: PARTS DIAGRAM")
-part-diagram-102-000.webp "PORSCHE 1987 (928) CRANKSHAFT - CONNECTING ROD PARTS DIAGRAM")
-part-diagram-102-005.webp "PORSCHE 1987 (928) PISTON - PISTON RINGS PARTS DIAGRAM")
-part-diagram-103-000.webp "PORSCHE 1987 (928) CYLINDER HEAD - - REPAIR SET FOR MAINTENANCE - SEE ILLUSTRATION: PARTS DIAGRAM")
-part-diagram-103-005.webp "PORSCHE 1987 (928) CAMSHAFT - - REPAIR SET FOR MAINTENANCE - SEE ILLUSTRATION: PARTS DIAGRAM")
-part-diagram-103-010.webp "PORSCHE 1987 (928) DRIVING MECHANISM - CAMSHAFT PARTS DIAGRAM")
-part-diagram-103-015.webp "PORSCHE 1987 (928) TOOTHED BELT COVERING PARTS DIAGRAM")
-part-diagram-104-000.webp "PORSCHE 1987 (928) ENGINE LUBRICATION PARTS DIAGRAM")
-part-diagram-104-005.webp "PORSCHE 1987 (928) ENGINE OIL COOLING - D - MJ 1990>> PARTS DIAGRAM")
-part-diagram-105-000.webp "PORSCHE 1987 (928) WATER PUMP PARTS DIAGRAM")
-part-diagram-105-005.webp "PORSCHE 1987 (928) WATER COOLING 1 PARTS DIAGRAM")
-part-diagram-105-006.webp "PORSCHE 1987 (928) WATER COOLING 2 PARTS DIAGRAM")
-part-diagram-106-000.webp "PORSCHE 1987 (928) AIR CLEANER - LH-JETRONIC PARTS DIAGRAM")
-part-diagram-107-000.webp "PORSCHE 1987 (928) LH-JETRONIC - 1 PARTS DIAGRAM")
-part-diagram-107-005.webp "PORSCHE 1987 (928) LH-JETRONIC - 2 PARTS DIAGRAM")
-part-diagram-107-010.webp "PORSCHE 1987 (928) LH-JETRONIC - 3 PARTS DIAGRAM")
-part-diagram-107-015.webp "PORSCHE 1987 (928) LH-JETRONIC - 4 PARTS DIAGRAM")
-part-diagram-108-000.webp "PORSCHE 1987 (928) AIR INJECTION - FOR VEHICLES WITH - CATALYST PARTS DIAGRAM")
-part-diagram-108-005.webp "PORSCHE 1987 (928) AIR INJECTION - FOR CARS WITHOUT - CATALYST PARTS DIAGRAM")
-part-diagram-109-000.webp "PORSCHE 1987 (928) ENGINE SUSPENSION PARTS DIAGRAM")
-part-diagram-198-000.webp "PORSCHE 1987 (928) REPAIR KITS - MAINTENANCE SET - GASKET SET PARTS DIAGRAM")
-part-diagram-198-005.webp "PORSCHE 1987 (928) ENGINE OIL - PORSCHE CLASSIC 10W50 PARTS DIAGRAM")
-part-diagram-201-000.webp "PORSCHE 1987 (928) FUEL TANK PARTS DIAGRAM")
-part-diagram-201-005.webp "PORSCHE 1987 (928) FUEL SYSTEM PARTS DIAGRAM")
-part-diagram-201-010.webp "PORSCHE 1987 (928) FUEL COOLING PARTS DIAGRAM")
-part-diagram-201-015.webp "PORSCHE 1987 (928) TANK VENTILATION PARTS DIAGRAM")
-part-diagram-202-000.webp "PORSCHE 1987 (928) EXHAUST SYSTEM - CATALYST PARTS DIAGRAM")
-part-diagram-202-005.webp "PORSCHE 1987 (928) EXHAUST SYSTEM - EXHAUST SILENCER, FRONT PARTS DIAGRAM")
-part-diagram-202-010.webp "PORSCHE 1987 (928) EXHAUST SYSTEM - INTERMEDIATE SILENCER PARTS DIAGRAM")
-part-diagram-202-015.webp "PORSCHE 1987 (928) EXHAUST SYSTEM - MUFFLER - EXHAUST PARTS DIAGRAM")
-part-diagram-301-000.webp "PORSCHE 1987 (928) MANUAL GEARBOX - CLUTCH PARTS DIAGRAM")
-part-diagram-302-000.webp "PORSCHE 1987 (928) MANUAL GEARBOX - REPLACEMENT TRANSMISSION - TRANSMISSION CASE PARTS DIAGRAM")
-part-diagram-303-000.webp "PORSCHE 1987 (928) MANUAL GEARBOX - GEAR WHEEL SETS PARTS DIAGRAM")
-part-diagram-303-005.webp "PORSCHE 1987 (928) MANUAL GEARBOX - GEARS AND SHAFTS PARTS DIAGRAM")
-part-diagram-304-000.webp "PORSCHE 1987 (928) MANUAL GEARBOX - SHIFT RODS - SHIFT FORKS PARTS DIAGRAM")
-part-diagram-305-000.webp "PORSCHE 1987 (928) MANUAL GEARBOX - DIFFERENTIAL PARTS DIAGRAM")
-part-diagram-305-005.webp "PORSCHE 1987 (928) MANUAL GEARBOX - LIMITED SLIP DIFFERENTIAL - D >> - MJ 1989 PARTS DIAGRAM")
-part-diagram-305-006.webp "PORSCHE 1987 (928) MANUAL GEARBOX - PORSCHE - LIMITED SLIP DIFFERENTIAL - D - MJ 1990>> PARTS DIAGRAM")
-part-diagram-305-007.webp "PORSCHE 1987 (928) MANUAL GEARBOX - LOCK CONTROL 1 - D - MJ 1990>> PARTS DIAGRAM")
-part-diagram-305-008.webp "PORSCHE 1987 (928) MANUAL GEARBOX - LOCK CONTROL 2 - D - MJ 1990>> PARTS DIAGRAM")
-part-diagram-306-000.webp "PORSCHE 1987 (928) MANUAL GEARBOX - TRANSMISSION SUSPENSION PARTS DIAGRAM")
-part-diagram-307-000.webp "PORSCHE 1987 (928) AUTOMATIC TRANSMISSION - CENTRAL TUBE PARTS DIAGRAM")
-part-diagram-307-005.webp "PORSCHE 1987 (928) AUTOMATIC TRANSMISSION - REPLACEMENT TRANSMISSION PARTS DIAGRAM")
-part-diagram-307-010.webp "PORSCHE 1987 (928) AUTOMATIC TRANSMISSION - TORQUE CONVERTER - CONVERTER HOUSING PARTS DIAGRAM")
-part-diagram-307-015.webp "PORSCHE 1987 (928) AUTOMATIC TRANSMISSION - PRIMARY PUMP PARTS DIAGRAM")
-part-diagram-307-020.webp "PORSCHE 1987 (928) AUTOMATIC TRANSMISSION - CLUTCH - K 1 PARTS DIAGRAM")
-part-diagram-307-025.webp "PORSCHE 1987 (928) AUTOMATIC TRANSMISSION - DRIVE SHAFT - GEAR SET PARTS DIAGRAM")
-part-diagram-307-030.webp "PORSCHE 1987 (928) AUTOMATIC TRANSMISSION - PLANET PINION CARRIER PARTS DIAGRAM")
-part-diagram-307-035.webp "PORSCHE 1987 (928) AUTOMATIC TRANSMISSION - FREEWHEEL PARTS DIAGRAM")
-part-diagram-307-040.webp "PORSCHE 1987 (928) AUTOMATIC TRANSMISSION - CLUTCH - K 2 PARTS DIAGRAM")
-part-diagram-307-045.webp "PORSCHE 1987 (928) AUTOMATIC TRANSMISSION - BRAKE BANDS PARTS DIAGRAM")
-part-diagram-307-050.webp "PORSCHE 1987 (928) AUTOMATIC TRANSMISSION - SHIFT-VALVE BODY PARTS DIAGRAM")
-part-diagram-307-055.webp "PORSCHE 1987 (928) AUTOMATIC TRANSMISSION - TRANSMISSION CASE - ACCESSORIES PARTS DIAGRAM")
-part-diagram-307-060.webp "PORSCHE 1987 (928) AUTOMATIC TRANSMISSION - TRANSMISSION CASE - INSTALLATION PARTS PARTS DIAGRAM")
-part-diagram-307-065.webp "PORSCHE 1987 (928) AUTOMATIC TRANSMISSION - INTERMEDIATE PLATE - PARKING LOCK PARTS DIAGRAM")
-part-diagram-307-070.webp "PORSCHE 1987 (928) AUTOMATIC TRANSMISSION - DIFFERENTIAL 1 PARTS DIAGRAM")
-part-diagram-307-075.webp "PORSCHE 1987 (928) AUTOMATIC TRANSMISSION - DIFFERENTIAL 2 PARTS DIAGRAM")
-part-diagram-307-080.webp "PORSCHE 1987 (928) AUTOMATIC TRANSMISSION - LIMITED SLIP DIFFERENTIAL - D >> - MJ 1989 PARTS DIAGRAM")
-part-diagram-307-081.webp "PORSCHE 1987 (928) AUTOMATIC TRANSMISSION - PORSCHE - LIMITED SLIP DIFFERENTIAL - D - MJ 1990>> PARTS DIAGRAM")
-part-diagram-307-082.webp "PORSCHE 1987 (928) AUTOMATIC TRANSMISSION - LOCK CONTROL 1 - D - MJ 1990>> PARTS DIAGRAM")
-part-diagram-307-083.webp "PORSCHE 1987 (928) AUTOMATIC TRANSMISSION - LOCK CONTROL 2 - D - MJ 1990>> PARTS DIAGRAM")
-part-diagram-307-085.webp "PORSCHE 1987 (928) AUTOMATIC TRANSMISSION - ATF COOLER - ATF LINES PARTS DIAGRAM")
-part-diagram-307-086.webp "PORSCHE 1987 (928) AUTOMATIC TRANSMISSION - ATF COOLER - ATF LINES - FOR VEHICLES WITH - CATALYST - MOD.88-11/88 (MOD.89) PARTS DIAGRAM")
-part-diagram-307-087.webp "PORSCHE 1987 (928) AUTOMATIC TRANSMISSION - ATF COOLER - ATF LINES PARTS DIAGRAM")
-part-diagram-307-090.webp "PORSCHE 1987 (928) AUTOMATIC TRANSMISSION - TRANSMISSION SUSPENSION PARTS DIAGRAM")
-part-diagram-398-000.webp "PORSCHE 1987 (928) GASKET SET PARTS DIAGRAM")
-part-diagram-401-000.webp "PORSCHE 1987 (928) TRACK CONTROL ARM PARTS DIAGRAM")
-part-diagram-401-005.webp "PORSCHE 1987 (928) STEERING KNUCKLE - LUBRICANTS PARTS DIAGRAM")
-part-diagram-402-000.webp "PORSCHE 1987 (928) SUSPENSION PARTS DIAGRAM")
-part-diagram-403-000.webp "PORSCHE 1987 (928) STEERING GEAR - STEERING TRACK ROD PARTS DIAGRAM")
-part-diagram-403-001.webp "PORSCHE 1987 (928) POWER STEERING - LINES PARTS DIAGRAM")
-part-diagram-403-005.webp "PORSCHE 1987 (928) STEERING PARTS - STEERING WHEEL PARTS DIAGRAM")
-part-diagram-403-006.webp "PORSCHE 1987 (928) STEERING PARTS - STEERING WHEEL - AIRBAG - D - MJ 1990>> PARTS DIAGRAM")
-part-diagram-403-007.webp "PORSCHE 1987 (928) AIRBAG - SWITCH UNIT - D - MJ 1990>> PARTS DIAGRAM")
-part-diagram-501-000.webp "PORSCHE 1987 (928) REAR AXLE PARTS DIAGRAM")
-part-diagram-502-000.webp "PORSCHE 1987 (928) SUSPENSION - STABILIZER PARTS DIAGRAM")
-part-diagram-502-005.webp "PORSCHE 1987 (928) DRIVE SHAFT PARTS DIAGRAM")
-part-diagram-601-000.webp "PORSCHE 1987 (928) WHEELS PARTS DIAGRAM")
-part-diagram-601-005.webp "PORSCHE 1987 (928) TIRE PRESSURE CONTROL SYSTEM - D - MJ 1989>> PARTS DIAGRAM")
-part-diagram-602-000.webp "PORSCHE 1987 (928) DISC BRAKES - SEE TECHNICAL INFORMATION - GR.4 NR. 1/89 PARTS DIAGRAM")
-part-diagram-603-000.webp "PORSCHE 1987 (928) DISC BRAKES - SEE TECHNICAL INFORMATION - GR.4 NR. 1/89 PARTS DIAGRAM")
-part-diagram-604-000.webp "PORSCHE 1987 (928) BRAKE MASTER CYLINDER - BRAKE BOOSTER PARTS DIAGRAM")
-part-diagram-604-001.webp "PORSCHE 1987 (928) SUCTION PUMP PARTS DIAGRAM")
-part-diagram-604-005.webp "PORSCHE 1987 (928) BRAKE LINES PARTS DIAGRAM")
-part-diagram-604-010.webp "PORSCHE 1987 (928) BRAKE LINES - ANTI-LOCKING BRAKE SYST. -ABS- PARTS DIAGRAM")
-part-diagram-604-015.webp "PORSCHE 1987 (928) HYDRAULIC UNIT - SPEED SENSOR - ELECTRONIC CONTROL MODULE - ANTI-LOCKING BRAKE SYST. -ABS- PARTS DIAGRAM")
-part-diagram-698-005.webp "PORSCHE 1987 (928) BRAKE FLUID - PORSCHE CLASSIC PARTS DIAGRAM")
-part-diagram-701-000.webp "PORSCHE 1987 (928) SHIFT MECHANISM - FOR VEHICLES WITH - MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-701-005.webp "PORSCHE 1987 (928) SHIFT MECHANISM - FOR VEHICLES WITH - AUTOMATIC TRANSMISSION PARTS DIAGRAM")
-part-diagram-701-010.webp "PORSCHE 1987 (928) ACTUATOR - HANDBRAKE PARTS DIAGRAM")
-part-diagram-702-000.webp "PORSCHE 1987 (928) PEDALS PARTS DIAGRAM")
-part-diagram-702-005.webp "PORSCHE 1987 (928) THROTTLE CONTROL PARTS DIAGRAM")
-part-diagram-702-010.webp "PORSCHE 1987 (928) THROTTLE CONTROL PARTS DIAGRAM")
-part-diagram-801-000.webp "PORSCHE 1987 (928) CAR BODY PARTS DIAGRAM")
-part-diagram-801-005.webp "PORSCHE 1987 (928) FRONT END PARTS DIAGRAM")
-part-diagram-801-010.webp "PORSCHE 1987 (928) FRAME - SIDE PANEL PARTS DIAGRAM")
-part-diagram-801-015.webp "PORSCHE 1987 (928) FLOOR PAN - FRAME PARTS DIAGRAM")
-part-diagram-801-020.webp "PORSCHE 1987 (928) FRAME - REAR END PARTS DIAGRAM")
-part-diagram-801-025.webp "PORSCHE 1987 (928) FENDER PARTS DIAGRAM")
-part-diagram-801-030.webp "PORSCHE 1987 (928) ROOF - COWL PARTS DIAGRAM")
-part-diagram-802-000.webp "PORSCHE 1987 (928) BUMPER PARTS DIAGRAM")
-part-diagram-802-005.webp "PORSCHE 1987 (928) BUMPER PARTS DIAGRAM")
-part-diagram-802-010.webp "PORSCHE 1987 (928) SPOILER PARTS DIAGRAM")
-part-diagram-802-015.webp "PORSCHE 1987 (928) SPOILER PARTS DIAGRAM")
-part-diagram-803-000.webp "PORSCHE 1987 (928) BONNET - INSTALLATION PARTS PARTS DIAGRAM")
-part-diagram-803-005.webp "PORSCHE 1987 (928) REAR TRUNK LID - INSTALLATION PARTS PARTS DIAGRAM")
-part-diagram-804-000.webp "PORSCHE 1987 (928) DOOR SHELL PARTS DIAGRAM")
-part-diagram-804-005.webp "PORSCHE 1987 (928) INSTALLATION PARTS - FOR - DOOR PARTS DIAGRAM")
-part-diagram-804-010.webp "PORSCHE 1987 (928) CENTRAL LOCKING SYSTEM - D >> - MJ 1988 PARTS DIAGRAM")
-part-diagram-804-011.webp "PORSCHE 1987 (928) CENTRAL LOCKING SYSTEM - D - MJ 1989>> PARTS DIAGRAM")
-part-diagram-804-015.webp "PORSCHE 1987 (928) WINDOW REGULATOR PARTS DIAGRAM")
-part-diagram-804-020.webp "PORSCHE 1987 (928) ALARM SYSTEM PARTS DIAGRAM")
-part-diagram-805-000.webp "PORSCHE 1987 (928) WINDOW GLAZING PARTS DIAGRAM")
-part-diagram-806-000.webp "PORSCHE 1987 (928) POP-UP HEADLIGHT PARTS DIAGRAM")
-part-diagram-807-000.webp "PORSCHE 1987 (928) BODY SHELL - SOUND PROOFING 1 PARTS DIAGRAM")
-part-diagram-807-001.webp "PORSCHE 1987 (928) BODY SHELL - SOUND ABSORBERS PARTS DIAGRAM")
-part-diagram-807-005.webp "PORSCHE 1987 (928) TRIMS PARTS DIAGRAM")
-part-diagram-807-010.webp "PORSCHE 1987 (928) DOOR PANEL - ROOF TRIM PANEL PARTS DIAGRAM")
-part-diagram-807-020.webp "PORSCHE 1987 (928) STOWAGE BOX PARTS DIAGRAM")
-part-diagram-808-000.webp "PORSCHE 1987 (928) SEAT - COMPLETE PARTS DIAGRAM")
-part-diagram-809-000.webp "PORSCHE 1987 (928) DASH PANEL TRIM - D >> - MJ 1989 PARTS DIAGRAM")
-part-diagram-809-001.webp "PORSCHE 1987 (928) DASH PANEL TRIM - D - MJ 1990>> PARTS DIAGRAM")
-part-diagram-809-002.webp "PORSCHE 1987 (928) DASH PANEL TRIM - AIRBAG - - D - MJ 1990>> PARTS DIAGRAM")
-part-diagram-809-003.webp "PORSCHE 1987 (928) CASSETTE HOLDER PARTS DIAGRAM")
-part-diagram-809-005.webp "PORSCHE 1987 (928) CENTER CONSOLE PARTS DIAGRAM")
